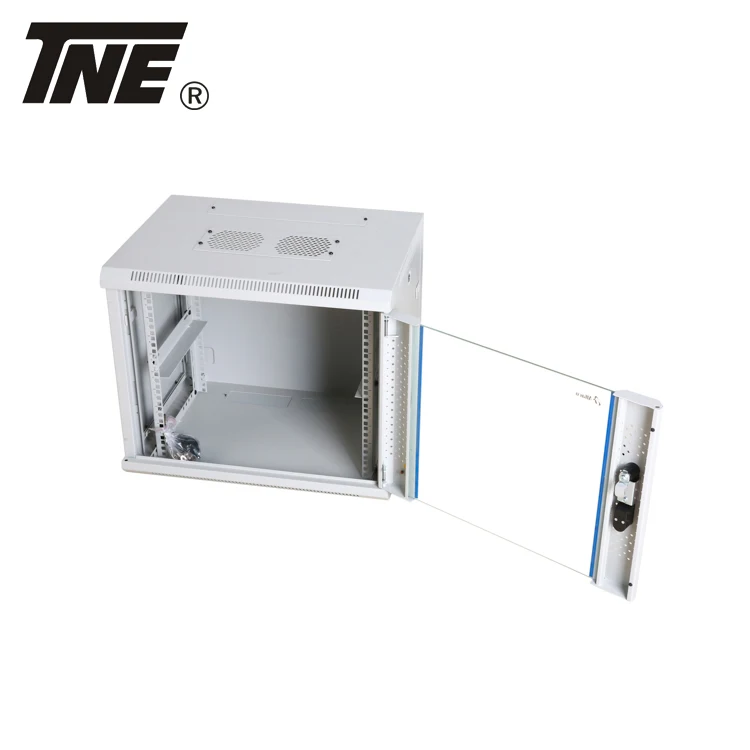

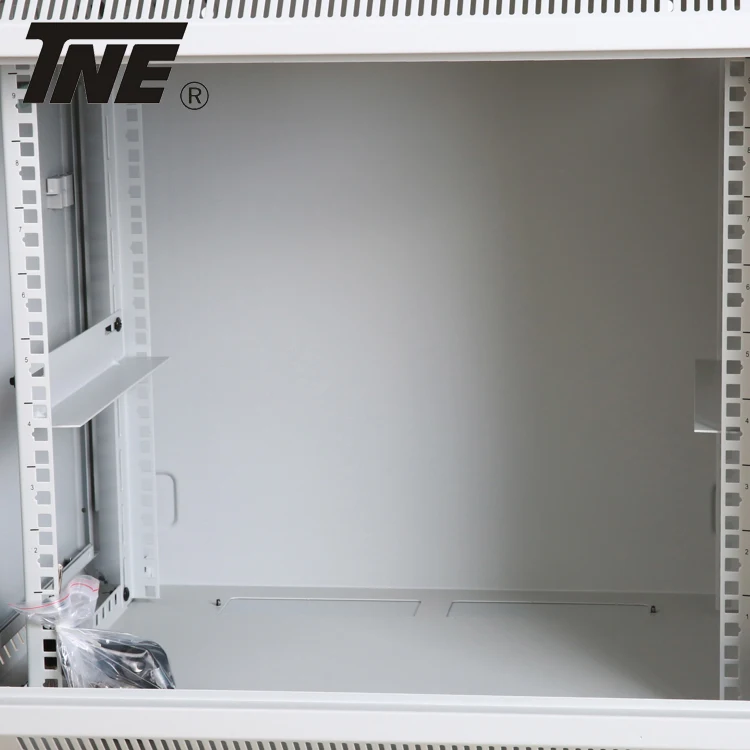

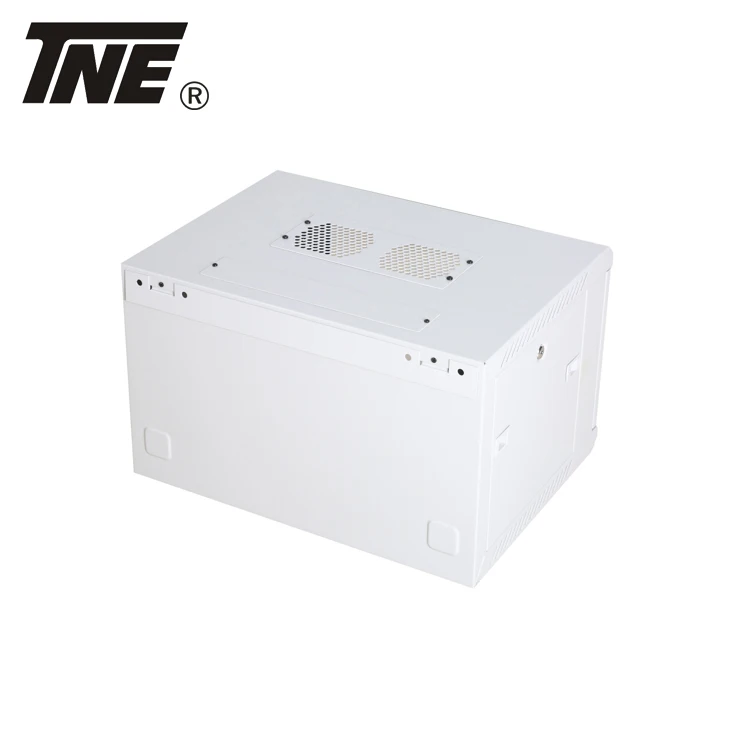

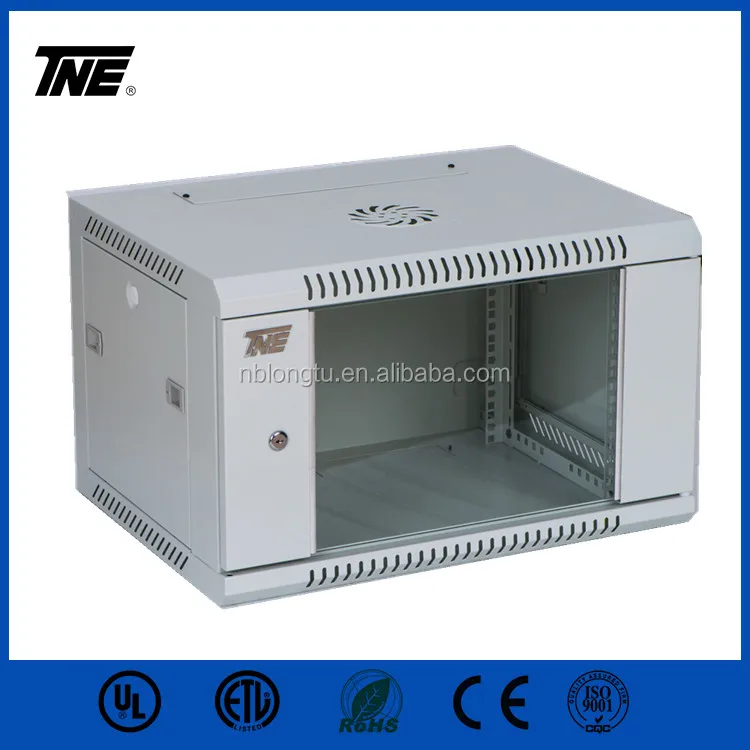

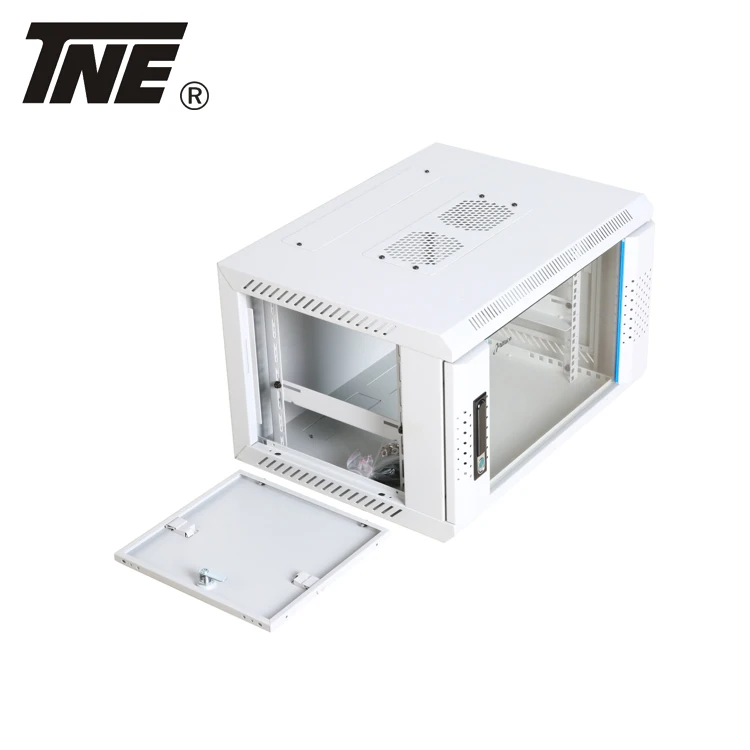

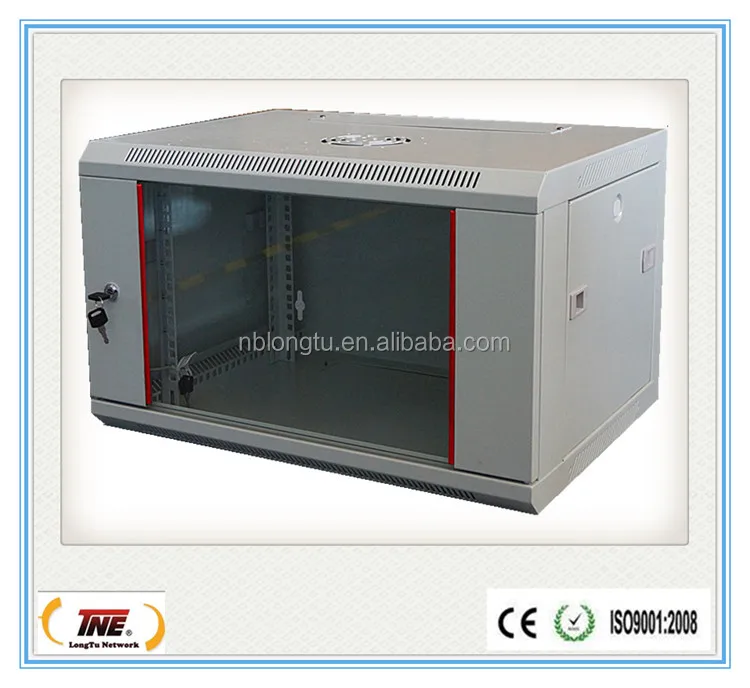

6U rack server cabinet with glass door

Product Overview

Description

19" hanging wall cabinet small metal box telecom cabinet with glass door

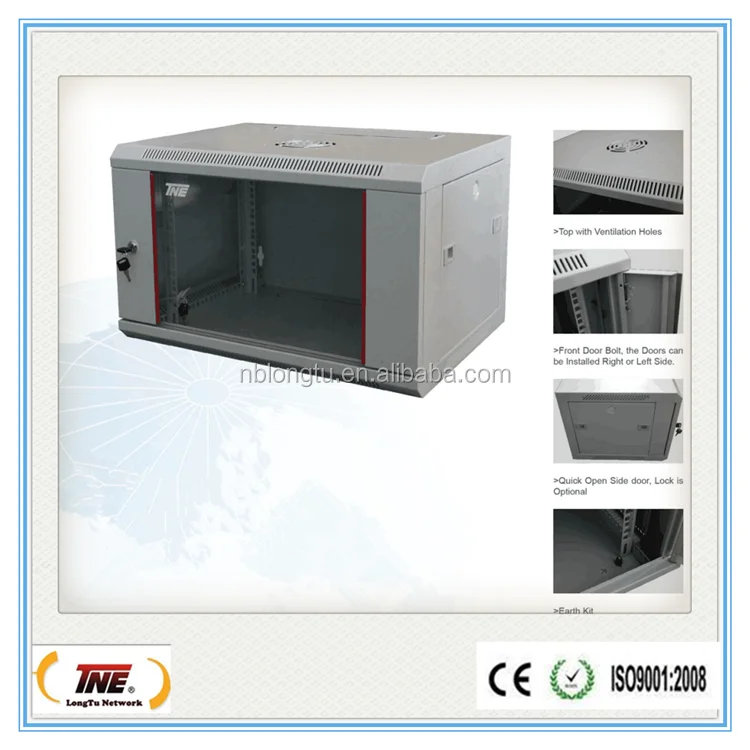

Features:





*One Section/ Single Section Wall Mount Cabinet

*Welded frame, reliable structure
*Standing or wall mounting installation
*Adjustable feet and heavy duty castors are optional
*Removable side panels, side locks optional
*Cable entry on both of top cover and bottom panel

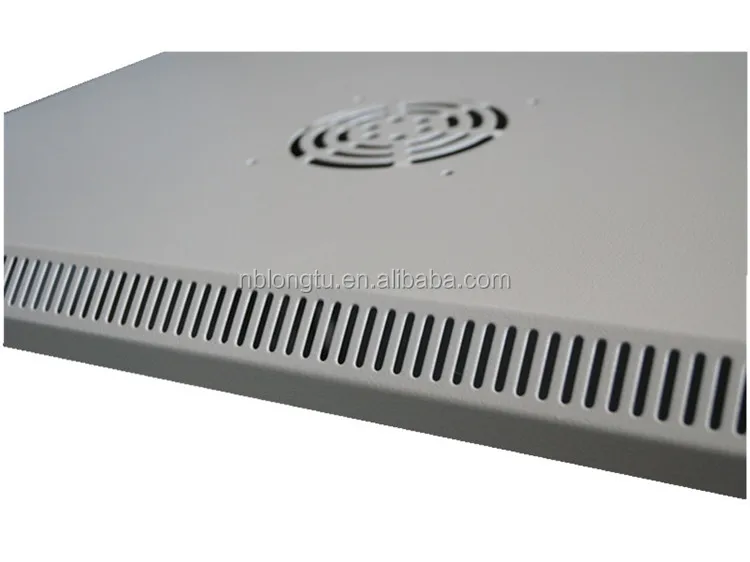

*120mm fan available (220V or 110V)
*Turning angle of front door is over 180 degrees.



Standard:
Comply with ANSI/EIA RS-310-D, IEC297-2, DIN41494; PART1, DIN41494; PART7, ETSI
Standard

Material:
High grade cold rolled steel.

Thickness:
Mounting profile: 1.500mm others: 1.2mm

Loading Capacity:
Static Loading: 60kgs

Surface finish:
Degrease, acid pickling, rust prevention and Parkerizing, pure water cleaning, static electricity plastic painting.

Degree of Protection:
IP20

Body Color:
RAL7035, RAL9004 etc.

Optional Accessory:

Fixed/cantilever shelf, sliding shelf, for 600mm, 800mm, 900mm, 1000mm depth cabinet
19'' keyboard frame (350mm, 550mm, 650mm, 730mm)
1U, 2U support board
Vertical Cable manager
19'' Power distribution unit(PDU)
19'' Blanking plate 1U, 2U, 4U
Heavy duty castor, Heavy duty castor with braker
Optional lock for side panels

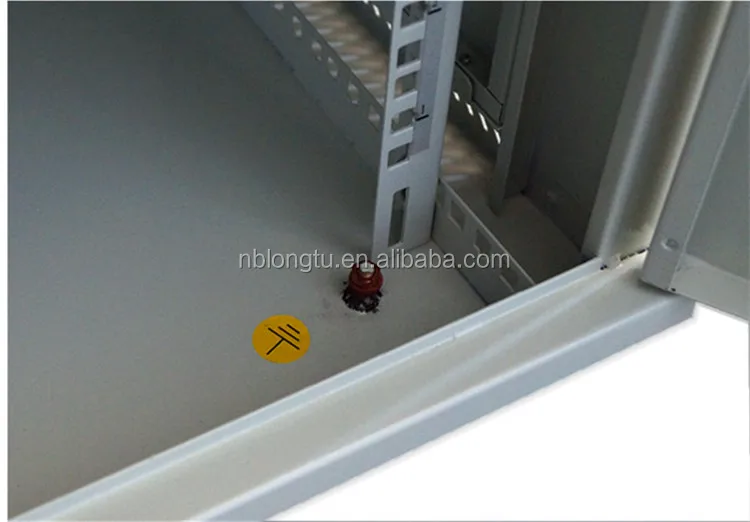

Earth kit
And so on...



MODEL NO.	CAPACITY	WIDTH(MM)	DEPTH(MM)	HEIGHT(MM)	PACKING DIMENSION			COLUME(CBM)
					W/M	D/M	H/M
TN-007-6406	6U	600	450	368	0.62	0.47	0.39	0.1136
TN-007-6606		600	600		0.62	0.62	0.39	0.1499
TN-007-6409	9U	600	450	501	0.62	0.47	0.52	0.1515
TN-007-6609		600	600		0.62	0.62	0.52	0.1999
TN-007-6412	12U	600	450	635	0.62	0.47	0.66	0.1923
TN-007-6612		600	600		0.62	0.62	0.66	0.2537
TN-007-6415	15U	600	450	769	0.62	0.47	0.79	0.2302
TN-007-6615		600	600		0.62	0.62	0.79	0.3037
TN-007-6418	18U	600	450	901	0.62	0.47	0.92	0.2681
TN-007-6618		600	600		0.62	0.62	0.92	0.3536
TN-007-6422	22U	600	450	1082	0.62	0.47	1.1	0.3205
TN-007-6622		600	600		0.62	0.62	1.1	0.4228
TN-007-6427	27U	800	450	1304	0.62	0.47	1.32	0.3846
TN-007-6627		800	600		0.62	0.62	1.32	0.5074

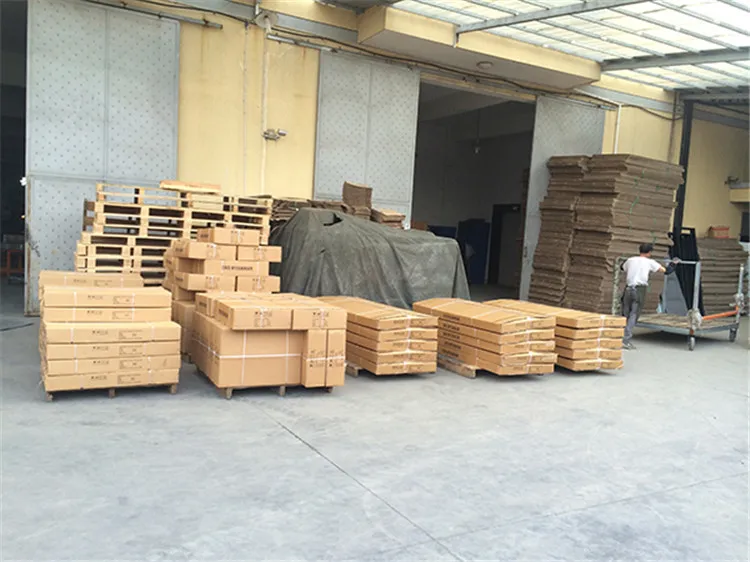

Packing:









Certificates

















Applications of Our Cabinets





Rack cabinets for Information Technology and telecommunication appliances use:



• Small, Medium and Large Servers

• DVR, Security Equipment and Routers

• Patch Panels and Switches

• Telephone Systems and PABX

• Network and Communications Equipment

• UPS Equipment

• Other Rack Mount Equipment







FAQ





1)    What is your Payment term?



---TT, LC, Western Union could be accepted.







2)    What is your Trade term?



---EXW, FOB, CNF, CIF is also ok.







3)    What is the Loading Port?



--- Ningbo,Shanghai.







4)    What is your MOQ?







MOQ of most our products is 5pcs, different items will be different. We have indicated the MOQ for each item in the price list.







5)    What is your Product Warranty?



---As Europe market, we have CE RoHS and other international safety standard for our products.



---As other market,  international safety standard certificate is also be provided.
