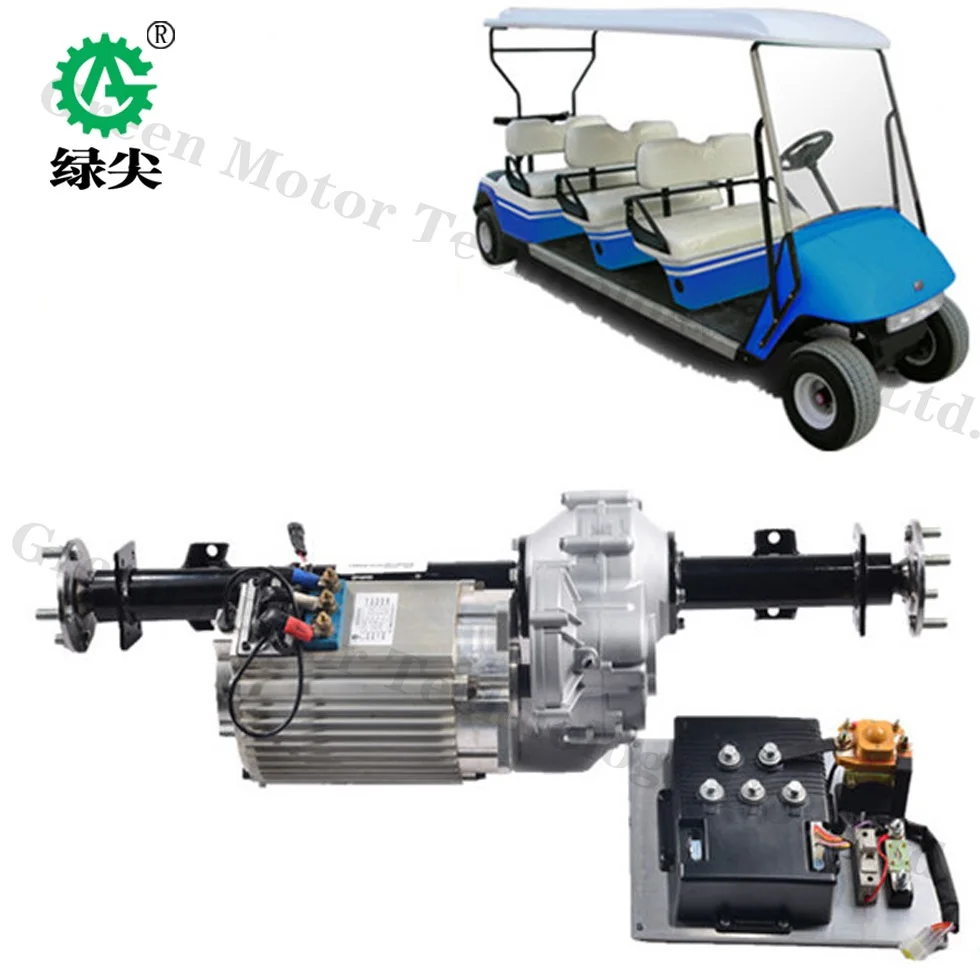

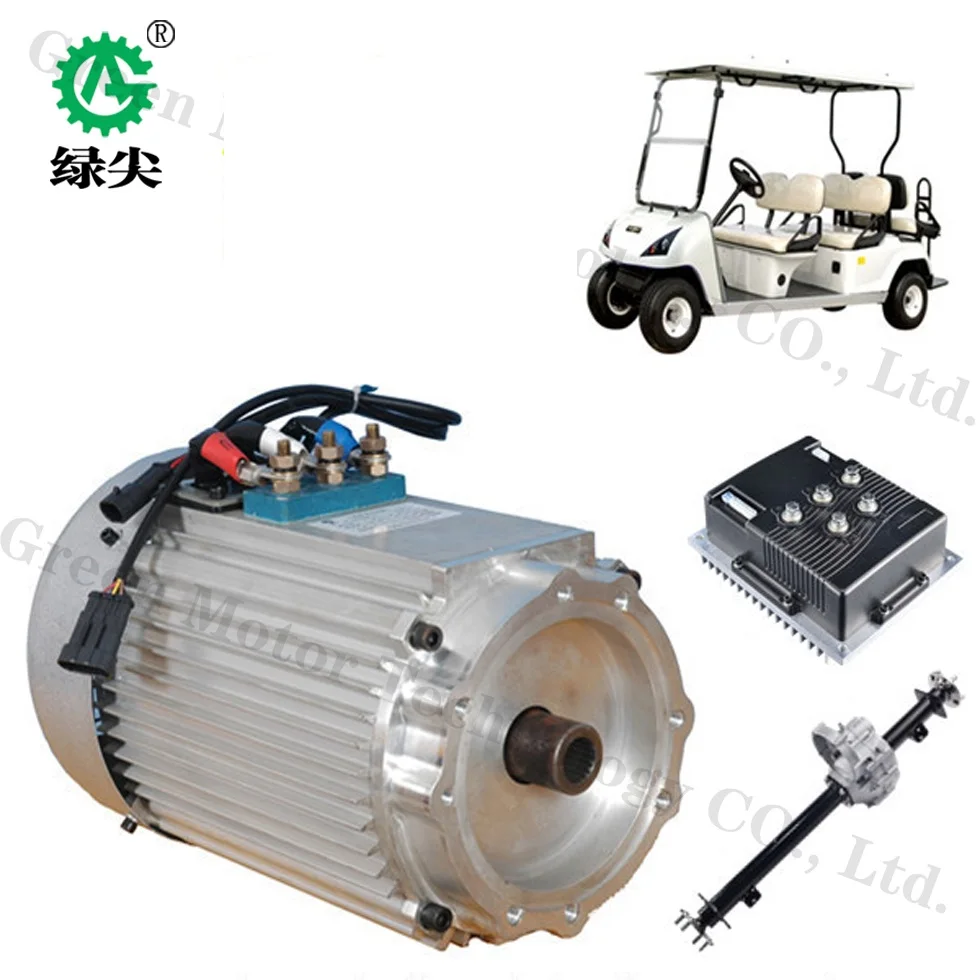

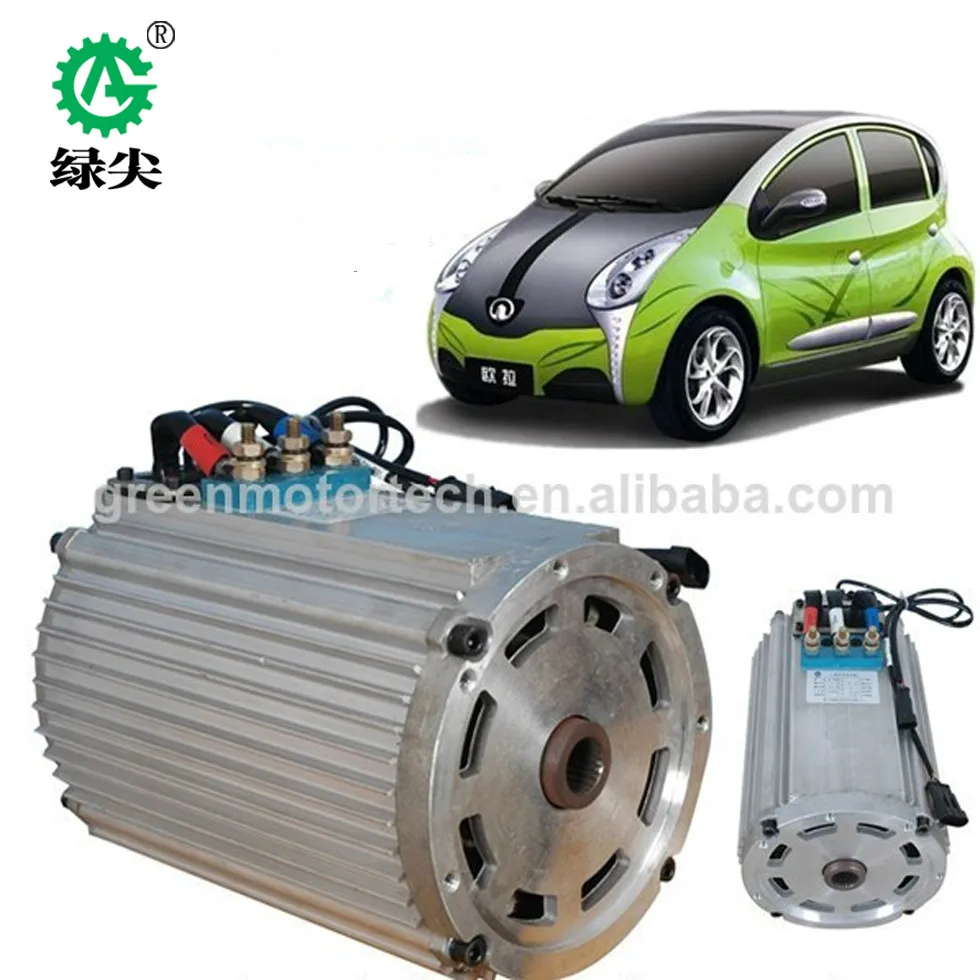

1 4kw 48v Pure electric smart car engine

Product Overview

Description



Leader of the one stop driving system solution provider appreciates your interest. Definitely, we will endorse your trust and will deliver the best performed product and service for our esteemed customer.

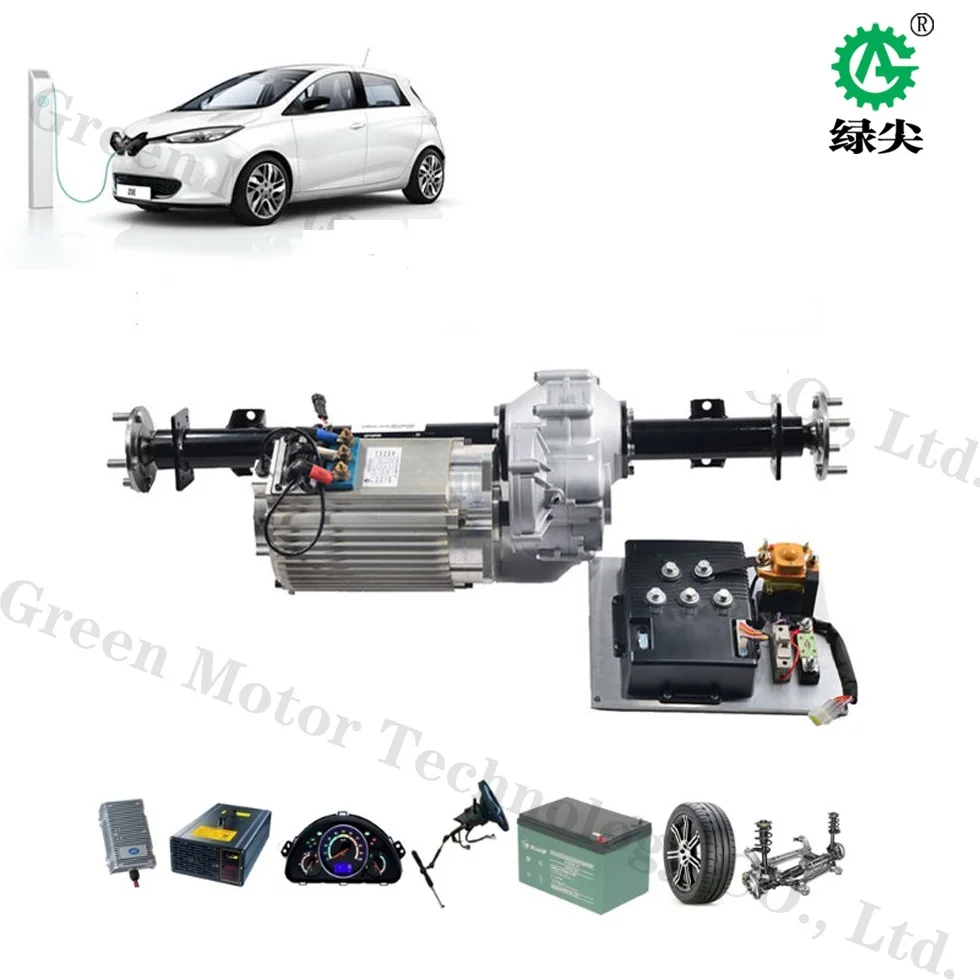

We develop and sell driving kit including motor, controller, and axle for our customers for 40 plus countries and regions all over the world. Meanwhile, we are pleased as well to provide the optional parts, such as charger, dashboard, DC-DC converter, steering system, suspension,chassis, tires, and battery pack per request on your behalf.







Typical Electric Vehicle Performance



GEV201



Maximum Speed				25km/h		Vehicle size(L*W*H)			3800*1330*1800 mm
Endurance mileage				80km		Seats			2
Unloading weight				650kg		Wheelbase			2120mm
Full loading weight				950kg		Front wheel tread			1160mm
Maximum slope				10%		Rear wheel tread			1200mm
Noise				<50dB		Tires			145/70R12, 4pcs
Battery				12V140ah*4		Driving system			48V 2kw





GEV202



Maximum Speed				35km/h		Vehicle size(L*W*H)			2770*1380*1480  mm
Endurance mileage				80km		Seats			3
Unloading weight				480kg		Wheelbase			1880mm
Full loading weight				700kg		Front wheel tread			0mm
Maximum slope				20%		Rear wheel tread			1140mm
Noise				<50dB		Tires			145/70R12, 3pcs
Battery				12V100ah*5		Driving system			48V 2kw







Driving System

Item		Specification						Picture

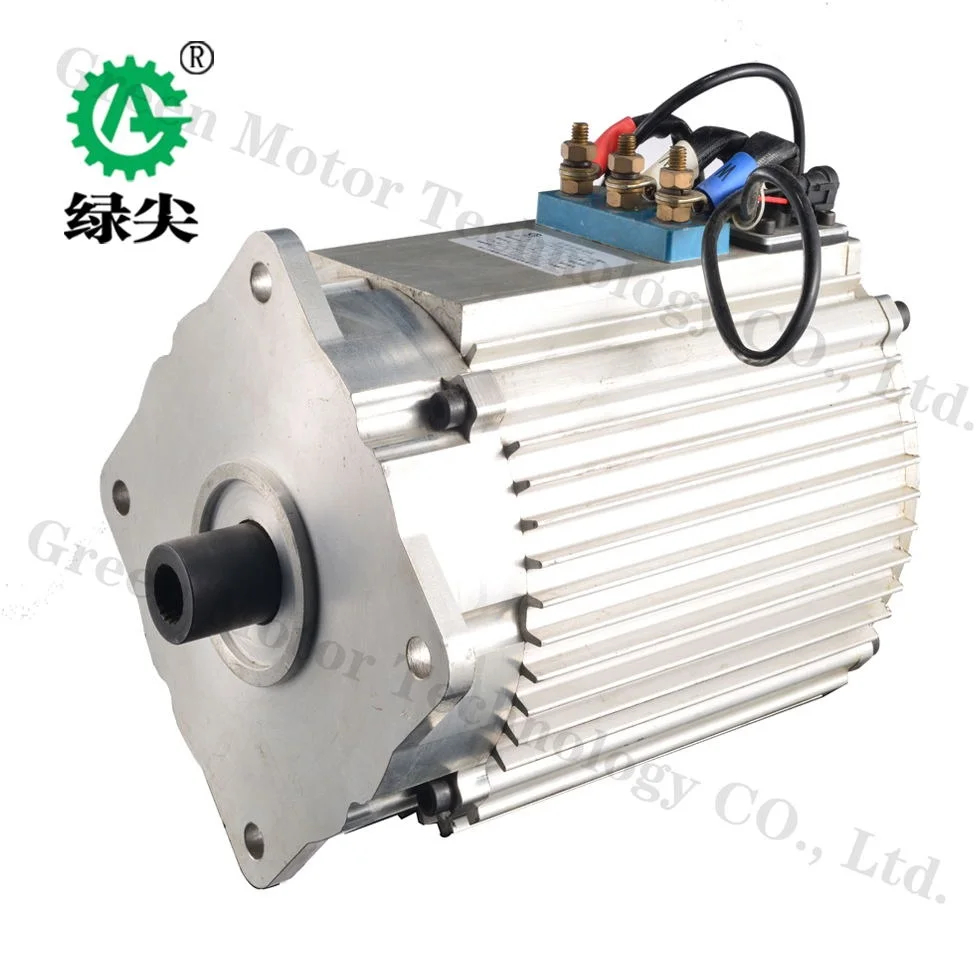

Motor		Rated power				2kw
		Battery voltage				48v
		Rated frequency				140Hz
		Rated speed				4100RPM
		Max. speed				7000RPM
		Ambient temperature				-20℃~40℃
		Protection grade				IP55
		Insulation grade				H
		Max.torque				28 N.m
		Duty				S2-60min
		Installation size				Tailor made to customer's size
		Size				Φ145 * 237mm
		Net weight				15kg
		Packing				Wooden box
		HS code				85015200
Controller assembly Including controller key switch stall switch accelerator wire harness		Rated voltage				48V DC
		Working voltage range				65%~135% of rated
		Rated output current				60A
		Maximum output current				200A
		Digital input				8
		Analog input				2
		Protection grade				IP65
		Ambient temperature				-40 ~ 50℃
		Control mode				Vector control
		Communication mode				CAN
		Size(L*W*H)				230*165*75mm
		Net weight				3kg
		Packing				Carton
		HS code				85371090
Rear axle		Ratio				10:1
		Speed capacity				8000RPM
		Torque capacity				80N.m
		Noise				≤65dB
		Length				Tailor made to customer's size
		Installation size
		Leaf spring distance
		Brake style
		Hub  size
		Est. net weight				35kg
		Packing				Wooden box
		HS code				87085079







Norms and Practice



To improve efficiency and maintain both parties' mutual benefit, you are kindly to read the following norms and practice, which is the integrated part of the agreement we are going to reach.
1	Delivery time for standard parts is within 20 days.
2	Warranty of driving system is one year. Any damage of the parts by violating the instructions does not belong to the warranty coverage.
3	Payment for MOQ (≤5 sets)is 100% lump-sum before  production, payment beyond MOQ is 30% for prepaid, and balance paid before sihpment.
4	The actual parts and accessories might be not the same due to the shape of the vehicle, purchased items, country norms, and applicability.
5	Not to be reprinted, translated or otherwise reproduced in whole or in part without written permission from Foshan Shunde Green Motor Technology Co., Ltd. All rights reserved.
6	Should you ever require assistance or any complaints, all you need to do is to contact our president & global chief service officer (GCSO),reach his mobile phone at +86 13702349858.
7	For more details of our company, please visit //www.greenmotortech.com. Green Motor Technology Co. wish you a safe and pleasant driving trip.



Board of Director’s Message



First thank you for your interest of our products and service. The Green Motor Technology Co.(GA) is an innovative technology company that specializes in developing and manufacturing driving systems for electric vehicles (EV). With two decades plus years of expertise and leadership in the dynamic driving system, GA’s AC driving system serves our customers for more than 35 countries and beyond, particularly, some customers won championship in their national competiton by adopting our driving system, and we have earned more and more repeated business partners by providing consistent products and shared value with customers.Sincerely I wish you have a pleasant experience with us and please feel free to let us know your concerns.





Rewards, Certificates, and customer reference



Customer from Sri Lanka won the first prize over national EV race by adopting GA’s driving system.



Glimpse of business partnership from US, Germany, Britain, France, Belgium, Spain, Turkey, Slovakia, Brazil, Australia, Korea, India, Thailand, Sri Lanka, and Mozambique.   .





  Packing
