Linear Guides and Slides for Lathe Machine Parts HGH15 65
- Category: >>>
- Supplier: Lishui City Yongrun Precision Machinery Co. Ltd.
Share on (60380021672):
Product Overview
Description

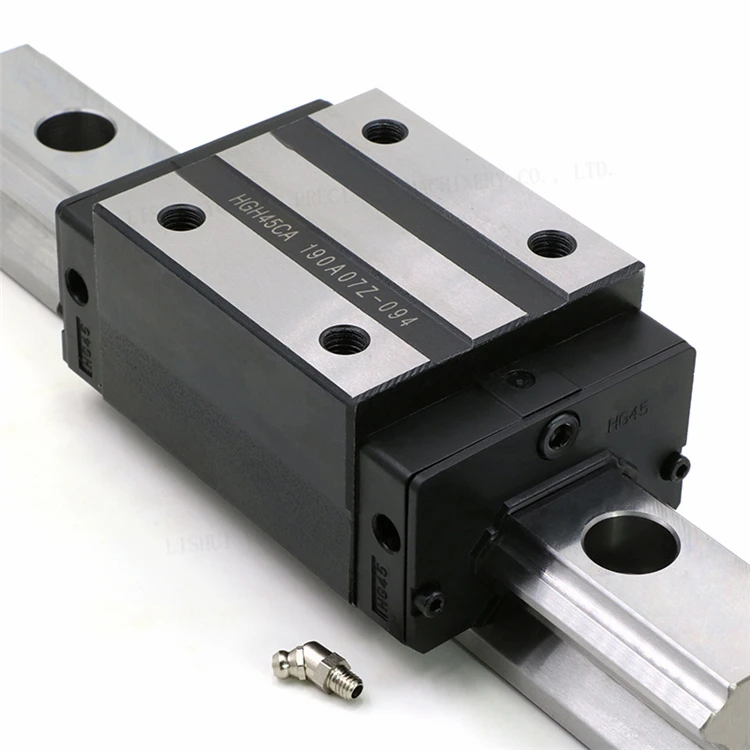

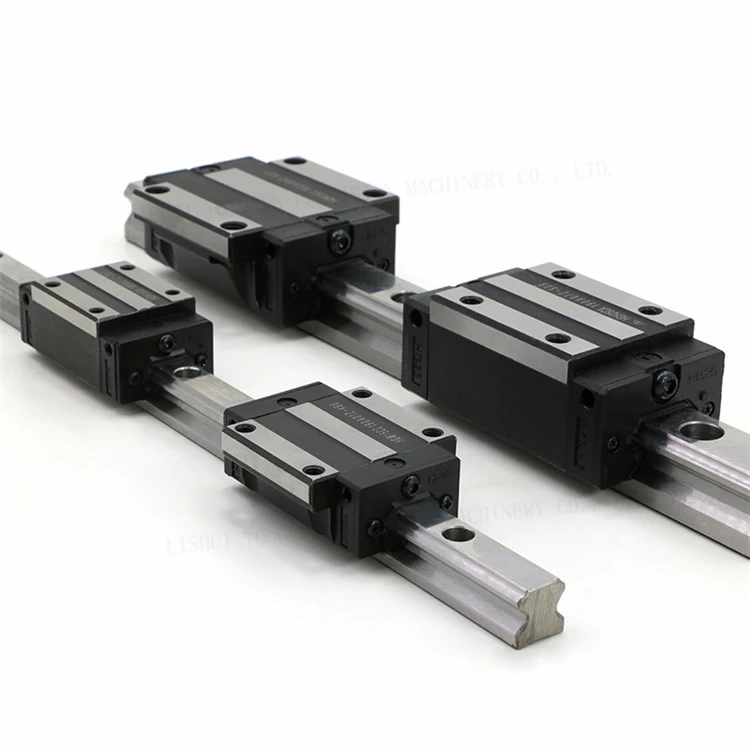

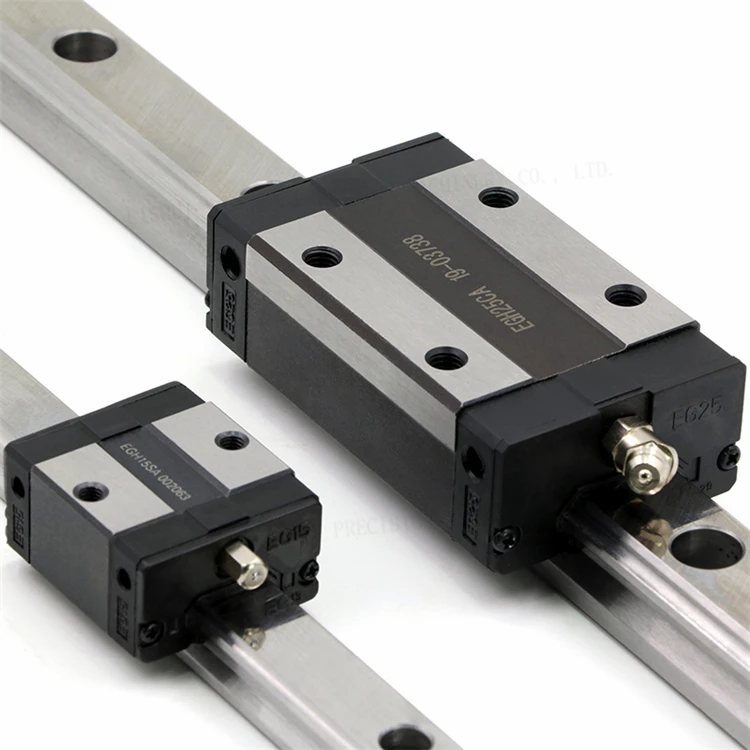

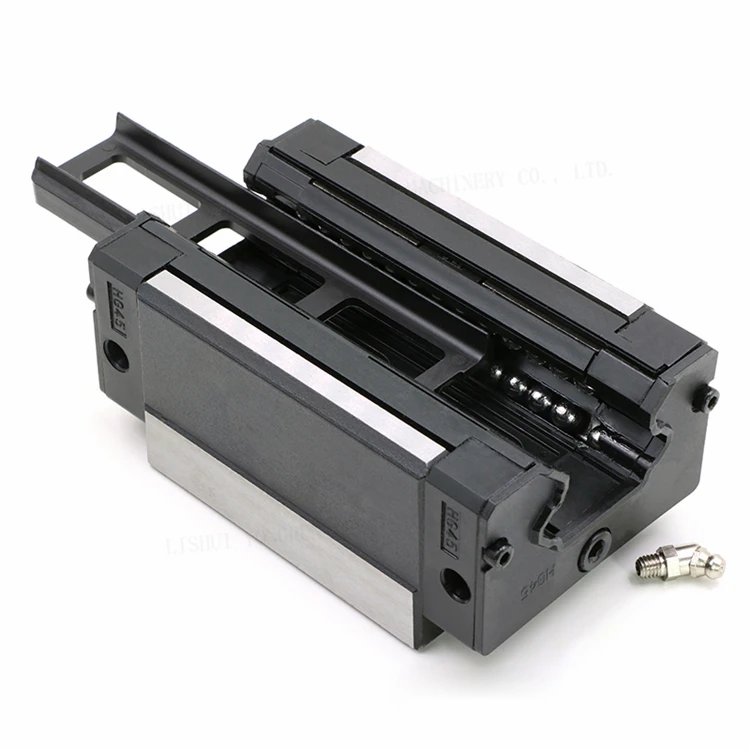

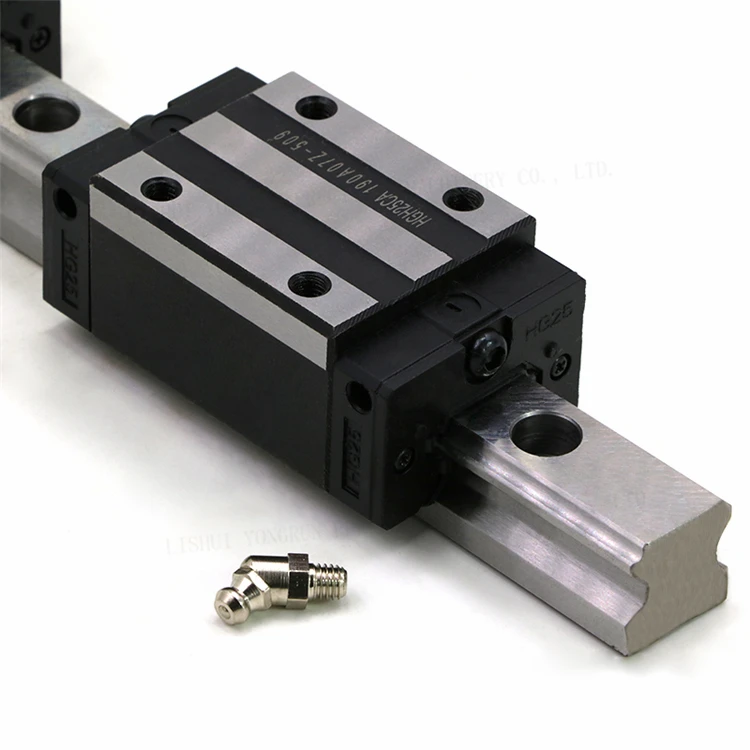

Linear Guides and Slides for Lathe Machine Parts HGH15-65
| Rail Length(mm) | Precision(μm) | ||
| C | H | P | |
0~100 | 12 | 7 | 3 |
| 100~200 | 14 | 9 | 4 |
| 200~300 | 15 | 10 | 5 |
| 300~500 | 17 | 12 | 6 |
| 500~700 | 20 | 13 | 7 |
| 700~900 | 22 | 15 | 8 |
| 900~1100 | 24 | 16 | 9 |
| 1100~1500 | 26 | 18 | 11 |
| 1500~1900 | 28 | 20 | 13 |
| 1900~2500 | 31 | 22 | 15 |
| 2500~3100 | 33 | 25 | 18 |
| 3100~3600 | 36 | 27 | 20 |
| 3600~4000 | 37 | 28 | 21 |
That is not the final price of our products. High quality and competitive price are always provided. Any question or further comments, welcome to contact us,thank you!
