CKA is a sprag type freewheel non-bearing supported .Bearings are required to support axial and radial loads, Units are delivered grease lubricated.
Product name
one way sprag clutch
Model
CK-A 50110
Material
GCr15
Inner diameter
50mm
Outer diameter
110mm
Thickness
28mm
Torque capacity
850Nm
Weight
1.59Kg
Package
Carton Box / Wooden box
Payment terms
TT. L/C, D/A,D/P,Western Union, Paypal
Delivery time
3-5 Days
Catalogue of cka clutch bearing for your choice
Model
Nominal
Torque
Overrunning Limiting
Speed (r/min)
Dimension [mm]
Bearing
Weight
Outer race
Inner race
[N.m]
Inner
race
Outer
race
D[h7]
B
bwxtw
d[h7]
C
bnxtn
[kg]
CK-A1542
54
1750
500
42
23
3x1.8
15
24
3x1.4
6302
0.17
CK-A1747
75
1575
400
47
23
3x1.8
17
24
3x1.4
6304
0.21
CK-A2052
95
1400
400
52
23
3x1.8
20
24
3x1.4
6305
0.25
CK-A2562
145
1260
350
62
23
4x2.5
25
24
4x1.8
6306
0.35
CK-A3072
208
1050
300
72
23
5x3.0
30
24
5x2.3
6307
0.47
CK-A3580
340
815
200
80
28
8x4.0
35
30
6x2.8
6308
0.69
CK-A4090
462
700
200
90
28
8x4.0
40
30
6x2.8
6309
0.87
CK-A45100
783
560
200
100
28
8x4.0
45
30
6x2.8
6310
1.07
CK-A50110
850
525
180
110
28
10x5.0
50
30
8x3.3
6311
1.59
CK-A60130
1050
490
180
130
34
10x5.0
60
36
8x3.3
6312
2.16
CK-A65140
1224
490
180
140
34
10x5.0
65
36
10x3.3
6313
2.49
CK-A70150
1850
455
150
150
40
10x5.0
70
42
10x3.3
6314
3.36
CK-A75160
2140
455
150
160
40
12x5.0
75
42
12x3.3
6315
3.81
CK-A80170
2450
420
150
170
40
12x5.0
80
42
12x3.3
6316
4.29
CK-A1250
31.5
1750
400
50
22
3x1.8
12
24
3x1.4
0.24
CK-A1855
50
1575
350
55
22
4x2.5
18
24
4x1.8
0.28
CK-A2060
63
1600
350
60
22
6x3.5
20
24
6x2.8
0.33
CK-A2563
100
1260
350
63
24
6x3.5
25
26
6x2.8
0.37
CK-A2563T
140
1260
350
63
30
6x3.5
25
32
8x3.3
0.68
CK-A2870
180
1050
300
70
30
8x4.0
28
32
8x3.3
0.6
CK-A3080T
340
875
200
80
30
8x4.0
30
32
8x3.3
0.75
CK-A3585
400
815
200
85
30
8x4.0
35
32
8x3.3
1
CK-A35100
780
875
200
100
32
10x5.0
35
34
10x3.3
1.34
CK-A35140
1000
490
180
140
35
8x4.0
35
35
10x3.5
3.28
CK-A40100
780
560
200
100
34
10x5.0
40
34
10x3.3
1.2
CK-A40110
850
700
180
110
32
10x5.0
40
34
10x3.3
1.19
CK-A50125
1000
490
180
125
36
14x5.5
50
35
14x3.8
2.21
CK-A50130
1050
560
180
130
36
14x5.5
50
38
14x3.8
3.02
CK-A55160
2000
455
150
160
52
16x6.0
55
55
16x4.3
6.96
CK-A58130
1050
490
180
130
36
14x5.5
58
38
14x3.8
2.6
CK-A60180
2000
420
140
180
52
18x6.0
60
52
18x4.4
7.4

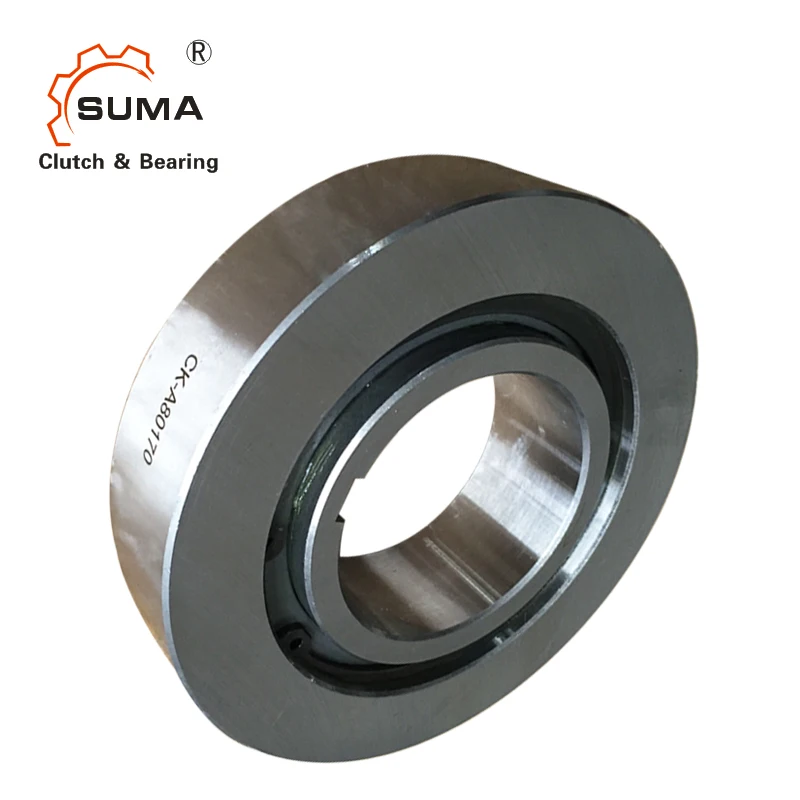

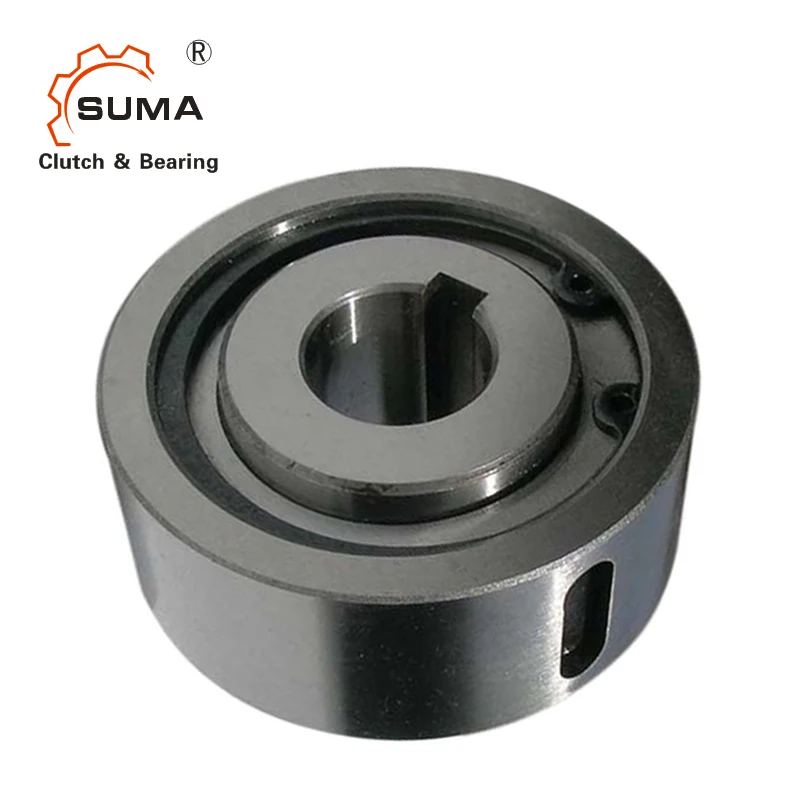

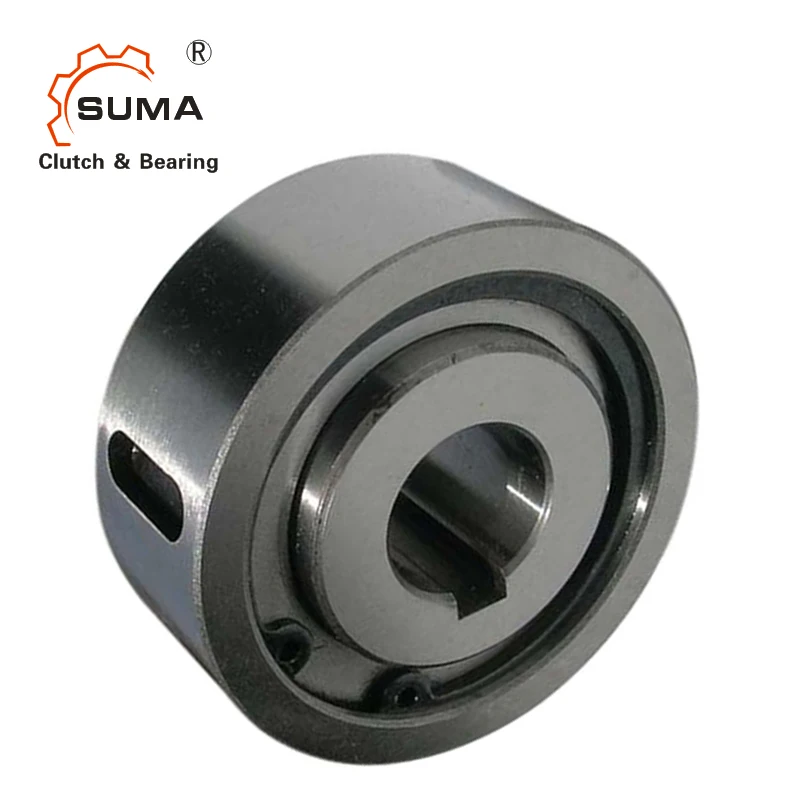

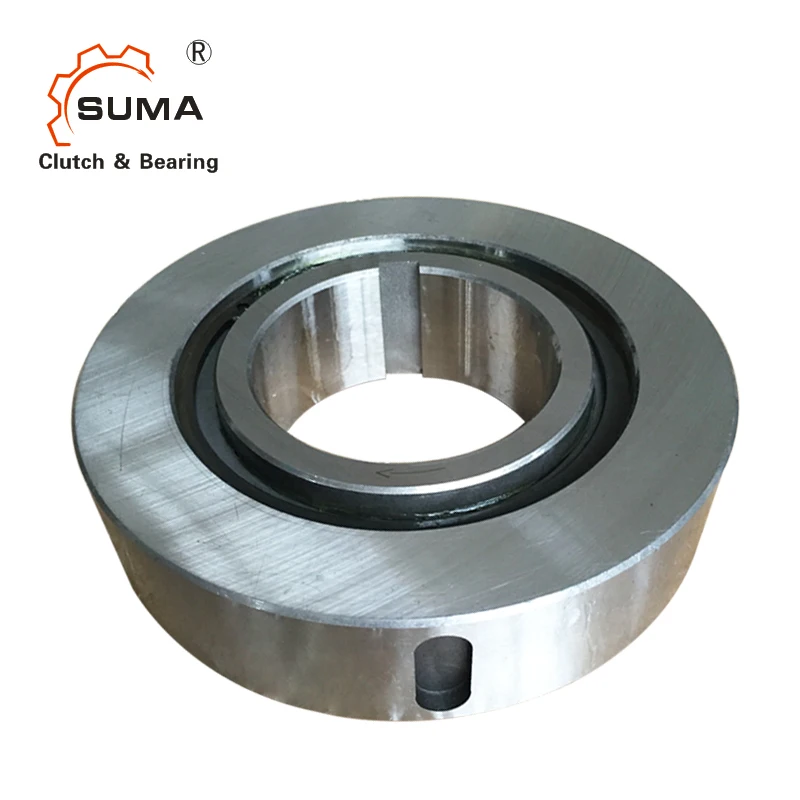

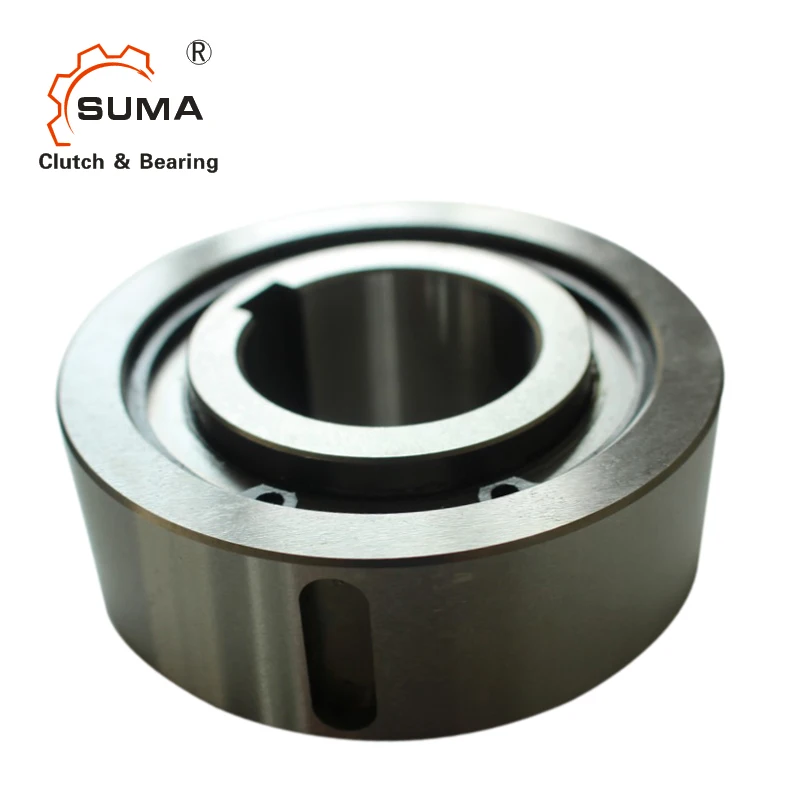

Detailed Images
Company Information
Changzhou Suma Precision Machinery Co., Ltd(Changzhou Tianniu Clutch Factory)is a manufacturer specialized in Producing Various cam clutch, one way bearing, one way clutch, backstop clutch, overrunning clutch and other bearings with high technology.
We are following "Best Quality, Best Price, Fast Delivery, Best Serves" to make all of our old and new customers satisfied.
Production flow
Certifications
FAQ
Q: How do you pack the goods?
Total less than 25 KG:Each in white box + 19*18*9cm box + 29*28*19CM carton box
Total Weight over 100KG :Carton box +Wooden Box / Wooden Pallet
Q: Can i get the samples from you?
A: It is highly encouraged to ask for the samples for quality check.
