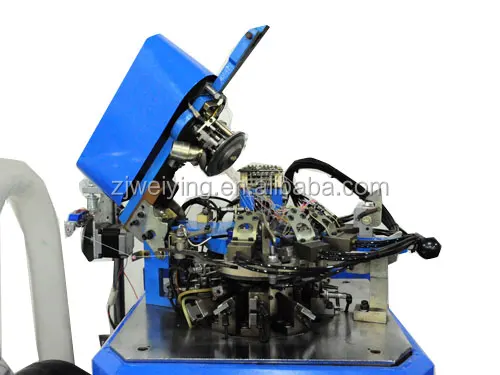

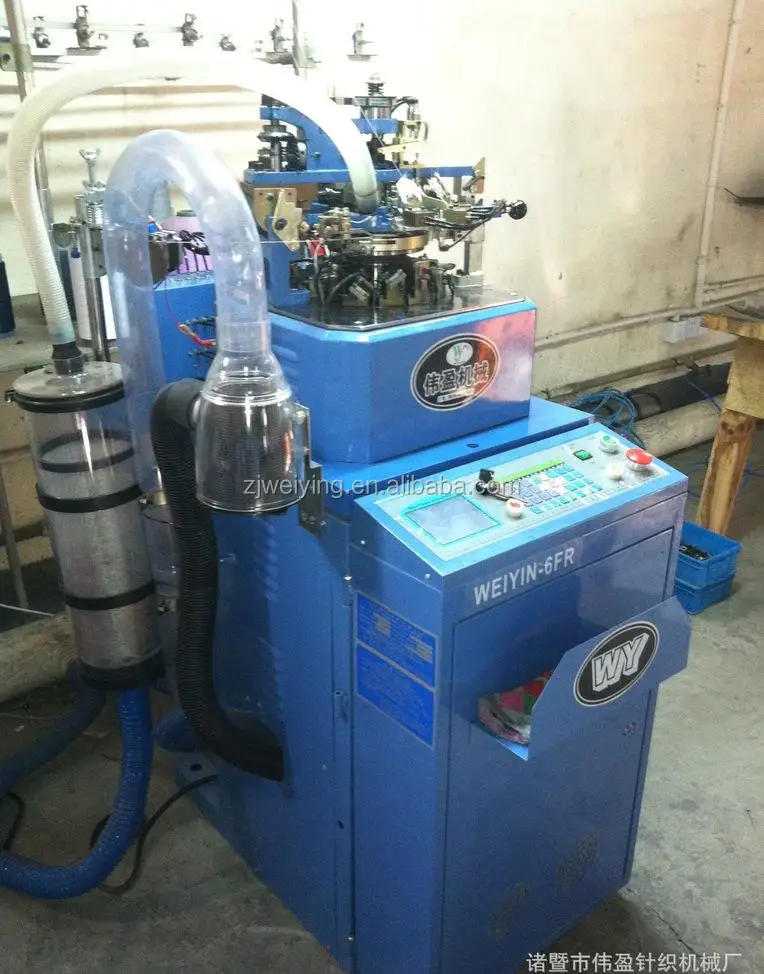

fully computerized socks machine
- Category: >>>
- Supplier: Zhejiang Weiying Intelligent Technology Corp. Ltd. [Zhejiang China]Zhejiang
Share on (60380586244):
Product Overview
Description
The full computerized jacquard Socks Machine can make socks like rabbit hair, sheep woolen and other material made scoks Three-dimension.
Mode | WY-6FBP(plain) | WY-6FBR( plain$terry) |
Cylinder diameter | 4 inch | 4 inch |
Needles | 64N~240N | 64N~176N |
Rotational speed | 300~330RPM | 220~260RPM |
Drive motor power | 1.0KW | 1.0KW |
Control box | 0.2KW | 0.2KW |
Electricity | 0.55-0.6 MPa | 0.55-0.6 MPa |
Electricity | 220V/380V | 220V/380V |
Floor space | 150*95*220CM | 150*95*220CM |
Blower power | 0.35 KW | 0.35 KW |
packing | Packed with bakelite plate 165*95*85 cm 1.5CBM NW:300kg GW:330kg | Packed with bakelite plate 165*95*85 cm 1.5 CBM NW:300kg GW:330kg |
Throughput(pairs/24 hours)
| men’s sock : 280 women’sock: 300 children’s sock :360 stocking : 150 | men’s sock : 210 women’sock:250 children’s sock :310 stocking : 120 |
Main features:

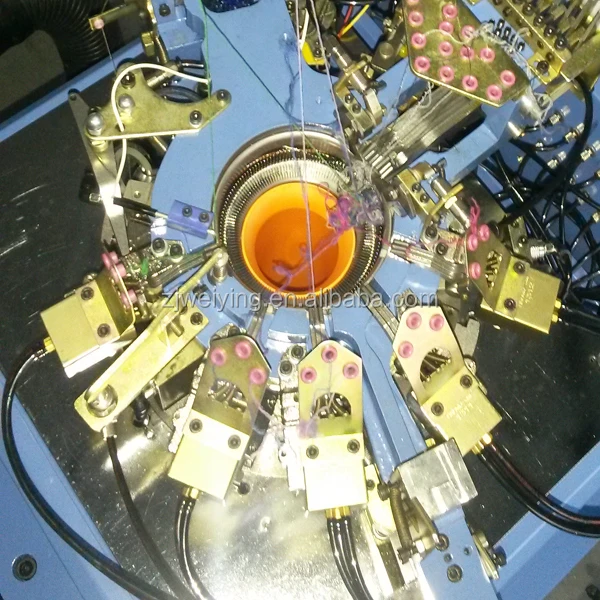

1.One main feeder plus five pattern feeders
2.Possibility of 6 colors in one course and 16 colors on one sock.
3.Drumless, fully computerized control system.
4.Exclusive inner cam block system for high speed.
5.Stepping motor for elastic yarn and stitch cam control.
6.Electro-pneumatic yarn finger and cam control.
7.Pattern Depth up to 1,500 courses.
8.Multiple stop motion sensors in case of error.
9.Autiomatic re-cycling oiler,counter,and reset function.
10.Equipped with USB for easier data reading
11.Available in 220/380/440V 3phase 50/60Hz.
12.Fully A.C Servo motor adopted.
13.Minimized and easy operating function.
14.battery back-up to protect stored program.
15.Internal UPS can support continuous knittin
16.Graphic type LCD adopted
Packaging & Shipping
Our Services
We always put customers' benefits in the first place, fostered a professional after-sale service team with strong technology and established prefect after-sale service system so its after-sale service is always in time and perfect without leaving any troubles for customers so that we can make customers feel relived to buy our products and be satisfied with using our products
