GMP Stainless Steel Beer Fermentation Tank
- Category: >>>
- Supplier: Zhejiang Tanlet Machinery Co. Ltd.
Share on (60380755985):
Product Overview
Description

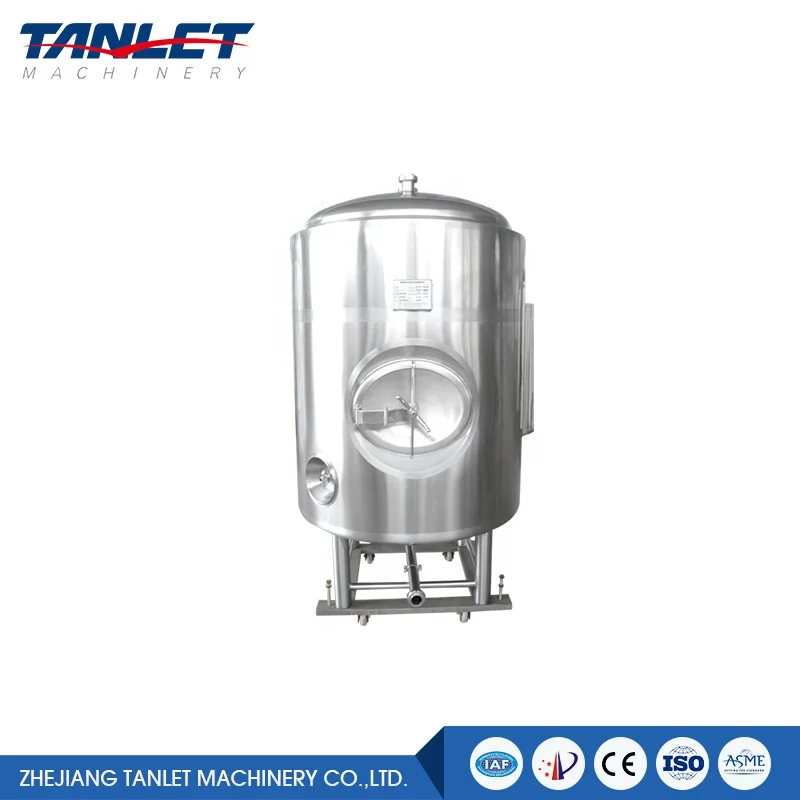

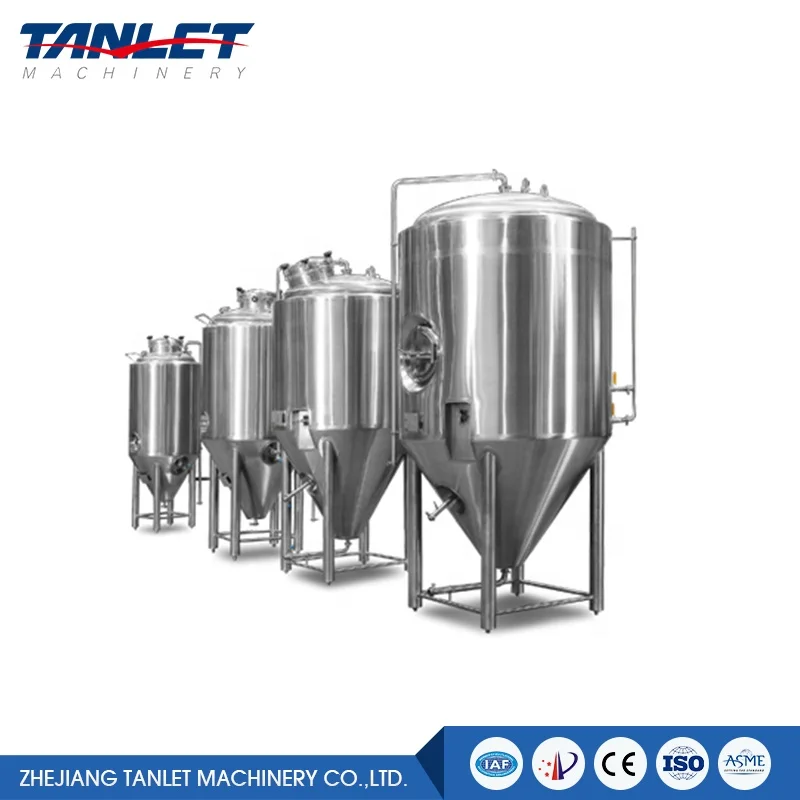

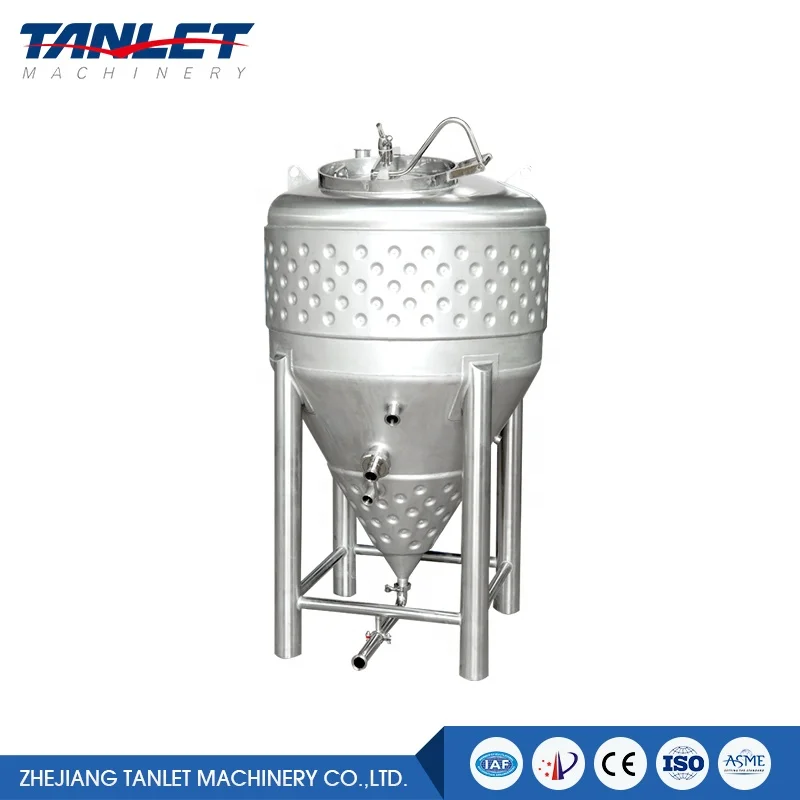

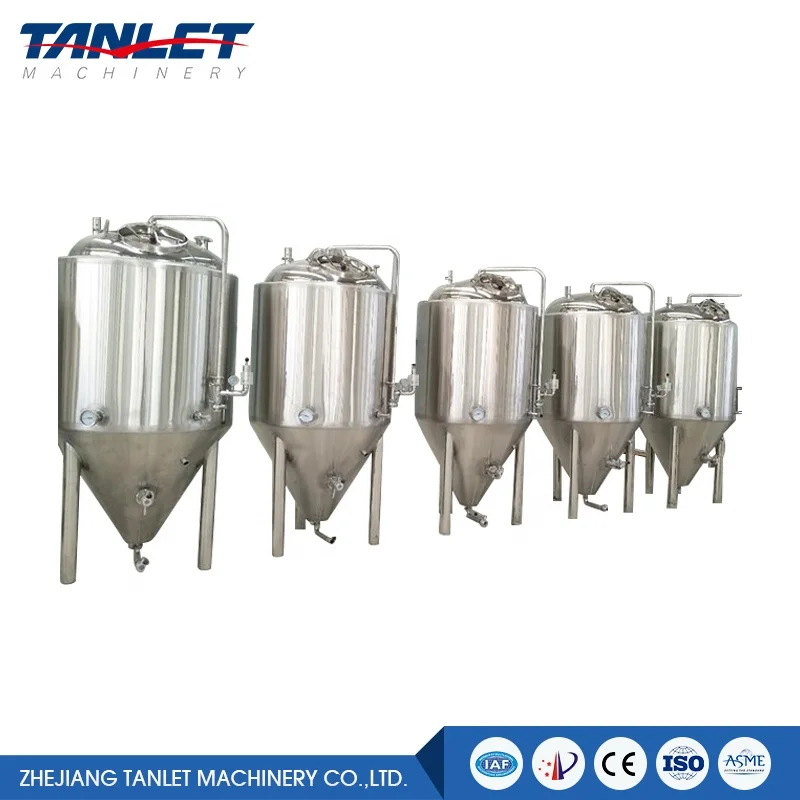

GMP FDA stainless steel beer fermentation tank
Usage
The fermentation of dairy .alcohol products is process of steriliz-ation and non-pllution.
The fermentation of dairy & pharmaceutical products alcohol is process of steriliz-ation and non - pllution.The Wenxiong fermentation tank adopt sterilization system to avoid the pollution from microbe
in the air so as to prolong the time of preserving freshness and ensuer the purity of the products.
We specially design and install sterilization breath hole or sterilization positive pressure fermentation system
On the tank body install MiLo board or labyrinth type clamp cover,which can contain heating or cooling medium
to heat or cool cyclically .The capacity varies from 50L-50000L.
.Additional Device
.Stirrer(multi-speed or variable-speed)
.Inlet and outlet of material
.Man input hole
.Thermometer
.Sterilization breath hole
.Sterilization sampling hole
.Inlet and outlet of hot and cold water
.CIP clean spray tap CIP
| Model | 100L | 200L | 500L | 1m3 | 2 m3 | 5 m3 | 10 m3 | 20 m3 | 50 m3 |
| Fermentation Tank Dia. (mm) | 400 | 500 | 700 | 900 | 1200 | 1500 | 1800 | 2300 | 3100 |
| Fermentation Height (mm) | 2000 | 2300 | 2650 | 2900 | 3800 | 4480 | 5250 | 6550 | 8550 |
| Inner Pressure (Mpa) | 0.2 | ||||||||
| Jacket Pressure (Mpa) | 0.3 | ||||||||
| Stirring Paddle | 2 | 2 | 2 | 2 | 2 | 3 | 3 | 4 | 4 |
| Stirring Speed (r/m) | 400 | 360 | 265 | 220 | 180 | 160 | 145 | 125 | 110 |
| Motor Power (Kw) | 0.55 | 0.75 | 1.5 | 2.2 | 4 | 7.5 | 17 | 30 | 55 |
| Cooling Type | Jacket | Tubulation | |||||||
