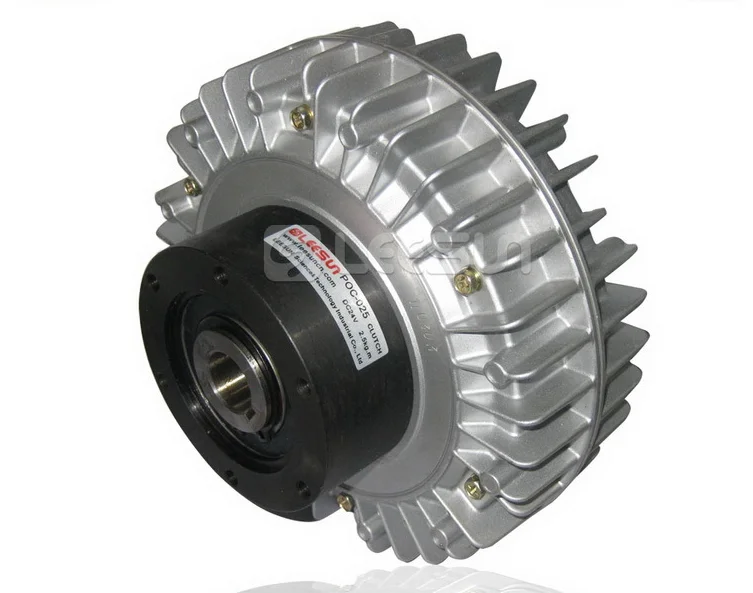

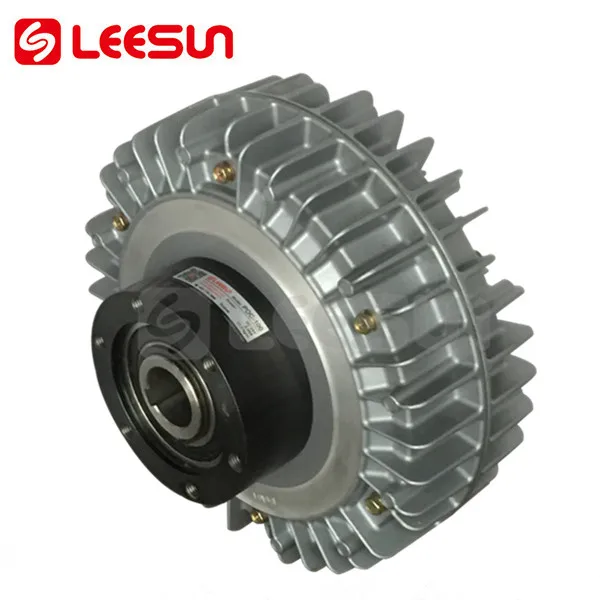

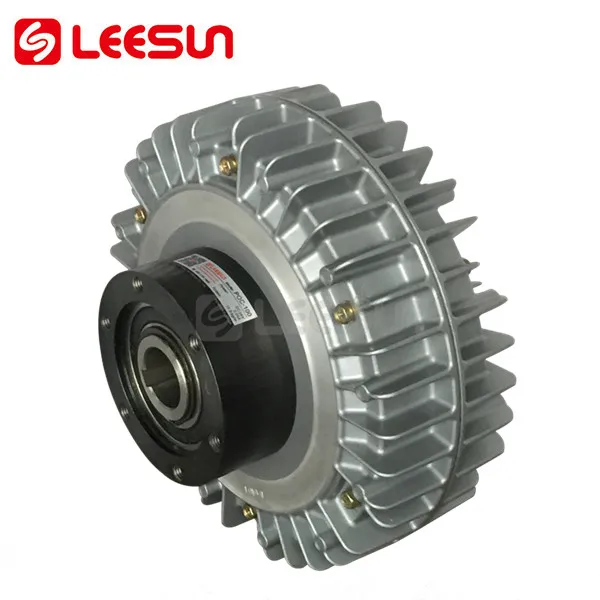

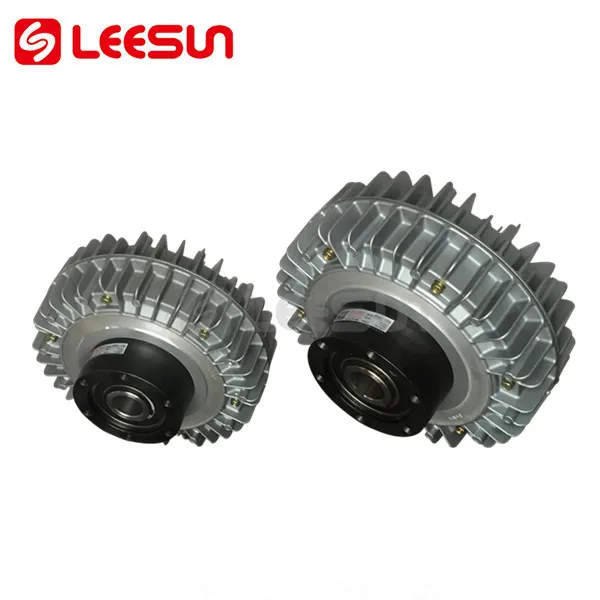

LEESUN POC 050 magnetic powder clutch

Product Overview

Description

24v magnetic powder clutch  Product Overview:

 LEESUN POC-050 high quality magnetic powder clutch

is a special type of electromagnetic clutch which does not use friction plates. Instead, it uses a fine powder of magnetically susceptible material (typically stainless steel) to mechanically link an otherwise free wheeling disc attached to one shaft, to a rotor attached to the other shaft.

 When a magnetic field is applied to the powder, it forms chains connecting the disc and rotor. The strength of the chains depends on the strength of the magnetic field.

24v magnetic powder clutch  Product Features:

(1) it doesn't exhibit stick-slip phenomenon or stiction

(2) the torque may be easily and quickly controlled

(3) it is more resistant to wear

(4)it may be used for continuous slip applications

(5) it has a very fast response time

(6)lightweight, maintenance-free, long life
24v magnetic powder clutch  Data:





24v magnetic powder clutch  specification:




Rated voltage:24V



Model		POC-006	POC-015	POC-025	POC-050	POC-100	POC-200
Rated torque [kgf-m](N-m)		0.6(6)	1.2(12)	2.5(25)	5(50)	10(100)	20(200)
Capacity DC24V (75°C)	Current (A)	0.74	0.9	1.1	1.4	2.0	2.5
	Power (W)	17.8	21.6	26.4	33.6	48	60
	No. of hour set(S)	0.04	0.04	0.06	0.09	0.14	0.3
Weight(kg)		2.7	5.2	9	14.5	37	53
Maximum speed (r/min		1800
Weight of powder (g)		14	25	39	60	117	255



Exterior Dimension	L1		86	103	119	150	166	198
	L2		21	32	36	48	48	59
	L3		58	58	66	82	100	118
	L4		7	13	17	20	18	21
	L5		1	2	2	3	4	1
	L6		64	76	91	116	130	152
	L7		21	25	26	31	32	45
	D1		128	160	180	220	275	335
	D2		82	96	114	150	176	200
	D3(g7)		70	80	90	110	125	160
	D4		60	68	80	95	110	140
	D5		60	68	80	95	110	140
	D6		42	48	55	68	80	110
	R		M6*10L	M6*10L	M6*10L	M8*12L	M10*10L	M10*18L
	Q		M4*8L	M6*8L	M6*8L	M8*12L	M10*18L	M10*18L
	Shaft hole	D(H7)	15	18	20	30	35	45
		W(F8)	4	5	6	8	10	14
		T	16.5	20	22	33	38.5	49
