Small Hydraulic Hand Pallet Truck 2000kg Load Capacity

Product Overview

Description











1. Color : red/ yellow/ blue/ green/ black etc.

as per customer request

2. Capacity: 2500kg, 3000kg

3. Fork Width: 520/550/685mm, can be customized

4. Fork Length: 800/900/1150/1220 or other size customer need

5. Packing: 6pcs/pallet, pallet size: 210*70*70cm

6. Advanced Robot welding ensure high strength, good finish, no bubble in the welding

7. With CE certificates, waiting for your order!

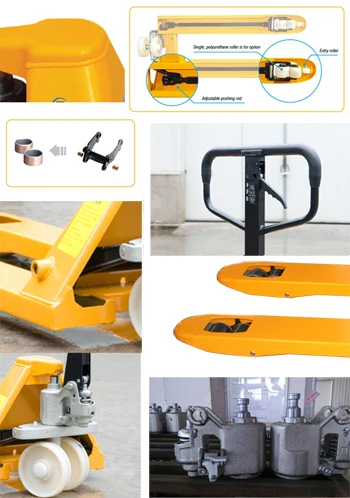

1. Galvanized casting pump with 3years warranty

2. Galvanized support base

3. Rubber wrapped handle

4. Perfect welding, ensures the high strengh

and beauty appearance

5. Curve design on top tips help truck in/ out pallet

6. With entry roller

7. Adjustable pushing rod

8. With copper bushing, no need to add grease,

reduce maintenance cost

9. Rubber/ PU/ Nylon wheels for option













Model	SBA-25	SBA-30	SBA-35
Load capacity	2500kg	3000kg	3500kg
Load centre distance	500mm	500mm	500mm
Tyre size, front	Φ180*50mm	Φ180*50mm	Φ180*50
Tyre size, rear	Φ80*70/Φ74*70	Φ80*70/Φ74*70	Φ80*70/Φ74*70
Lift height	200/190mm	200/190mm	200/190mm
Lowered height	85/75mm	85/75mm	85/75mm
Overall length	1534/1604mm	1534/1604mm	1534/1604mm
Fork dimensions	54*160*1150	54*160*1150	54*160*1150
Distance between fork arms	520/550/685mm	520/550/685mm	520/550/685mm
Turning radius	1249/1319	1249/1319	1249/1319









1.  Question: The forks can’t be lifted to the max. lift height?

           Cause: hydraulic oil is not enough

        Solution:  Add appropriate filtrated working oil.



2.  Question: The forks can’t return to the lowest position?

      Cause  a): Too much hydraulic oil.

      Cause  b):  Some parts are deformed or blocked.

    Solution a):  Take out appropriate working oil.

    Solution b):  Replace the parts or repair.



3. Question: The forks can’t drop after lifted?

     Cause  a):  The control valve is abnormal.

     Cause  b):  The parts are deformed or damaged.

   Solution a):  Readjust the unloading device.

   Solution b):  Replace the damaged and deformed  parts.





4. Question:  Hydraulic oil leakage?

     Cause  a):   The oil seal is unavailable.

     Cause  b):   The pump core and the surface of the plunger is damaged or worn.

      Cause c):   The coupled places become loosend.

   Solution a):   Replace the oil seal.

   Solution b):   Replace the core, plunger and the damaged parts.

   Solution c):   Fasten the loosened place again.





5. Question:  The fork can’t be lifted

     Cause  a):   The viscosity of the working oil is too high, or there’s no working oil.

     Cause  b):   There’s impurity in the oil.

      Cause c):   The valve is abnormal.

   Solution a):   Check the hydraulic oil or replace it.

   Solution b):   Clear up and add new working oil.

   Solution c):   Readjust the unloading device



6. Question:  The forks drop immediately after they are lifted; the handle returns or the forks drop markedly after they are lifted

          Cause:   The valve of oil pump is blocked by abnormal matter.

        Solution:   Open the control valve and take out the parts. Then re-install the parts after they are cleaned.











Our advantages:
1) More than 24 years experience team in manufacturing, service.

2) With ISO certificates service and quality is before profit

3) Sample order is welcomed

4) CE/TUV, ISO certificates

5) Free maintenance design

6) Fast delivery time within 30days

7) Optimized round fork tips ensures easy operation

8) 54mm fork thickness ensures high capacity

9) Curve design on the fork tips help pallets entry in/out





Any quesion please contact us freely,  we are here for you!!!
