Factory price Charcoal Power Briquetting Plant



hot selling :



1. The general introduction of the Charcoal Power Briquetting Plant

Our briquette machine are rollers pressing type. This type of briquette presses can apply higher pressures and thus produce higher density briquettes . These briquettes can be designed of oval shape, egg shape, pillow shape, square shape etc. This machine is widely used in coal industry and metallurgy industry.

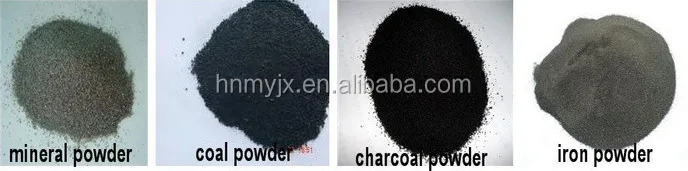

2. The raw material of the Charcoal Power Briquetting Plant

A: Coal/coke/charcoal powder.

B: Metal powder: Iron powder, magnesium oxide powder, copper powder, chromium ore, lead, zinc scrap, bauxite, nonferrous metal powder, silicon manganese alloy powder etc.

C. Mineral powder: aluminum powder, toner, gypsum, sludge, desulphurization gypsum powder etc

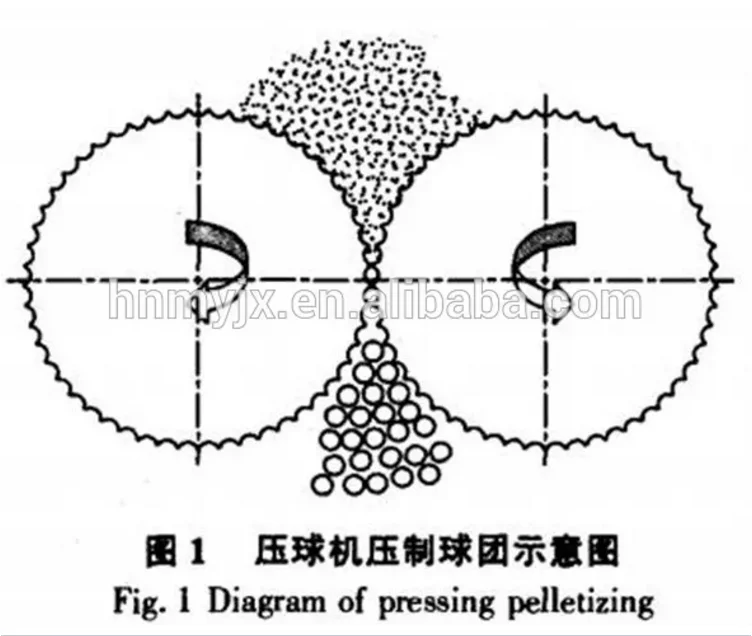

3. The working principles of the Charcoal Power Briquetting Plant

This series of Briquette Ball Press will pass the power on to the two pressure roller through the reducer.The two sides and roll rotation, in both the rotating roll,Natural materials to enter the ball roll mode, with the roll rotation, material pressure on a small become larger, When the material to the two rollers rotating line contact point, the pressure of materials has reached the peak. Tremendous pressure in the role of line, the materials become a finished product from the powder ball.



4. The specifications of the Charcoal Power Briquetting Plant

Model	Roller Diameter(mm)	Power (kw)	Capacity (t/h)
YQ290	290	5.5	1-3
YQ360	360	7.5	4-6
YQ430	430	15	6-8
YQ 500	500	18.5	8-10
YQ650	650	25	10-15
YQ800	800	30	15-20
YQ1000	1000	45	22-30

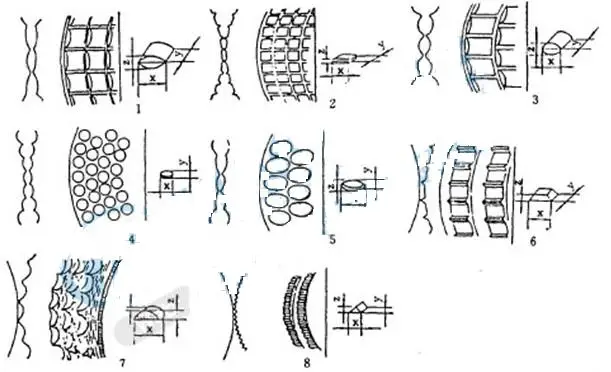

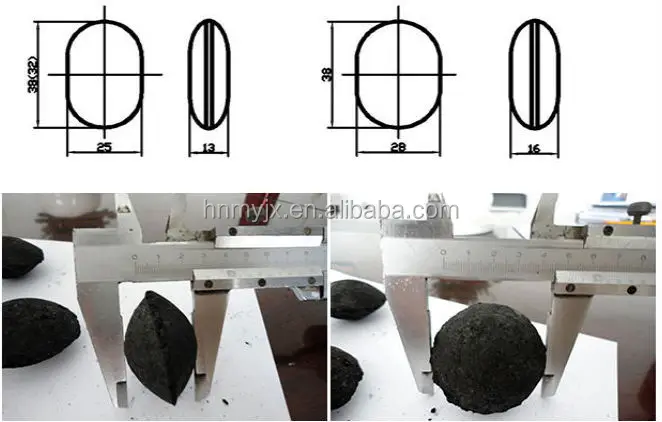

5. The shape of the final briquettes:round ball shape ,oval shape ,pillow shape ,egg shape ,oblateness ,square shape etc.

Note: the briquettes shape and size are defined by users





6. The production line of the Charcoal Power Briquetting Plant

7. The transportations of the Charcoal Power Briquetting Plant

 single machine use wooden case and  for the whole production line in container
