3 inch LED Recessed Mount Light marine interior LED spot light LED down light recessed mount

Product Overview

Description

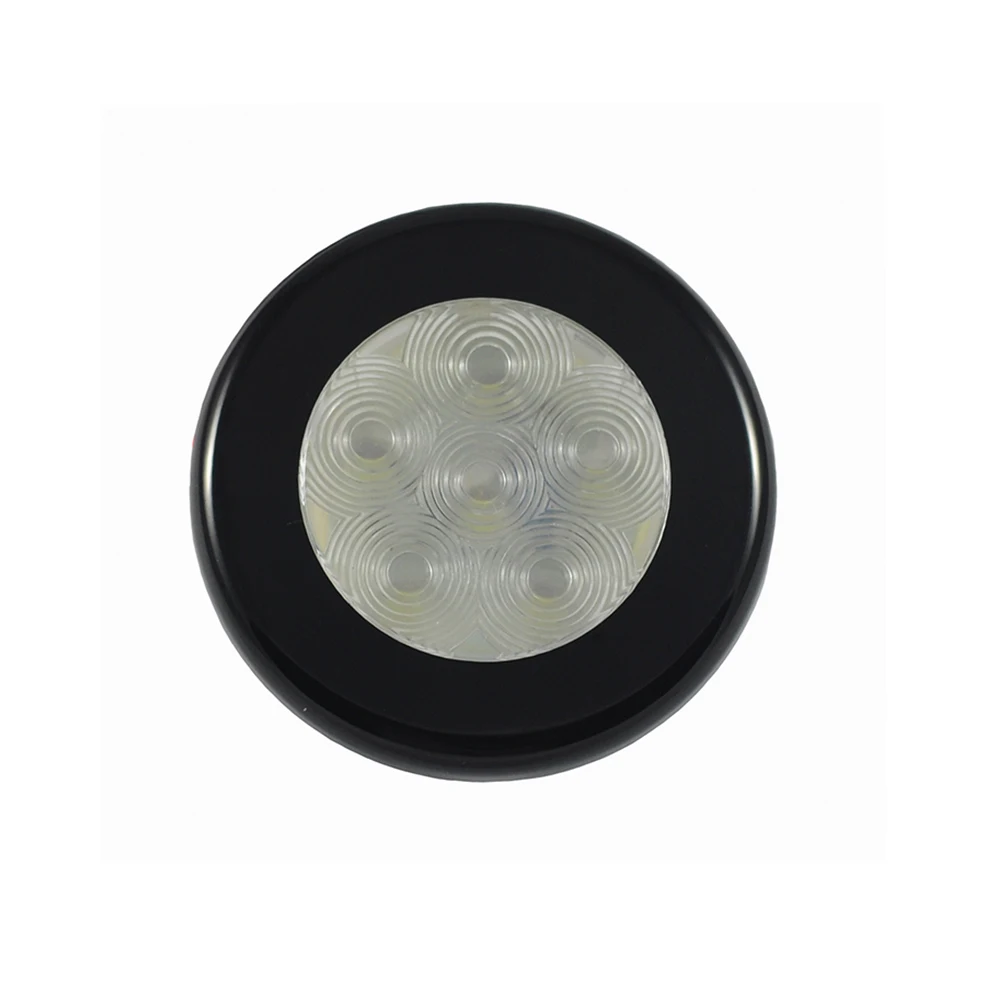

3 inch LED Recessed Mount Light marine interior LED spot light LED down light recessed mount





FEATURES:

• This Recessed Mount Light is great for cabin and compartment in boat and RV, and other suitable applications


• Chrome plated or black finish bezel performs a shiny look


• Clear PC lens, engineered lens optics provides a uniform and comfortable lighting beam illuminated from white LED


• Circuit board completely sealed in epoxy to resist water, corrosion and vibration


• Lighting color available in single color Cool White, Warm White and Red


• Rated for 12V, tested to 13.8V


• Also available in optional version of multi-voltage 10~30V operating range, or 24V version by special order only

SPECIFICATION:

Part No.	Finish	Input Voltage	Light Color	No. of  LED’s	LED Type	Current Draw at 13.8V	Luminous Intensity
430106C	Chrome Plated	12 V	Cool White	6	P 4	40 mA	30 lm
430106CW	Chrome Plated	12 V	Warm White	6	P 4	40 mA	30 lm
430406C	Chrome Plated	12 V	Red	6	P 4	100 mA	30 lm

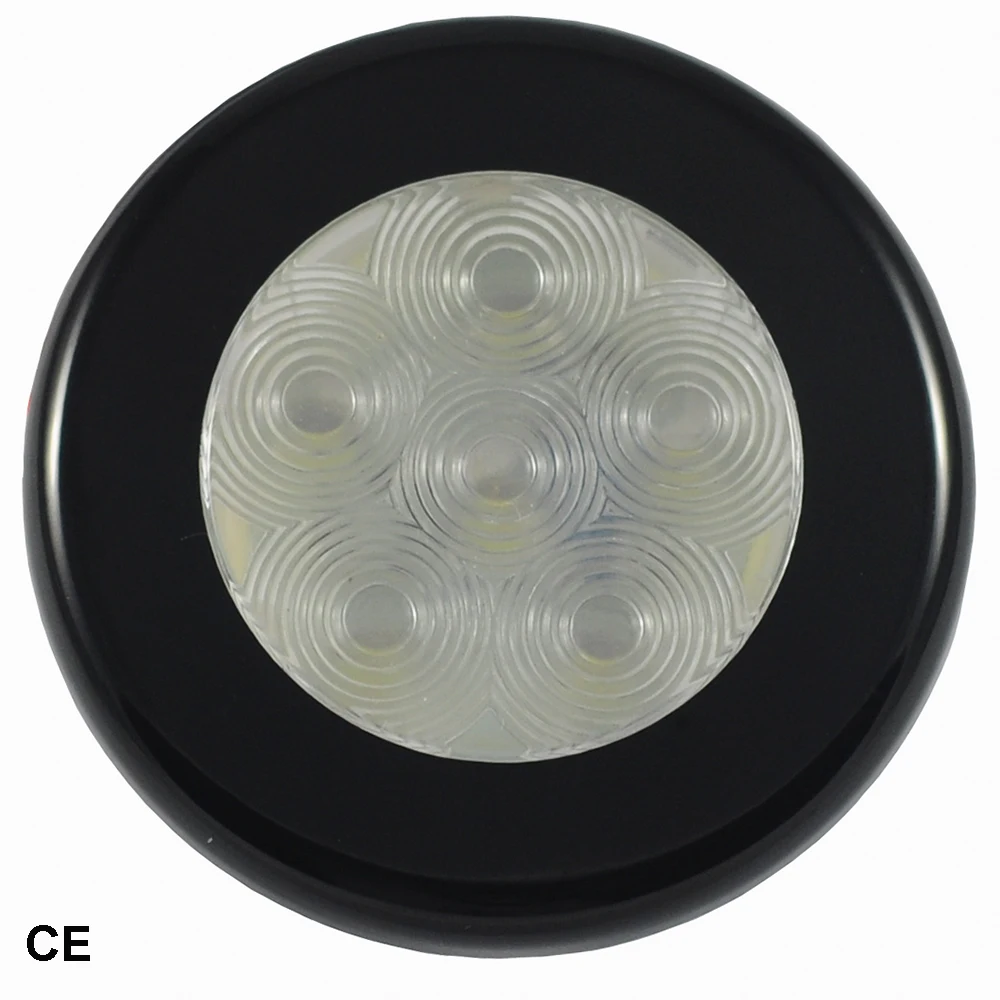

430106B	Black Finish	12 V	Cool White	6	P 4	40 mA	30 lm
430106BW	Black Finish	12 V	Warm White	6	P 4	40 mA	30 lm
430406B	Black Finish	12 V	Red	6	P 4	100 mA	30 lm

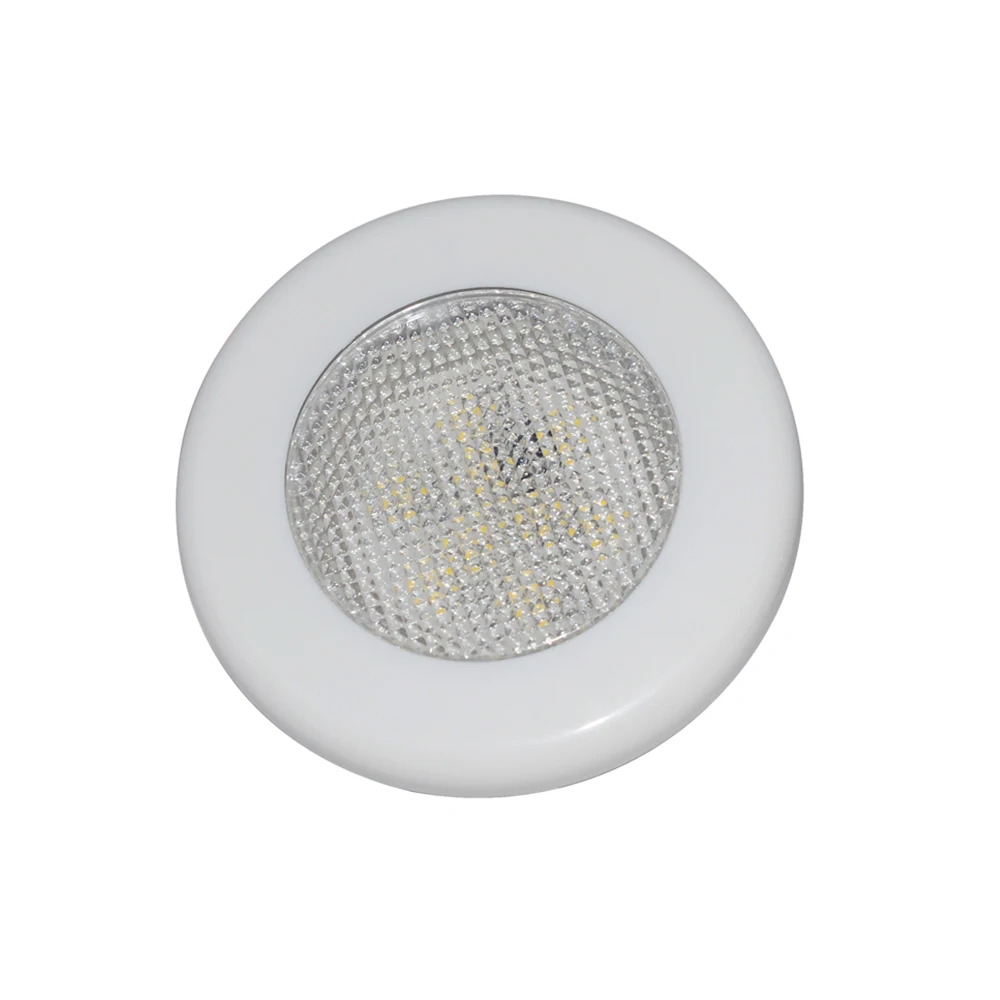

430709C	Chromed	12 V	Warm White	9	SMD3528	50 mA	55 lm
430709B	Black Ring	12 V	Warm White	9	SMD3528	50 mA	55 lm
430709W	White Ring	12 V	Warm White	9	SMD3528	50 mA	55 lm
430809C	Chromed	12 V	Blue	9	SMD3528	50 mA	18 lm
430809B	Black Ring	12 V	Blue	9	SMD3528	50 mA	18 lm
430809W	White Ring	12 V	Blue	9	SMD3528	50 mA	18 lm
430909C	Chromed	12 V	Red	9	SMD3528	50 mA	18 lm
430909B	Black ring	12 V	Red	9	SMD3528	50 mA	18 lm
430909W	White Ring	12 V	Red	9	SMD3528	50 mA	18 lm

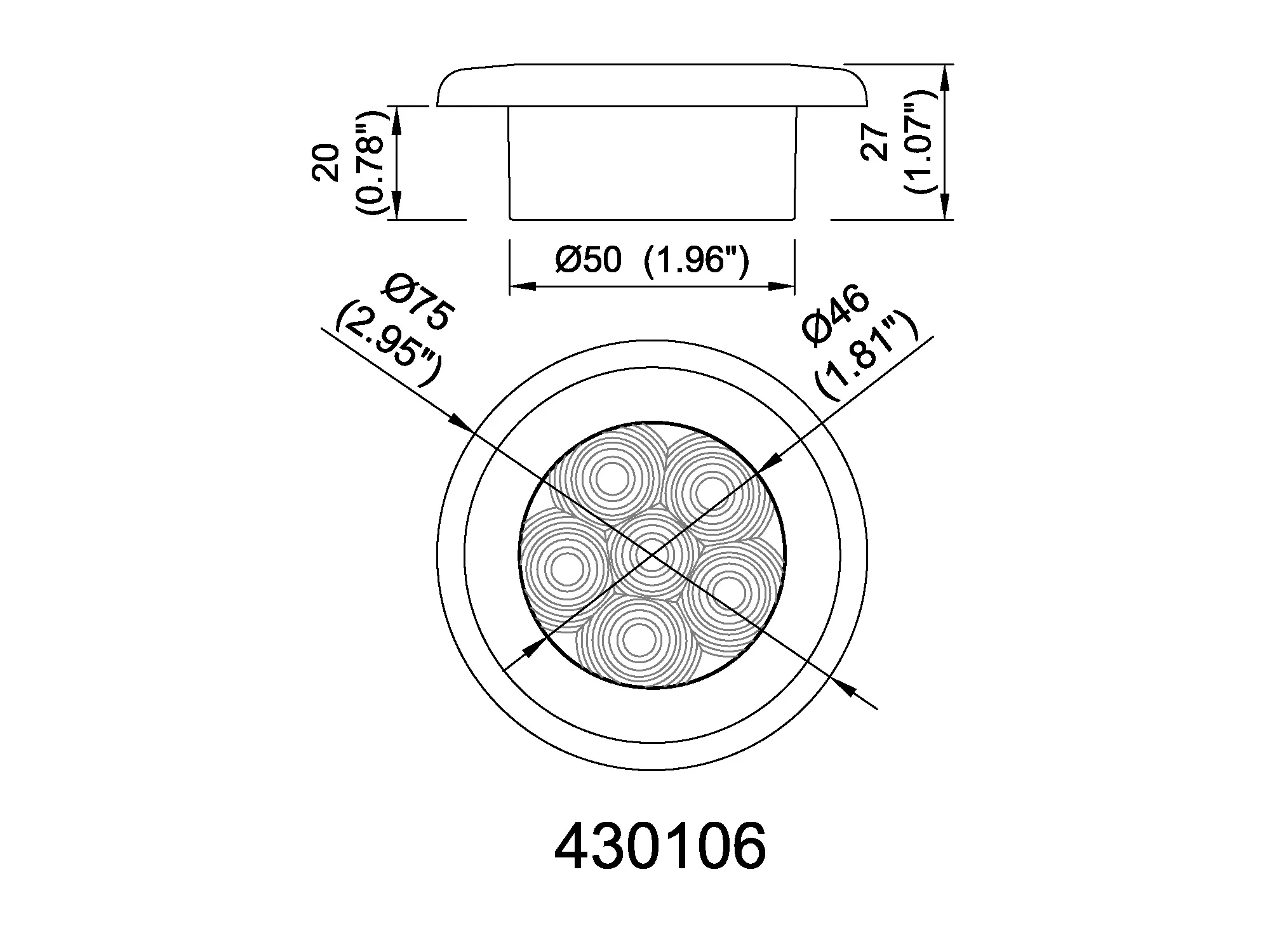

PROUCT DIMENSION:
