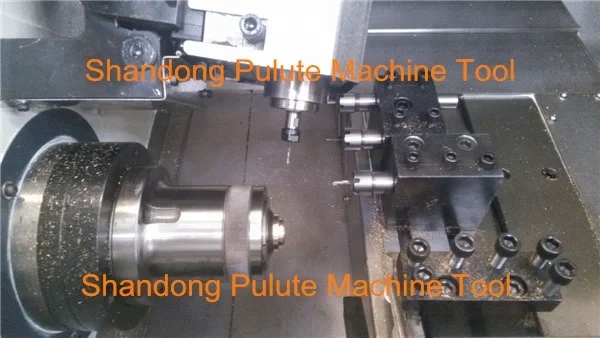

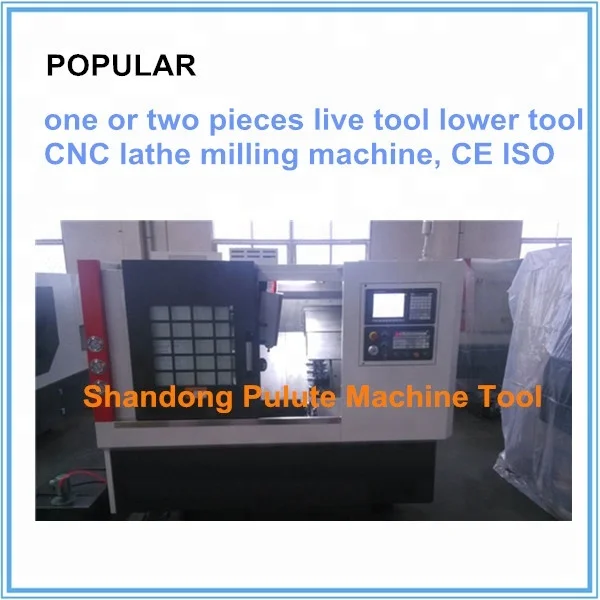

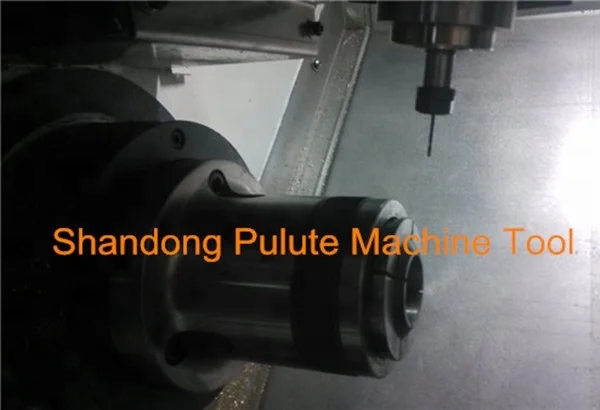

TCK6340S power tool live tool lathe and milling CNC machine tool
- Category: >>>
- Supplier: Shandong Pulute Machine Tool Co. Ltd.
Share on (60381442459):
Product Overview
Description
COMPANY INTRODUCTION
Shandong Pulute Machine Tool Co., Ltd. was established in 2008, specializing in the production of CNC lathes, machining centers,gantry and other CNC machine tools. The company has more than 200 employees, covers an area of 120,000 square kilometers, and has 5 workshops. The average monthly output is more than 180 machines, and the annual sales are more than 140 million CNY.
Machining center assembling workshop
Machining center assembling workshop
cnc lathe assembling workshop
cnc lathe assembling workshop
Plastic spraying and splash metal guard workshop
Machining workshop
CNC lathe assembling workshop
one of our warehouses
CERTIFICATES AND HONORS
Since PULUTE company was founded in the year of 2008, Shandong Pulute Machine Tool Co., Ltd. has won many honorary certificates every year.
PACKING AND DELIVERY
There is the professional packing and delivery team in SHANDONG PULUTE MACHINE TOOL CO., LTD.
SPECIFICATION AND CONFIGURATION OF TCK6340S SLANT BED CNC LATHE MACHINE
processing capacity | max. swing over bed | 400mm |
max. swing over cross slide | 140mm | |
max. processing length | 400 mm(with gang tool)/300 mm(with turret) | |
X axis travel | 400 mm | |
Z axis travel | 500 mm | |
spindle | spindle transmission type | infinitely variable frequency |
spindle speed | 3500 rpm | |
spindle nose | A2-5 | |
spindle bore | 48 mm(56 mm optional ) | |
bar capacity | 40 mm (45 mm optional) | |
spindle motor | 5.5 kw (7.5 kw optional) | |
X and Z axes | feeding motor torque on X axis | 6 N.m |
feeding motor torque on Z axis | 6 N.m | |
X/Z axis rapid traverse | 24/24 m/min | |
X/Z axis repeatability | +/-0.003 mm | |
processing accuracy | processing accuracy | IT6-IT7 |
work piece surface roughness | Ra 1.6 | |
others | cutting tool size | 20X20 mm |
machine dimension | 2390X1530X1780 mm | |
N.W. | 2500 kgs |
MAIN ADVANTAGES
45-degree slant bed type

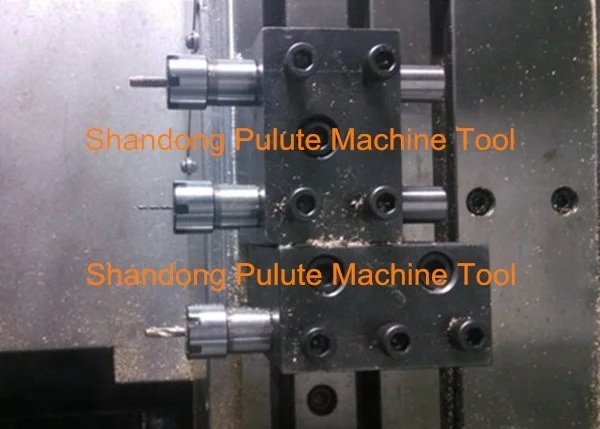

4 station gang type tool post as standard
Taiwan brand PMI or HIWIN linear guide way as standard
GSK988T NC controller as standard
Siemens 808D and 828d, Fanuc 0i TF, Mitsubishi E80 and M80, Fagor 8055, Syntec 6TA and 21TA, etc are optional.
Chinese famous brand ball screw as standard
Taiwan brand ball screw is optional
one-piece machine bed casting
Turret is optional
6 or 8 station electric turret, 8 or 12 station hydraulic turret are optional
6-inch open type hydraulic collect chuck is standard
6-inch hydraulic chuck is optional
SOME OF CUSTOMERS
LEADER VISITING
Leaders visited SHANDONG PULUTE MACHINE TOOL CO., LTD.
MORE THAN 200 STAFFS
The regular meetings, the excellent employees, the sanitation cleaning, the safety knowledge test etc in SHANDONG PULUTE MACHINE TOOL CO., LTD
FIRE FIGHTING TRAINING AND DRILLS
Fire fighting drill 1
for office building employees
Fire fighting drill 2
for employees in machining shop
Fire fighting drill 3
for employees in two assembling shops
