300m water borehole drilling machine DFP 6 pdc bit cable percussion drill rig
- Category: >>>
- Supplier: Zhengzhou Defy Mechanical & Electrical Equipment Co. Ltd.
Share on (60381477348):
Product Overview
Description

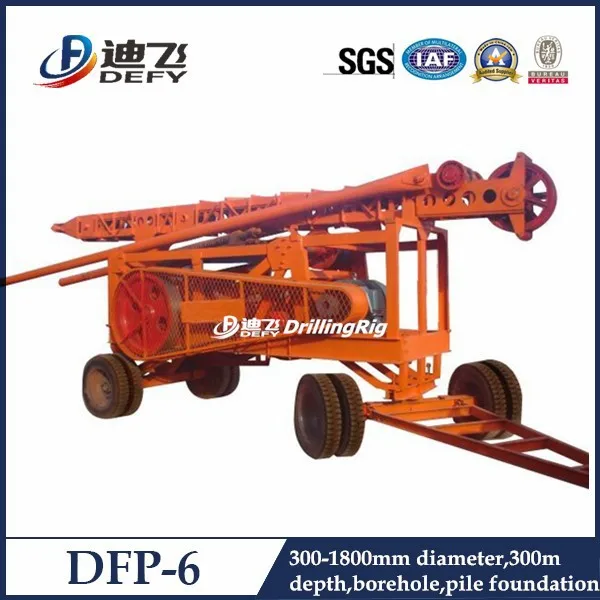

Manufacturer 300m water borehole drilling machine DFP-6 cable percussion drill rig
Product Overviews
DFP-6 cable percussion drilling rig is one of the most important drilling machines in the
piling foundation and bore hole drilling. It can adapt to various geological conditions,
especially for drilling holes in gravel and rock with strong adaptation.
Meantime, percussion drilling rig has high pore forming efficiency and
good pile formation quality.
Technical parameter
Technical features | Specifications | |
Dimensions(M) | 9.30*2.50*3.10 | |
Transport dimensions(M) | 9.30*2.28*2.80 | |
Weight(kg) | 9500 | |
Drilling diameter(mm) | 300-1800 | |
Drilling depth(M) | 300(when dia. Is 600mm) | |
Max.Weight of drill bit(kg) | 5000 | |
Impact stroke(mm) | Max.850,Min.700 | |
Rate of impact(time/min) | 38-42 | |
Electric motor | 37KW | |
Height of mast (M) | Single bar8.5-9.5m; Double bar12.5m | |
Load capacity of mast(kg) | 50000 | |
Hauling speed(km/h) | 30 | |
Lifting capacity of Hoist(N) | Front hoist | 20096 |
Back hoist | 68357 | |
Steel wire rope of coiling block(M)
| Front coiling block | 6×37-φ18 200-250 (Left turning) |
Back coiling block | 6×19s+IWRC 200-300 (Left turning) | |
Wheel | Tire size | 7.50-20 |
Steel ring size | 20×7 | |
After-Sales Service
1. One year quality guarantee for the main machine;
2. Training: operation manual, overseas installation is also available;
3. Spare parts are available in our factory at cost price for former customers;
4. 24 hour on-line guidance for operation and maintenance.
