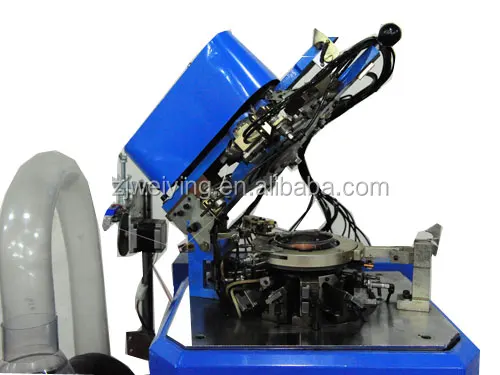

2feeder computerized socks knitting machine

Product Overview

Description



Specifications:

Cylinder Diameter	3.5"/3.75"
Needle Number	72N-220N
Maximum Speed	330
Driving Control	Sever Motor
Voltage	220V/380V
Main Motor	1.1KW
Fan	≥1.1KW(Selection)
Control Box	0.8KW
Site Area	150′120′240cm
Net Weight	300KG
Gross Weight	350KG
Package Size	111′77′176cm



Main Feature And Function:

1. Each line one main color and five auxiliary color,each sock maximum sixteen colors.

2. The complete knitting system is controlled by computer.

3. UPS configuration ensure continuous weaving for instant power failure.

4. As adopting speed motor, thread tension and density is adjustable.

5. The thread and the triangle are controlled by the electronic air controller.

6. The needles system adopt Japan technology,have a good stability and adowearable.

7. Double picks and double lift needles to beat a heel,can knit Y heel. 8. UPS configuration keep memory of program and knitting action if transient electric power cut happened, when the power restored, machine can continue the knitting. 9. Operated through keyboard and LCD. 10. Automatic lubrication,fog form oil, reducing fabric greasy dirt.
