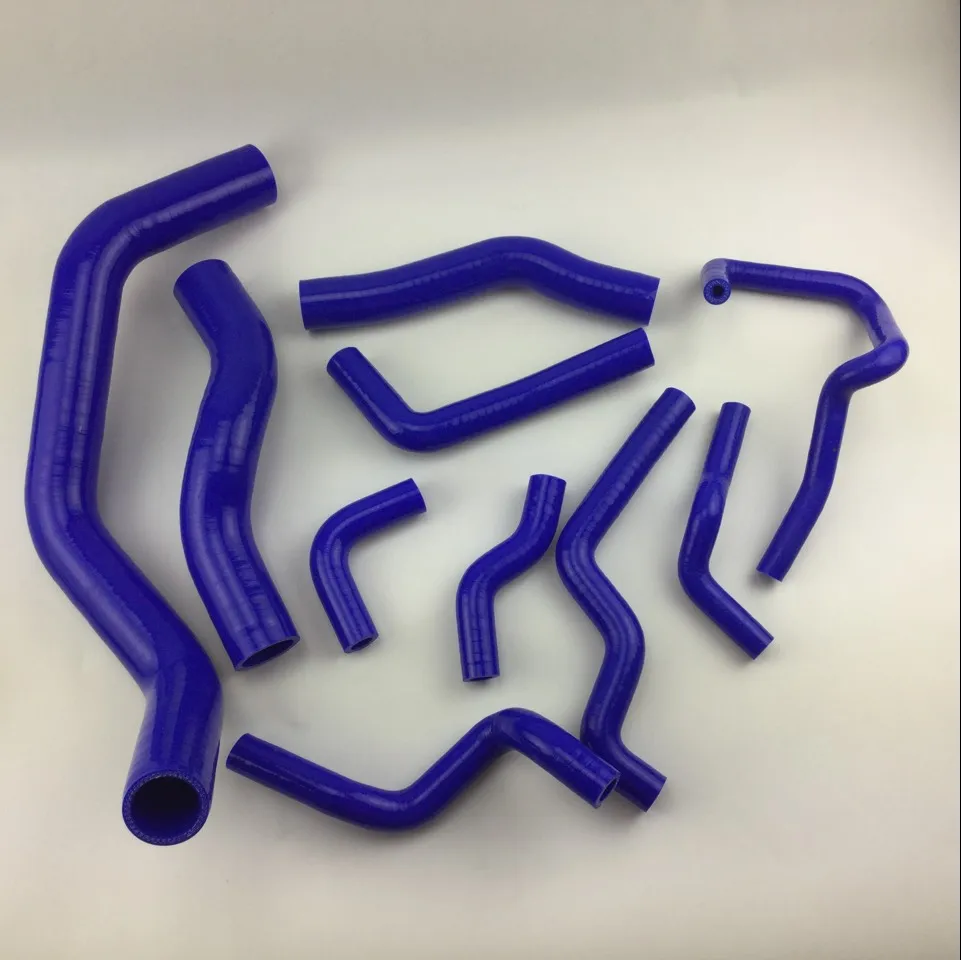

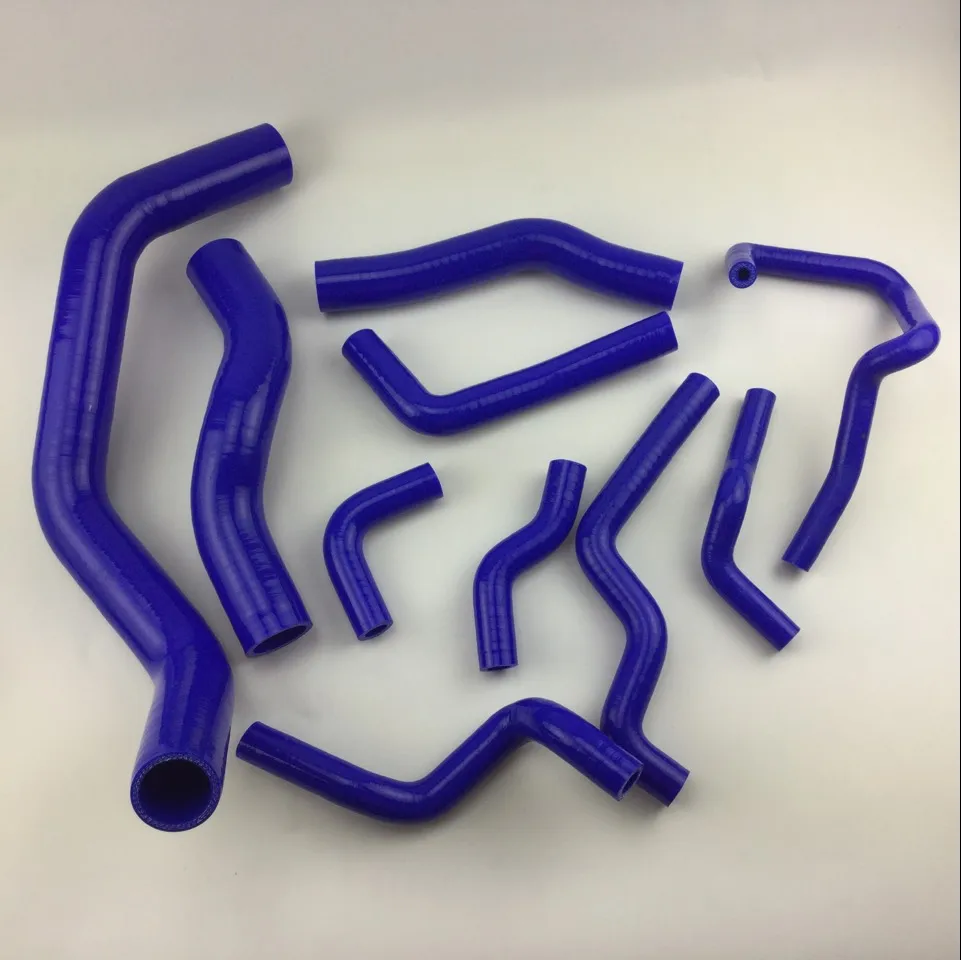

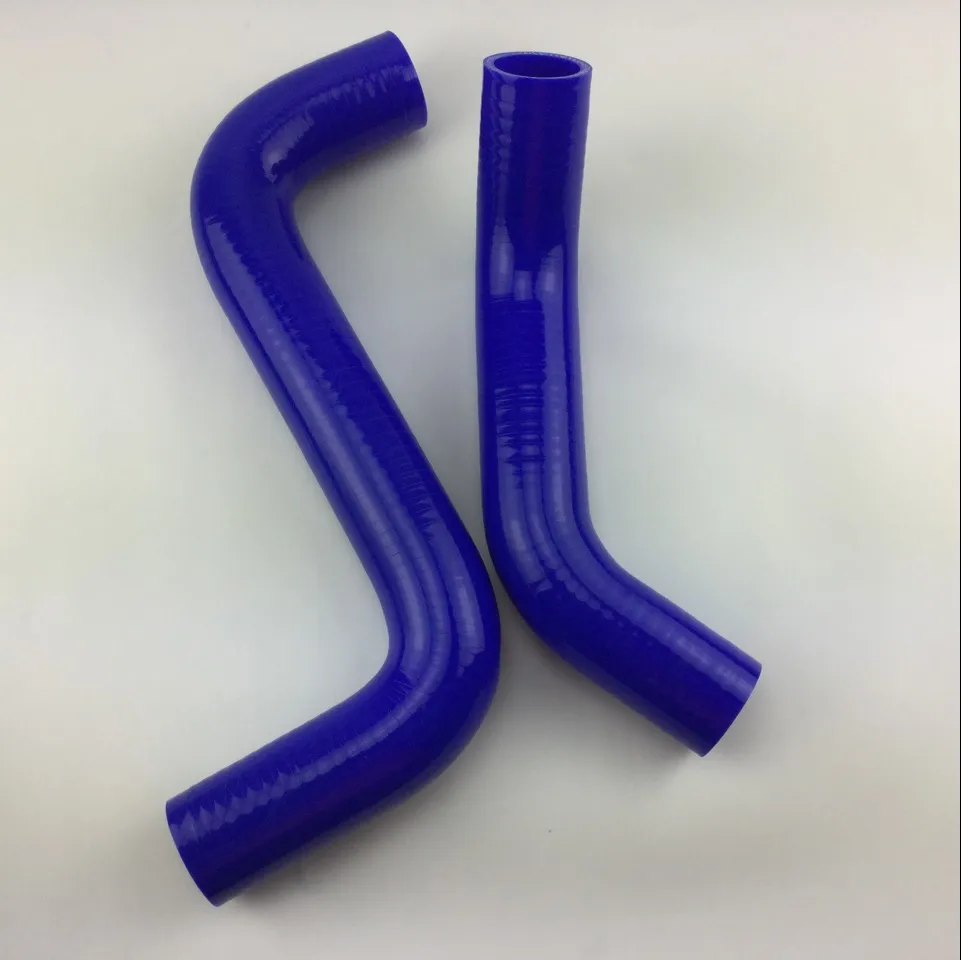

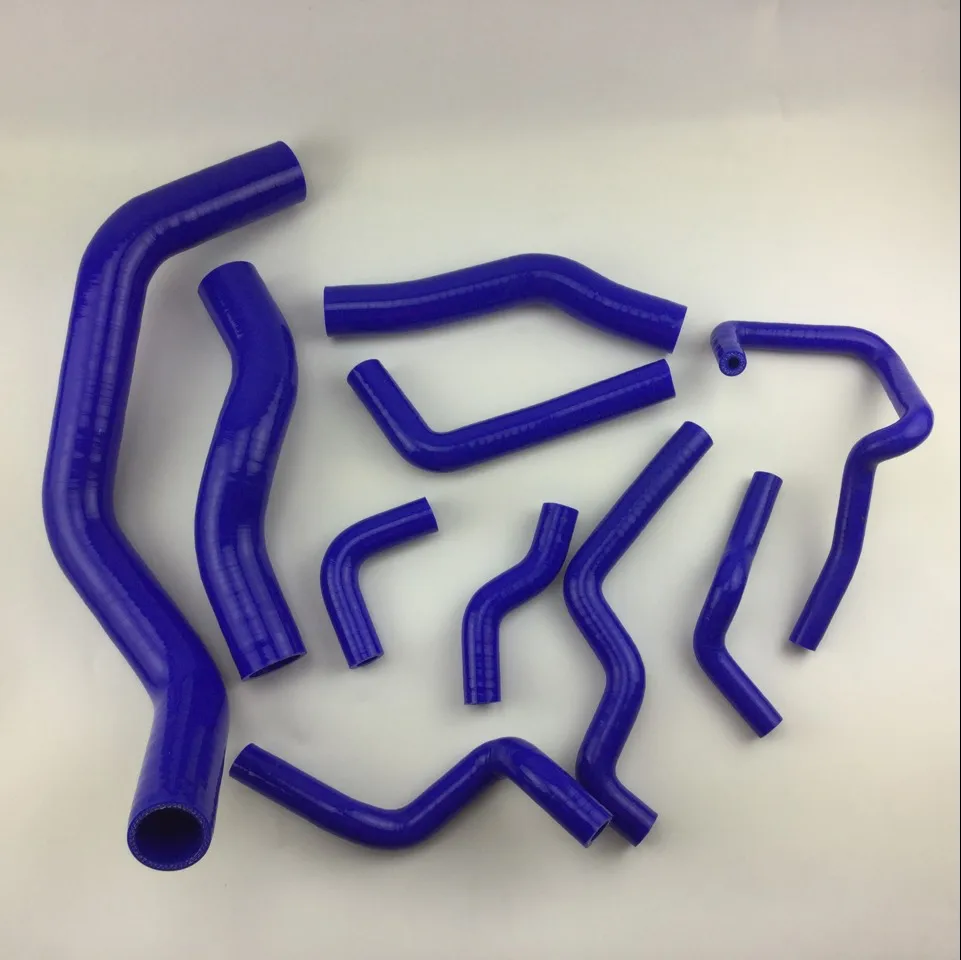

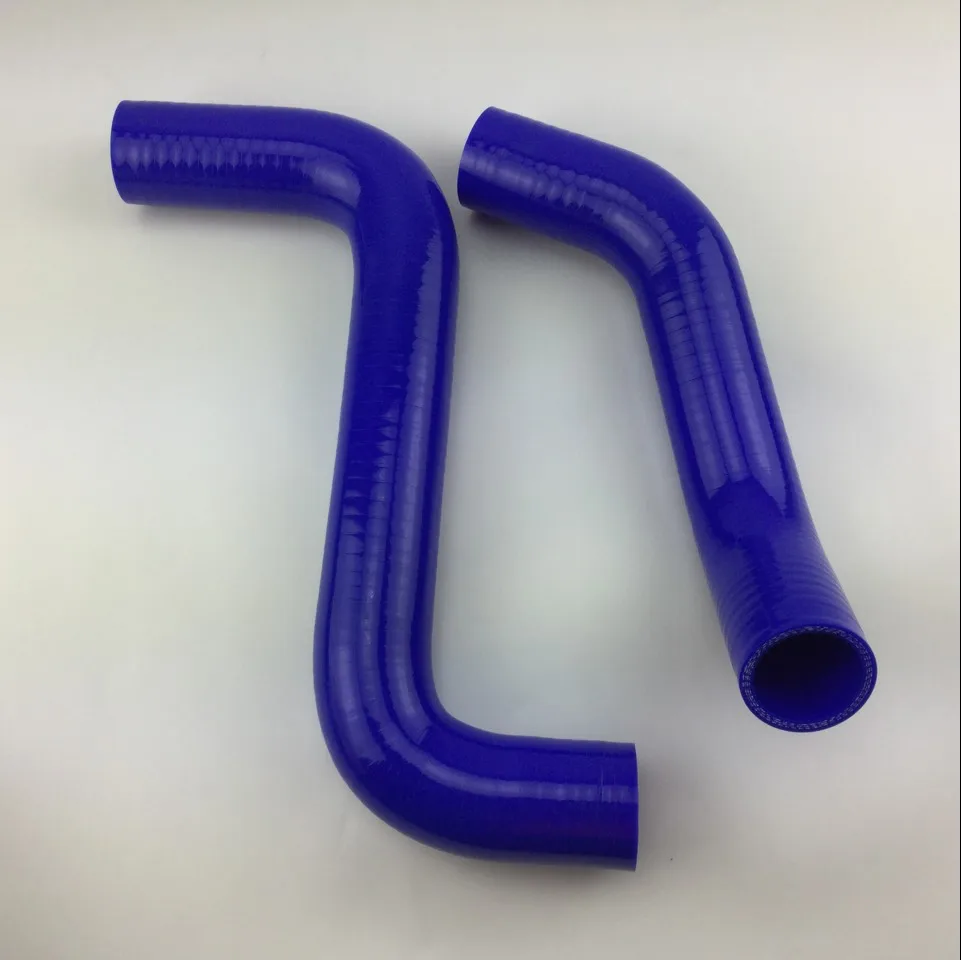

Hand made silicone rubber hose, turbo/air intake/charger intake silicone hose kits
- Category: >>>
- Supplier: Xiamen Hosingtech Auto Parts Co. Ltd. [Fujian China]Xiamen
Share on (60381546805):
Product Overview
Description
Hand-made silicone rubber hose, turbo/air intake/charger intake silicone hose kits
Progress making hose
Company information
Our manufacture advantages as belows :
1.10years experience of producing silicone hose .
2.8 years OEM .OEM service .
3.Factory price .
4.Lead time fast .(most important )
5.Quality ensured .
Our products advantages as belows :
1. 5 years warranty .
2. Logo service .
3.Custom size . ( ID , layer , thickness , length )
4. All colors available .
The silicone hose specifics :
1.The opearting temperature is -60℃--+260℃
2.The working prerssure is 0.3-0.9Mpa
3.The burst pressure is 1.2Mpa .
2.The working prerssure is 0.3-0.9Mpa
3.The burst pressure is 1.2Mpa .
Products Description
Universal Standard sizes:
- Largest standard size range, amazing blue and black color in stock.
- Customized size, logo and color are welcomed too.
- Material choice: Silicone/Polester. Silicone/Aramid (Fluro liner if oil or fuel resistance is required)
- Ply of fabric reinforcement: 3 ply to 6 ply
| Hose types | ID(mm) Minimum to Maximum | ID( inch) Minimum to Maximum | |
| Straight 1 Meter | 6.5 -- 152 | 0.25"-- 6" | |
| Staight Coupler | 6.5 -- 152 | 0.25"-- 6" | |
| Straight Reducer | 13 -- 152 | 0.5" -- 6" | |
| Straight 1 Hump | 51 -- 102 | 2" -- 4" | |
| Straight 2 Humps | 51 -- 102 | 2" -- 4" | |
| Elbow 23 Degree | 51 -- 102 | 2" -- 4" | |
| Elbow 45 Degree | 6.5 -- 152 | 0.25" --6" | |
| Elbow 67 Degree | 51 -- 102 | 2" -- 4" | |
| Elbow 90 Degree | 6.5 -- 152 | 0.25" --6" | |
| Elbow 135 Degree | 16 -- 89 | 0.63 --3.5" | |
| Elbow 180 Degree | 16 -- 89 | 0.63" --3.5" | |
| Tee (3 Way) | 38 --76 | 1.5" -- 3" | |
| Bellows with 3 rings | 57 --152 | 2.25"-- 6" | |
| Bellows with 4 rings | 63 --152 | 2.5" --6" | |
| Bellows with 5 rings | 63 --152 | 2.5" --6" |
Our silicone hoses are widely applied to Auto performance,
Heavy Duty Truck, Coach(Bus), Marine, Industrial, Construction,
especially forsystems below:
- CAC (Charge air cooler system): cool side and hot side
- Coolant system: Hose raditor upper and lower(Inlet and out outlet)
- Turbo Charger System: Higher temperation turbo charger application
Products Details
Material: 100% pure silicone rubber+high quality polyester |
Application: turbo boost/racing/tuning/intercooler/turbo/air intake/wastegate/cooling system |
Thickness:4mm--6mm |
Ply:3--5 |
Length:50mm-2000mm |
ID:3mm--150mm |
Color: red, blue, black, pink, purple, yellow, green, orange, white, transparent and other colors |
Working Pressure: 0.3~0.9 Mpa |
Bursting Pressure: 1.2Mpa |
Operating Temperature: -60℃ to ~ + 260 ℃ |
Quality Quarantee: 5 years |
