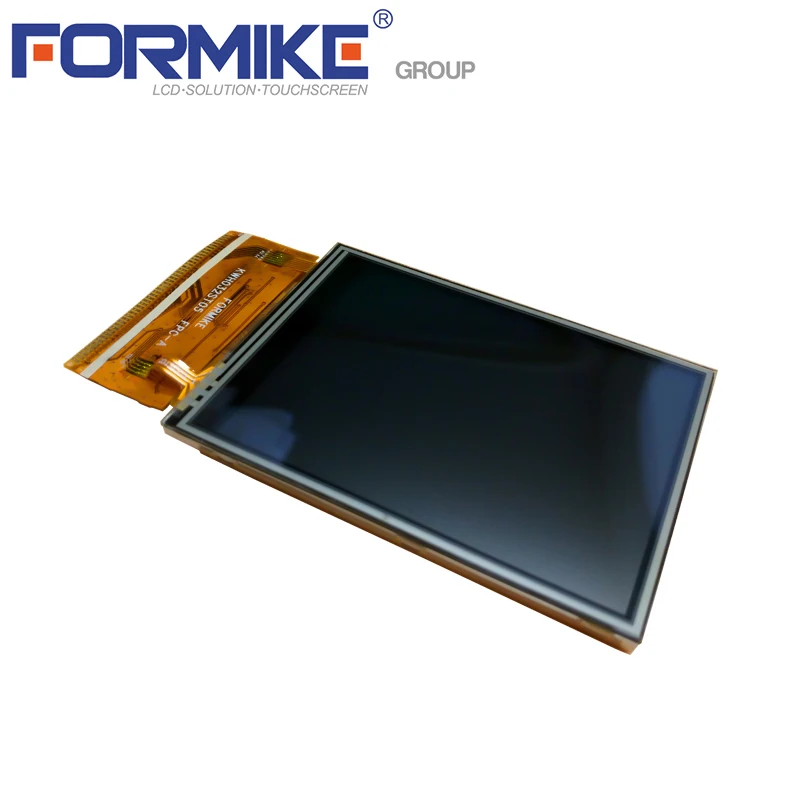

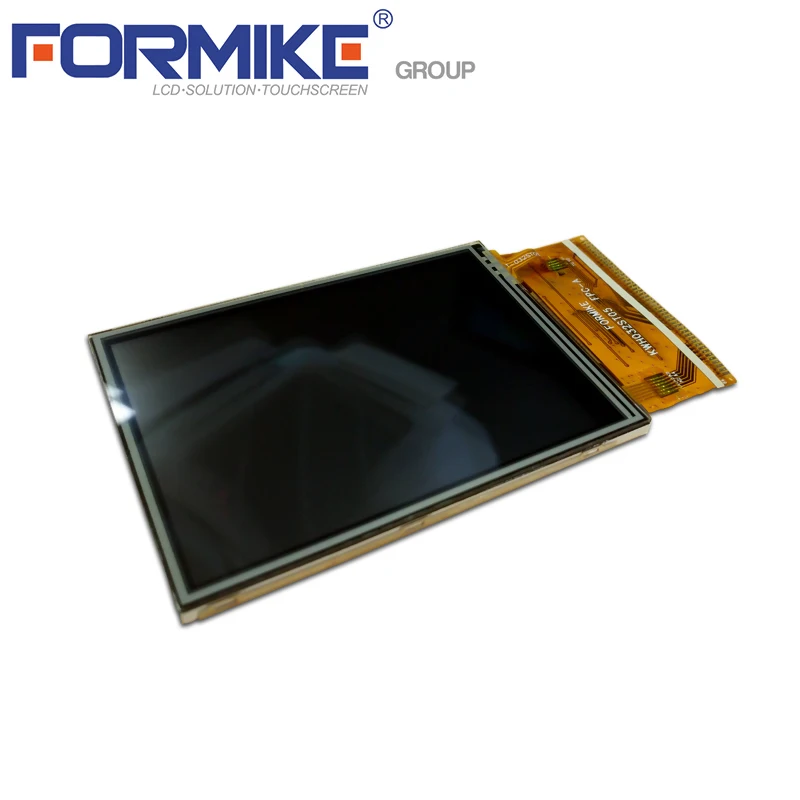

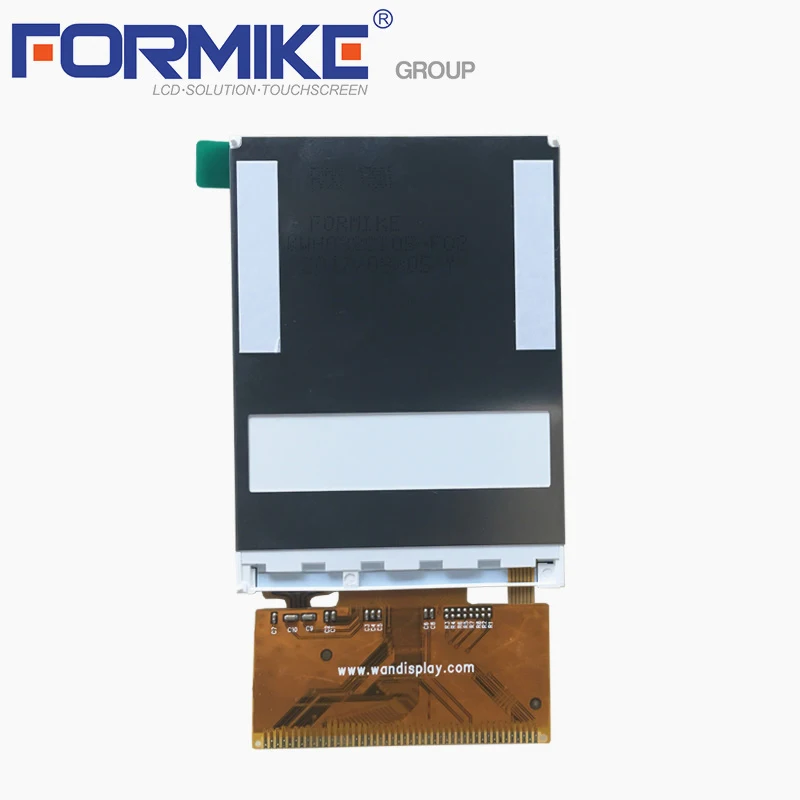

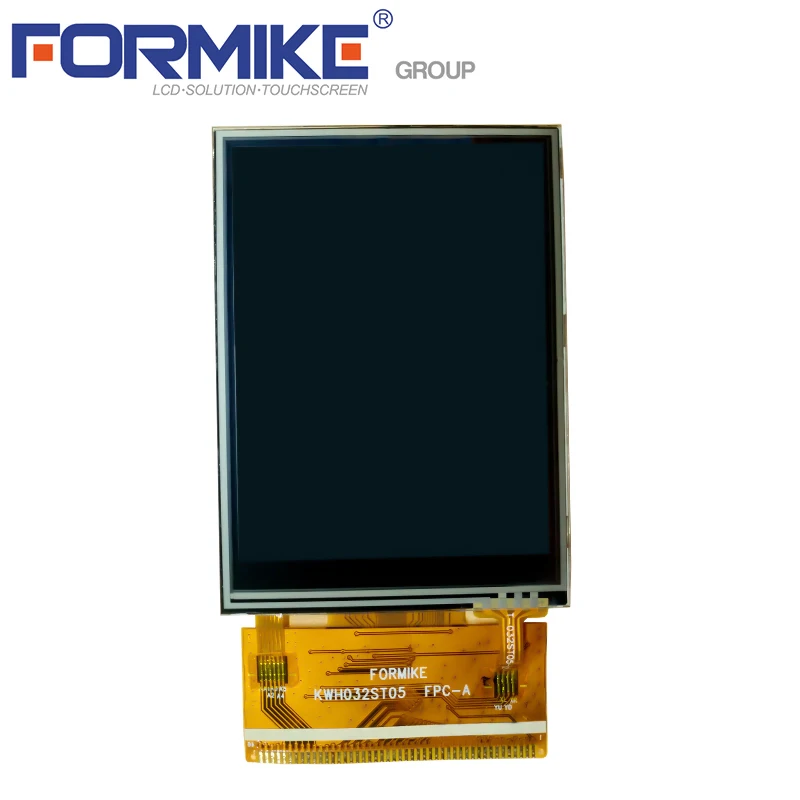

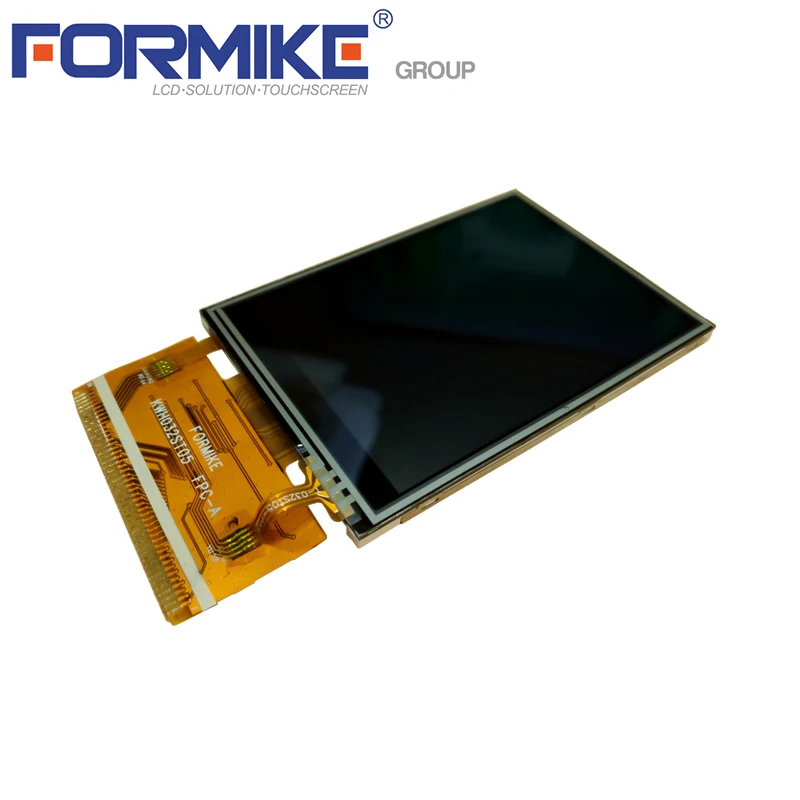

3.2 inch color LCD display 240x320 with resistive touch screen (KWH032ST05 F02)
- Category: >>>
- Supplier: Formike Electronic Co. Ltd.
Share on (60381626792):
Product Overview
Description
Product Description
Item | 3.2 inch color LCD display 240x320 with resistive touch screen (KWH032ST05-F02) |
Part Number | KWH032ST05-F02 |
LCD Resolution | 240x3 RGB x320 |
Display Module | Normally White, Transmissive |
Outline Dimension | 55.94(H)×77.6(V)×3.65(T) |
Active Area(mm) | 48.6(H)×64.8(V) |
Viewing Direction | 12 o'clock |
Brightness of LCM | 320 cd/m2 |
Interface | CMCU I/F( 8/9/16/18 bit ) , RGB I/F (18 bit) |
IC Driver | ILI9341 |
Operating Temperature | -20~70°C |
Touch screen | With resistive touch panel |

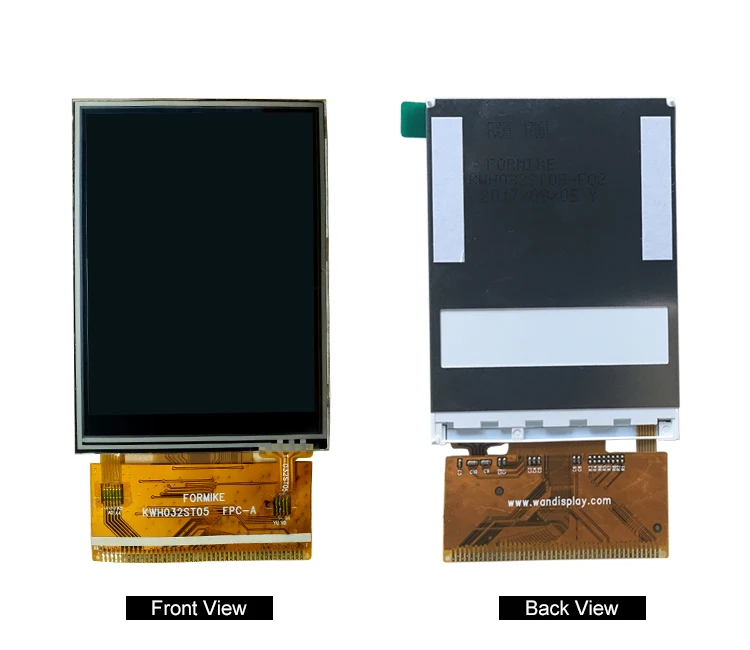

Product Image
Related Product
Application
Factory introduction
Our Service
1-Support
1) Provide TN/HTN/STN/FSTN/DFSTN/VA LCD panel in various modes
2) Character & Graphic LCD modules manufacture (COB, COG, TAB )
3) Color STN & TFT LCD module manufacture
4) Capacitive touch screen manufacture
5) Complete technical support from before to after sales service
2-Services
1-We will handle your inquiry within 24 hours.
2- If there is product quality issue caused by us within half a year, we shall arise to returning or refunding.
3-We will exhaust our ability to service you at any time
2) Character & Graphic LCD modules manufacture (COB, COG, TAB )
3) Color STN & TFT LCD module manufacture
4) Capacitive touch screen manufacture
5) Complete technical support from before to after sales service
2-Services
1-We will handle your inquiry within 24 hours.
2- If there is product quality issue caused by us within half a year, we shall arise to returning or refunding.
3-We will exhaust our ability to service you at any time
Exhibition
FAQ
1.Q: Order process
A:PO is placed by clients → PI is issued by Formike → Payment by clients → Lead time is confirmed by Formike → Shipping instrction by Clients → Delivery → Cargo tracking → Receipt of cargo
2.Q: Lead time ( after payment is confirmed)
A: Sample: 1-10 working days Volume: 3-60 working days
3.Q: Payment
A: T/T , Western union, L/C, Credit card, and Cash
4.Q: Warranty
A: 12 months warranty ( Please find more details via our datasheet by item of Limited Warranty)
5.Q:RMA Process
A:Claimed by cliens with photos or videos → Sales rep of Formike confirm if have questions → Sales rep issue RMA No to clients if confirmed by QA → Return to Formike → Formal report after goods received by Formike → Clients confim the analysis report → Proceeding as per the Report both agreed
6.Q:Notes
A:Please check both appearance and function of products prior to installation.
Any damage caused by improper use or unprofessional installation is not covered under warranty.
