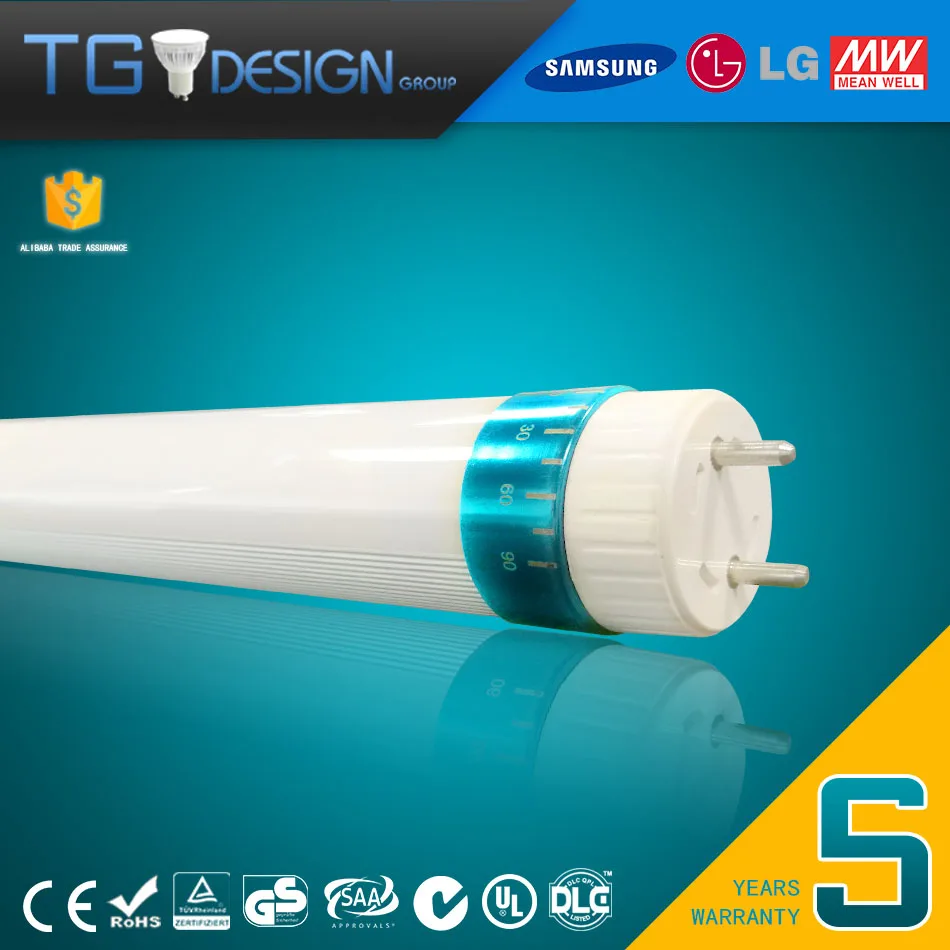

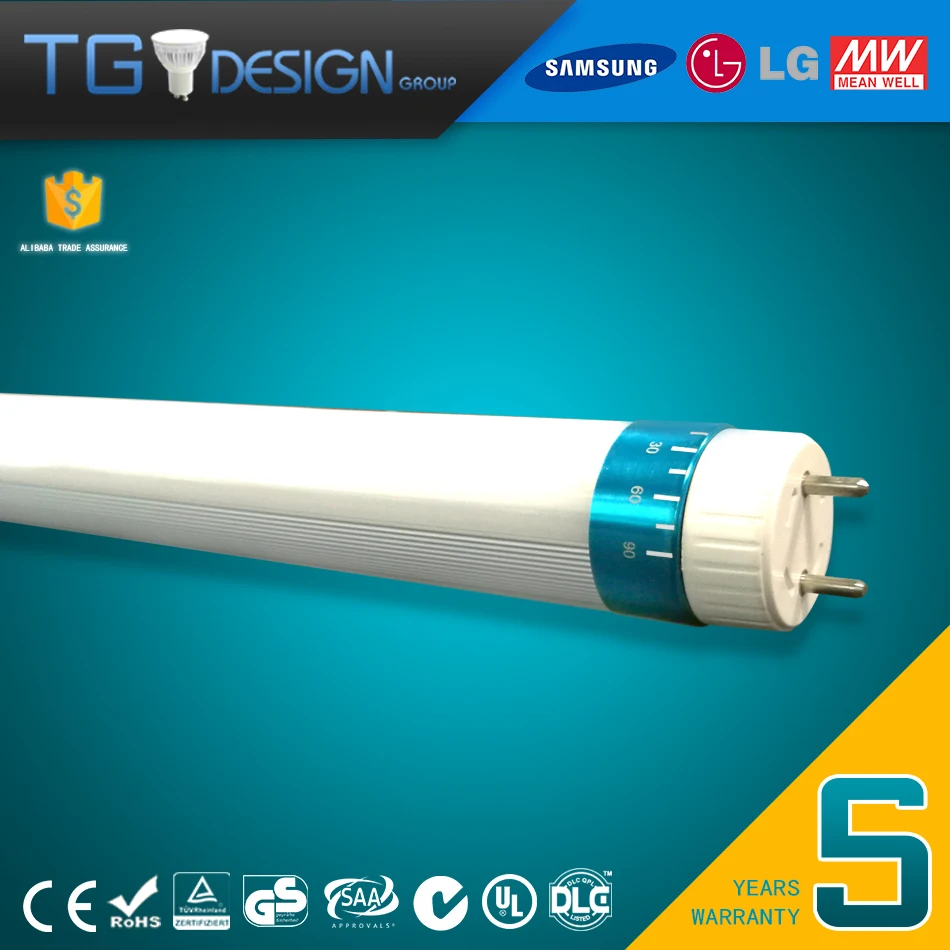

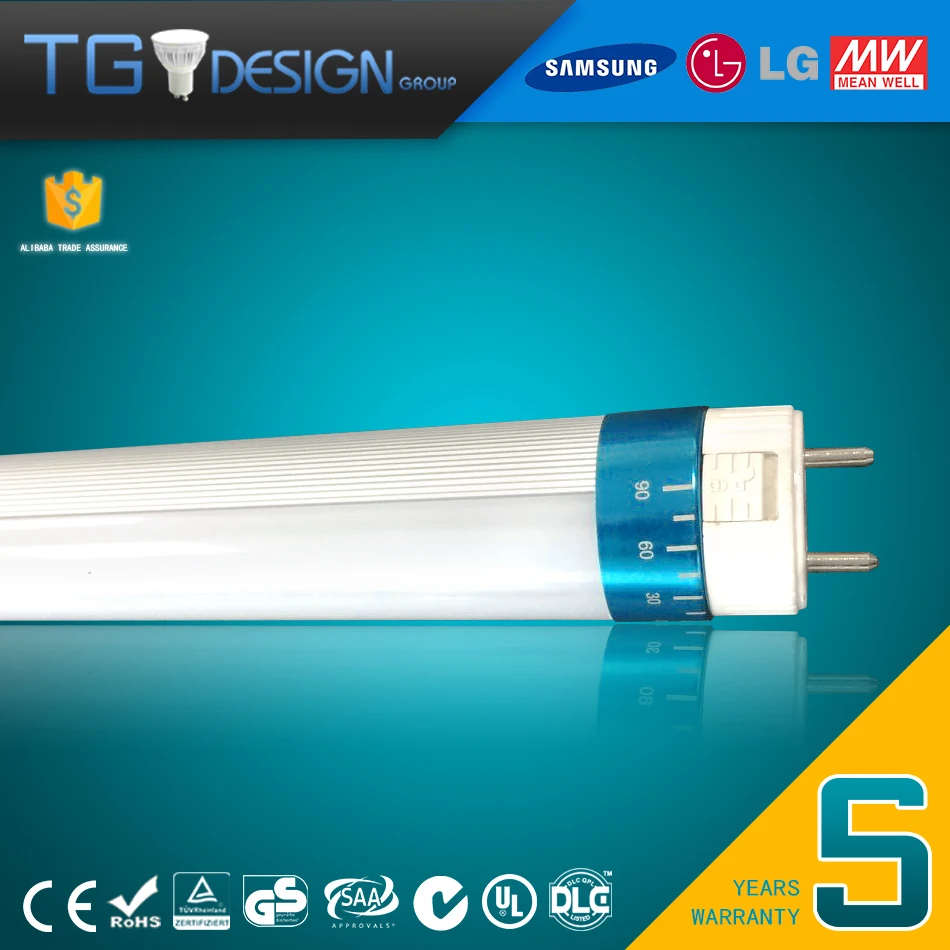

140lm/w T8 LED Tube 1.5m 32w 4400lm led tube light
140lm/w T8 LED Tube 1.5m 32w 4400lm led tube light
140lm/w T8 LED Tube 1.5m 32w 4400lm led tube light
140lm/w T8 LED Tube 1.5m 32w 4400lm led tube light
140lm/w T8 LED Tube 1.5m 32w 4400lm led tube light
140lm/w T8 LED Tube 1.5m 32w 4400lm led tube light
140lm/w T8 LED Tube 1.5m 32w 4400lm led tube light

140lm/w T8 LED Tube 1.5m 32w 4400lm led tube light

Share on (60381648888):


Price:RUB 477.66

Quantity:


Product Overview

Description

135lm/w Super High Brightness T8 Led Tube Lights

Product Description

 -- Up to 135lm/w, quantity saving and electric energy saving

 -- Double -insulated power supply, 100% isolated, installation safety

 -- Aluminous body+PC Cover, faster heat dissipation
 -- Rotatable End plug, easy to use
 --50000 hours life time, 5 years warranty
 --CE RoSH TUV SAA C-tick Certificates
led tube light T8 tubesT8 tube light.jpg
Technical Datas Of T100 Series T8 Led Tube Light :
Code Power Lumen output Dimension CRI THD CCT PF Voltage Beam Angle Cover
T1000610KCR 10W 1200-1300lm 26*600mm >82 <12 3000-6000K >0.95

AC100-240

50/60HZ

120-180 Degree

 Milky/Clear
T1001218KCR 18W 2400-2500lm 26*1200mm
T1001522KCR 22W 2900-3000lm 26*1500mm


Advantages Of T100 Series T8 LED Tubes:

Part 1: LED Power Supply

1. IC--American Silergy Brand
2. Mosfet--Japan Toshiba Brand
3. Capacitor--Nichicon or Rubycon
4. Ripple Remover--wipe off the strobe at 100Hz, flicker free by camera, eyes protection.

 Part2:High Quality

Epistar SMD2835

1. Chip size: 10x30 mil

2. CRI: Ra80+

3. Power: 0.5w

4. Luminous flux: 55+lm (@150mA)

Part 3: Heat Dissipation

1. 6063 Aluminum for LED Tube shell
2. Aluminum PCB board
3. Thermal grease on the shell for optimum thermal transfer

Part 4: Structure

1. Round LED Tube Structure is stronger,

anti-shock, and nice appearance

2. LED Tube PC covers with high transmission:

95% for transparent cover and 85% for frosted cover.

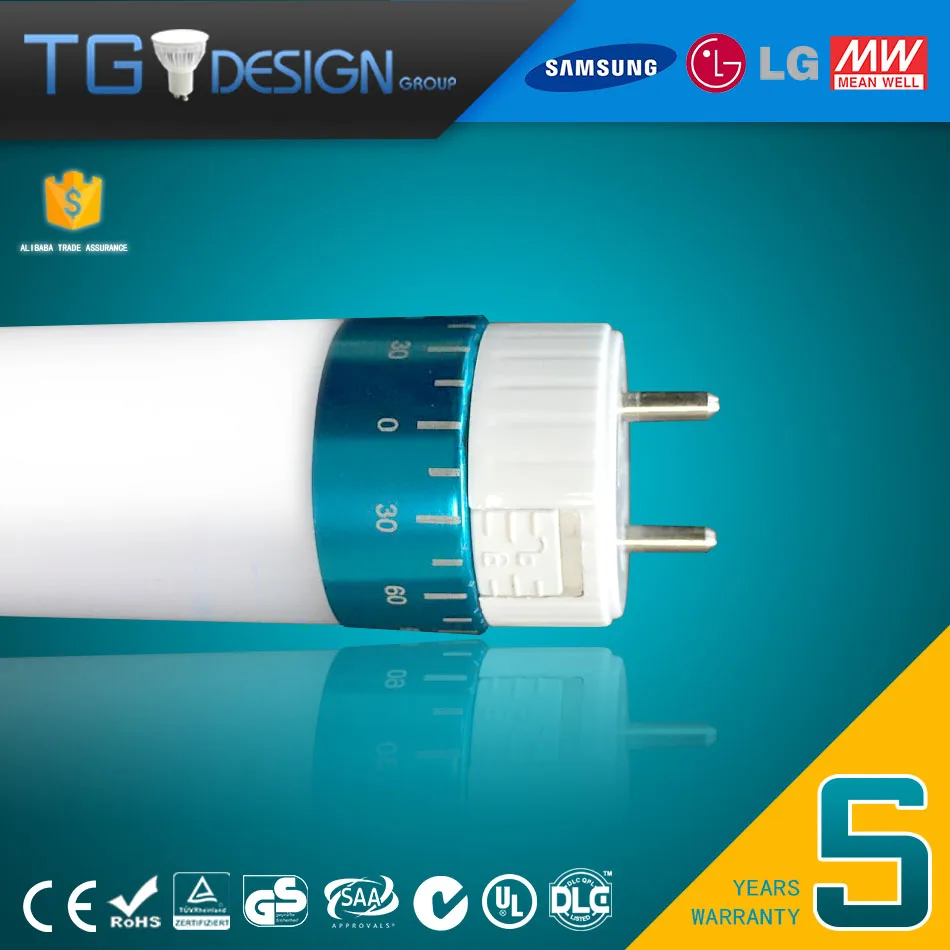

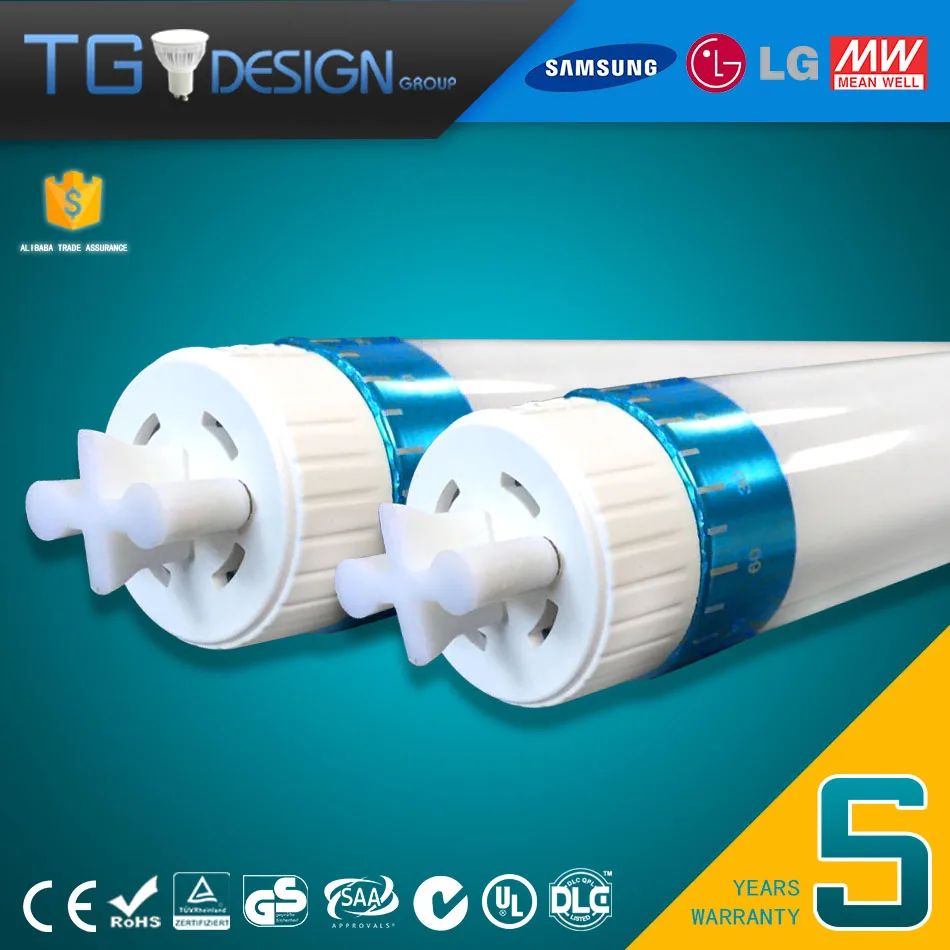

3.Rotatable and lockable end caps are to adjust any angle you prefer.
LED Tube Ligth Energy Saving:
Overviews

led tube light T8 tubesT8 5 years.jpgled tube light T8 tubesT8 led tube.jpg

TG-Design LED Tube driver is designed by ourselves. Guarantee the high efficiency, stable, and long lasting led power supply.

led tube light T8 tubesT8.jpg

Packaging & Shipping

>>>Packing Details: (Rigid Inner Package or EPE Foam Inner Package + Outer Carton)

600mm: 650x195x195mm/25pcs; 8.3kg/6.4kg
1200mm: 1250x195x195mm/25pcs; 14.8kg/12.3kg
1500mm: 1550x195x195mm/25pcs; 18.2kg/13.3kg

led tube light T8 tubesT8 light.jpgled tube light T8 tubesT8 Installation.jpg

-->>Shipping



By express: DHL, UPS, FEDEX, TNT



We will search the most economical and reliable shipping company to transport the goods safely.



By air: when your order is more than 100kg which will be more economical than express.



By sea: when your order is large quantity, we can help you to deliver the goods by sea.



Application



Application

  - Replacement bulbs for traditional halogen lamps, especially for museums, art galleries, cosmetic,where UV or IR radiation is undesirable.

  - Suitable for products range of hotel, bar, SPA, hardware store, lighting store, exhibition booth,supermarket, electronic store, show room, and internet shop.

led tube light T8 tubestube application.jpg

Installation:

 T8 INSTALLATION:

Please follow the steps of installation also shown in below figures.

-Switch off electricity

-Remove the conventional lamp

-Remove the starter

-Click the replacement starter into the starterholder

-Insert the LED lamp into the lampholder

-Secure the position by turning the lamp by 90°

-Switch on electricity



 IMPORTANT SAFETY INSTRUCTIONS:



- Suitable to be used in combination with magnetic ballast only



-This lamp is not suitable to be used in emergency luminaires designed for double-capped fluorescent lamp(s)

- Short-circuit starter

- Lamps should be used in dry conditions or in a luminaire that provides protection

- Any construction change of the luminaire in case of applying retrofit LED

lamps shall not be permitted.

- Risk of fire or electric shock. LED Retrofit Kit installation requires knowledge of luminaires electrical systems. If not qualified, do not attempt installation.Contact a qualified electrician.

- Not intended for dimmer circuits.



SAVE THESE INSTRUCTIONS!
