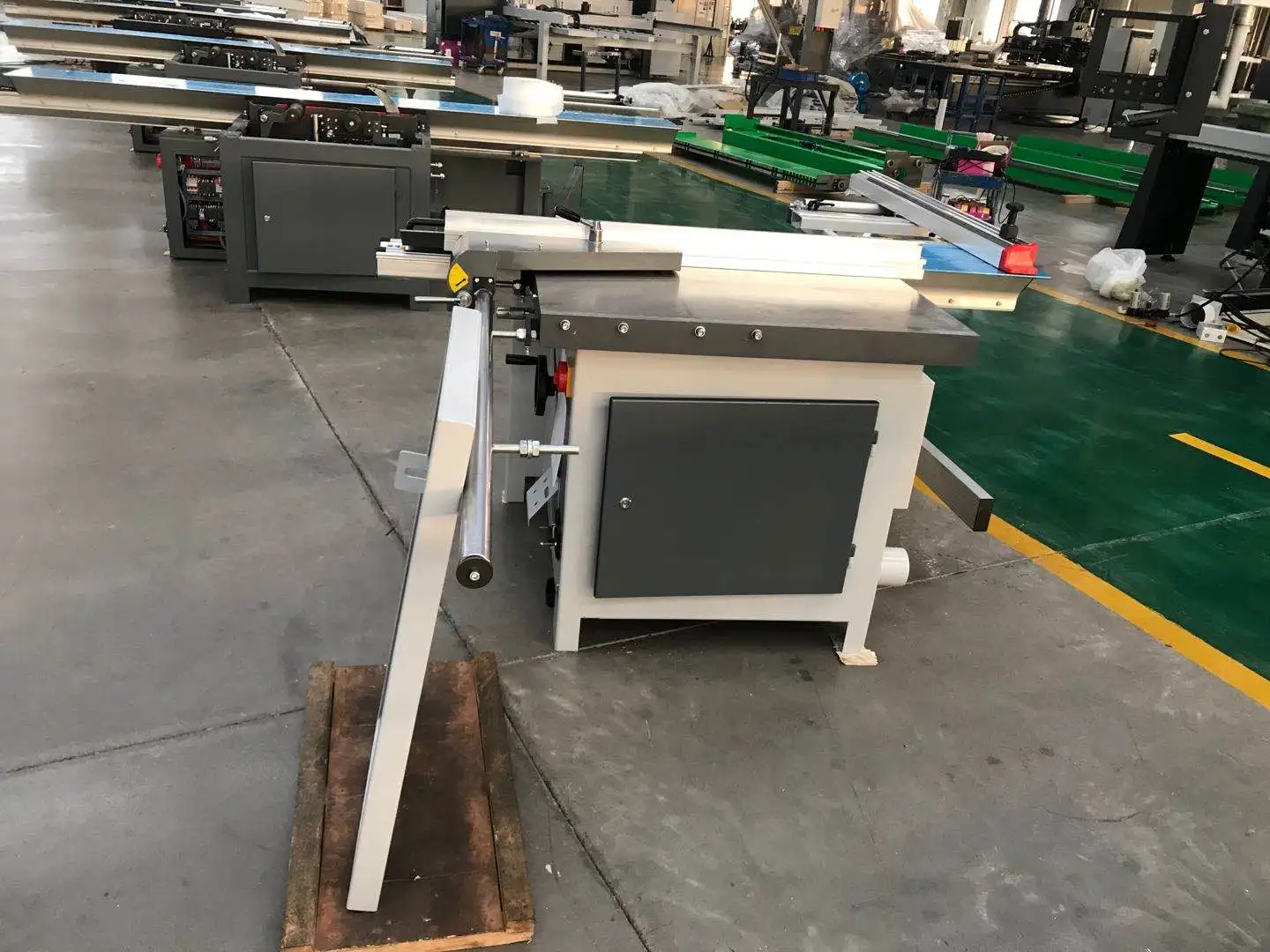

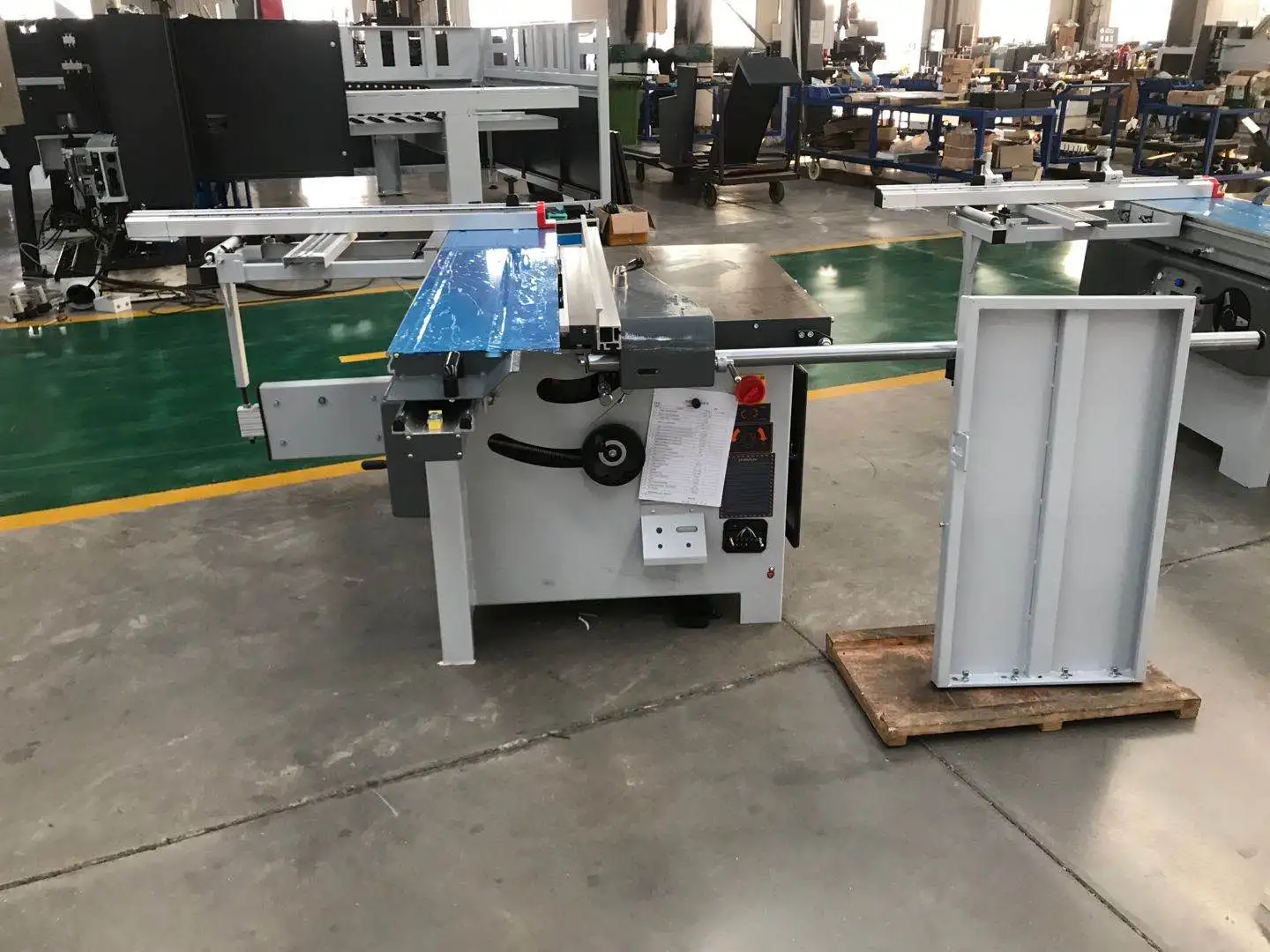

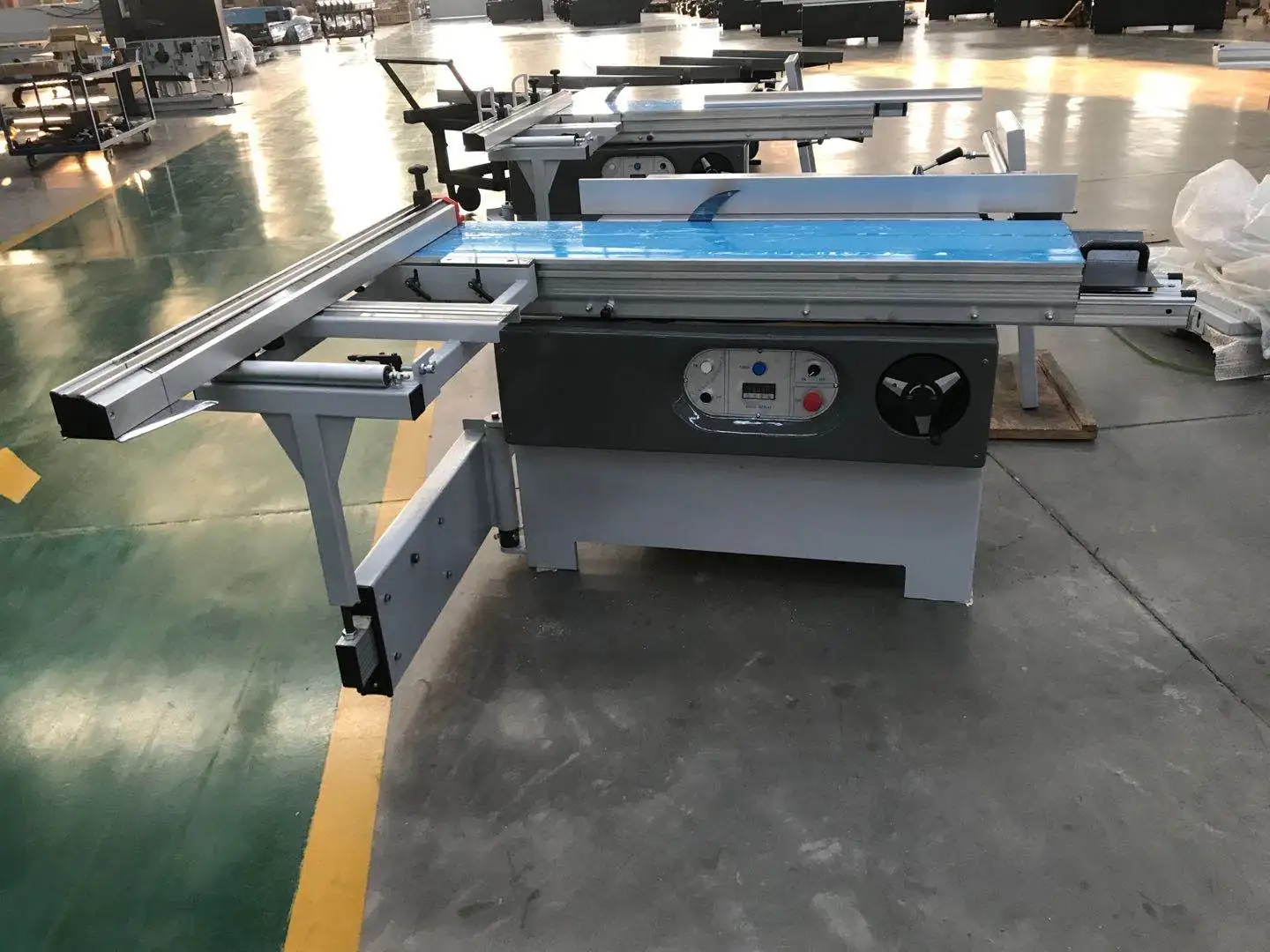

Unisunx Wood cutting table saw machine MJ6116TYB

Product Overview

Description

Unisunx Wood cutting table saw  machine MJ6116TYB





Main Technical Parameter

MJ6116TYB
Dimensions sliding table	1600×360mm
Gross cut capacity	1600mm
Width of cut between saw blade and rip fence	1250mm
Saw blade φ	φ300mmφ250-φ300
Height of cut φ300mm	80mm
Height of cut with saw blade φ300mm at 45°	55mm
Speed of main saw blade	4000/6000rpm
Spindle diameter	φ30mm
Tilling saw blade	0-45°
Main motor	4kw(optional5.5kw)
Scoring saw blade	120mm
Speed of scoring saw blade	8000r/min
Spindle of scoring saw	20mm
Motor	0.75kw
Net weight	483kg
Gross weight (wooden packing case)	556kg
Overall dimensions	1700×2500×880mm

Characteristic:

a)Apply to processing all kinds of density boards, shaving boards, wood-based panels, ABS    panels, PVC panels, organic glass plates and solid wood and others with wood structure and similar hardness.

b).Movable table guide track is plating chromium steel balls structure, exact and durable.

c).Made of high-strength extruded aluminum alloy, movable table is high in strength and wont bend.

d).With oxidation treatment, movable table surface is beautiful and hardwearing.

e).Tilt angles of main and scoring saw blades are displayed directly by precision inclinometer. (Digital indicator is option).

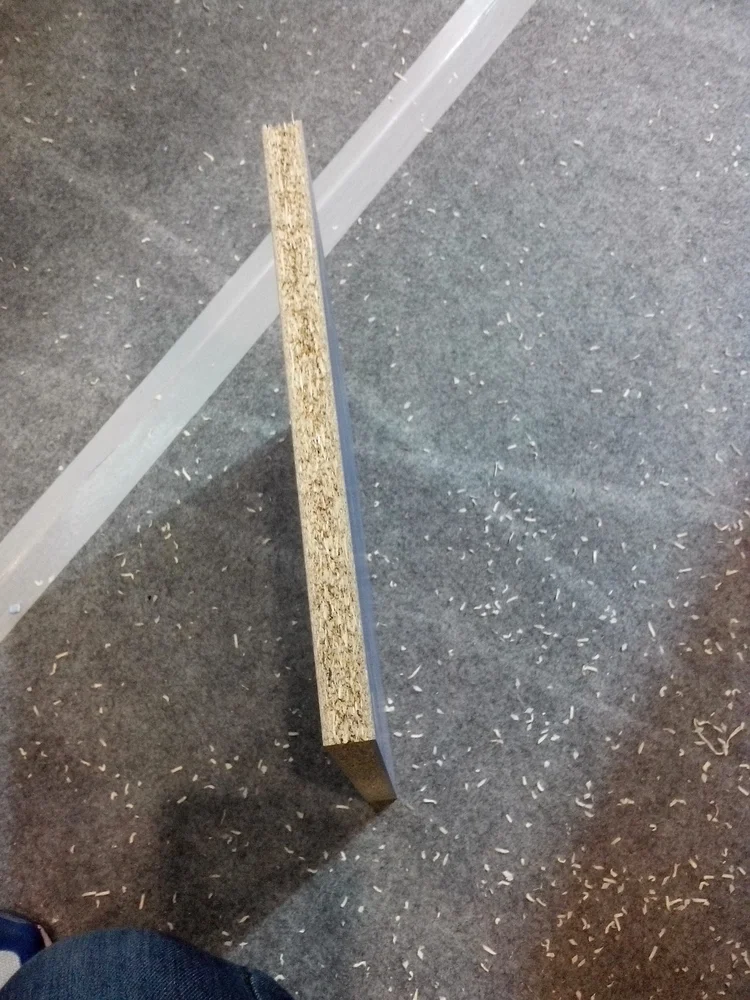

Sample:



Shipping and packaging :
