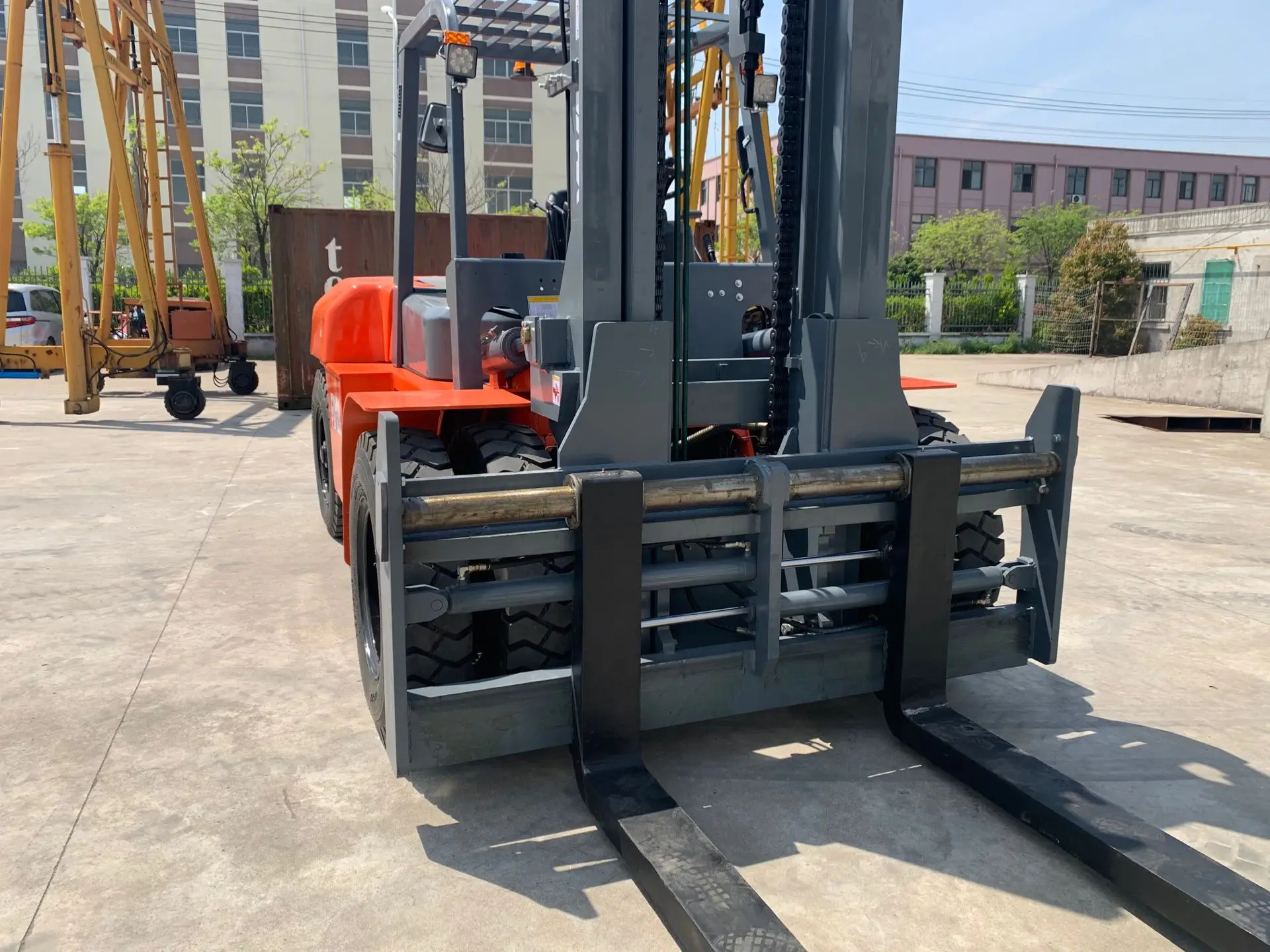

New heavy 12 ton side shifter forklift /new toyota engine diesel forklift price

Product Overview

Description

new heavy 12 ton side shifter forklift /new toyota engine diesel forklift price



                                                                                                                                                                                                 -------------------------These diesel forklift trucks come with fuel-injected engines that provide excellent horsepower and torque in hard-working material handling environments. The fuel management system optimizes fuel economy and extends tire life.

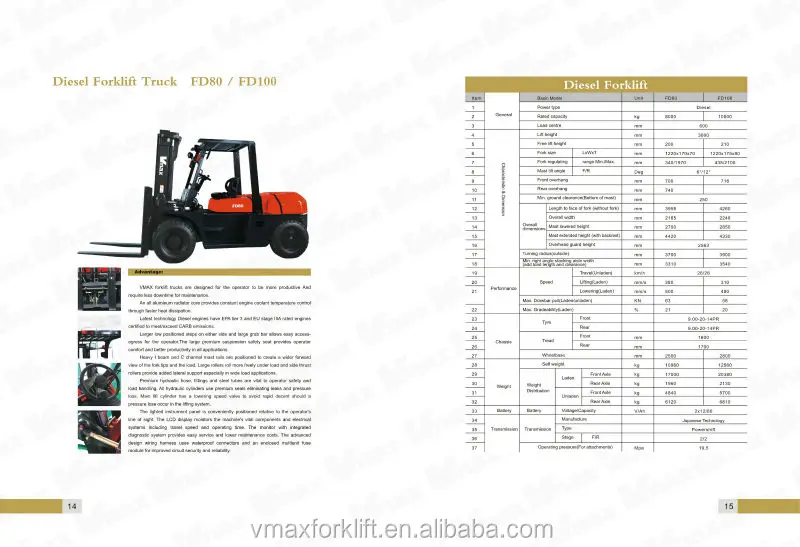

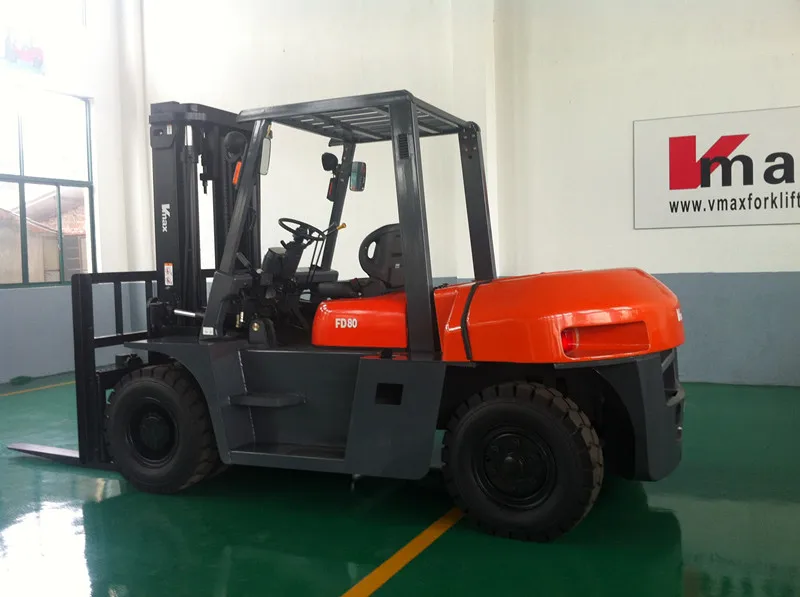

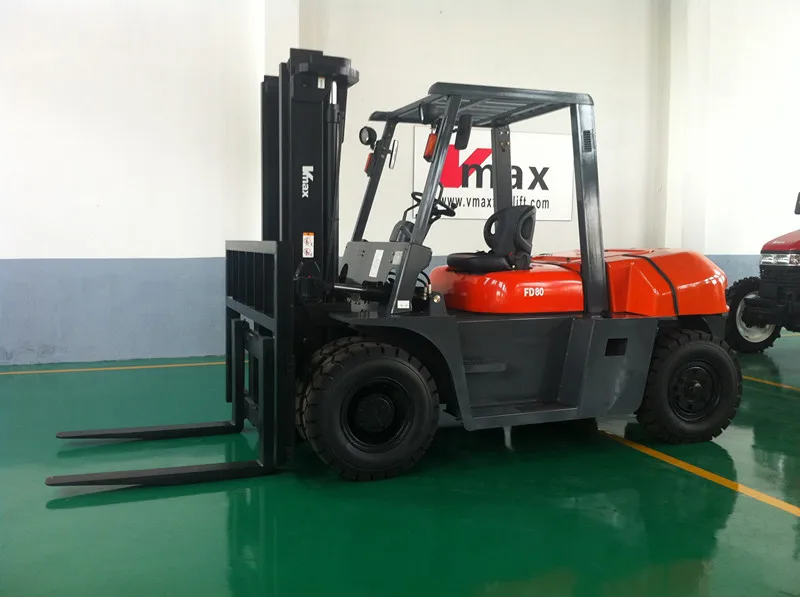

Specifications of 8-10 ton forklift truck:

General		Manufacturer				Vmax

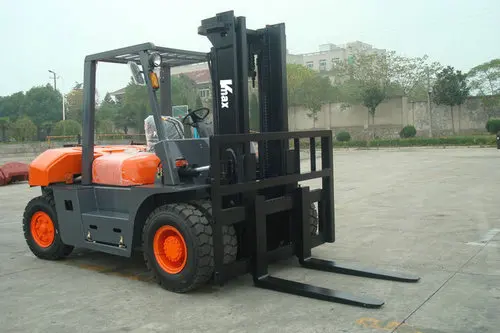

	1	Model				FD80		FD100
	2	Rated capacity			kg	8000		10000
	3	Load center			mm	600
	4	Gearbox change speed type				Hydraulic
	5	Power type				Diesel
	6	Tire type		Front/Rear		Pneumatic
	7	Wheels		Front/Rear		Dual front wheels,4/2
Dimensions	8	Lift height			mm	3000
	9	Free lift height			mm	205		210
	10	Fork size		L*W*T	mm	1500x160x75		1500x160x80
	11	Mast tilt angle α/β			deg	6/12
	12	Overall length (without fork)			mm	3940		4258
	13	Overall width			mm	2245
	14	Mast height fork lowered			mm	2695		2845
	15	Overall height fork raised			mm	4445		4307
	16	Overall height (overhead guard)			mm	2565
	17	Turning radius (outside)			mm	3700		3900
	18	Load distance (centerline of front axle to front face of forks)			mm	700		733
	19	Wheel base			mm	2500		2800
	20	Tread		Front	mm	1600
	21			Rear	mm	1700
	22	Min. Under-clearance (full load / no load )		Bottom of mast	mm	205/245
	23			Bottom of frame	mm	323/343
Performance	24	Speed	Travel speed	With load	km/h	24		22
	25			Without load	km/h	28		28
	26		Lifting speed	With load	mm/sec	350		300
	27			Without load	mm/sec	480		390
	28	Max.Gradeability			%	20
weight	29	Self weight			kg	11080		12860
Tyre	30	Front	Size	Front		9.00-20-14PR
	31	Rear		Rear		9.00-20-14PR
	32	Tread	Front			1600
	33		Rear			1700
	34	Brake		Service		Hydraulic-Foot pedal
	35			Parking		Mechanical-Hand lever
Transmission	36	Transmission	Battery	Voltage / Capacity		V/AH	2x12/100
	37		Internal combustion engine	Model for option		1. ZHAOCHAI 6102 Engine; 2. ISUZU 6BG1
	38		Transmission	Type		Hydraulic
	39			shift (Fwd/Rvs)		2/2



FAQ
Any questions, welcome to contact us, we will be always help you and support you.
Q: May I know how soon I can get the machine after I transfer the deposit?
A: Usually, if the quantity is less than 20 units, we can finish the production in 15-20days.
We will try our best to offer the machines to you as soon as possible.
Q: How long the product warranty period?
A: The product warranty period is 18 months or 2000 hours.
Q:How can i become a distributor of Vmax?
A: We have been engaged in this industry for more than 20years, Our hot products sold
at home and abroad by our own foreign trade department and some trading company.
