FTDI Cable USB to Serial TTL level converter 5V VCC 3.3V
- Category: >>>
- Supplier: Shenzhen Utech Electronics Co. Ltd.
Share on (60381962181):
Product Overview
Description
Products Description

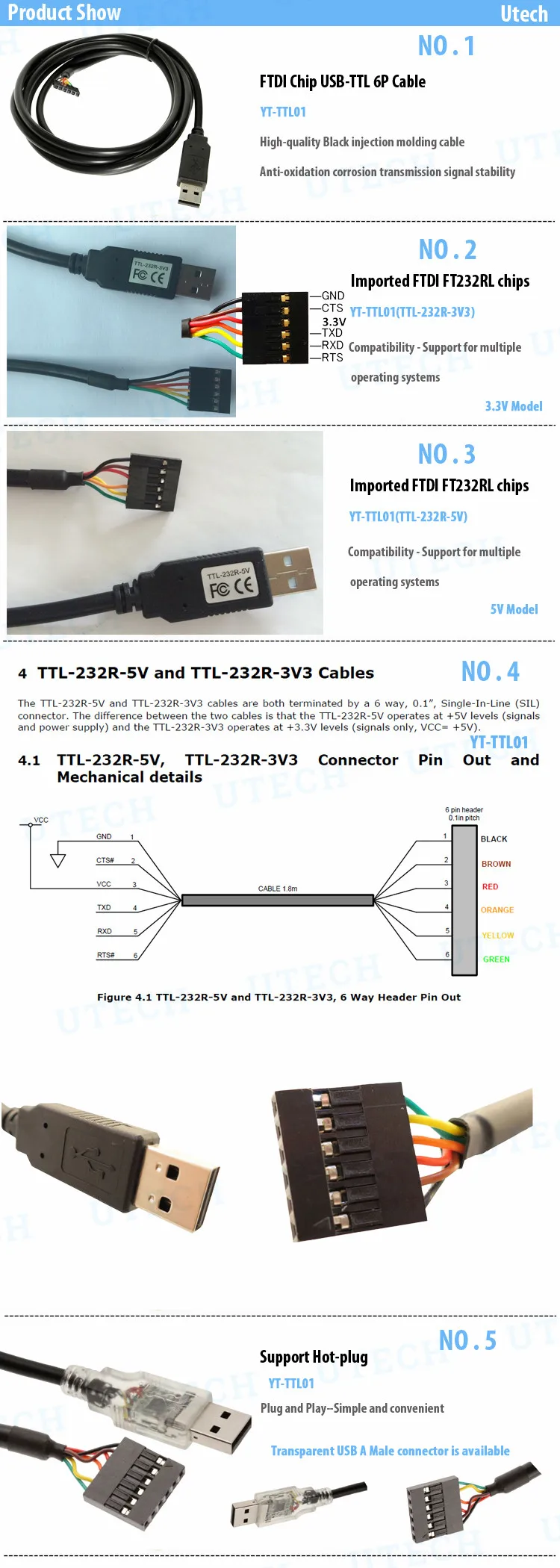

FTDI Cable USB to Serial TTL level converter 5V VCC 3.3V
The FTDI cable is a USB to Serial (TTL level) converter which allows for a simple way to connect TTL interface devices to USB. The I/O pins of this FTDI cable are configured to operate at 5V.

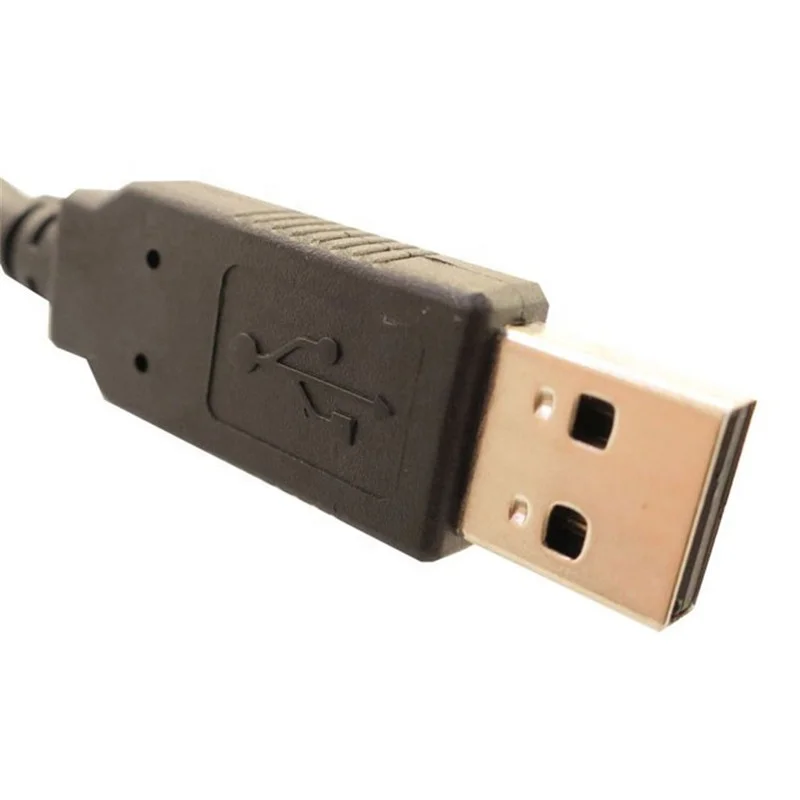

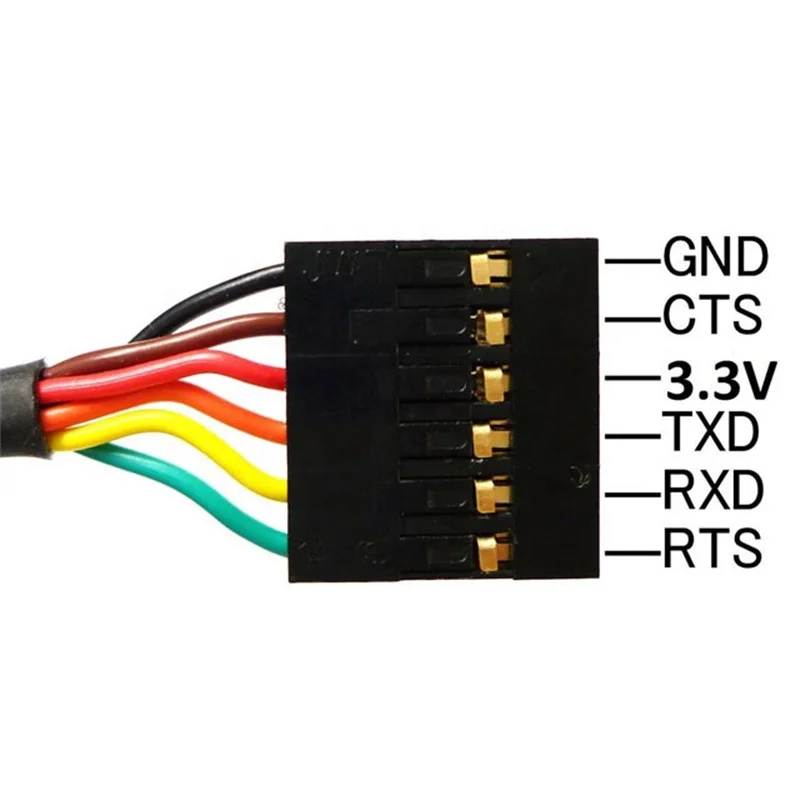

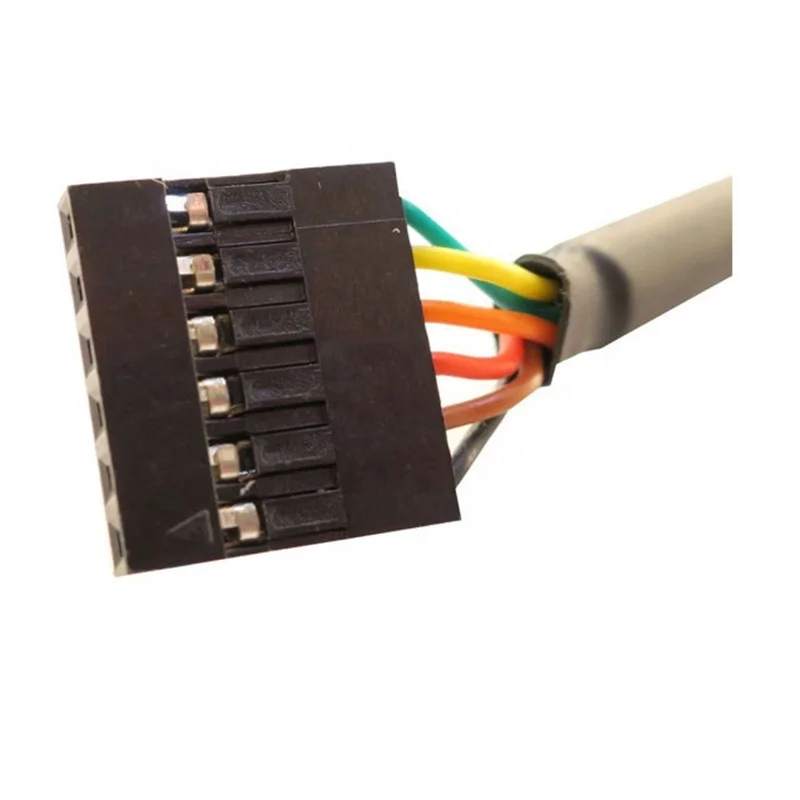

The FTDI cable is designed around an FT232RL, which is housed in a USB A connector. The other side of the cable is terminated with a 0.1" pitch, 6-pin connector with the following pinout: RTS, RX, TX, 5V, CTS, GND (RTS is the green cable and GND is black).
This cable has the same pinout and functionality as our FTDI Basic Breakout board; you can use it to program your Pro, Pro Mini.
The FTDI cable is designed around an FT232RL, which is housed in a USB A connector. The other side of the cable is terminated with a 0.1" pitch, 6-pin connector with the following pinout: RTS, RX, TX, 5V, CTS, GND (RTS is the green cable and GND is black).
This cable has the same pinout and functionality as our FTDI Basic Breakout board; you can use it to program your Pro, Pro Mini.
Product Paramenters
1.TTL-232R Converter Cable provides a USB to TTL Serial interface with various end connectors.
2. On board FT232RL provides single chip USB to asynchronous serial data transfer interface.
3. Entire USB protocol handled by the electronics in the cable USB.
4. Connect directly to a microcontroller UART or I/O pins.
5. 5V CMOS drive outputs and 5V safe TTL inputs make the TTL-232R easy to interface to 5V MCU''s.
6. +5V or +3.3V output allows external logic to be powered from the USB port.
7.6-way outputs provide Tx, Rx, RTS#, CTS#, VCC, and GND (except Audio Jack which provides only TX, RX, and GND).
8.3-way Audio Jack connector provides Tx, Rx, and GND.
9.Low USB bandwidth consumption.
10.UHCI / OHCI / EHCI host controller compatible.
11.USB 2.0 Full Speed compatible.
12.-40°C to +85°C operating temperature range.
13. Cable length is 1.80m (6 feet).
14. Custom versions also available (subject to MOQ).
2. On board FT232RL provides single chip USB to asynchronous serial data transfer interface.
3. Entire USB protocol handled by the electronics in the cable USB.
4. Connect directly to a microcontroller UART or I/O pins.
5. 5V CMOS drive outputs and 5V safe TTL inputs make the TTL-232R easy to interface to 5V MCU''s.
6. +5V or +3.3V output allows external logic to be powered from the USB port.
7.6-way outputs provide Tx, Rx, RTS#, CTS#, VCC, and GND (except Audio Jack which provides only TX, RX, and GND).
8.3-way Audio Jack connector provides Tx, Rx, and GND.
9.Low USB bandwidth consumption.
10.UHCI / OHCI / EHCI host controller compatible.
11.USB 2.0 Full Speed compatible.
12.-40°C to +85°C operating temperature range.
13. Cable length is 1.80m (6 feet).
14. Custom versions also available (subject to MOQ).
