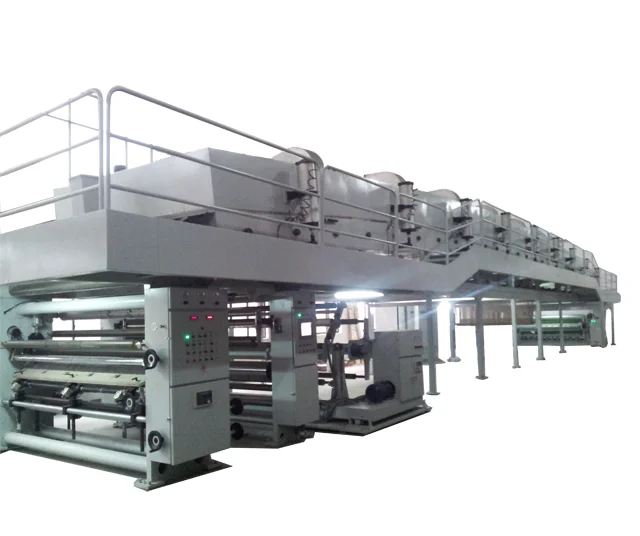

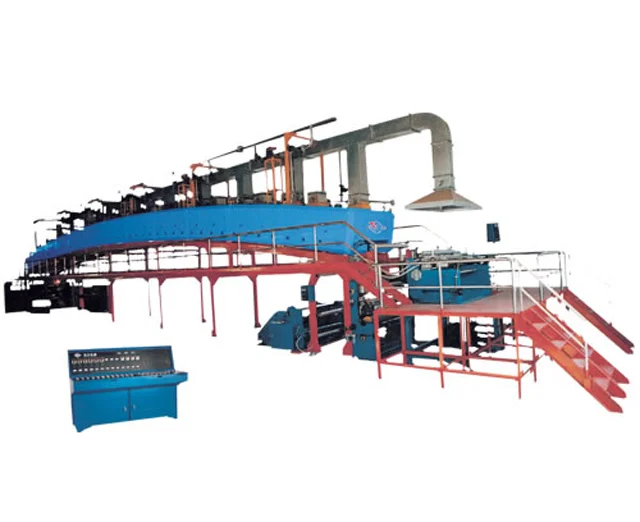

High Quality Hight Speed Solventless silicone coating machine

Product Overview

Description

The introduction of foreign advanced coater technology combined with their years of production coating machine experience from comprehensive and applicable to transfer an aluminized paper carrier, Metallized paper, anodized hot stamping film coating production. It can also be used in other films and paper coating production, film paper color coated cloth.



Model	TGH800-2200
coating method	Anilox coating
coating width	800/2200mm
The wheel width, diameter	80mm×850mm
winding/unwinding form	Single-position
unwinding diameter	Ø800mm
unwinding diameter	Ø820mm
oven length	15meter
Heating type	Oil heating, electric heating, hot air heating
Oven temperature	50-200℃
work speed	10-130m/min
machine speed	150m/min
Size	17000×2500/3300×4800mm
machine weight	about 18000kg













1.Has several senior engineers service in many countries, all the year round with our after-sales office in multiple countries.

2.Machines with good quality in one year, life-long maintenance.

3.Has many machines can be monitored via the Internet, solve customer requirements in a timely manner.

4.Has several senior,continuous innovation and reform, in order to ensure the quality of mechanical stability.

5.Undertake various non-standard machinery, solve the customers' requirements.
