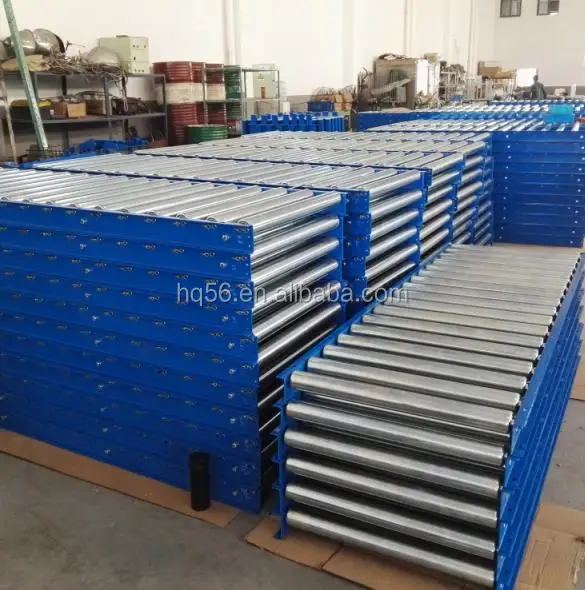

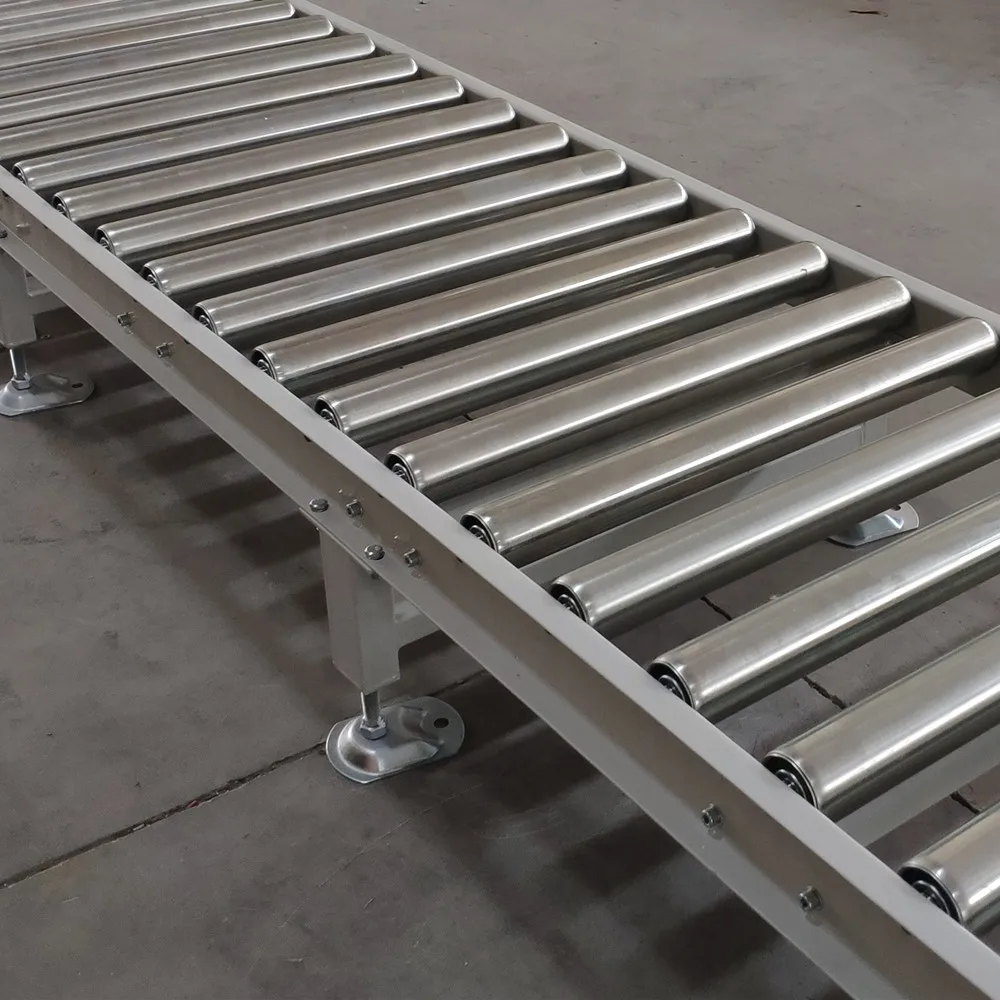

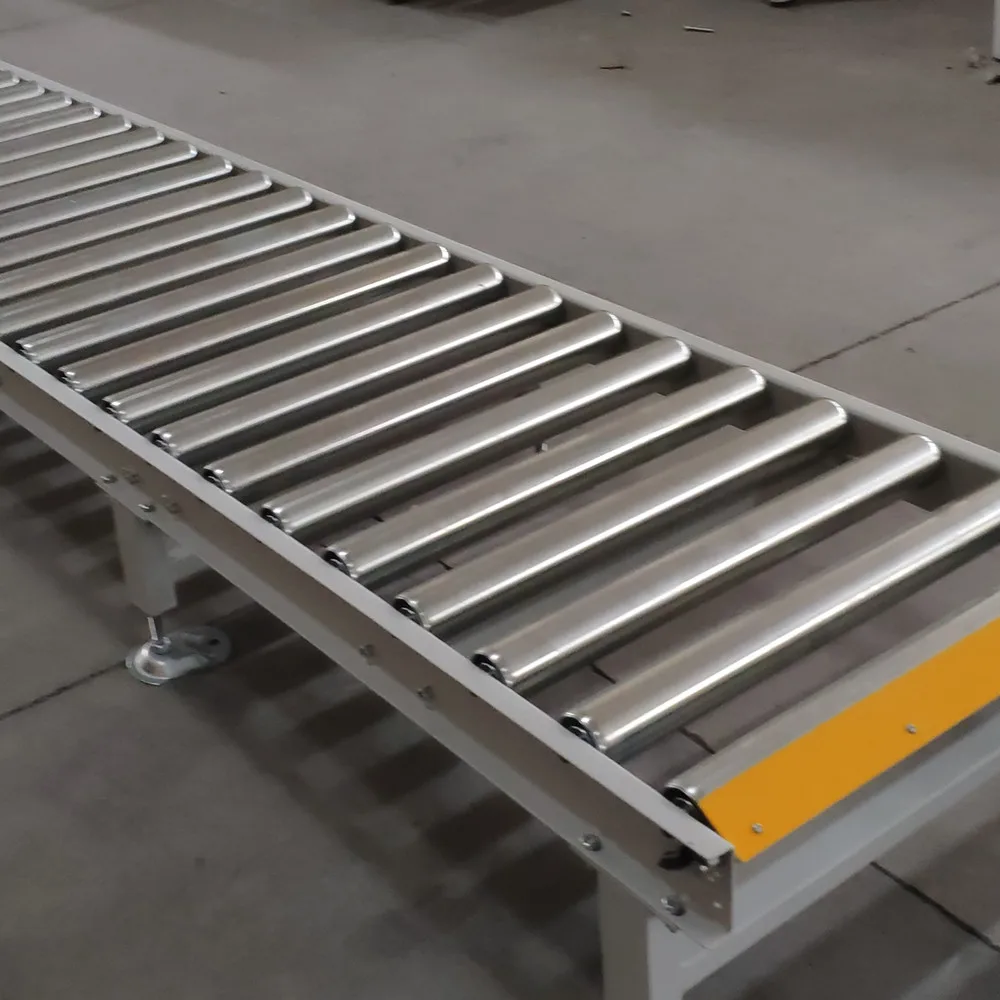

Huiqian standard steel roller conveyor for bearing factory
- Category: >>>
- Supplier: Wuxi Huiqian Logistics Machinery Manufacturing Co. Ltd.
Share on (60381992484):
Product Overview
Description
Product Name: Huiqian standard steel roller conveyor for bearing factory conveying
Product Description
Huiqian standard steel roller conveyor for bearing factory conveying
The gravity roller conveying also named gravity roller conveying system, roller conveying, usually adopts the steel roller conveying system rollers to installed within a certain frame to transfer workpiece on the surface. One of the simple type is non power gravity roller conveying, also called manual gravity roller conveying, because there's no drive part and need manual pushing to make the workpiece transferring on rollers.
The manual gravity roller conveying has the feature of heavier laoading than the driving one, and there're more sizes for buyers' optional. Wuxi Huiqian has the gravity roller conveying sizes more than others, the obvious charactor is roller diameter. Roller diameter of Huiqian is from 8mm to 76mm
Technology Detail
Table 1-- Roller Conveyor:
Drawing 1
Drawing 2
Drawing 3
Table 2--Roller & Conveyor Specifications:
| roller width (mm) | W | 100 | 200 | 300 | 400 | 500 | 600 | 700 | 800 | 900 | 1000 |
| roller conveying system width(mm) | W+75 | 175 | 275 | 375 | 475 | 575 | 675 | 775 | 875 | 975 | 1075 |
| roller loading(kg) | 175 | 168 | 147 | 109 | 87 | 72 | 62 | 54 | 48 | 43 | |
| roller conveying system weight(kg) | 75P | 31.2 | 39.1 | 47 | 55 | 62.9 | 72.2 | 80.1 | 88 | 95.9 | 104 |
| 3000mm length | 100P | 27.2 | 33.4 | 39.6 | 45.6 | 51.6 | 59 | 65 | 71.1 | 77.1 | 83.1 |
| roller weight (g) | 383 | 570 | 758 | 945 | 1133 | 1320 | 1508 | 1695 | 1883 | 2070 |
Characteristics
1. Roller material: carbon steel, stainless steel, aluminum, nylon or PVC, and other buyer required materials;
2. Roller surface treatment: galvanized, chromed, PU or rubber or teflon coated, power painted, etc;
3. Trasmission type:non-power type, double or single sprocket chain drive, O-belt drive, drom motor drive, etc;.
4. Roller lengths: 100-1000mm normally, also can customer-made;
5. Non-standard power roller lines can be customized according to the specific requirements.
Advantages
1. Roller is a new type diffirent from others:
Our roller is Japanese new type, more beautiful appearance and strong structure.
can be repalced if the roller damaged or the roller bearing is damaged.
2. Japanese standard quality: high quality standard with competetive cost.
3. 1 year quality garranty( non-artificial damage).
4. Full experienced engineers & technicals to ensure the design & roller conveying systems' good quality.
5. Good business clients & parteners' long business cooperation.
6. Credit enterprise, good after-sale service, specialised sales and manufacturing
Company Information
Wuxi Huiqian Logistics Machinery Manufacturing Co.,Ltd is headed in Wuxi Hudai High-Tech Economic Development Zone with convenient transportation and full competed set of surrounding facilities. The company is founded with Japanese advanced technology and developing their logistics machinery manufacturing experience, specializing in designing, manufacturing and trading of roller conveyors, belt conveyors, conveyor rollers, roller tracks, storage cages, logistics trolleys, warehouse racks, etc.
Wuxi Huiqian Logistics Machinery Manufacturing Co.,Ltd have a complete and scientific QMS, excellent and experienced work group, high advanced processing equipment to show our customer better quality, better service, better appearance, better price...
Our main products:
1. manual roller conveyor
2. Motorized roller conveyor
3. Belt conveyor
4. Roller tracks / Roller skate wheel conveyor
5. Drum motors
6. Conveyor Projects
---Roller conveyor line
---Blet conveyor line
We ( Wuxi Huiqian) are highly recognized by all our clients for our Quality, Integrity, Faith &
Innovation. Warmly welcome all friends at home and abroad to visit us and any attentions or advice
will be highly appreciated.
