This series auto bagging machine is designed for bagging all types of free flowing materials into plastic, paper or poly-woven open-mouth bags. It can handle various sizes pillow-type or side gusseted bags at a speed up to 12 bags per minute. Bag filling machine,sewing and sealing machine and conveyor form a completed filling-sealing-conveying line.
Application:
Specification:
Technical parameters
Model
JBB-G1-1A
JBB-G1-2A
JBB-G1-1B
JBB-G1-1C
Feeding type
Single station filling
Single station filling
Single station filling
Single station filling
Feeding object
Granules,powder
Fine powder
Granules,powder
Granules
Bag material
a.multwall kraft
b.film woven bag
c.plastic bag(thickness0.18-0.25mm)
a.multiwall kraft
b.plastic bag(thickness0.18-0.25mm)
a.multwall kraft
b.film woven bag
c.plastic bag(thickness0.18-0.25mm)
a.multiwall kraft
b.plastic bag(thickness0.18-0.25mm)
Packing speed(bags/min)
580
125
1100
1200
Packing range(kg/bag)
20-50
10-25
20-50
20-50
Bag size
Length(mm)
600-1050
600-1000
550-1050
550-1050
Width(mm)
420-520
420-520
420-520
400-550
Bottom width(mm)
Kraft bag 75
Kraft bag 75
Kraft bag 75
Kraft bag 75
Air consumption(cm³/min)
750
950
1300
1300
Machine power(kw)
3
3.75
5
5
Machine weight(kg)
About 1300
About 1500
About 2000
About 2200
25kg milk powder packing machi

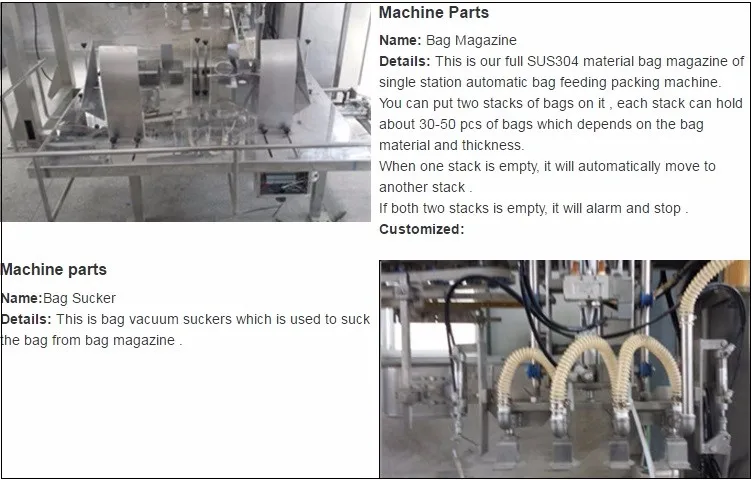

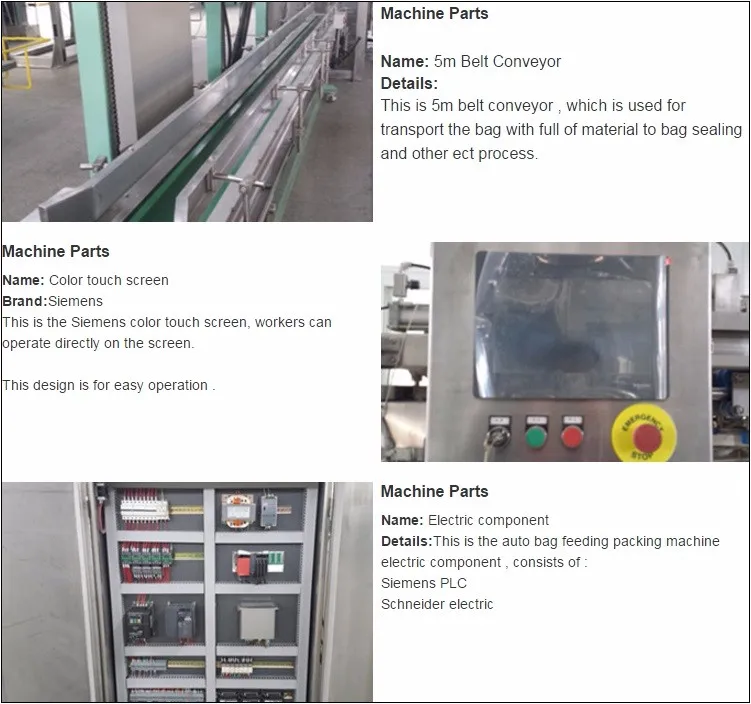

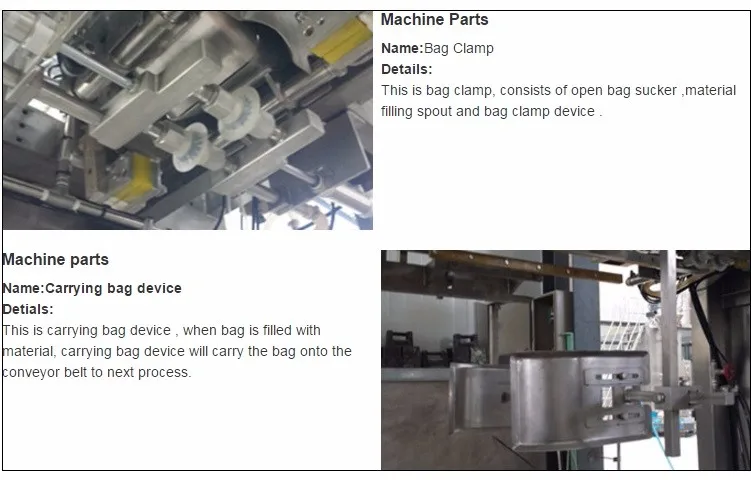

Details:
25kg milk powder packing machine
25kg milk powder packing machine
RELATED PRODUCTS
COMPANY INFORMATION
Shanghai Jinbao Packaging Machinery Co., Ltd specializes in the production and sale of packaging machine, packaging and palletizing line, big bag automatic weighing packaging production line, particle packing machine, powder packing machine, automatic mixing packaging production line, according to customer requirements the specific system. The products are widely used in chemical, fertilizer feed, pesticide, washing powder, seeds, grain, food, medicine, spices, tea, building materials and other industries, and exported to the Middle East, Southeast Asia, North America, Northern Europe and other more than 10 countries and regions.
Contact us
Send your Inquiry Details in the Below, Click "Send" Now!
Kindly reminder: Please let us know the follow packing details when you offer,so that we can check if this model is suitable for your case.Thank you in advance. 1. Product details 2. Bag width,bag length 3. Bag shape 4. Packing film material
