Product Description
Product Details

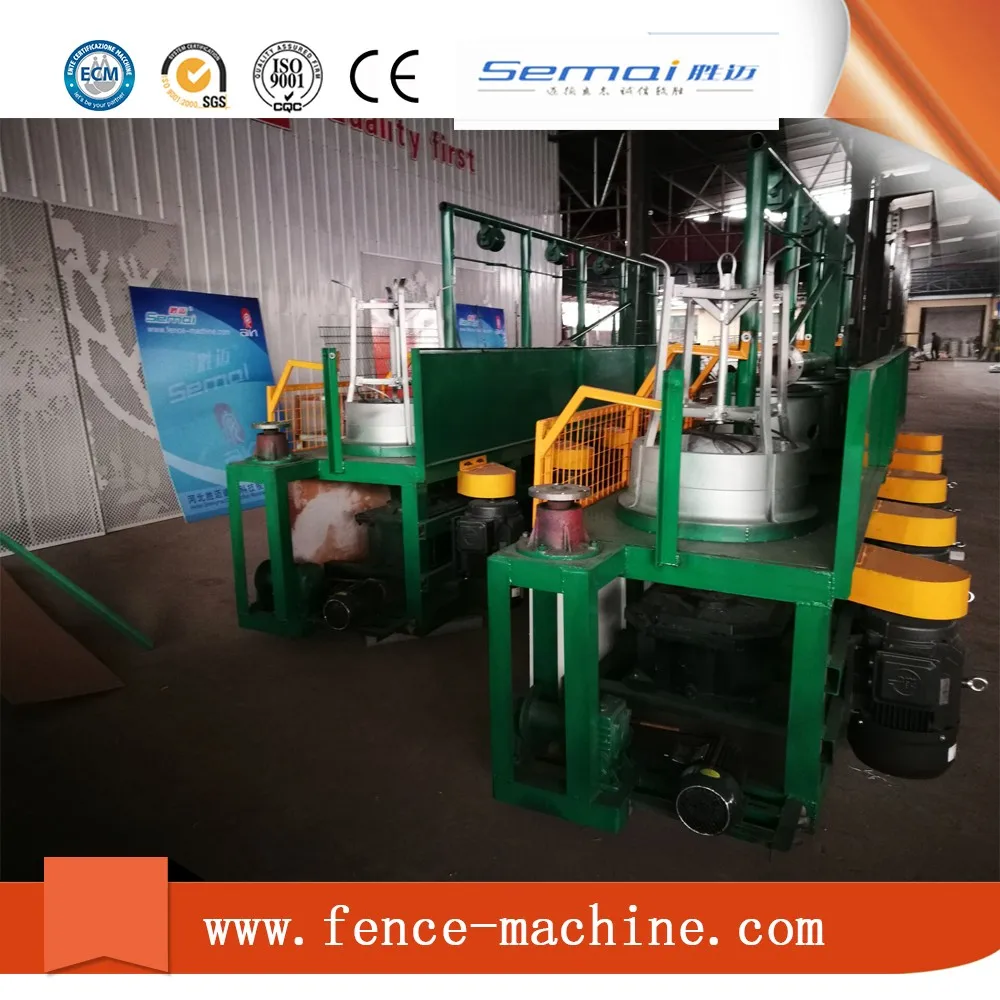

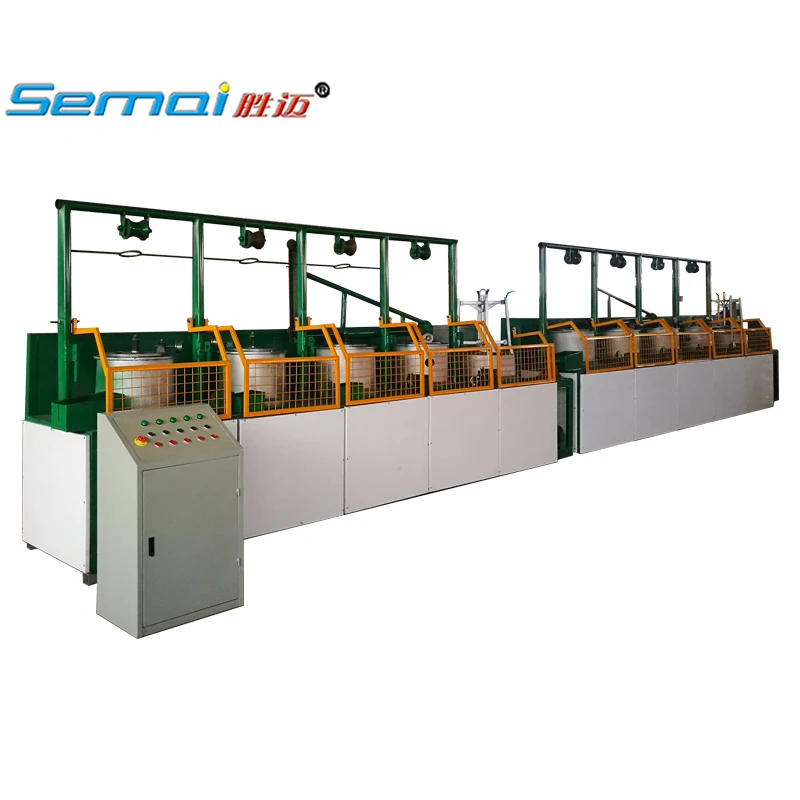

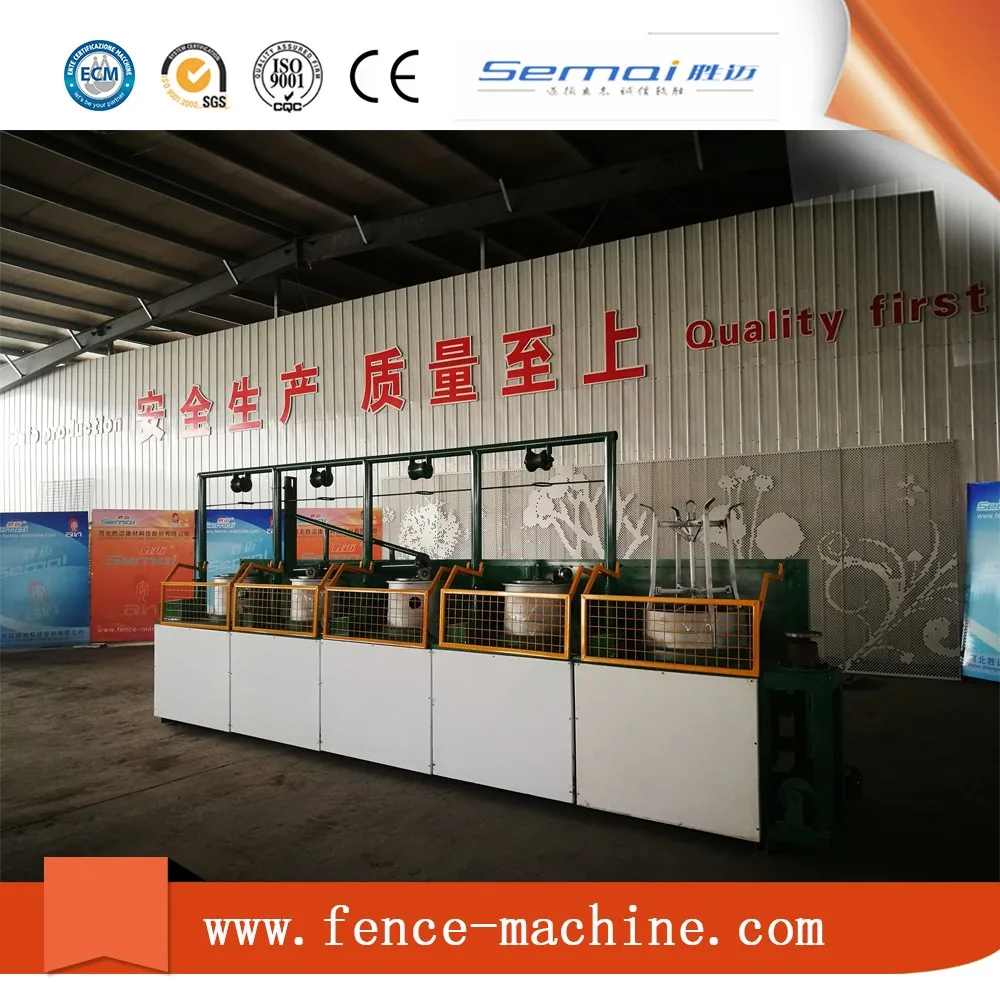

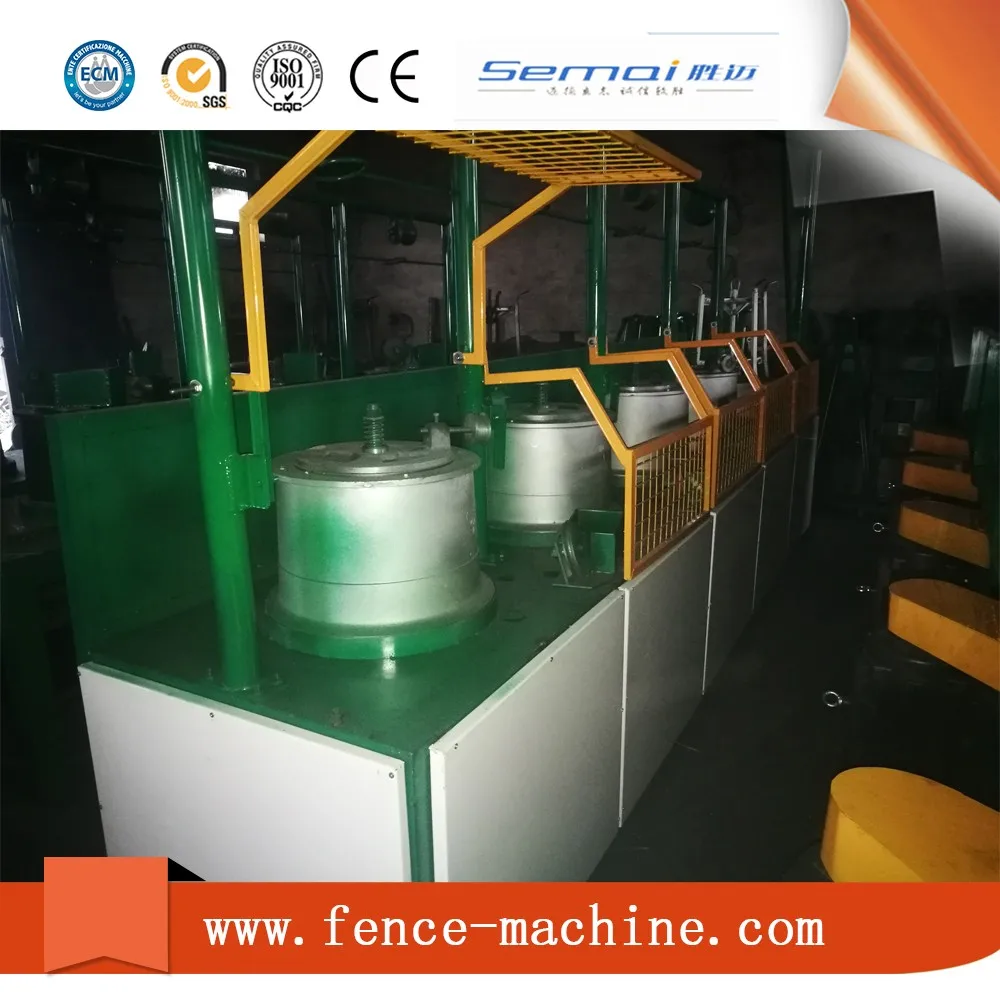

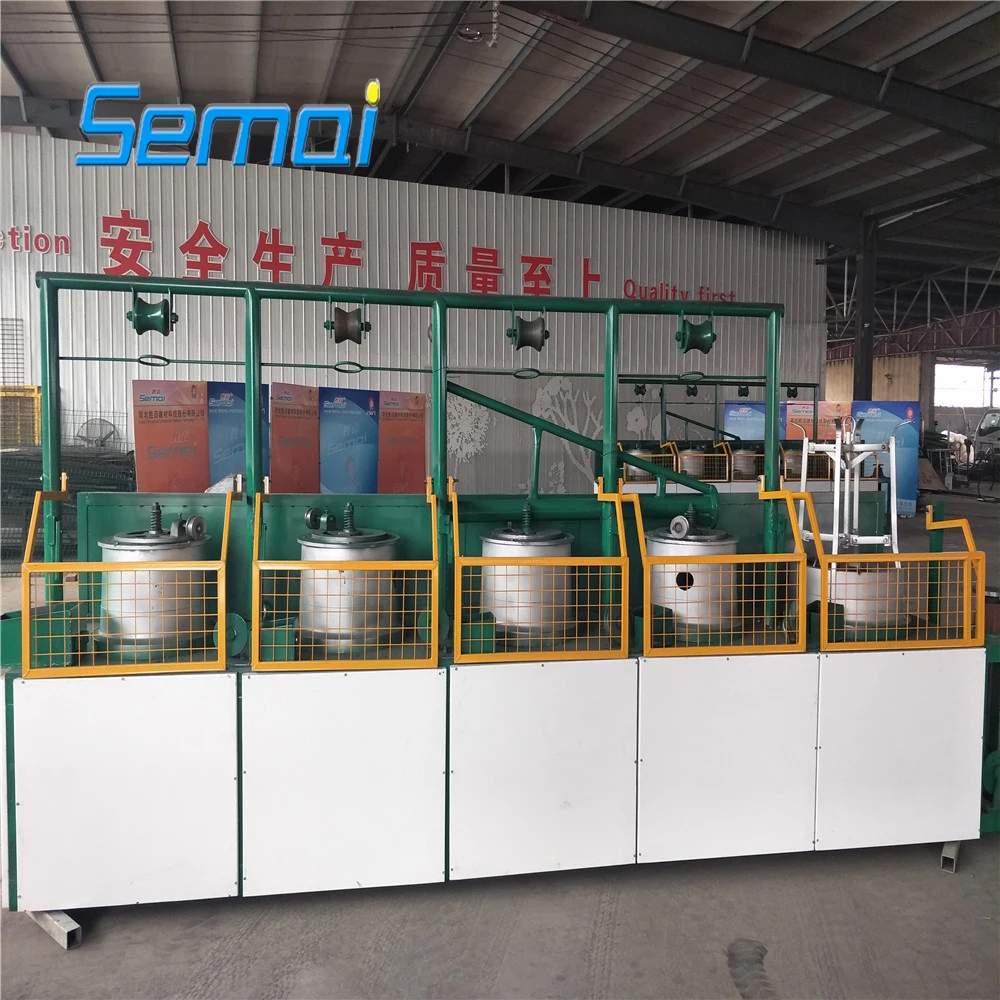

Automatic Copper/steel Wire Drawing Machine
(1) The equipment contains the functions of human-machine dialogue, over-temperature protection for motor, alarm for abnormal water pressure, fault display.
(2) It’s kind of high-efficient machine with easy operation, high degree of automation.
(3) Between the drawing process without intermediate pulley and the guide wheel, it does not generate bending and torsion, and convenient threading
(4) Straight line drawing machine suitable for drawing large diameter, high strength and special shaped steel wire
(5) As the use of the frequency technology, changes in the larger context of patts of the compression ratio to meet the wide range of technology and high speed drawing.
(6) There is no relative sliding between wire and capstan. The quality of finished wire is much better.
Automatic Copper/steel Wire Drawing Machine Main Technical Parameters:
Items
Unit
LZ9-12/1200
LZ10/800
LZ9/700
LZ10/560
LZ10/400
Reel diameter
mm
900
800
700
560
400
Draw passage
time
9-12
10
9
10
10
Incoming dia
mm
Φ14-8
Φ10-8
Φ8-6.5
Φ6.5-5.5
Φ14-8
Outgoing dia
mm
Φ5-3
Φ4-3
Φ3-2.5
Φ2-1.8
Φ1-0.8
Wire darwing line
m/min
300
360
480
720
840
Incoming strength
Mpa
≤1300
≤1300
≤1300
≤1300
≤1300
Total compressibility
%
87.24-85.94
84-85.94
85.94-85.21
90.53-89.29
87.24-84
Average compressibility
%
20.48-19.58
18.42-19.58
19.58-19.13
21.00-20.02
18.61-16.74
Single motor power
Kw
110-90
90-55
75-55
37-22
15-7.5
