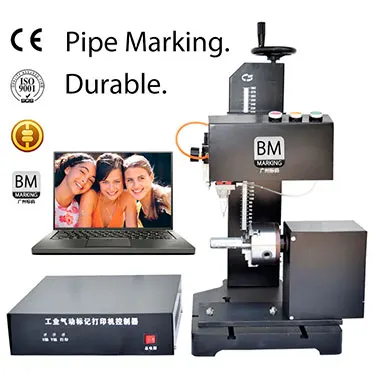

Special Aluminium Die Casting Pneumatic Dot Pin Marking Machine
- Category: >>>
- Supplier: Guangzhou Bm Marking Machine Manufacturing Co. Ltd.
Share on (60382202821):
Product Overview
Description
Related items
RELATED PRODUCTS - Aluminium Die Casting Pneumatic Dot Pin Marking Machine.
Product Description
Special Aluminium Die Casting Pneumatic Dot Pin Marking Machine
Product Specification | |
Item number | BM-16S7IN |
Product Name | Special Aluminium Die Casting Pneumatic Dot Pin Marking Machine |
Cast Iron Base | Durable over 10 years |
Usage | Metal Embossing, Printing Machine – Stylus Printer, Dot Pin Header |
Marking surface | Flat and Angular Marking |
Additional parts need | Air Pressure |
Controller Interface | PC USB, VGA, 19 Pins Aviation Transmission Line |
Electricity | AC220V±10%~50Hz AC110V±10%~50Hz |
Energy consumption | 350W |
Precision | 0.02mm Adjustable |
Marking type | Full Automatic |
Marking machine type | Desktop, Benchtop |
Marking contents | Characters, Numbers, Date, Symbols, Graphs, Logo, QR code, 2D Data Matrix |
Size of characters | Adjustable On Marking Software |
Marking depth | 0.02-2 mm (Adjustable, Depending On Materials) |
Marking speed | 3-8 Letters/s According to Letter Size (height 2mm) |
Marking materials | Metal or Nonmetals with Hardness under HRC65 |
Pneumatic pressure | 0.3-0.6 Mpa |
Dot peen header | Harden HRC92 (Hardness) |
Controller | Independant 7.5 Inch Touch Screen Mornitor (No PC Required) |
Simulation | Real-Time Simulation and Preview |
Software | English Version for Windows Fully Compatible |
Foot Pedal | For Start Marking |
Operation | Marking History and Auto Diagnostic Functions |

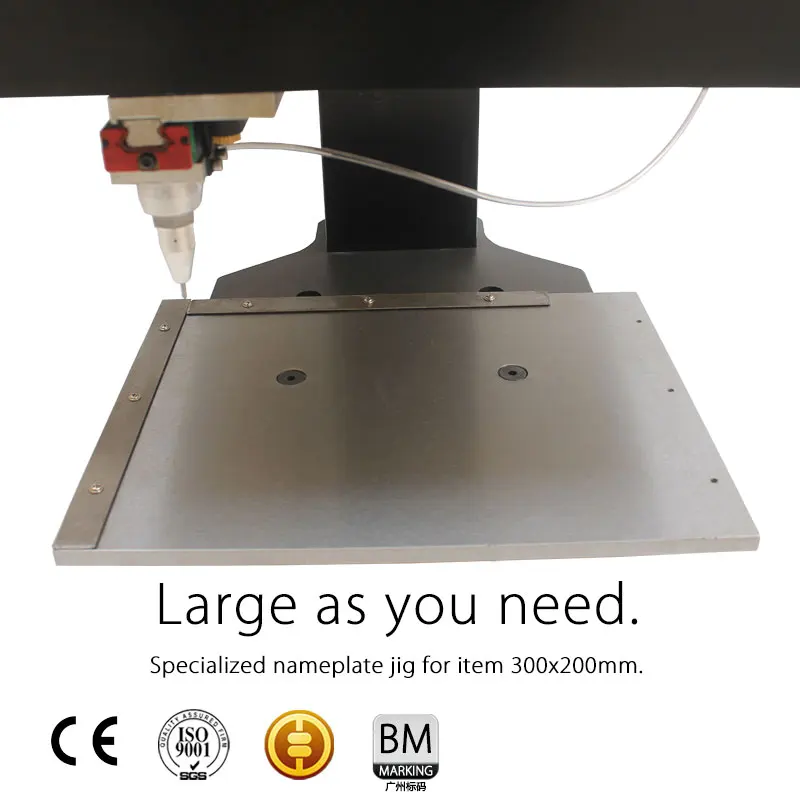

Printing area | 300x200mm, optional for normal 150x90mm, larger 400x300mm |
Depth | Millitary Grade Depth |
Features: | |
| 1. Core Parts: Imported from Taiwan, Japan, USA...etc. | |
| 2. 3 Years Warranty: Main parts, not including consumable part like pin head. | |

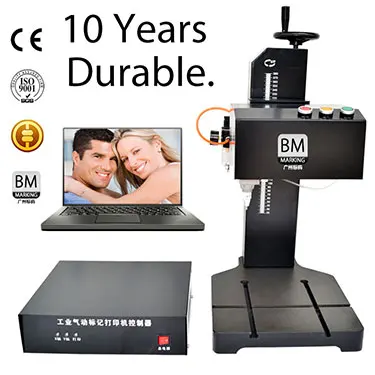

| 3. 10 Years Durable: Cast Iron Base. | |
| 4. Best Air Valve In The World: USA MAC. | |
| 5. Imported Luxembourg Pin Header: high tensile and durable for one whole year. | |
| 6. Imported Taiwan Air Pressure Regulator(controller). | |
| 7. High Precision Linear Slider HIWIN or SBC. | |
| 8. Millitary Aviation Cable. | |
| 9. Industrial Load Bearing Pole. | |
| 10. Industrial Screw Rod. | |
| 11. Convenient Control Buttons: Lamp, Air control, Print. | |
| 12. Flat and Angular Marking. | |
Main parts of the machine overview.
Mission for Industrialization - Aluminium Die Casting Pneumatic Dot Pin Marking Machine
Industrial embossing machine specially used for manufacturer production, good solution for factory logo and item embossing before delivery.
Product details

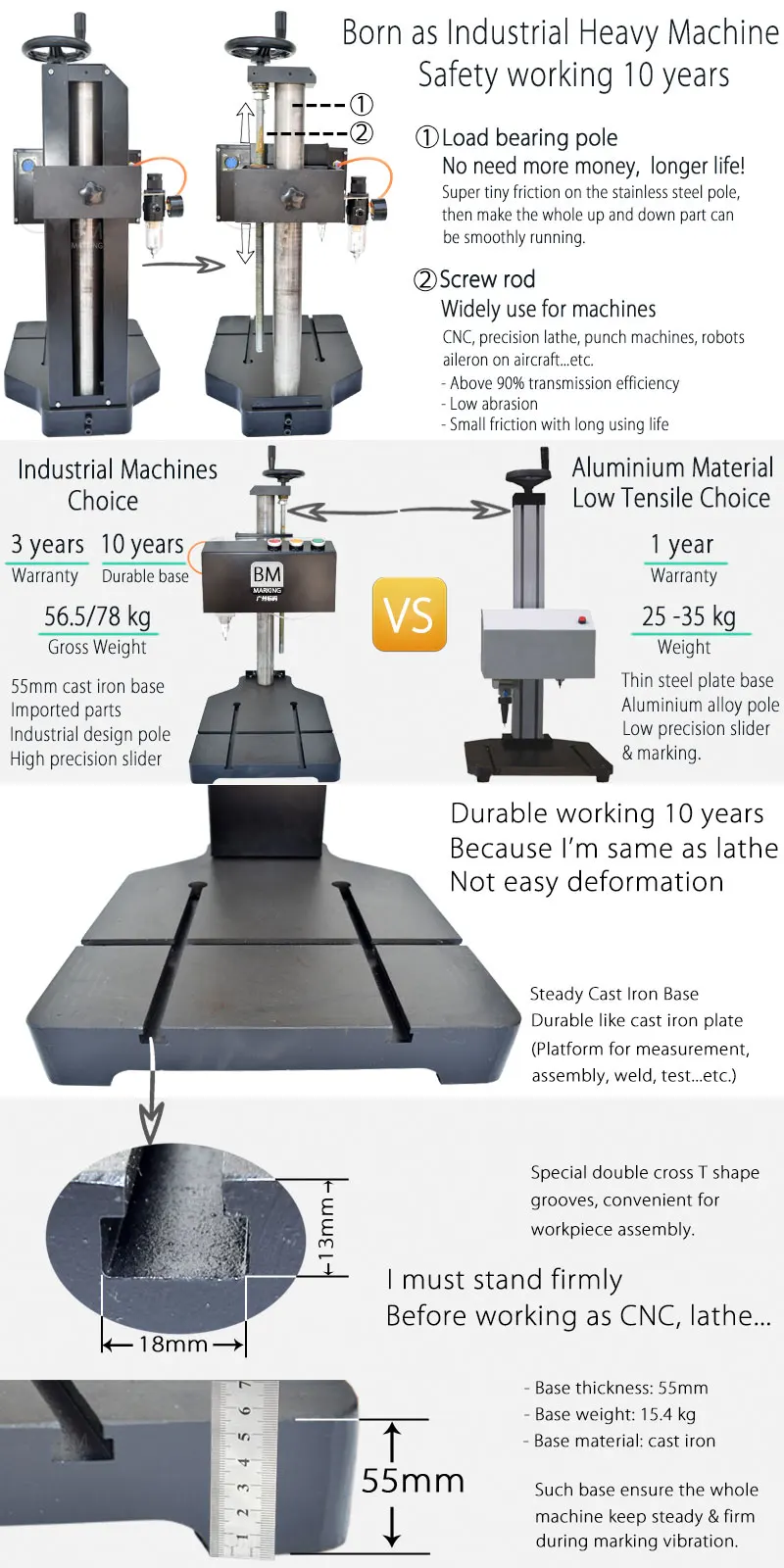

Born for industrial machine - Aluminium Die Casting Pneumatic Dot Pin Marking Machine:
1. Industrial load bearing pole;
2. Industrial screw rod;
3. 15.4kg Super heavy and steady cast iron base.
- All details are focusing on best machine stability, supply a good solution for factory production, especially
for metal products and other harden material(less than HRC65).

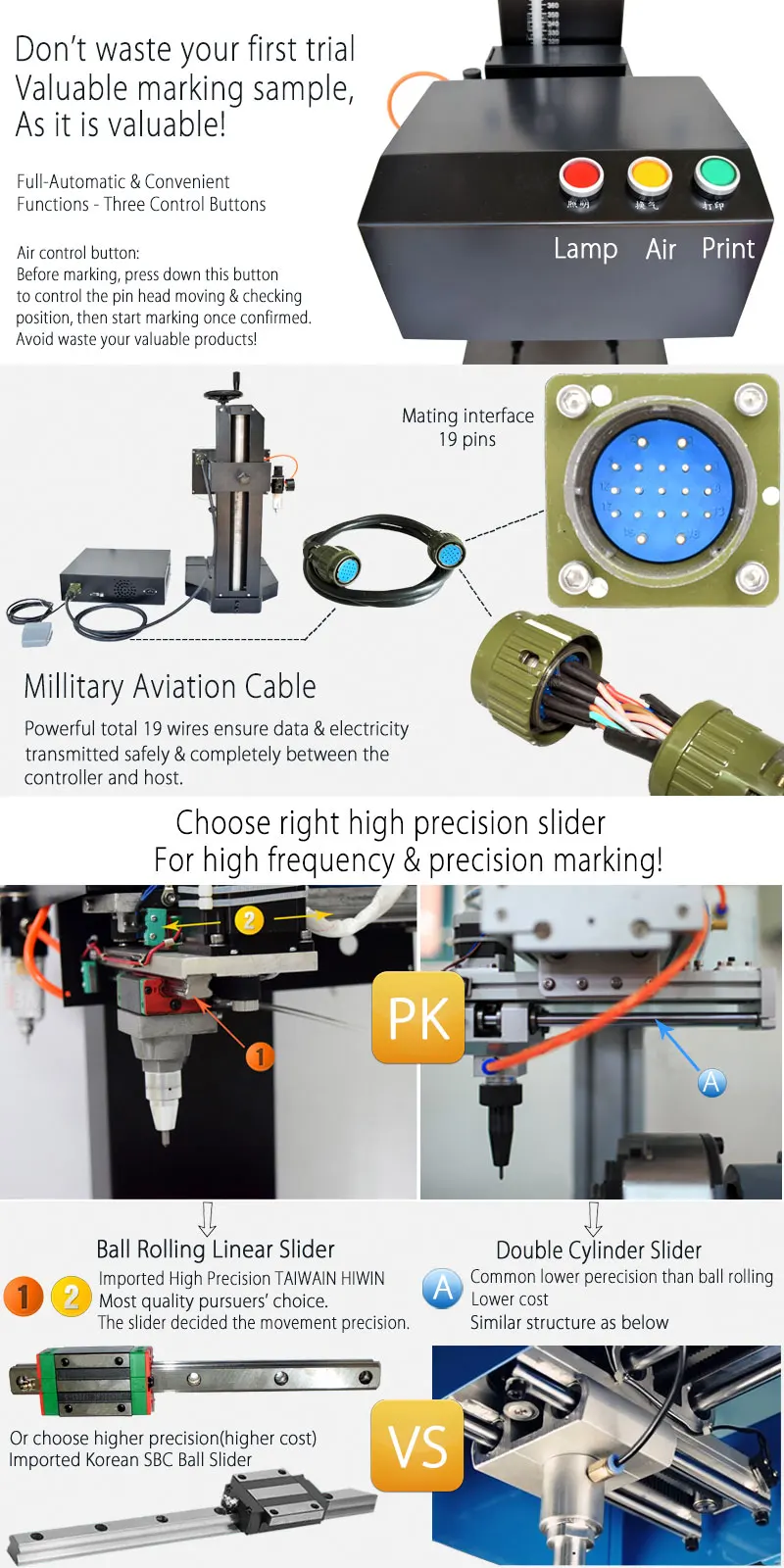

Parts of Aluminium Die Casting Pneumatic Dot Pin Marking Machine:
1. Convenient control buttons: Lamp, Air control, print.
2. Millitary aviation cable: total 19 pins ensure data & electricity can be transmitted safely & completely.
3. High precision Linear Slider HIWIN or SBC: much better than cylinder slider. Choose right critical parts for machine safety running is important!
1. Elegant Appearance, Splendid in the market - Aluminium Die Casting Pneumatic Dot Pin Marking Machine.
2. Imported Taiwan Air Pressure Regulator(controller).
3. Imported MAC from USA.
4. Imported Luxembourg Pin header: high tensile, high rigidity.

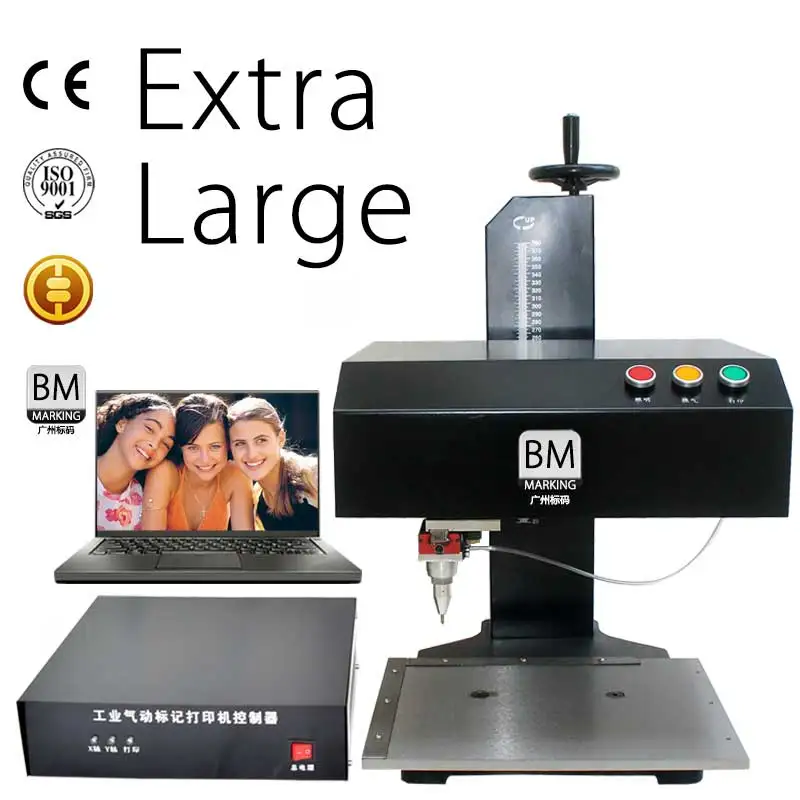

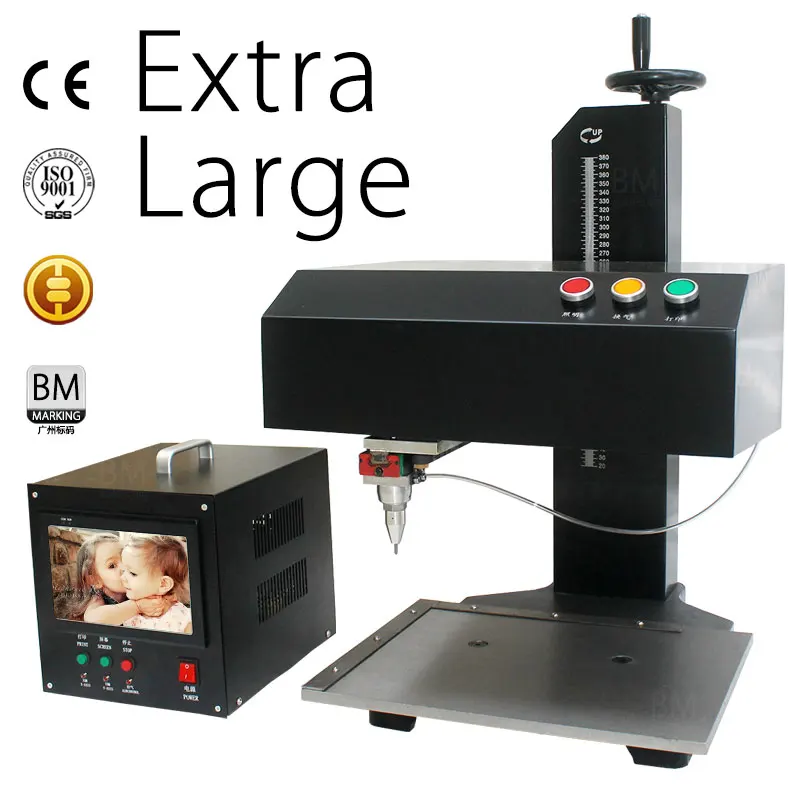

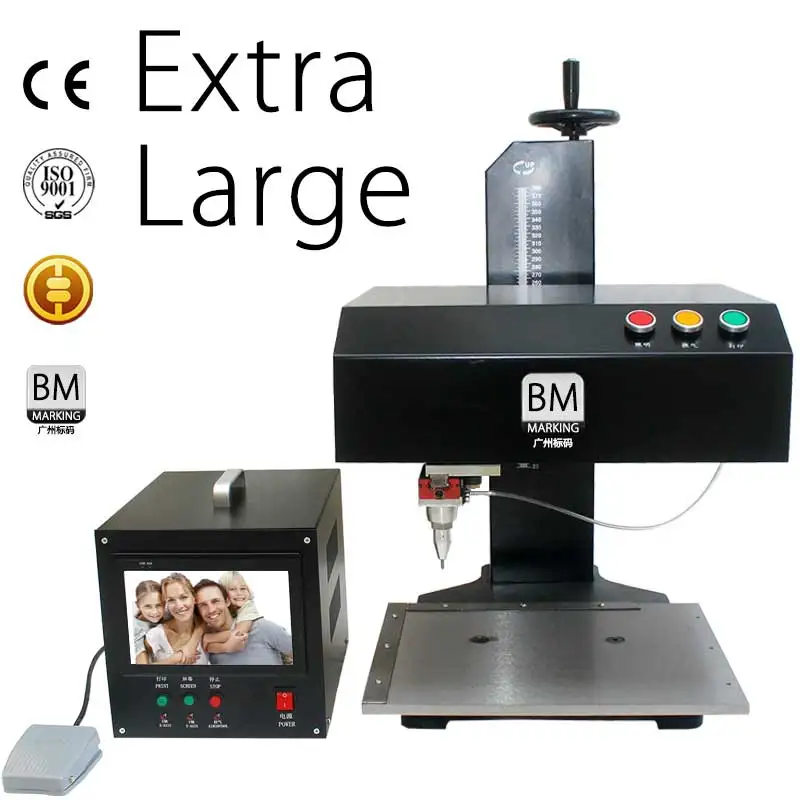

Extra large items of Industrial Aluminium Die Casting Pneumatic Dot Pin Marking Machine.

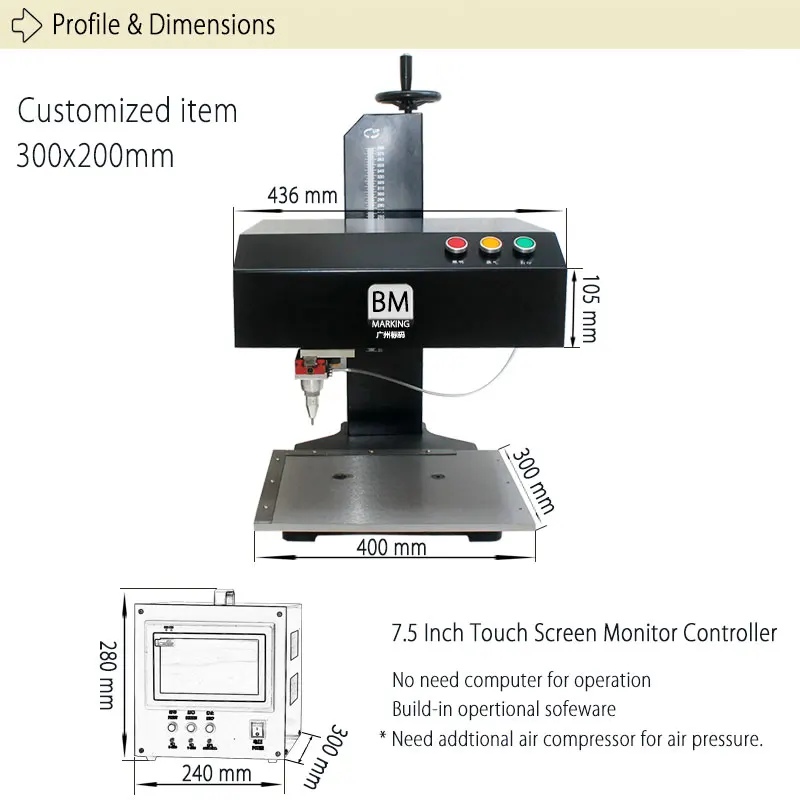

| Items | Marking Area (mm2) | Max. Engraving Height (mm) | Gross Weight(kg) | Principal part Dimensions (mm) | Monitor Dimensions (mm) | ||||
| L | W | H | L | W | H | ||||
| BM-15S | 200x150 | 350 | TBD | Customized items | 300 | 240 | 280 | ||
| BM-16S/16S7IN | 300x200 | ||||||||
Normal items
| Items | Marking Area (mm2) | Max. Engraving Height (mm) | Gross Weight(kg) | Principal part Dimensions (mm) | Monitor Dimensions (mm) | ||||
| L | W | H | L | W | H | ||||
| BM-08T/09T | 140x80 | 350 | 62.5 | 448 | 340 | 785 | 300 | 240 | 280 |
| 150x90 | |||||||||
Embossing Press Content
| No. | Item No. | Marking Content |
| 1 | Touch Controller BM-16S7IN | Logo |
| 2 | Numbers | |
| 3 | Symbols | |
| 4 | Graphs | |
| 5 | Characters | |
| 6 | QR code |
Application Area
| No. | Suitable Industry | Products details |
| 1 | Metal Parts Factory | Metal plates, metal angles, metal flat bars, blades, metal parts and accessories, milling cutters, Taps, cookers, watches, locks, stainless steel plate, stainless steel household chairs & tables, stainless steel handrails…etc. |
| 2 | Machinery Parts Factory | Gears, bearings, valves, steel pipe, pipe fittings, fasteners, industrial spare parts, screw rods, food processing machine, medical apparatus and instruments, stainless steel name plate, bronze name plate, metal panels…etc. |
| 3 | Aluminium Extrusions Factory | Aluminium angles, channels, flat bars, rain & draught excluders. |
| 4 | Die Steel/Moulding Factory | Carbon steels, alloy steels, different dimensions of die steels. |
| 5 | Hardware Factory | Hardware tools like knife, pliers, hammers and spanners. |
| 6 | Auto Parts Factory | Auto engine code, chassis code, VIN code, automotive frame, car spare parts, wheels, wheel flange, brake shoes…etc. |
| 7 | Motorcycle Parts Factory | Cylinder head, pistons, wheels, sprockets, chains, carburetors…etc. |
| 8 | Electric Bicycle & Bicycle Factory | Chassis code, parts item and number…etc. |
| 9 | Metal Surface Products Factory | Different sand blast, polished, grinding, brushed metal surface, including anymetal surface conductivity, or metal plated for nonmetallic materials. |

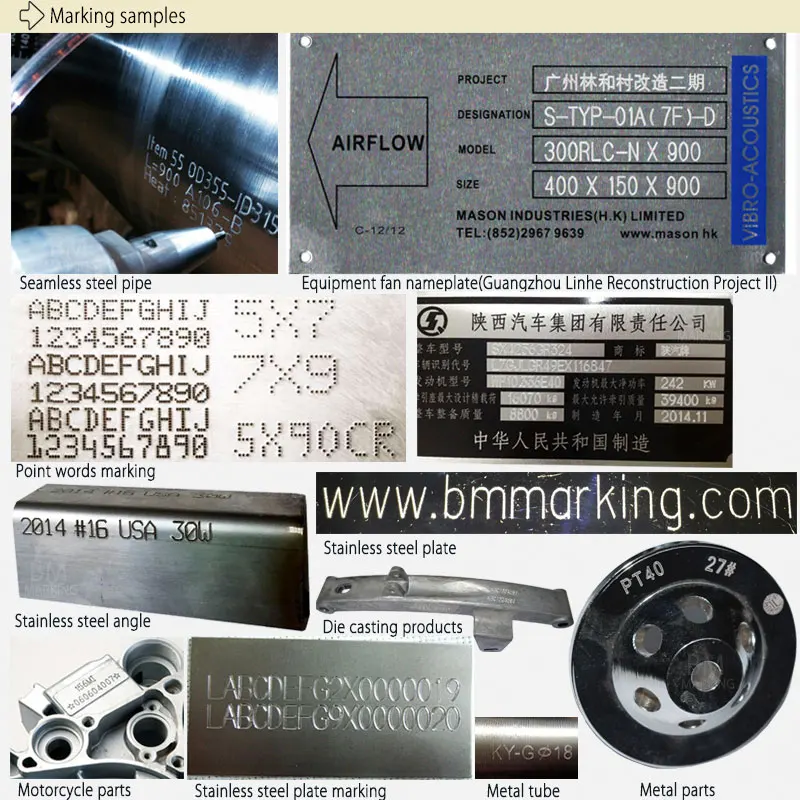

Marking Samples
Sample List of Our Customers
| No. | Samples of Product Name List |
| 1 | Seamless steel pipe |
| 2 | Equipment metal nameplate |
| 3 | Flange for Automobile |
| 4 | Auto spare parts |
| 5 | Cast iron workpiece |
| 6 | Metal parts for Firefighting |
| 7 | Point words marking |
| 8 | Stainless steel angle |
| 9 | Stainless steel plate |
| 10 | Die casting products |
| 11 | Motorcycle parts |
| 12 | Metal pipes and tubes |
| 13 | Other Metal parts...etc. |
Customer Feedback
| Customer 1 | Customer 2 | Customer 3 |
| Moulding and Die Steel Factory | Machinery Parts Factory -Nameplate, Metal | Full-Automation Production Line |
Comment: "Having this marking, is it in a higher level? I introduced four friends to buy this for tooling." -Mr. Zhang | Comment: "The machine is really much better than others in the market. We must consider the maintenance and repairing cost in the future. So we buy it." - Mr.Huang | Comment: Research Institute of GDIU University "The customized machine can full satified our line requirements." - Mrs. Zou |
| Customer 4 | Customer 5 | Customer 6 |
| Customer from Dubai | Motorcycle Parts Factory | Auto Parts Factory |
Comment: "Good machine, the price is much lower than laser, but have good deep marking. | Comment: "As our parts need to be marking with many items and numbers. Very suitable for us." | Comment: "Good choice for factory to enhance brand value and impressed customers." |
Shipping and Contact
Trade terms: FOB, CIF, EXW
Payment terms: T/T, Western Union, Escrow, MoneyGram
Payment condition: 30% deposit before production, 70% balance before delivery
Delivery time: 1-3 working days after deposit
Packaging: Crate box to protect the machine inside and delivery in safety.
Shipping: By sea, by air or express delivery

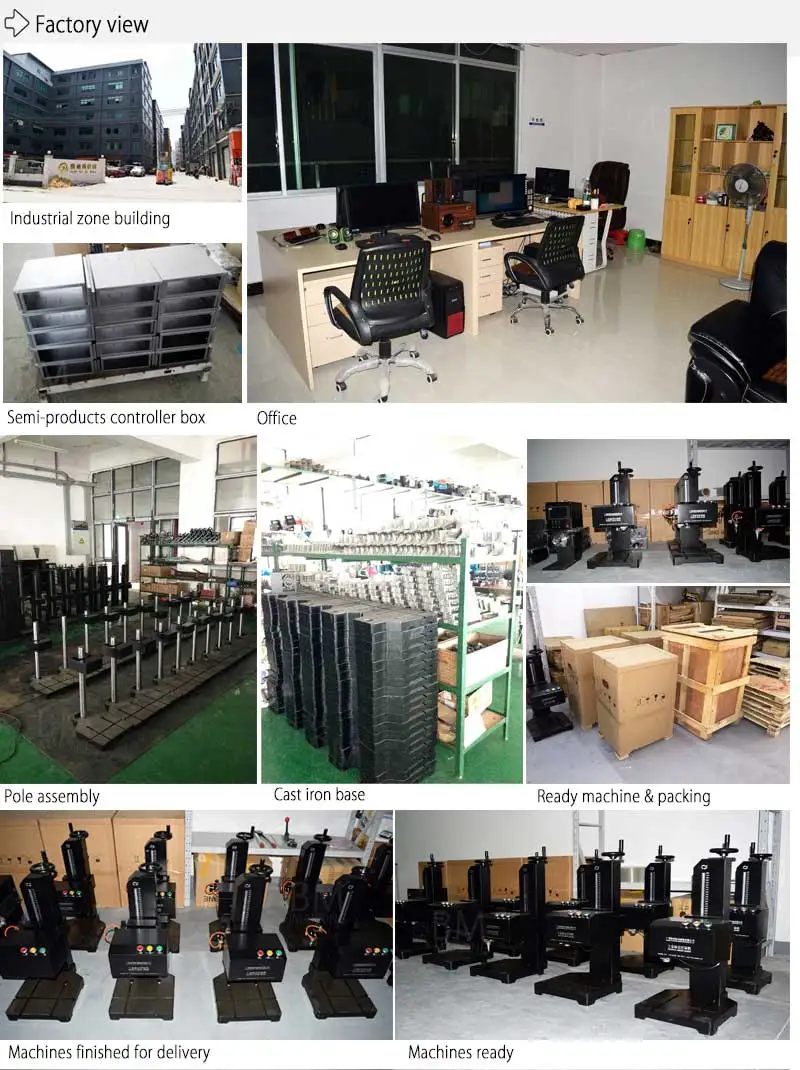

Company Information
Guangzhou BM Marking Machine Manufacturing Co., Ltd, a professional marking machine manufacturer, we only take the best reliable marking machine solutions.
Otherwise, we provide OEM and ODM service. We are not only having the sales department, but also have the quality and R&D department, in order to ensure we have competitive products in the market. BM marking is a company full of energy, creativity and cooperation. Our goal is provide better services and better products for our customers, in order to satisfy more and more factories production needs and requirements. You can find more information of us at: //www.bmmarking.com/.
FAQ
1.Q: Why choose BM Marking Machine?
A: Congratulations for BM Marking Machine had supplied its service for following typical and critical customers during development:
1). Chinese Academy of Sciences Guangzhou Branch.
China Top Official Academic Institutions - authority for Science in China.
2). Full-Automation Production Line.
Our machine can fully satisfied the extrodinary high requirements for the Full-Automation Production Line.
3). Moulding and Die Steel Factory Customer
For special harden steel, our machine can working long time and always have deep marking depth.
2. Q: Where is your factory located? How can I visit there?
A: A: Our factory is located in Guangzhou City, Guangdong Province, China. Company name: Guangzhou BM Marking Machine Manufacturing Co.,Ltd.
All of our clients, from home or abroad, are warmly welcome to visit us.
3. Q: How about your cast iron marking machine comparing the aluminium marking machine?
A: Well, it is recognized that the aluminium material is not durable, just a kind of extrusions. Of course, you cannot find out any heavy machinery would use aluminium extrusions material as critical parts, all of them only use heavy durable materials, such as lathe, punching machines, dockside cranes, excavators etc.
4.Q: What is your Skype and Whatsapp for this Aluminium Die Casting Pneumatic Dot Pin Marking Machine?
A: Skype: bmmarking
Whatsapp: +86 150 1338 6210
