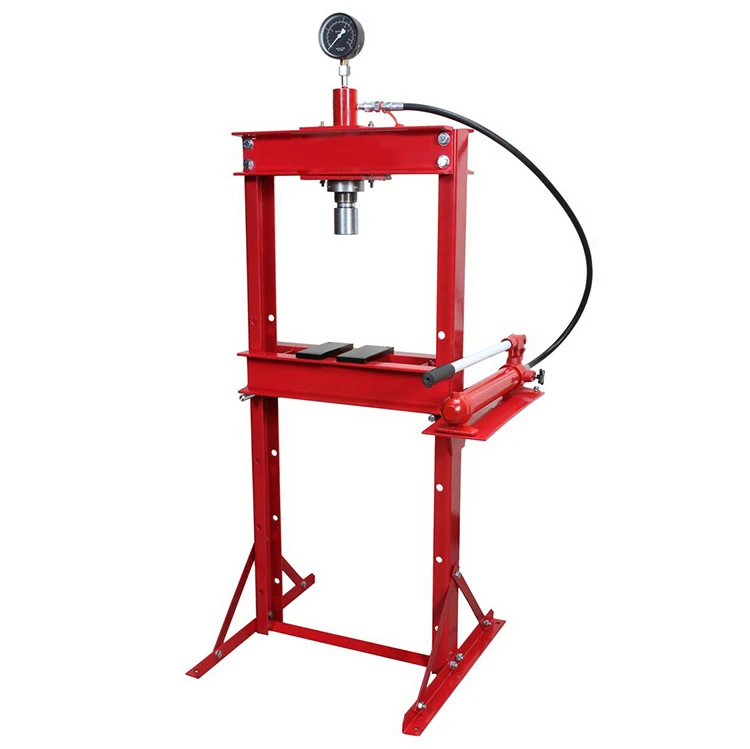

12T 12Ton 12Tonne CE Hydraulic Floor Manual Shop Press With Gauge, Press Pin Set & Grid Guard

Product Overview

Description



704104  12Ton Hydraulic Floor Shop Press With Gauge, Press Pin Set & Grid Guard



1.Packaging & Delivery :

• Carton, 1Pc/2Carton

• Nw:1#45Kg,2#25Kg Gw: 1#46Kg,2#26.5Kg

• Master Carton Size:1#138x17x21Cm, 2#63x26x17Cm

• 20Ft Container:300Pcs

• Delivery Detail:30days

2.Product Description:

2.1Specifications:



Power	Manual,Hydraulic
Capacity	12Ton
Ram Stock	181mm
Ram Moveable	Yes
Gauge Available	Yes

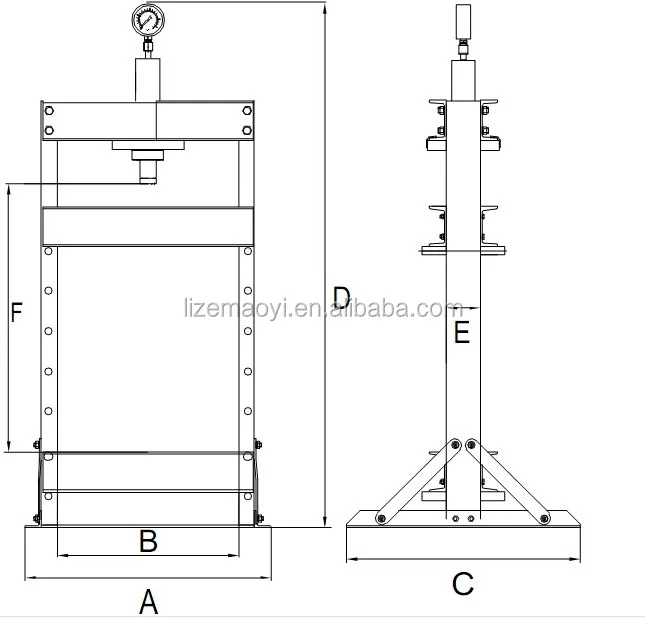

Size A (Long)	690mm
Size B (Bed Width)	515mm
Size C (Wide)	495mm
Size D (High)	1650mm
Size E (Wide Inside)	80mm
Size F (Working Range)	0~920mm
Accessories Optional	1 X Press Pin Set, 1 X Safety Grid Guard

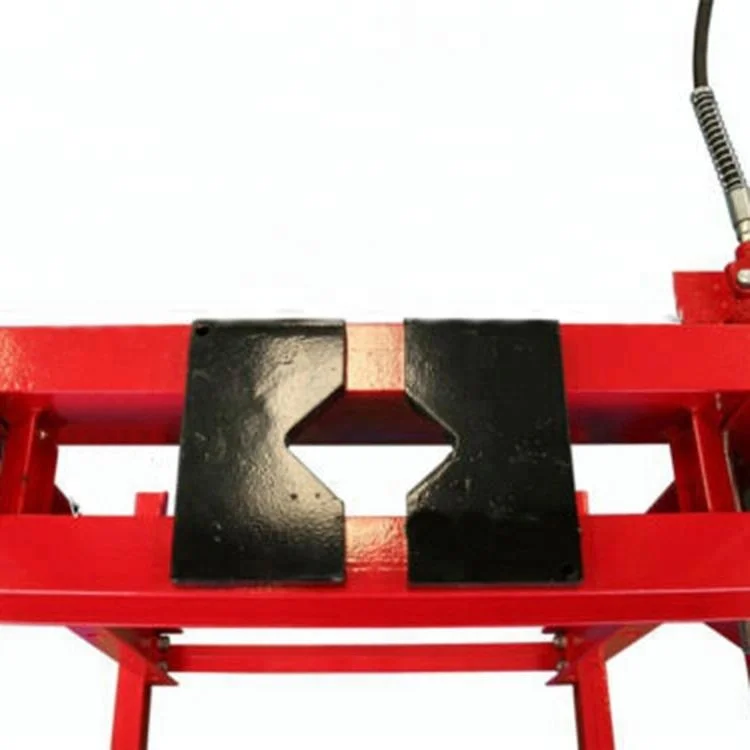

Packing List	1 X Pump,1 X Ram,1 X Frame, 1 X Gauge, 2 X Heel Block, 1 X Bolt Kit, 2 X Support Pin,



2.2 Featuring

• Ideal for removal and installation of gears, universal joints, pulleys, wrist pins, bending/straightening and other various jobs. Suitable for the serious enthusiast or occasional professional use
• Ram Move Available for Easy working

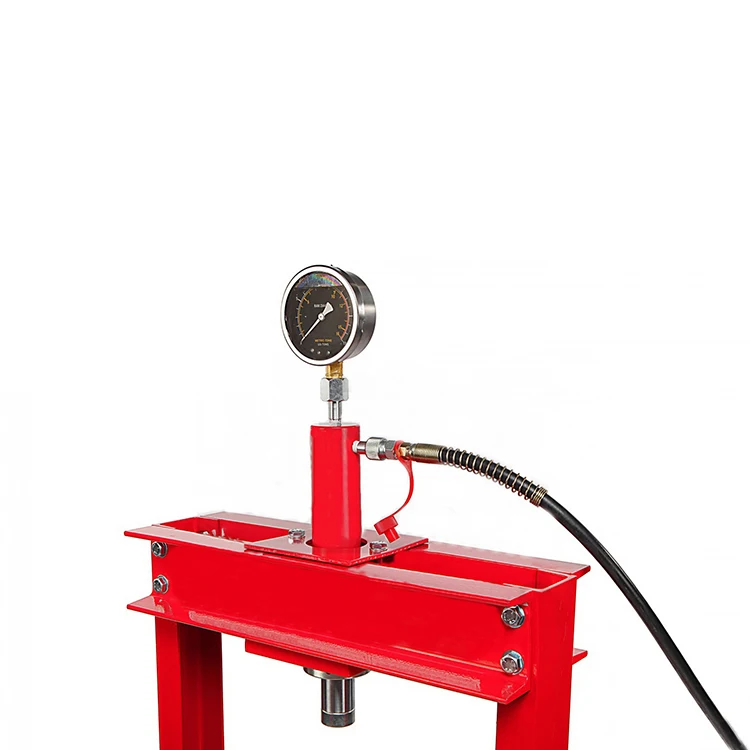

• Hydraulic Gauge show the Pressure Clear

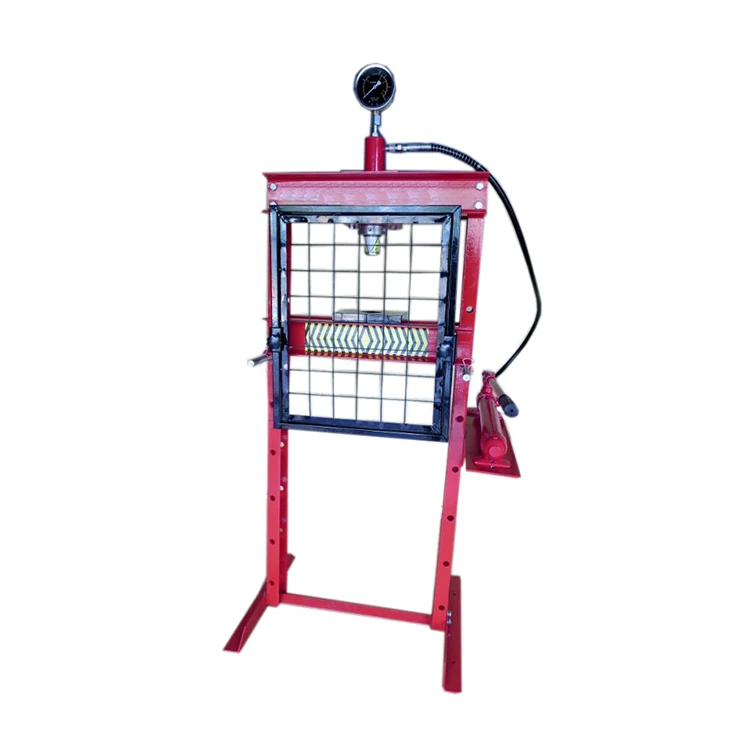

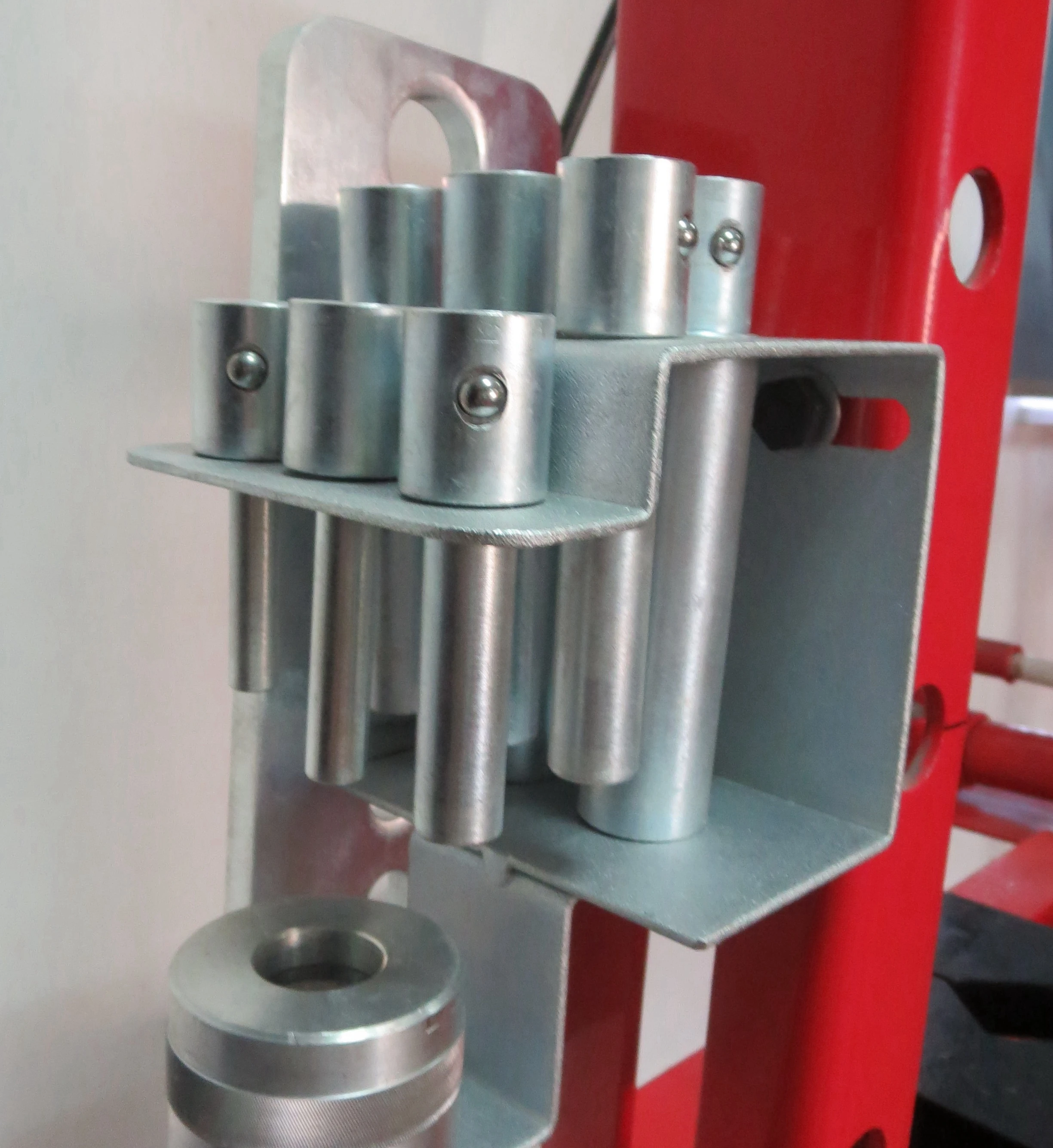

• Press Pin Set, Safety Grid Guard Optional

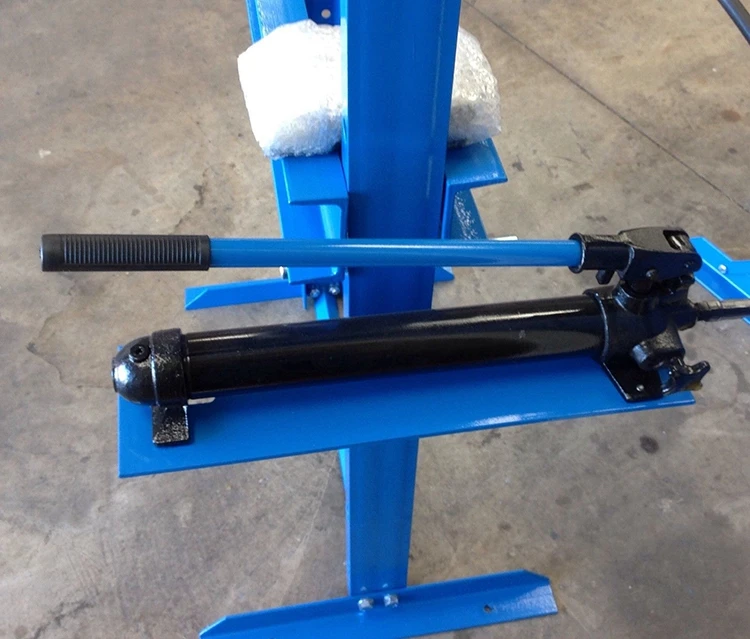

• Detachable pump and ram allowing hydraulics to be used for other purposes when press is not in use.
• Made from high quality steel with a powder coated paint finish to help corrosion resistance.
• multi-position bed for work height adjustment.
• Heavy duty return springs for fast ram retraction
• Safety bypass valve assures unit will not exceed rated capacity
  Easy-to-use, hand-operated, Tables raise and lower easily .

3.Product Show











4. Related products

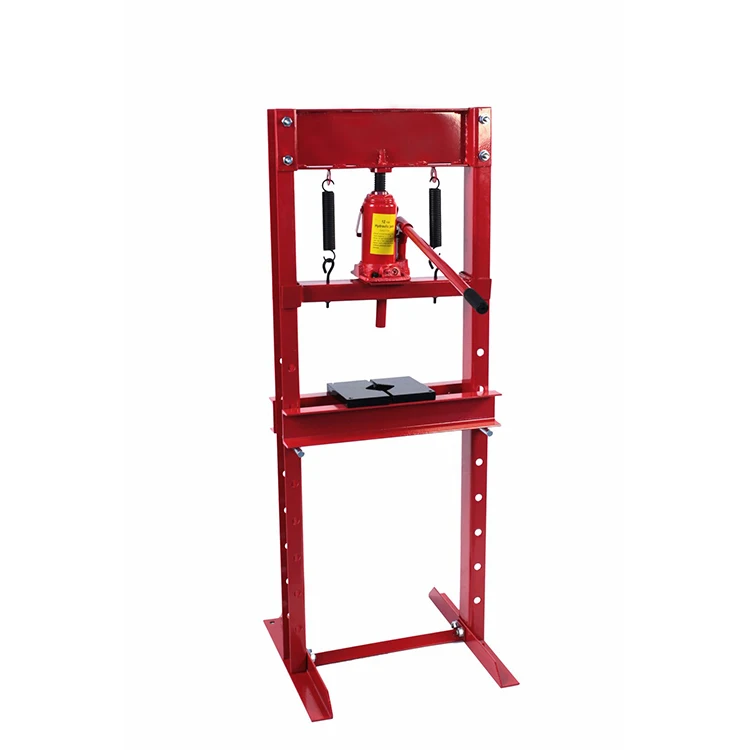

704103  12Ton Bottle Jack Hydraulic Shop Press

704102   10Ton Hydraulic Bench Shop Press

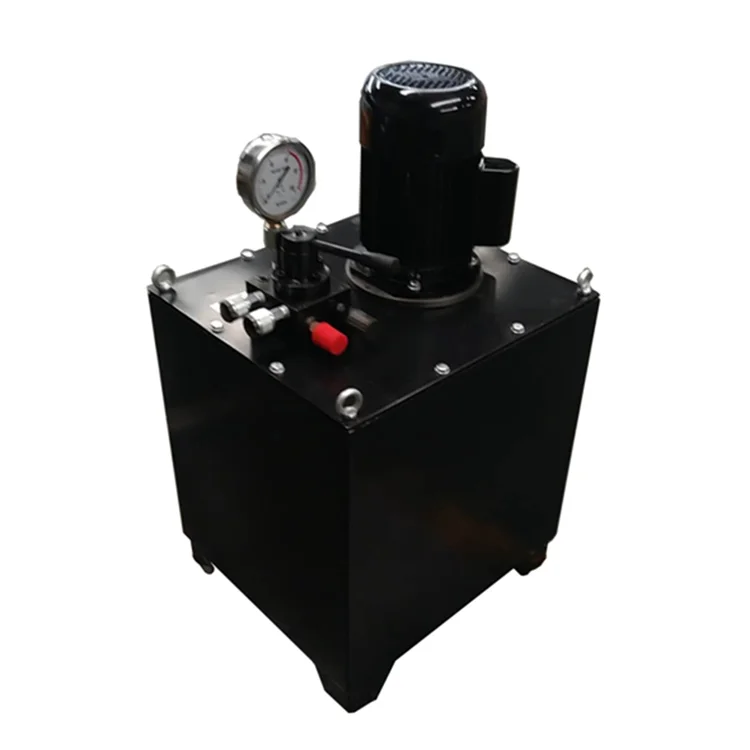

801202  10000psi Double Acting Electric Hydraulic Pump Cylinder Kit
