Slurry pumps series KA(R) are horizontal and cantilevered centrifugal pumps.They are suitable for transporting high density slurry or lower density high head slurry.Type KA pump is suitable for conveying high abrasive,high density or low density,high head slurry,while type KAR pump is for small size (d50≤0.2mm) particles or high density slurry,and sometimes corrosive slurry.
Direction for use
Chemical process,Heavy minerals
Paper and pulp,Mill discharge
Sugar beet,Slag granulation
Bottom boiler and fly ash
Cyclone feed,power plants
Other industries
Pump operating limits
Size discharge:25 mm to 450 mm
Capacity:3.6-6480 m3/h
Heads(TDH)：4-69 m
Max allowable particle size:depend on pump model
Type notation:
200 KA(R)-ST
200 :Diameter of outlet
KA: Heavy duty slurry pump
R:Rubber liner
ST: Form of frame
Detailed Images

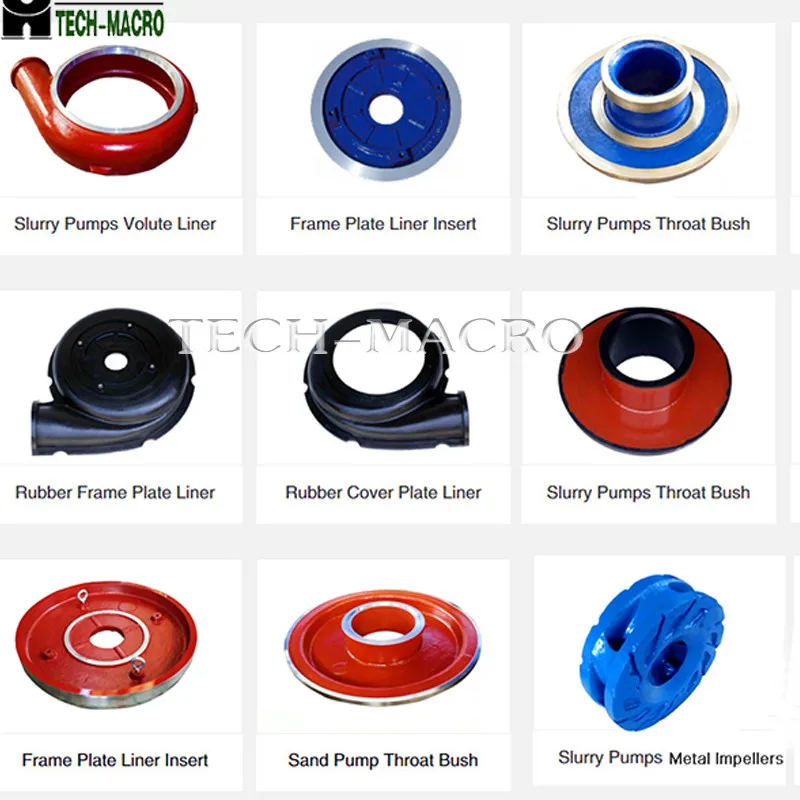

Replaceable wear-resistant metal liners,impellers & volute liners are made of wear-resistant metal or rubber.
Bearing assembly uses cylindrical structure,adjusting the space between impeller& front liner easily,being removed completely when being repaired.Grease lubrication.
The impeller can be 2-6 blades ones,making the pump more effective.And the pump can achieve in excess of 87% in the best efficiency area.
Shaft seal could use the packing seal,expeller seal and mechanical seal.One pump also can be use packing seal with expeller seal together.

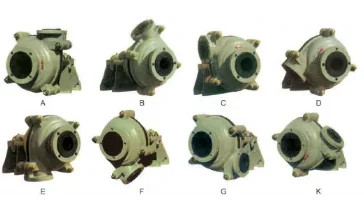

The discharge outlet can be positioned at intervals of 45 degrees by request and oriented to any 8 positions to suit installations and applications.
Related Products
Pump Construction

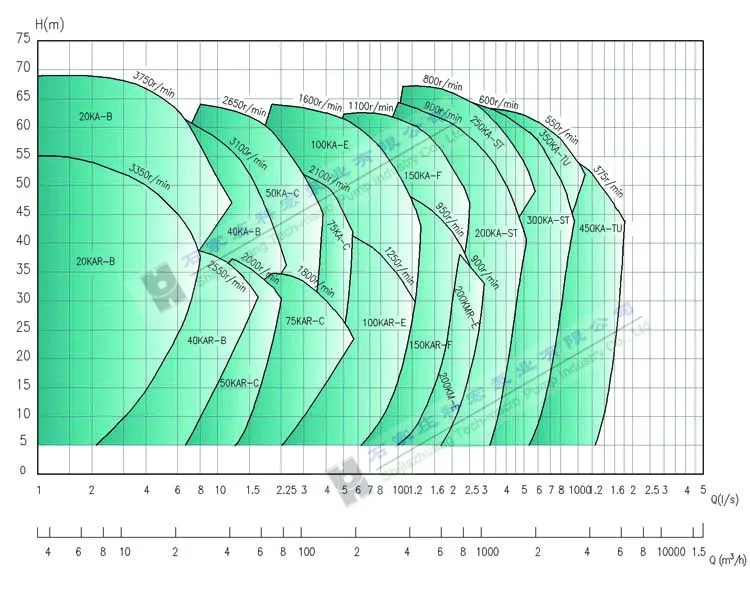

Performance Curve
Product Paramenters
