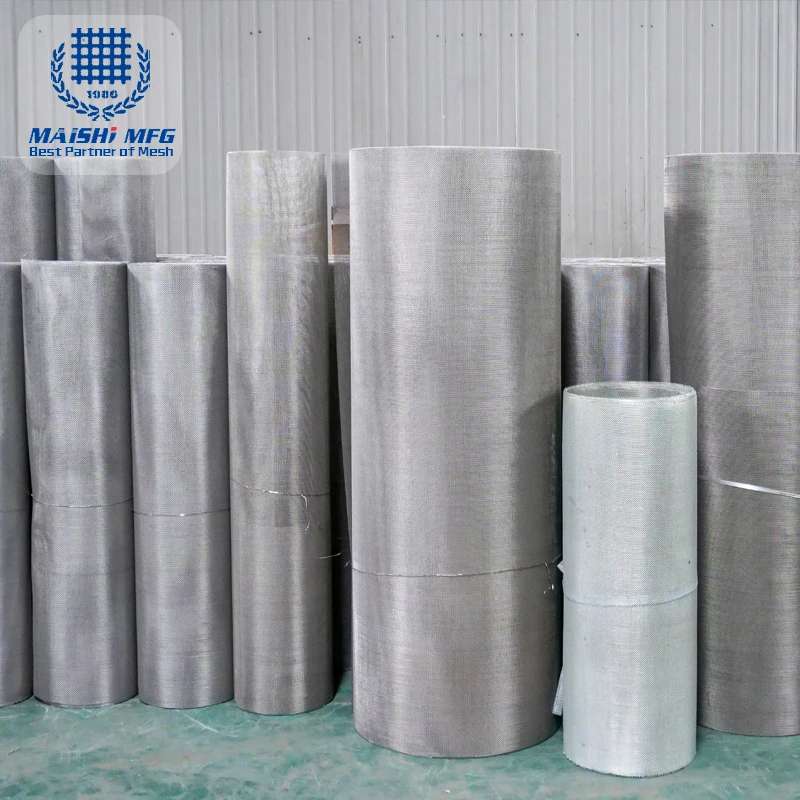

Twill Dutch weave filter mesh from HEBEI MAISHI WIRE MESH

Material: NO MAGNET NO NICKEL, AISI202, AISI302, AISI304, AISI 304 L, AISI 316, AISI 316 L, AISI317, 321 and 430 etc.

Weave Type: Twilled dutch Weave.

Performance : Corrosion-resisting, Wear-resisting, Tear-resisting.

Uses: Mainly used for Separation and Flitration,  extensively used in petroleum, chemical industry, enviroment protection, mine, airspace, paper-making, electronic, metallurgy etc.

Special size and specification are available according to customers requirment.

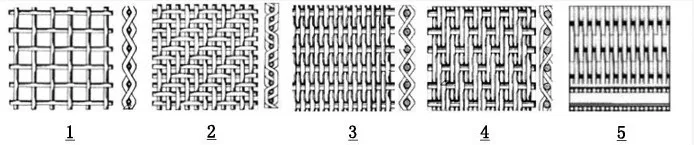

Normal mesh size:

Plain weave: 0.5X0.5mesh to 635X635 mesh;

Twill weave:20x20mesh to 400x400mesh;

Plain dutch weave:10X64mesh to 80X700mesh;

Twill dutch weave:20x250mesh to 400X2800mesh;

Reversed dutch weave: 48x10mesh to 720x150mesh.

Wire diameter:1.8mm-0.025mm.

Roll width:1.0m,1.2m,1.5m,1.8m,2.0m etc. any width available at request.

Roll length:30m or 50m,any length available at request.

Sample:Free sample sent on request.

Hebei Maishi Printing Mesh Manufacture Factory is one of the top manufacturers and exporters of stainless steel wire mesh.Our company was connected with production of metal wire mesh since 1986 in China. The machinery and apparatus used in production process fully based on the high computer technology, gaining TSE (Chinese Standard institution) certificate and ISO9001:2000.

All of our wire mesh have been exported to Europe, U.S.A, Australia, Middle East, Southeast Asia, Africa, South America and other parts or the world with the following advantages:

• 26 sets stainless steel high mesh count looms and 50 sets P7150 Sulzer looms.


• Dedicated and experienced weavers.


• Consistent strictly quality control of products.


• On-time delivery.


• We have 15 R&D technical staffs,with more than 10 years experience.


• 80% repeat customers.


• Reasonable claim refund system.
