Plotter Paper Rolls Slitter Rewinder Machine,Cash Register Paper Thermal Paper Slitting Machine

Product Overview

Description

XMY-FQ1000 Plotter Paper Rolls Slitter Rewinder Machine

Application of Plotter Paper Rolls Slitter Rewinder Machine

Thermal Paper, Cash Register Paper, Fax Paper, ATM Paper, Bond Paper, Nonwoven Cloth Caronless Paper,Concern Paper,Queuing Paper,Air Ticket Paper,Boarding Paper,Movie Paper,etc



Main parameters of Plotter Paper Rolls Slitter Rewinder Machine

Model	XMY-FQ1000
Effective width	500mm-1600mm
Max rewinding diameter	200mm
Max unwinding diameter	1000mm or as requests
Min slitting width	20mm
Paper core I.D	0.5",1",1.5",2"or as request
Max Speed	200M/min
Motor	5Hp





The superior of this machine of Plotter Paper Rolls Slitter Rewinder Machine



1) All the parts are processed by CNC lathe,which will be with high precision.



2) All transmission rollers have been dynamic/static balance treated.



3) It is with Airtac cylinder and SMC air pressure valve,it will avoid overlap problem.



4) Automatic loading system is for loading heavy jumbo onto unwinding stand,save time and reduce labor intensity.



-Main Functions of Plotter Paper Rolls Slitter Rewinder Machine



1.Main motor: driven by one A.C motor with 2 stages type length counter to make machine stops accurately.



2.Rewind device: Rewind controlled by 3 surface rollers, and surface tension is adjustable for different materials and request.



3. Electricity Device: Equipped with 2 stage preset length counter, which provide machine stops accurately and smoothly.



4. Rewind Mode: Equipped with separated shaft type unwind base, auto web guide and auto unwind tension controlled.



5. Unwind Base: Separate type with hydraulic core chunk can be equipped for effcient and quick performance on jumbo roll change.



-Optional Parts of Plotter Paper Rolls Slitter Rewinder Machine



1.Unwind Pick Up Lift : for loading jumbo roll on the machine quickly and time saving.



2.Slitting Device: Able to be equipped with air score knife and trim removable unit for trimming at both side and size slitting.

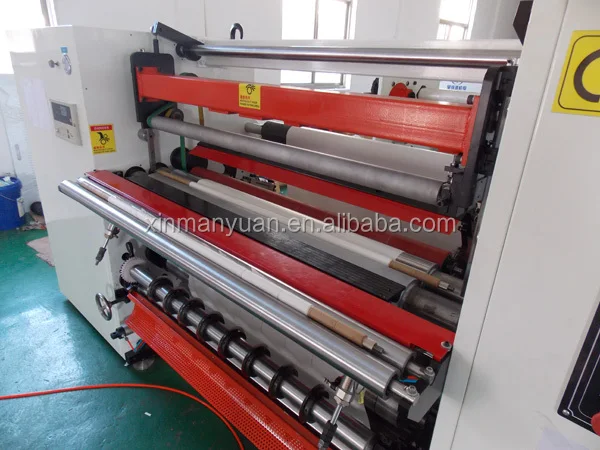

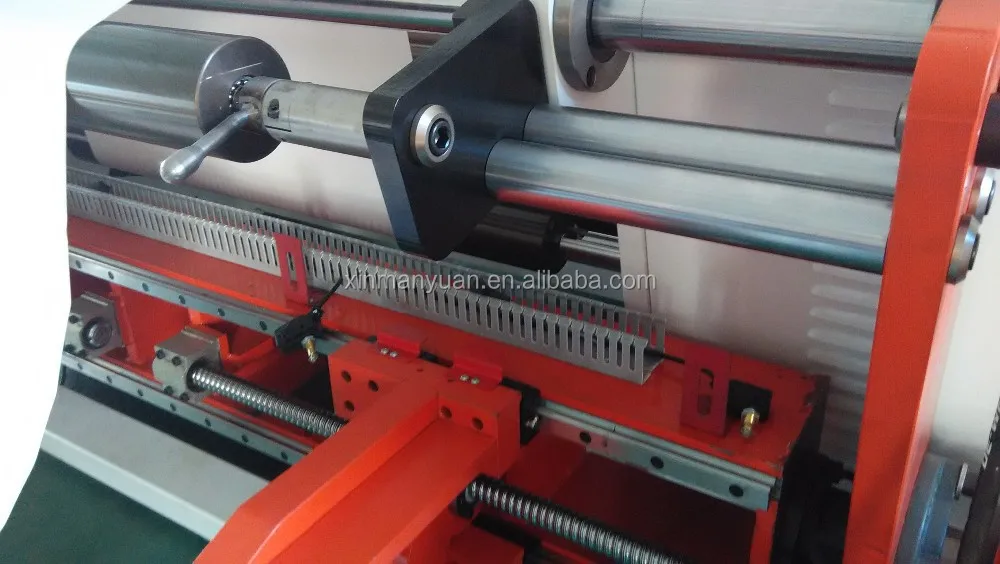

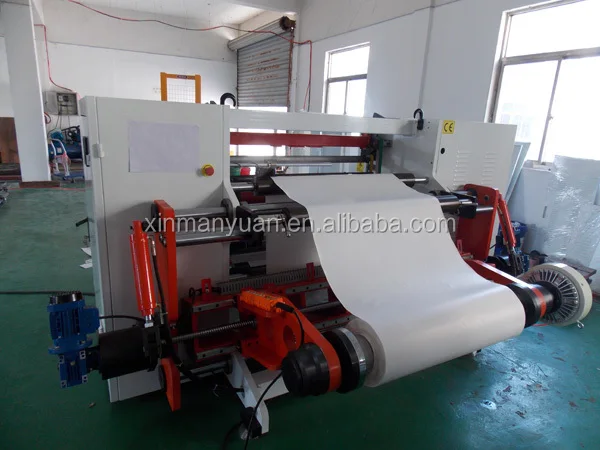

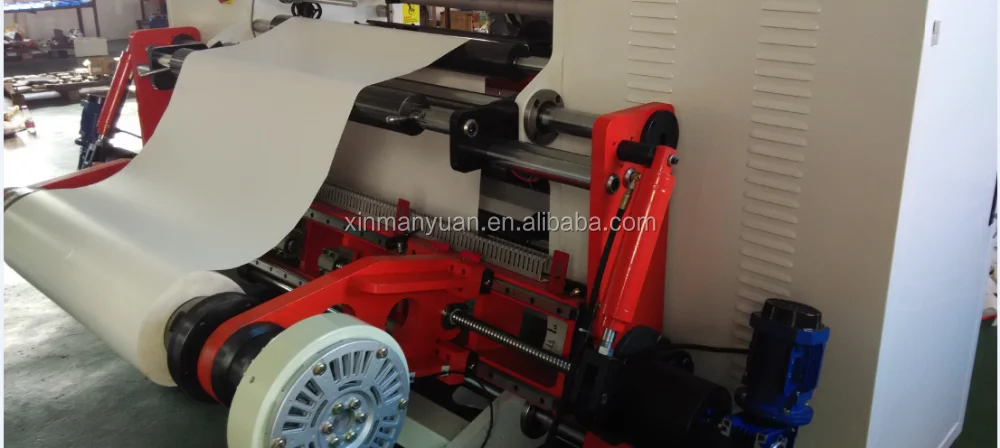

More pcitures of Plotter Paper Rolls Slitter Rewinder Machine





Certification:



After-service:

1. Warranty for machines is 12 months and lifetime maintence.
2. A promptly reply within 24 hours.
3. Free usage training before delivering machines in factory.
