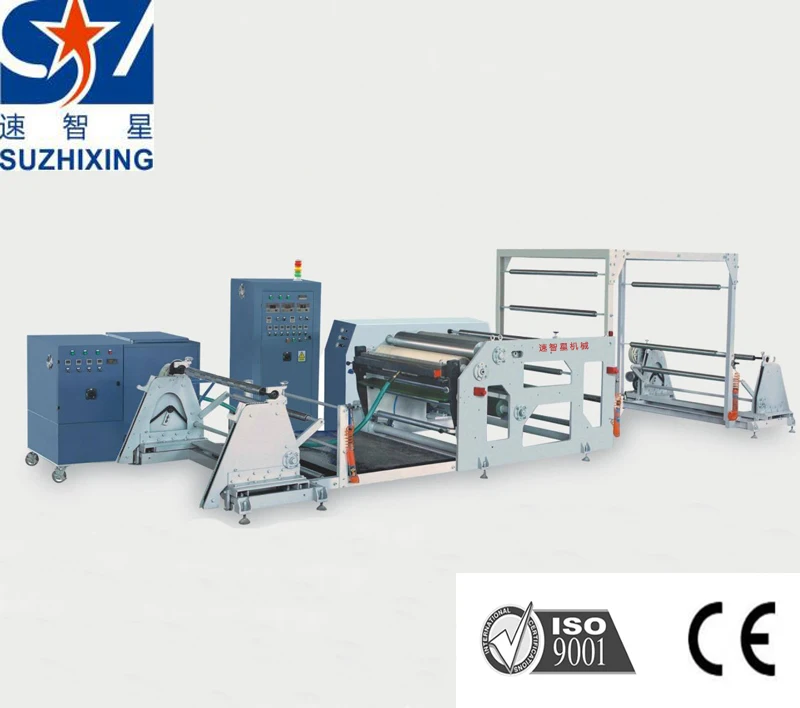

High Quality Hot melt adhesive extrusion coating machine

Product Overview

Description

Main features

1) 10000 mm high precision surface grinder, 10000 mm gantry type nc boring and milling machine, which can fully meet all kinds of plastic products within 10 m (including 10 m), extrusion die in the range of ply δ= 0.005-100 mm and complete equipment of plastic mashinery.
2) Mainly fit for the manufacture of single-layer, double-layer and multi-layer of plastic materials like PVC, PS, OPP, PO, PP, PE, EVA, PC, TPU, PUB, PVUD, etc.
3)These series are mainly used to produce cast film (stretch film, wrapping film), and fresh-keeping film.
4)The production of the film has viscosity on one side or both sides which can be widely used in packaging of building materials, hardware accessories, etc.
5)The screw and its canister are made of 38CrNoALA alloy and nitrogen processed. They are of high hardness, strong erosion resistance and endurance.
6)Advanced automatic control system for temperature control, T type die adopts multi-point adjustment, so that ensures a more uniform thickness of membrane material.
7)Recycled water cooling device supplies good cooling effect.
8)Rolling device adopts the friction-type winding, and equipped with edge-cutting devices and remaining recycle device makes the film rolled more neatly.

Main parameters

Model	RT500-1100
coating method	Adhesive melting extrusion coating
coating width	500/1100mm
The wheel width, diameter	80mm×800mm
winding/unwinding form	Single-position
unwinding diameter	Ø1000mm
unwinding diameter	Ø1000mm
Heating type	electric heating roller
Oven temperature	130℃
work speed	10-100m/min
machine speed	120m/min
Size	4800×2200×1300mm
machine weight	about 1800kg



Factory

1.Has several senior engineers service in many countries, all the year round with our after-sales office in multiple countries.

2.Machines with good quality in one year, life-long maintenance.

3.Has many machines can be monitored via the Internet, solve customer requirements in a timely manner.

4.Has several senior,continuous innovation and reform, in order to ensure the quality of mechanical stability.

5.Undertake various non-standard machinery, solve the customers' requirements.
