pavement preservation products asphalt crack filler,kettle volume 100L,with a free heating tube(JHG 100)
- Category: >>>
- Supplier: Changzhou Jiehe Machinery Co. Ltd.
Share on (60382362342):
Product Overview
Description
pavement preservation products asphalt crack filler,kettle volume 100L,with a free heating tube(JHG-100)
Product Description
Applications

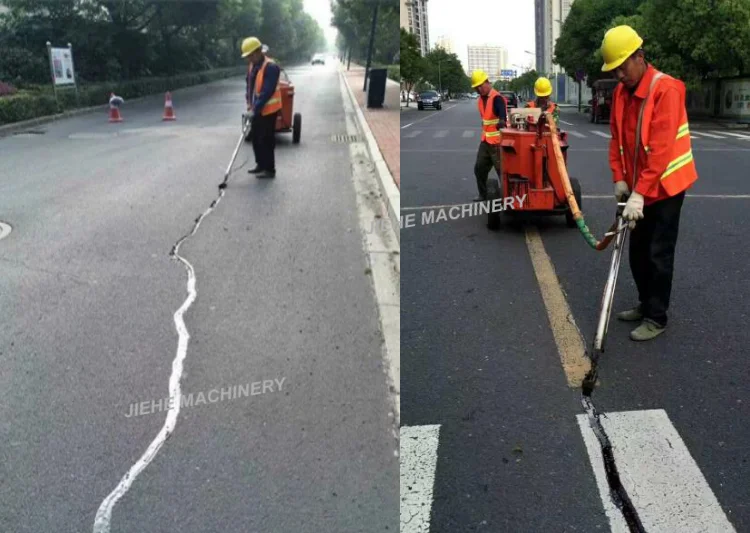

The crack pouring of hignway,municipal road,airport runway,country road,neighborhood and factory road ,etc.
Features and Benefits
1.To clean energy fuels, easy to use
2.Equipped with generators, providing enough power
3.Conduction oil circulation, the manual mixing, so that uniform heating fast, insulation lasting
4.Discharging pipeline heating, no need of cleaning
5.Control operation, adjustable flow
6.For ordinary asphalt and glue can be used
7.Rear universal rotation, can seam irregular cracks
8.Outlet adjustable, ensure the filling effect
9.It is a economical and environmental-friendly product.
Detailed Specification:
Model | JHG-100 |
Generator | Honda 2.2KW ,Output power.50HZ |
Volts | 220VRotateSpeed/Frequency:4000rmp(50HZ) |
The length of electric heating tube | 5M |
Conduction oil | 15L |
Stirring Method | Automatic mixing style |
Hot melt kettle volume | 100L |
Feeding Pump | Oil circulation heating pump |
Combustor | Ltalian Riello combustor |
Temperature control system | Automatic control by computer with digital display screen. |
Heating method | Conduction oil indirect heating and extemal oil pump circulating heating |
Feeding Mechanismrol | The outer material pump, the infinite speed regulation control, positive and negative control |
Filling material heating time | 40 minutes under normal temperature |
Feeding mouth size | 280*380 |
Operation weight | 265kgs |
Package Weight | 305kgs |
Size | 1900*1050*1300mm |
Product Details

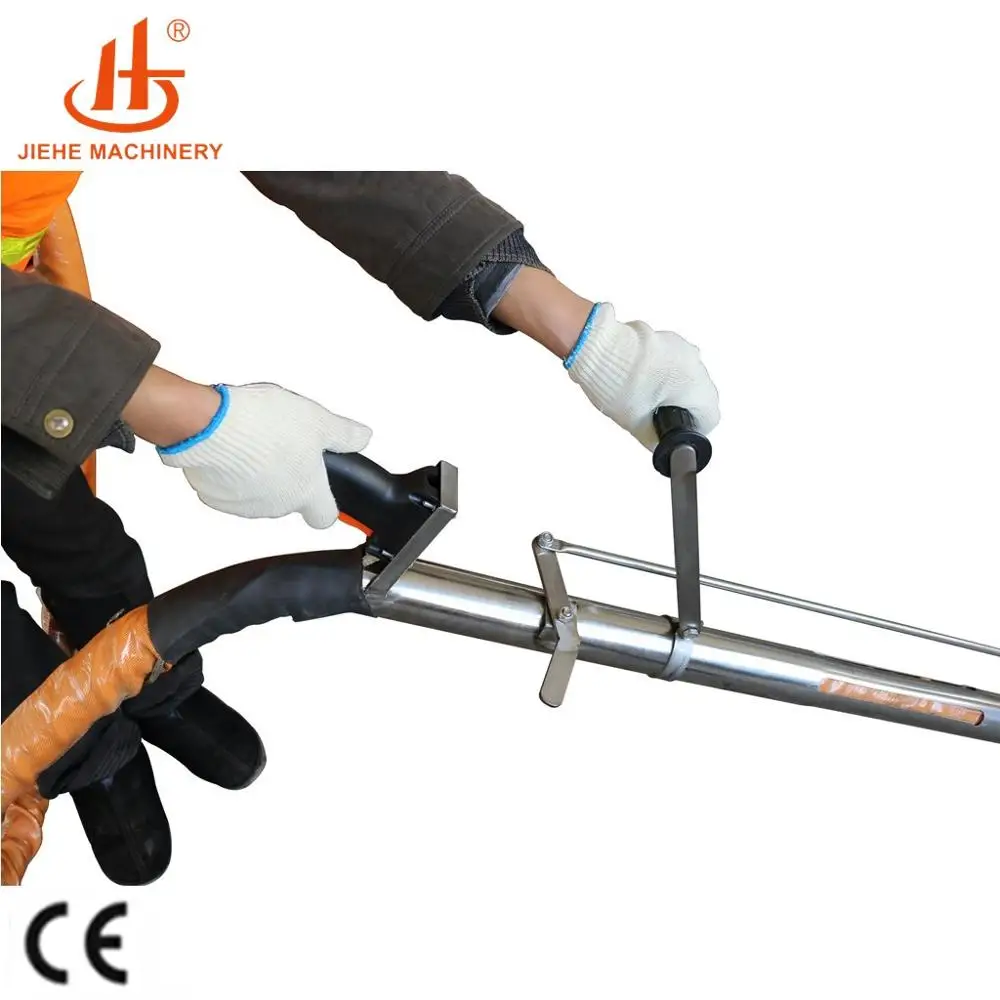

Picture1: Switch on the handle, can be control the material flow easily.

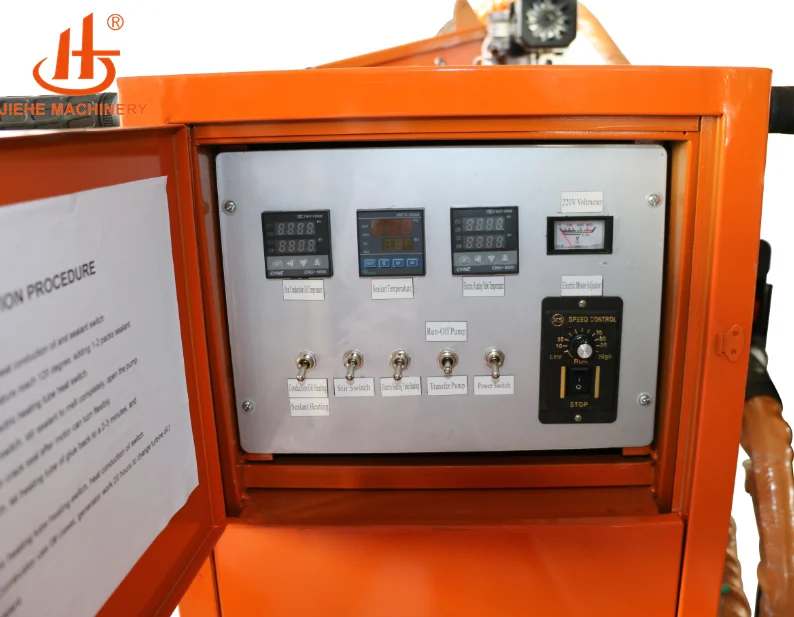

Picture2: Integration of electrical installations.
Picture3: Automatic mixing style, construction costs.

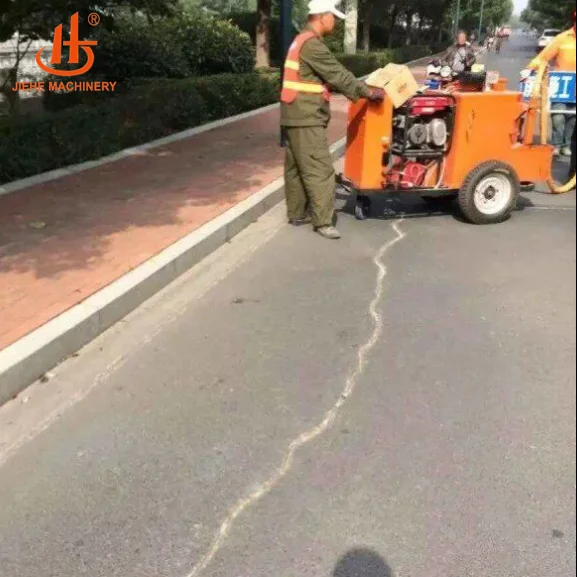

Picture4: With a single wheel in front .easy for construction.
Picture5: With a traction device for easy transport.
More Products
Packaging & Shipping
Our packaging is iron frame and carton generally.If customer have other requests, we will try to accommodate.JHG-100 packaging dimensions(mm) is: 1900*1050*1300mm.
