CE Approved Eco-friendly PU Galvanized Steel Sandwich Panel Roof
US $21.00-$22.00
Precast concrete wall panel machine/EPS sandwich wall panel making machine/lightweight concrete wall panel forming machine
- Category: Sandwich Panels >>>
- Supplier: Shandong Tianyi Machinery Co. Ltd. [Shandong China]Shandong
Share on (60382364321):
Product Overview
Description
lightweight wall panel production line
lightweight wall panel production line |
Machinery Paramenters |
Overall dimension (LxWxH)mm | 3030x1190x2500 |
| Total power(kw) | 23.75 |
| Hydraulic working pressure(Mpa) | 8 |
| Capacity of hydraulic tank(L) | 70 |
| Maximum hydraulic working pressure(Mpa) | 16 |
| Power of heating system(kw) | 20 |
| Structural composition | Host machine, hydraulic system, power distribution system, heating system,vibration system, core tubles |
Raw material of lightweight wall panel |
| NO. | Material | Price(¥)/m² |
| 1 | Cement | 10 |
| 2 | Coal ash | 0.5 |
| 3 | Sand | 0.4 |
| 4 | Additive | 1.5 |

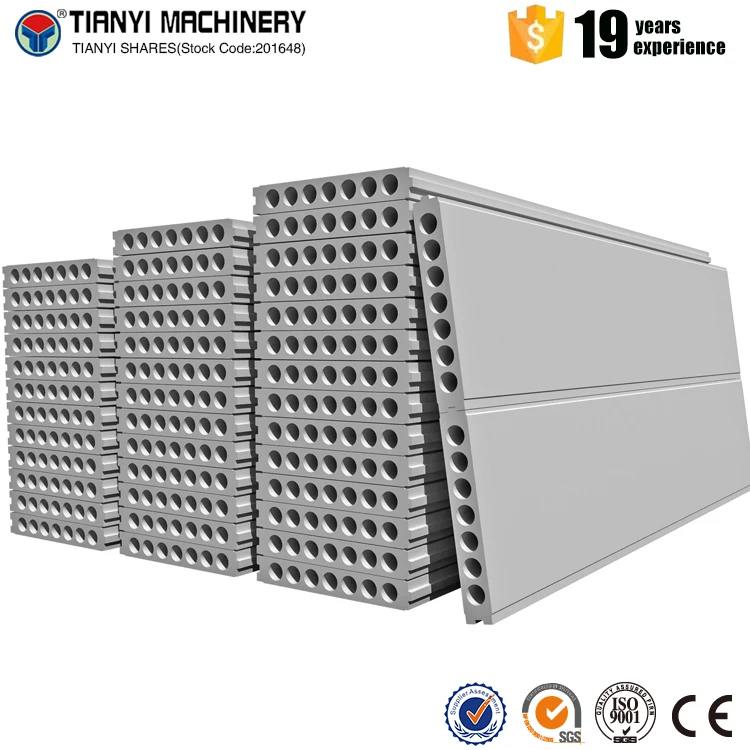

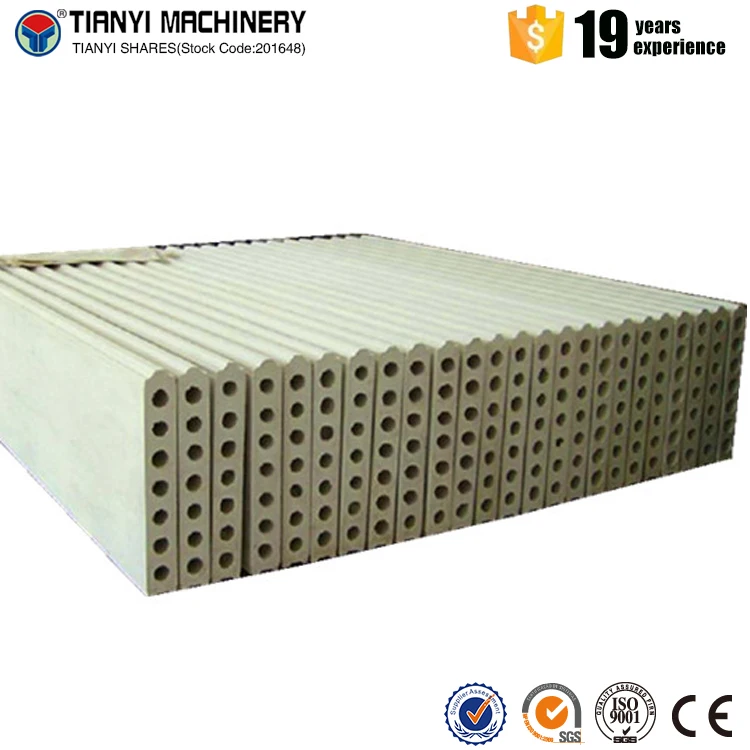

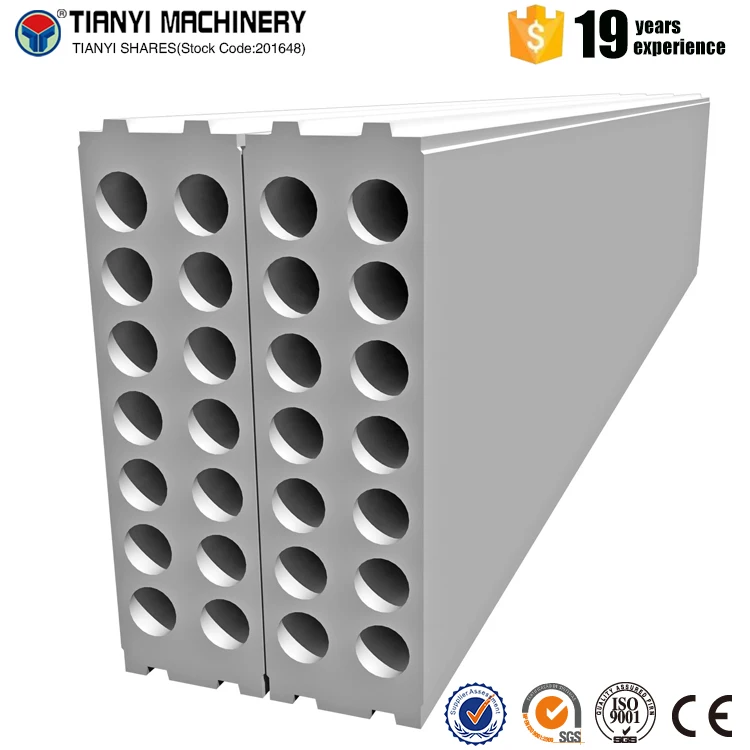

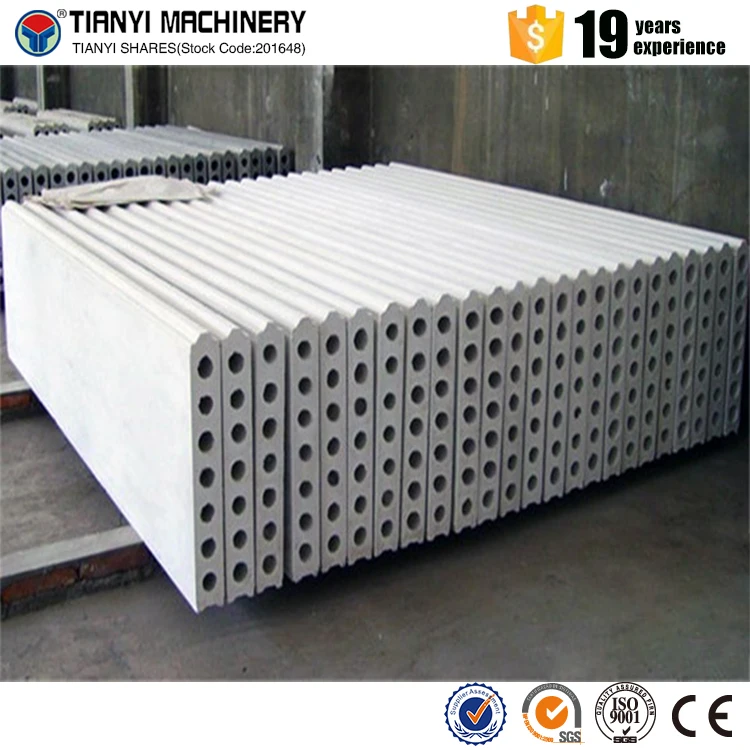

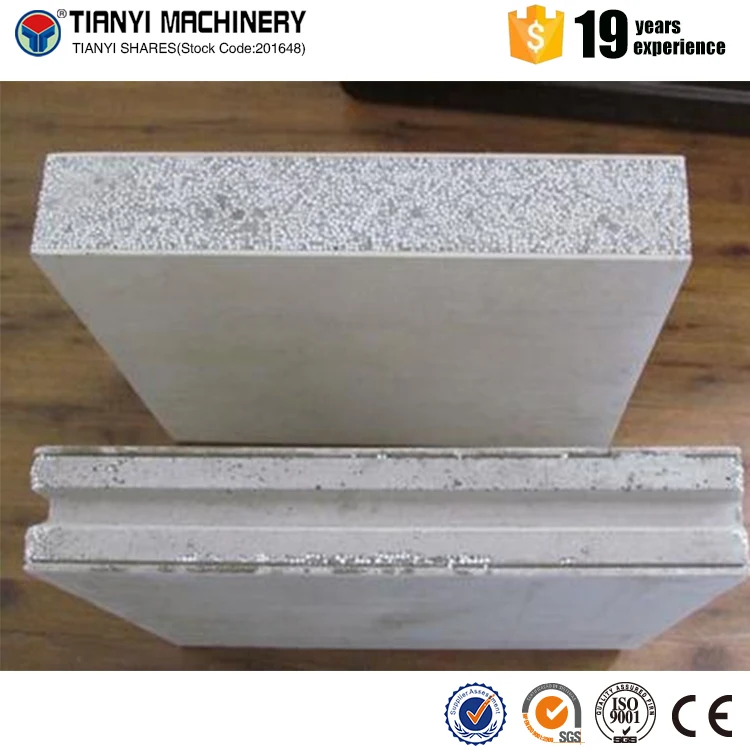

Finished products |
| Test ltems | National standard | Actual index |
| Compressive strength | ≥3.5MPa | ≥3.7MPa |
| Drying shrinkage | ≤0.6mm/m | 0.37mm/m |
| Hanging force | ≥1000N without 0.5mm crack in 24 hours | ≥1000N without 0.5mm crack in 24 hours |
| Areal density | ≤90kg/m² | ≤43kg/m² |
Our unique advantages |
Production process |
Our company |
Why choose us |
