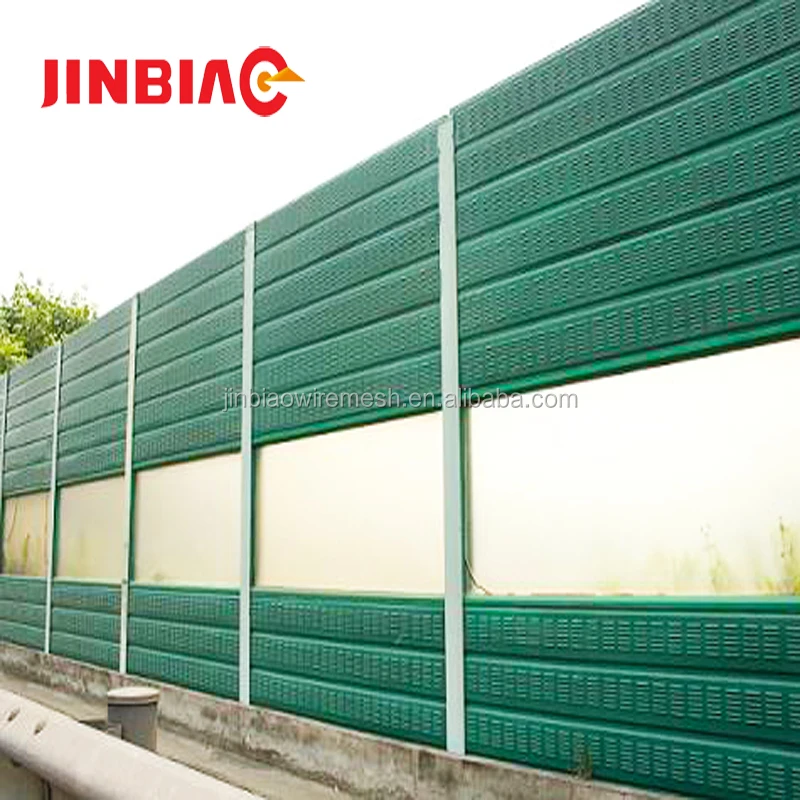

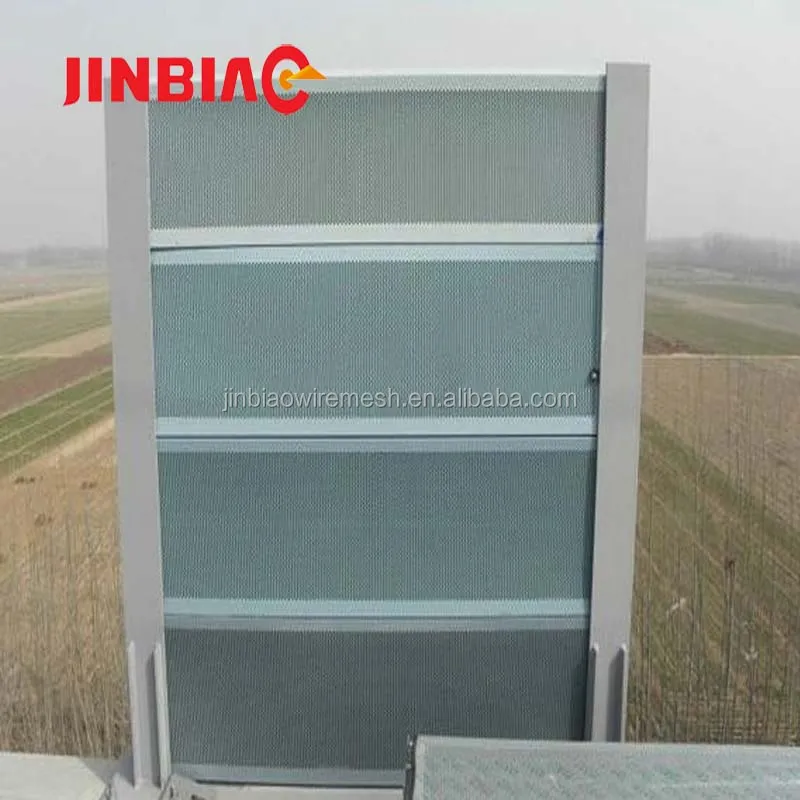

Noise Barrier That Make Acoustic Shadow Alternative to Concrete Sound Barrier / sound wall decoration sound absorbing wall

Product Overview

Description

temporary noise barrier

Sound Barriers (also known as Noise Walls, Noise Barriers, Noise Fences or Sound Barrier Walls) have been made of a number of different materials over the years.  Noise barriers are solid obstructions built between noise sources, be it highway noise or air conditioning equipment,that are designed to be “line of sight” interruptions between the noise source and the receiver.

 Sound Barrier Material:
Metal type: Galvanized metal sheet, aluminum sheet.

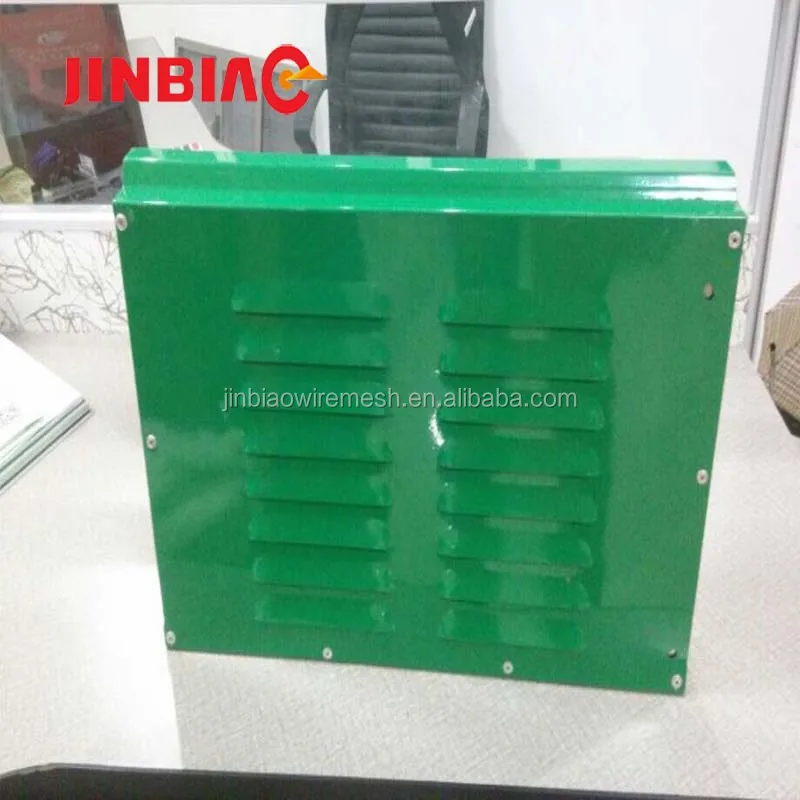

Appearance: shutter type, perforated type.

Colors: Clear, lake blue, green, blue, opal, brown, silvery gray, red (Other colors can be ordered according to request
Transparent sheet: PC, PMMA
Product name:  Soundproof Fenc

Sound Barrier Specifications:



METAL SHEET
PANEL HEIGHT	PANEL LEHGTH		SHEET THICKNESS		SHEET THICKNESS		PANEL TYPE
0.5m  1.0m	2.0m 2.5m 3.0m 4.0m		80mm 100mm		1.0-1.5mm		shutter or perforated
PC/PMMA SHEET
PANEL HEIGHT		HEIGHT		SHEET THINCKNESS		LIGHT TRANSMITTANCE
0.5m 1.0m 1.5m		2.0m 2.5m 3.0m 4.0m		80mm 100mm		≥80%
SOUND BARRIER
TOTAL HEIGHT		LENGTH		RW		NRC
3.0m as standard		2.0m 2.5m 3.0m 4.0m		≥30dB		≥0.84



Shippment information: 600-800 square meter sound barriers per 40ft container

Sizes or specifications vary with different packings.

Shippment information:600 square meter per 40ft container.



                                                                                                                                                          ---contact us

2.Detailed Description

1.    Non-Flammability: GB8624 grade A

2.    Waterproof :Resistant to deformation in wet environments

3.    Sound proof:

4.    Strength: Bendable and impact resistant

5.    Weight: 35kg/m²

6.    Temperature Maintenance

7.    Environmental Friendly;

8.    Installation: Easy to cut, saw, nail, paint and veneer

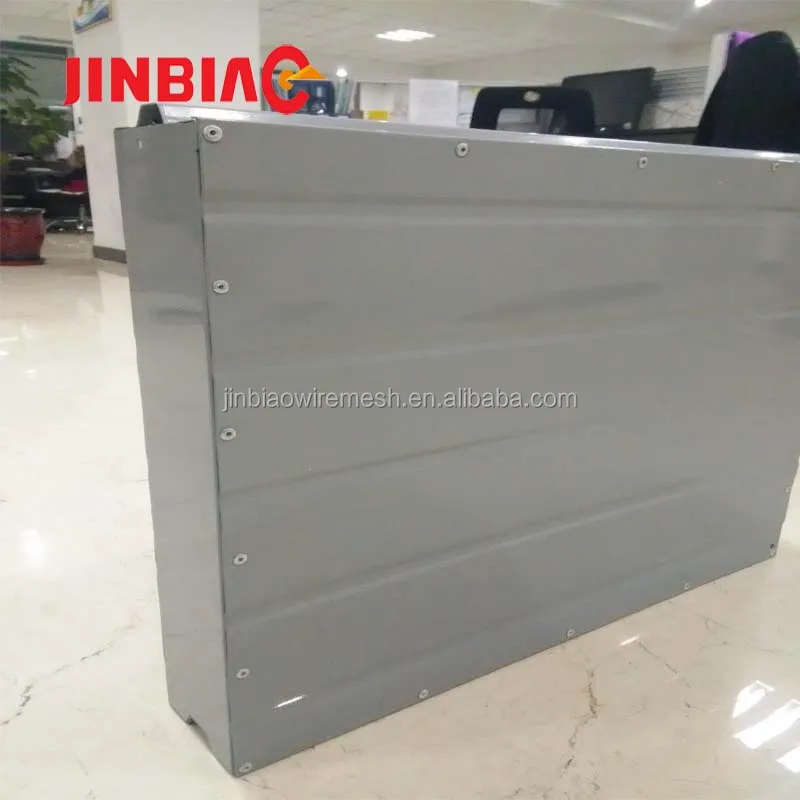

Noise barrier  Panel thickness: 80mm, 100mm,120mm

Noise barrier  Size: 2500x500x80mm, 2500x500x100mm, etc.

Noise barrier  Metal plate thickness: 0.5-1.2mm

Noise barrier  H-post: 100x100x6x8mm, 125x125x6.5x9mm, 150x150x7x10mm, 175x175x7.5x11mm.

Noise barrier  Flange plate: 250x250x10, 300x300x10, 350x350x10, 400x400x10mm etc.

Noise barrier  Panel type: shutter type, punching type.

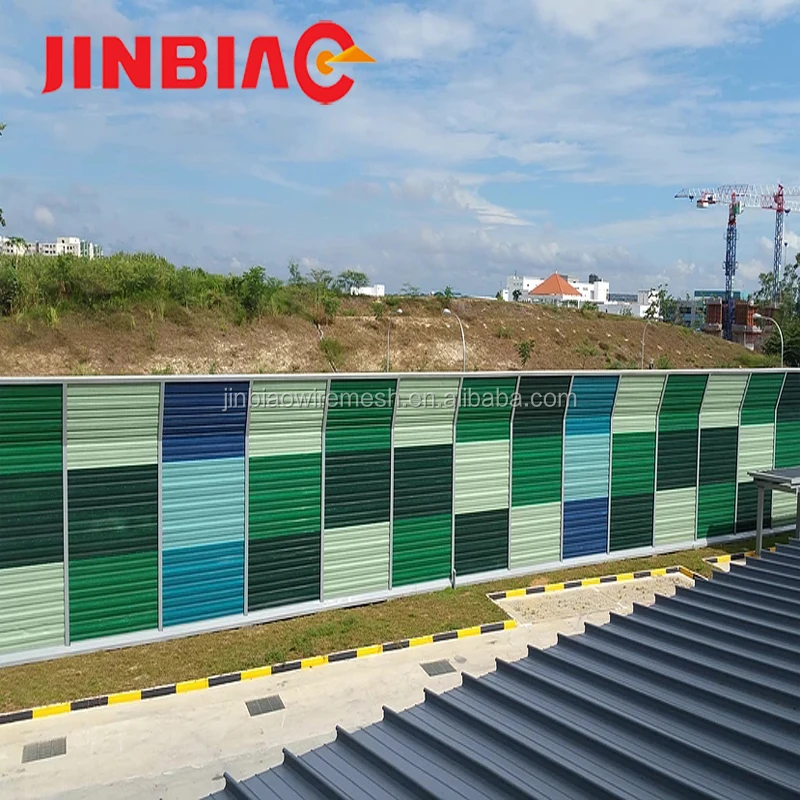

Some transportation noise barrier applications include:

> Highways and Bridges

> Structure-Mounted

> Railroads

> Distribution Facilities

> Transit Hubs / Intermodal

> Airports

Sound Barrier for Industrial Infrastructure

> Some industrial noise barrier applications include: > Manufacturing Plants > Equipment Enclosures > Perimeter Walls > Roof-Top HVAC Barriers > Generator Surrounds

                                                                                                                                                             ---contact us

Sound Barrier for Municipal Infrastructure

> Some municipal noise barrier applications include: > Light Rail Transit    > Waste Water Treatment Plants > Pump Stations > Schools > Equipment Barriers > Roof-Top Equipment Enclosures
