Geophysical Resistivity Meter Geoelectric Equipment For Ground Water Detector and Water Finder

Product Overview

Description

 Geophysical Resistivity Meter Geoelectric Equipment For Ground Water Detector and Water Finder





1. Main Application

Geophysical Resistivity Meter Geoelectric Equipment For Ground Water Detector and Water Finder



1. By utilizing the apparent resistivity parameters, it is widely used in hydrology, environmental



    protection, engineering geophysical exploration, metal and non-metal mineral resources exploration.



2. Main Feature

Geophysical Resistivity Meter Geoelectric Equipment For Ground Water Detector and Water Finder



 1. Microcomputer controlled, direct-reading resistivity, various electrode arranging mode, data protection



    against power-failure.



3. Theory

Geophysical Resistivity Meter Geoelectric Equipment For Ground Water Detector and Water Finder

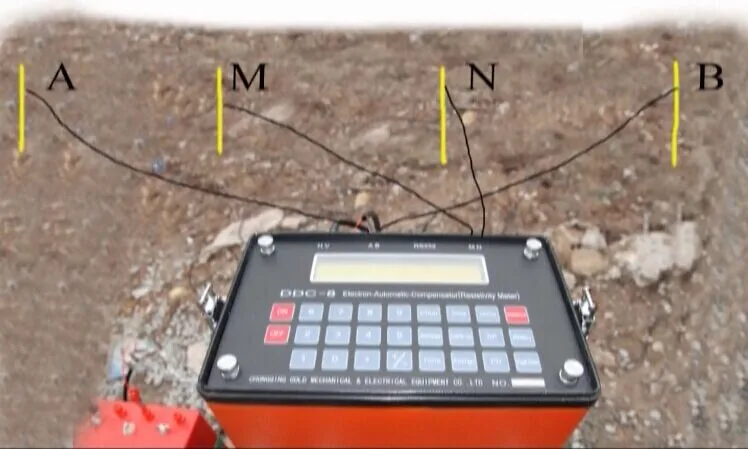

1. This instrument applies to Electrical Prospecting such as Vertical Electrical Sounding, Electrical Profiling,



    Charging Method  and Spontaneous Potential Method, etc. on ground and in trench.



4.Technical Index &Parameter:

Geophysical Resistivity Meter Geoelectric Equipment For Ground Water Detector and Water Finder

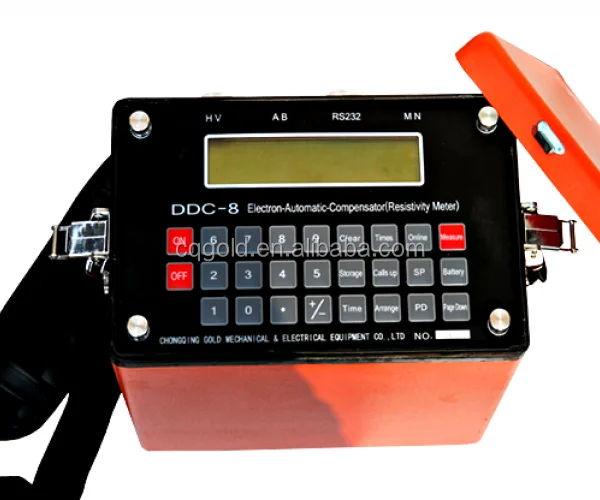

Model & Name:	DDC-8 500M Electronic Auto-Compensation(Resistivity)Instrument
Max. Power Supply Voltage:	700V
Max. Power Supply Current:	3A
Voltage Measuring Range:	±3000mV
Voltage Measuring Accuracy:	±1.5%±0.1mV
Current Measuring Range:	0.1mA~3000mA
Current Measuring Accuracy:	±1.5%±0.1mA
SP Compensation Range:	-1000mV~+1000mV
Instrument Input Impedance:	≥30MΩ
Operating Temperature:	-10°C~50°C
Size:	244×154×237mm
