28 seats passenger trailer coach trolley
- Category: >>>
- Supplier: Suzhou Player Machinery & Equipment Manufacturing Co. Ltd. [Jiangsu China]Suzhou
Share on (60382558309):
Product Overview
Description
Product Description
Specification | L*W*H | 5375*1810*2410mm | ||
Weight | 1480kg | |||
Loading capacity | 2100kg | |||
Tread(front/rear) | 1160 /1160mm | |||
wheelbase | 3795mm | |||
Brake distance | ≤4m | Passengers | 28 | |
Max. speed | 25km/h | Max. climbing | 20% | |
Min. ground clearance | 180mm | Min. Turning Radius | 7.5m | |
Car Body System | Seat | Artificial leather material +resilient PU; Black, Gray, Cream-colored available | ||
Chassis | Steel chassis,Power coating treatment | |||
Body | FRP plastic | |||
Dashboard | no | |||
Rear view mirror | no | |||
Lightning | E-mark approved Rear LED combination lights, inner LED light | |||
Sound system | Japanese Pioneer Loudspeaker | |||
Towing part | German Rockinger coupling | |||
Floor | Bamboo + Aluminum plate | |||
Chassis System | Steering system | all wheel steering system | ||
Axle | Professional automobile axle | |||
Suspension | Plate spring + cylinder hydraulic shock absorber | |||
Brake | Pneumatic hydraulic converter for controlling wagon brakes. Pneumatic circuit for wagon braking. Self-braking system in Emergency situation | |||
Wheel | 14x5 1/2J steel wheel | |||
Tire | 185R14C 8PR | |||
Painting | Professional automobile painting | |||

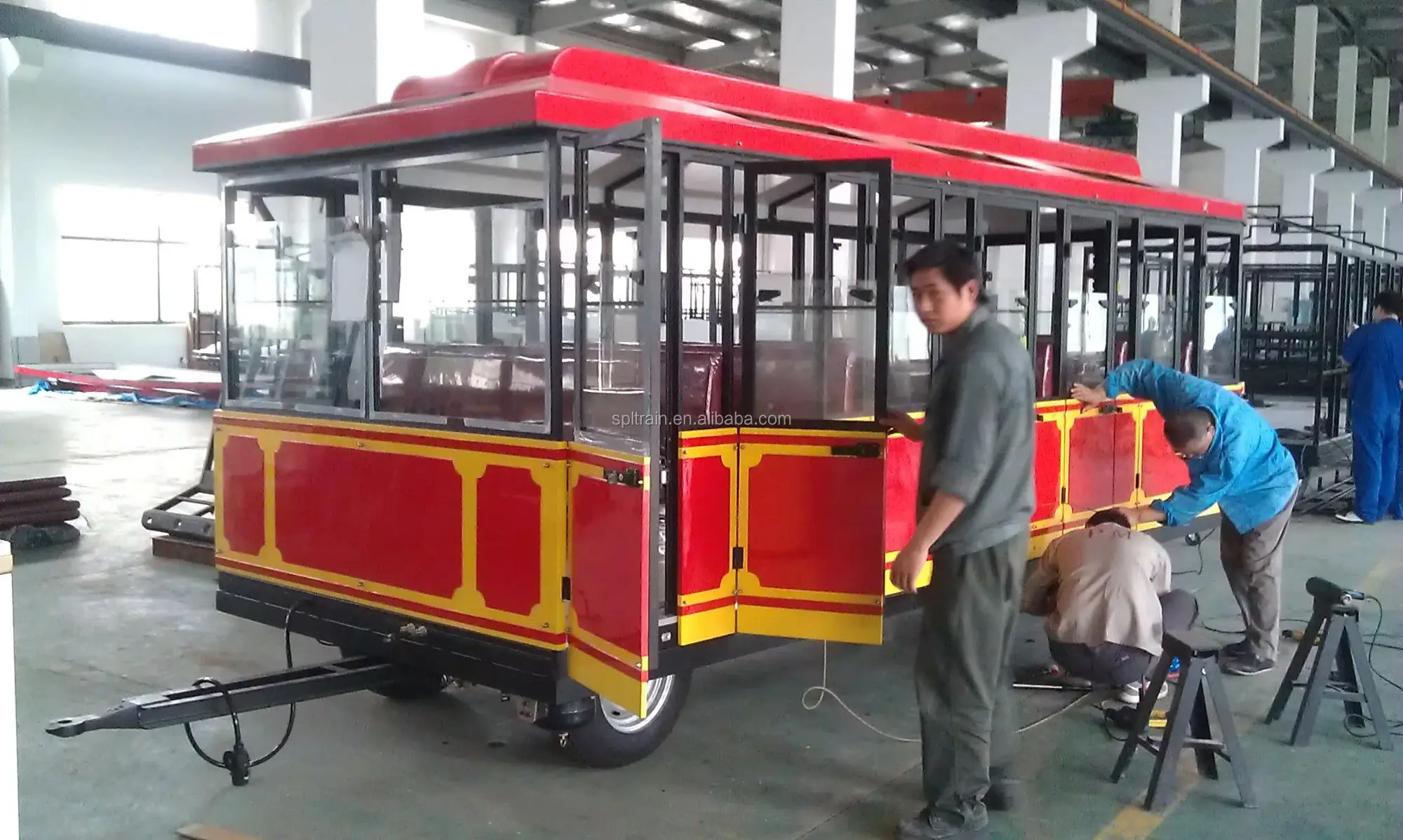

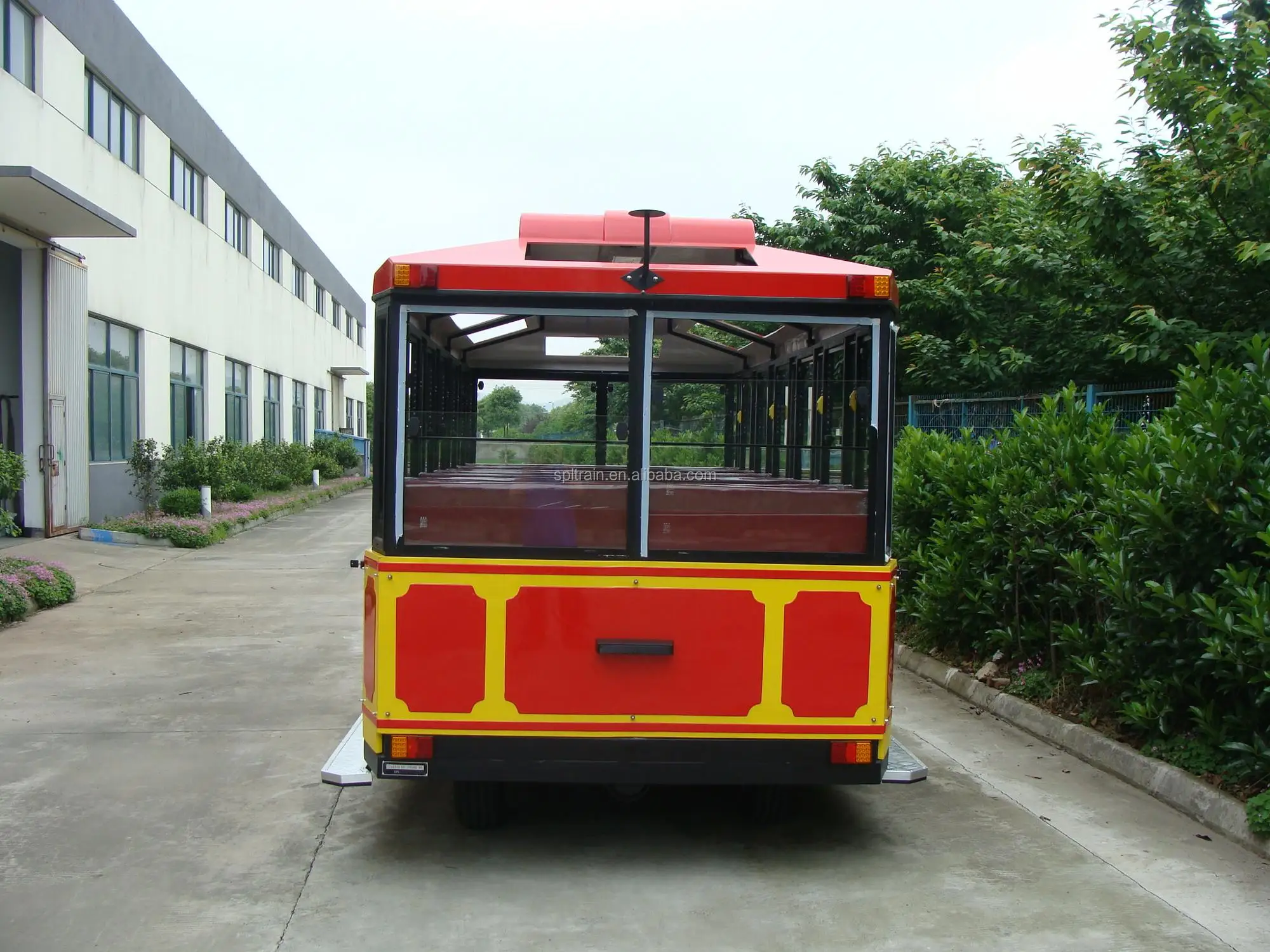

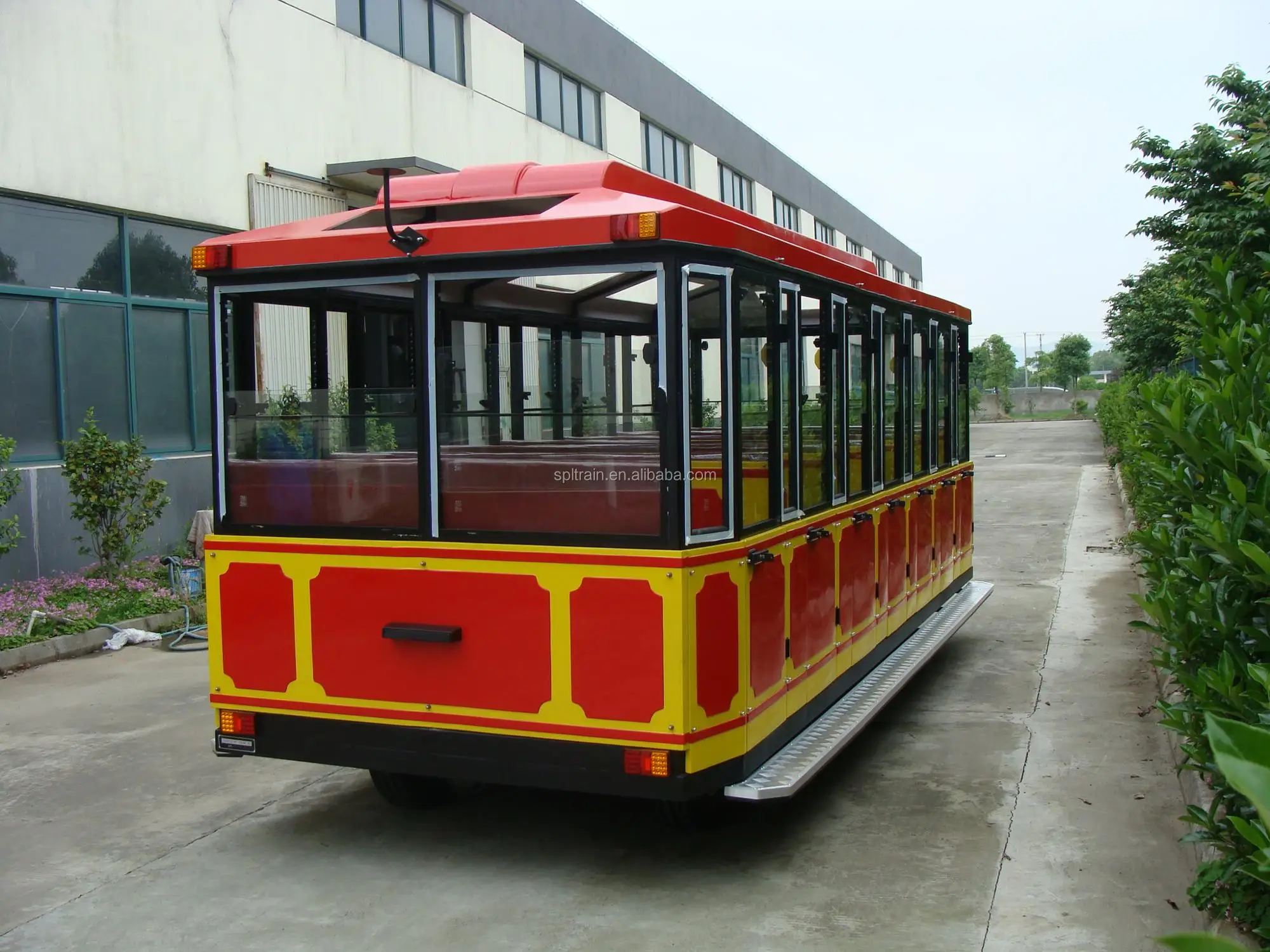

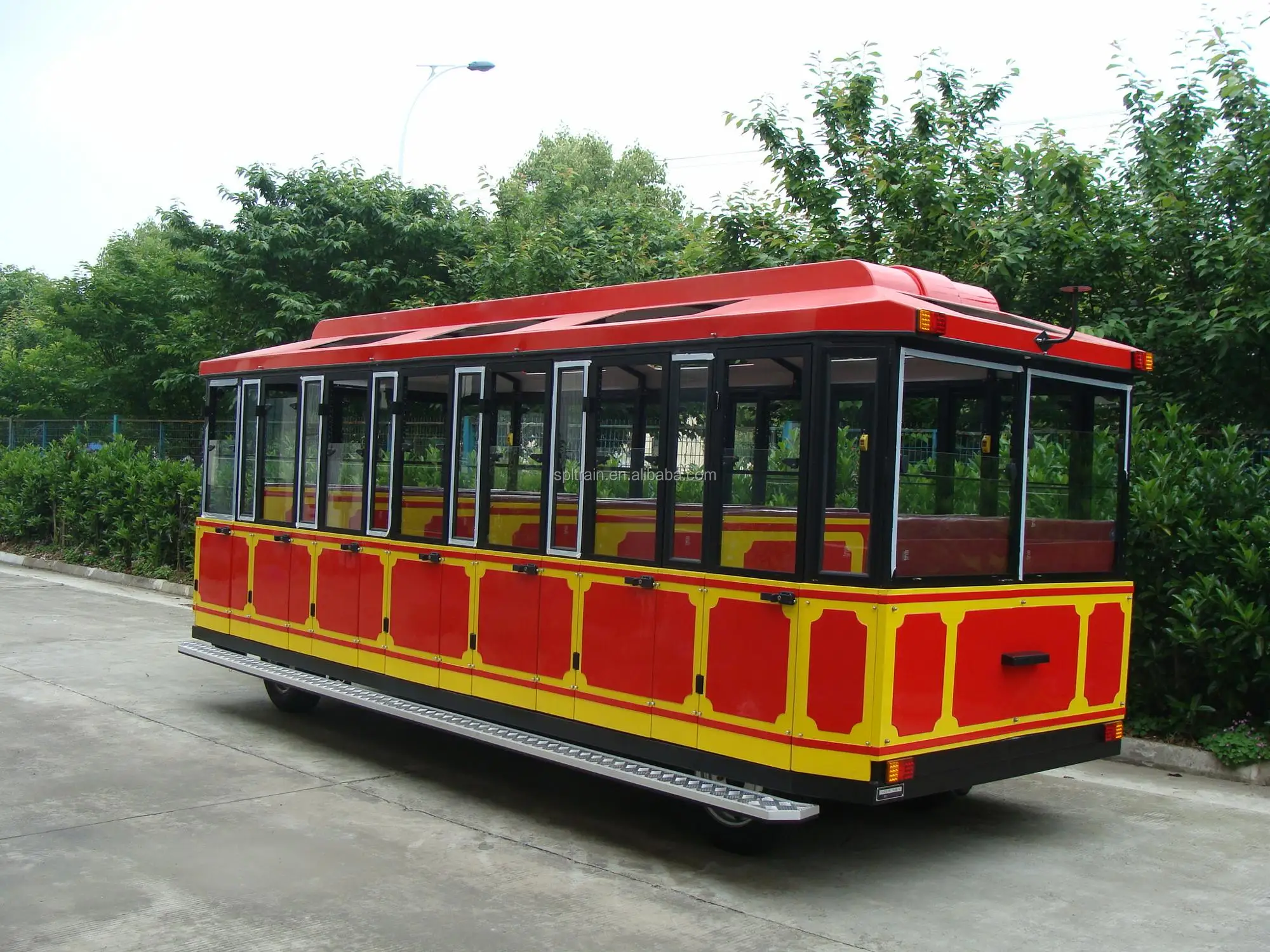

Product pictures
We are a joint venture by China and Austria.
We do believe "better quality, better service, more trust ".
We hope to build long-term business relationship with you in the future.
Wanna know more about us? Click on www.spltrain.com
Certifications
Company profile

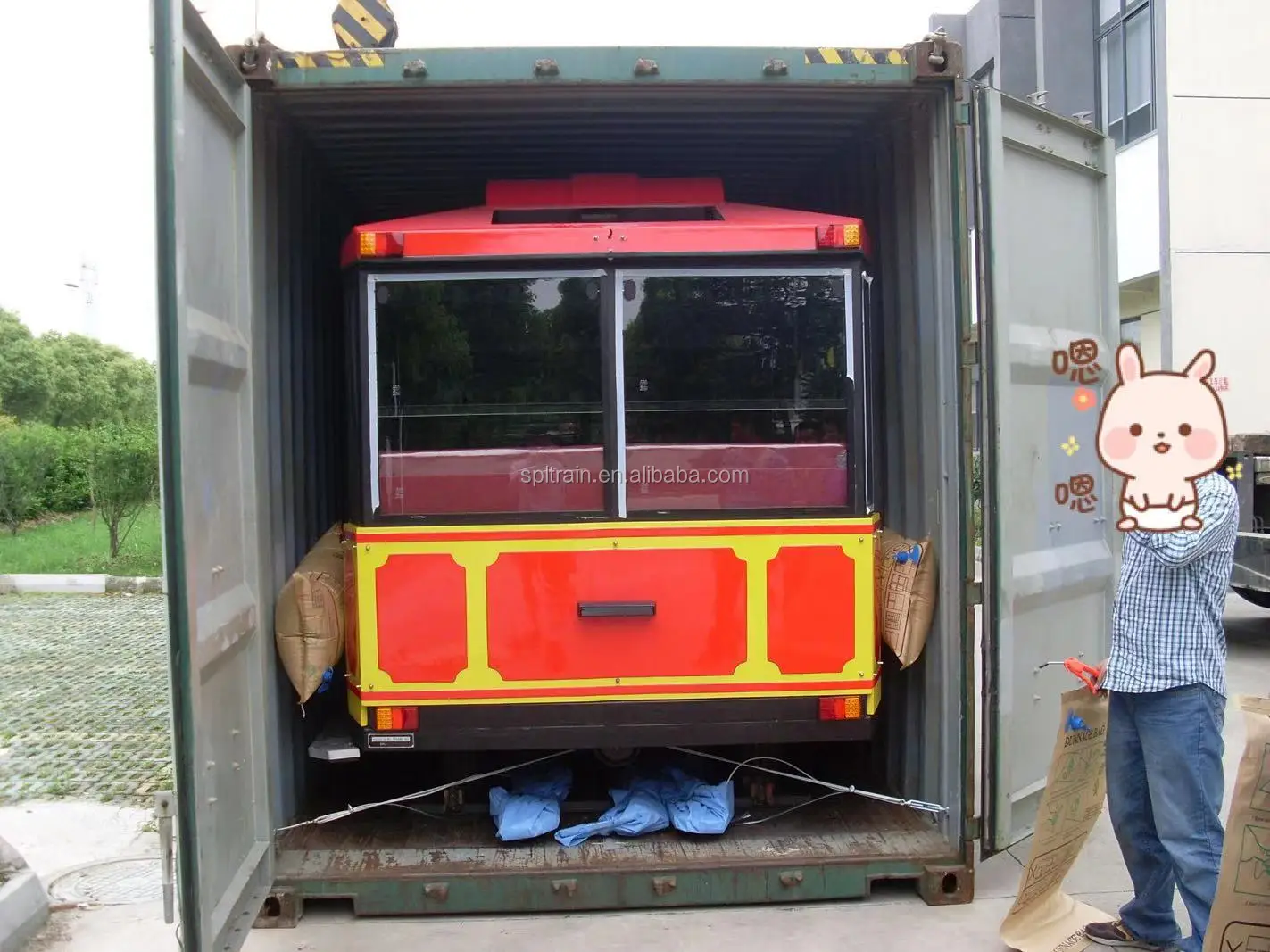

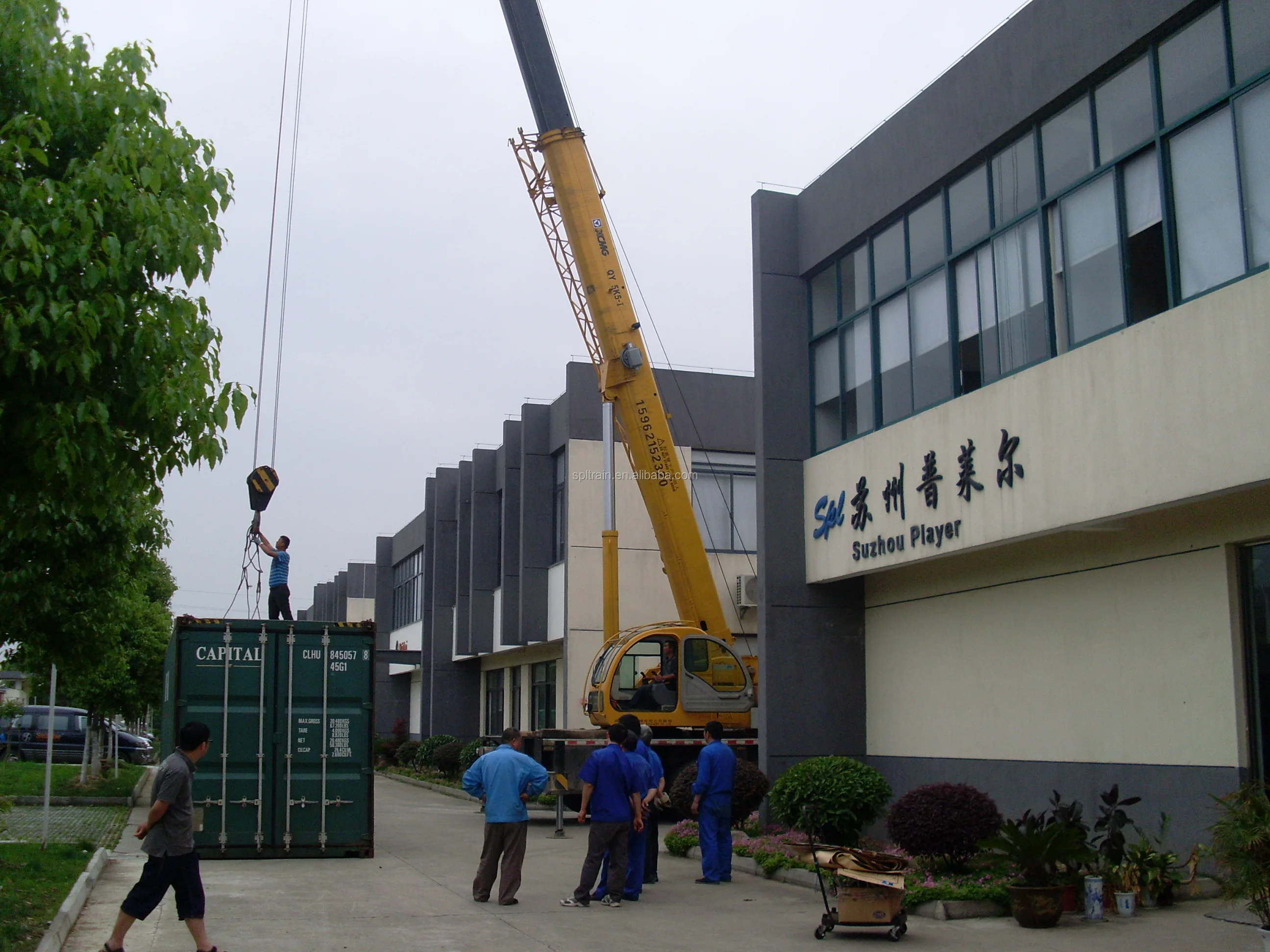

Packing & Loading
