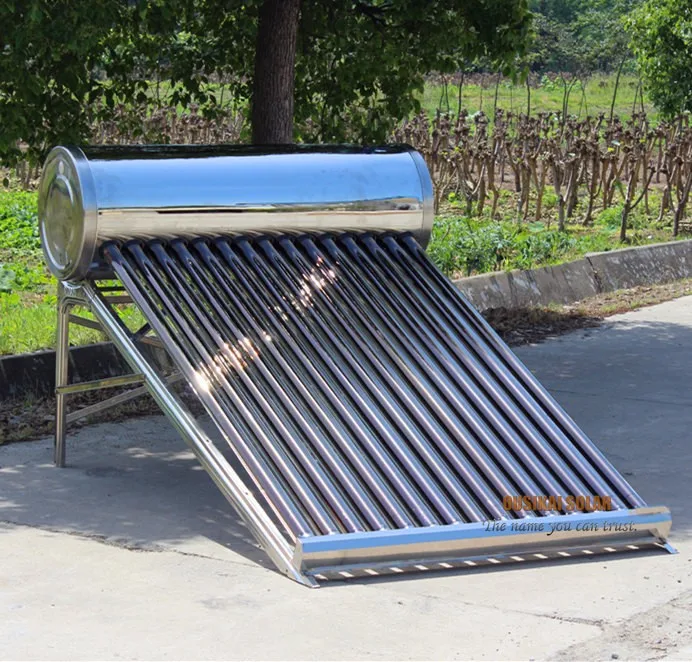

1. OUSIKAI Solar water heater pics
1.Install on slope/flat roof easy.
2.10tubes-36tube available.
3.High Quality Stainless Steel inner tank.
4.Color painting for the shell.
5.The one side arrangement of inlet and outlet and wires make the piping wokrs conveniently.
6.Unique tank design which reduce inner tank leackage risk greatly.
9.The electric element as heating backup ensure the hot water whole day
Model | Capacity(Liter) | Tube specification | Tube quantity | Packing size(CBM) | Loading quantity(Sets) | |
20'GP | 40'HQ | |||||
OS-NP58-12 | 100 | Φ58mm*1800mm | 12 | 0.432 | 66 | 160 |
OS-NP58-15 | 135 | Φ58mm*1800mm | 15 | 0.540 | 53 | 128 |
OS-NP58-20 | 165 | Φ58mm*1800mm | 20 | 0.720 | 40 | 96 |
OS-NP58-24 | 200 | Φ58mm*1800mm | 24 | 0.864 | 32 | 80 |
OS-NP58-30 | 250 | Φ58mm*1800mm | 30 | 1.080 | 26 | 64 |
OS-NP58-36 | 300 | Φ58mm*1800mm | 36 | 1.296 | 21 | 53 |
Material:
1.Inner tank: 0.31-0.5mm thickness SUS304 stainless steel
2. Vacuum tube: QB-AL-N/AL-47-1500/58-1800
3. Outer tank: 0.31-0.4mm thickness Painted steel or Stainless steel.
4. Frame: 1.2mm thickness stainless steel/ 1.5mm thickness galvanized steel.
5. The material of insulation: 50mm-55mm thcikness high density polyurethane foam
6.Tube coating: AL-N-AL-CU-SS (Golden Purple)
7. The reflector: aluminum alloy plate/stainless steel (optional)
8.Outer tank diameter:460mm/480mm for NP- 58 system.

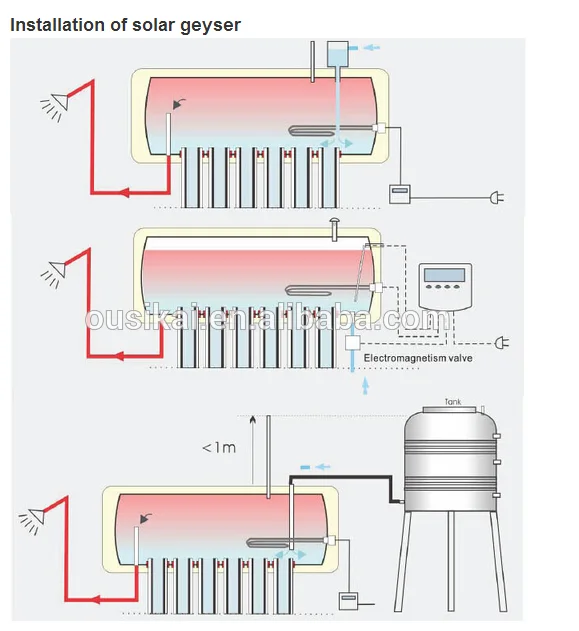

3. Installation of solar water heater
4. Our Service
1. Sample can be offered with sample charge and courier fee by buyer's side.
2. We have full stock,and can deliver within short time.Many styles for you to choose.
3. OEM and ODM order are accepted, Any kind of logo printing or design are available.
4. Good Quality + Factory Price + Quick Response + Reliable Service, is what we are trying best to offer you
5. All of our products are produced by our professional workman and we have our high-work-effect foreign trade team, you can totally believe our service.
6. We have rich experience of design, manufacture and sell solar water heater, we cherish every order from our honor.
After you choose
1. We will count cheapest shipping cost and make invoice to you at once.
2. Check quality again, then send out to you at 1-2 working day after your payment,
3. Email you the tracking no, and help to chase the parcels until it arrive you.
After-sale service
1. We are very glad that customer give us some suggestion for price and products.
2. If any question,please contact with us freely by E-mail or Telephone.
5. Certification
6. Company information
Company Overview | Ousikai Industrial And Trading Co.,Ltd. |
Owns a factory covering an area of 9,000 square meters | |
Certificates | CE/TUV rheinland |
Capability | Total annual sales volume reaches above US$4,500,000.00 |
Able to source across multiple industries | |
OEM&ODM service for more than 20 brands | |
Techniques | Professional in most kinds of solar water heaters and accessories |
Service | Strongly support our clients in sourcing, sample development, merchandising follow up, shipping handling, etc. |
