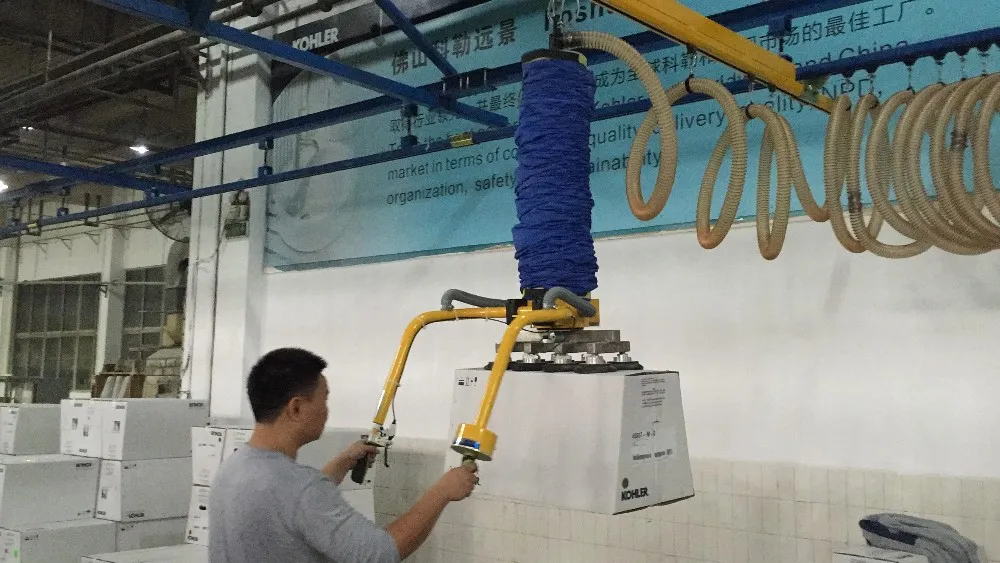

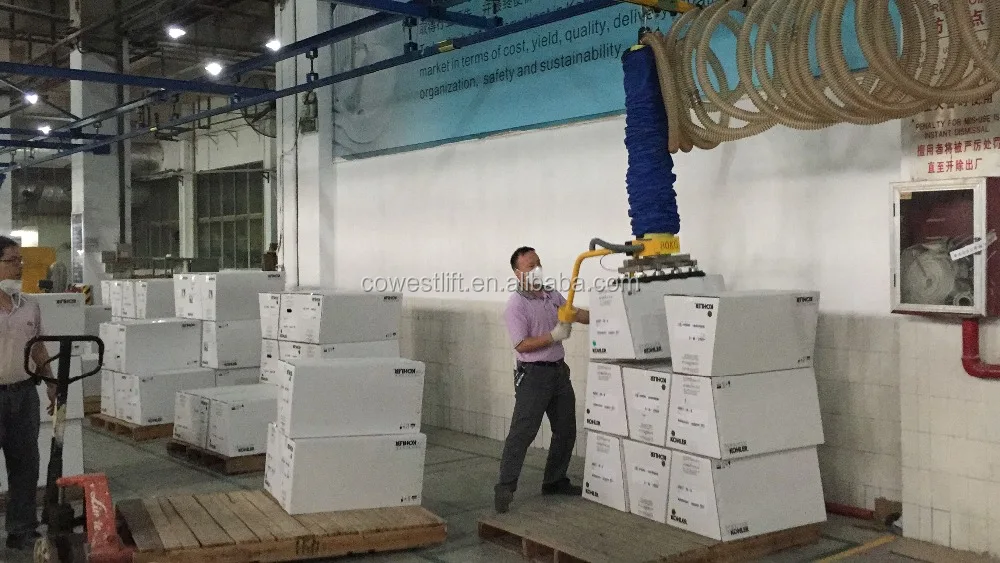

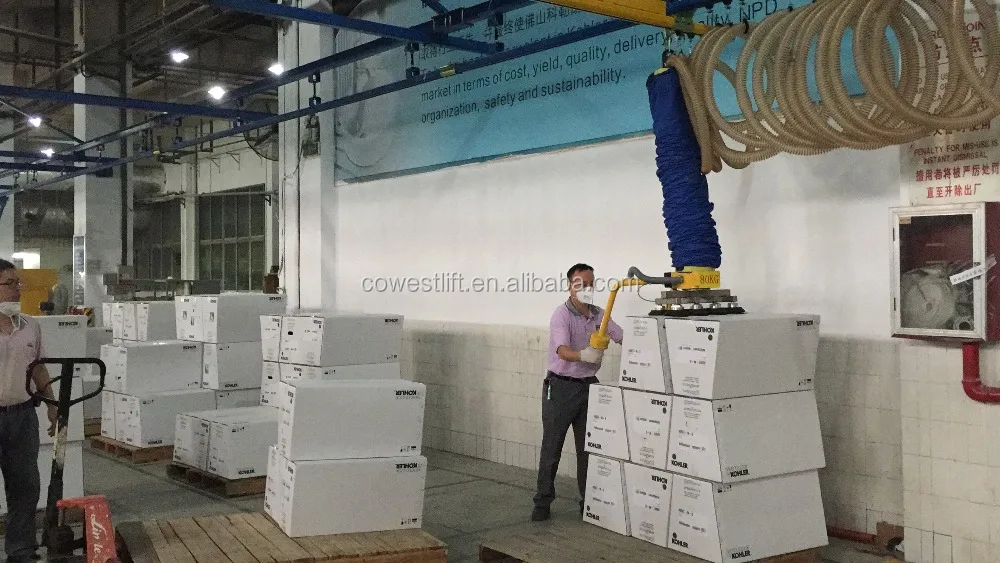

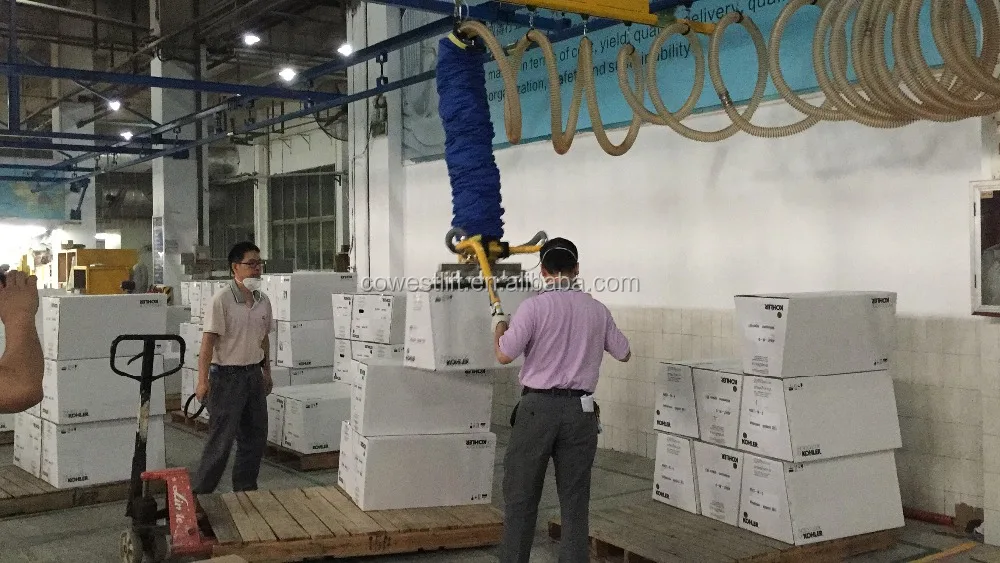

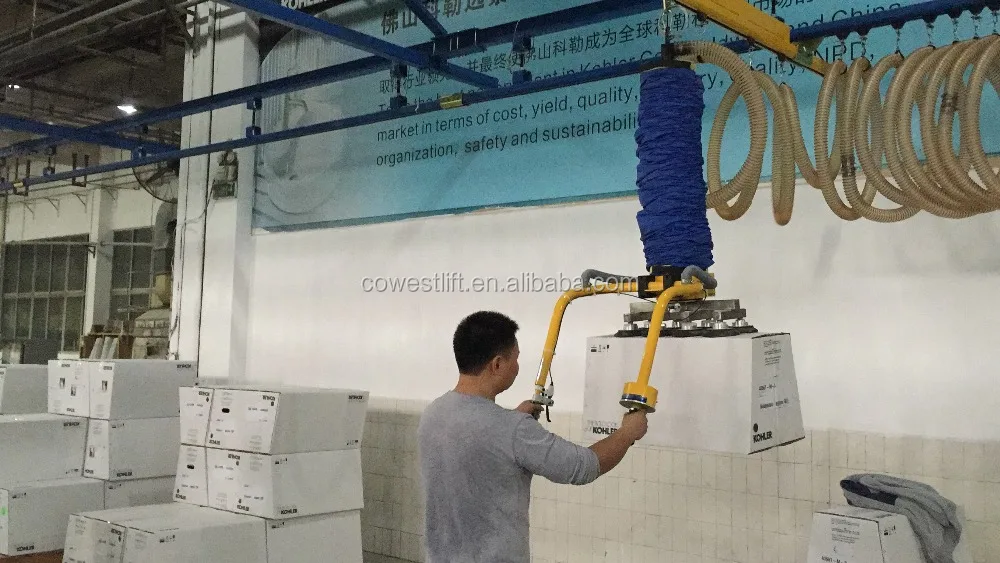

Vacuum lifter for carton box, vacuum lifting device

 Maximum loading 85kg.

Power: 380V, 50Hz, 4.0Kw

lifting height:1700mm

control method: rotating control with elbowed extension handle

Suction cups: round bellow cups, diamter 125mm, 8 pieces

suction head dimensions: 600*300mm

Main components:

1.      Vacuum blower: Siemens vacuum blower, model GS3.0, power supply 380V, 3.0KW, maximum vacuum flow 150cbm/h, maximum vacuum pressure -55kpa

2.      Lifting tube: diameter 180mm, tube length 2550mm, maximum lifting height 1650mm, maximum loading 80kg for semi-porous, 90kg for dense.

3.      six of round bellow suction pads for carton box ,pads diameter 125mm, the yoke length 800mm,width 400mm, mounted on the control housing by flange

4.      A ball bearing integrated upper rotation jointer with single way valve to prevent the goods falling down in case of power lost.

5.      Two-hands control unit with a rotation handle for up and down, the brake handle for release, the handle were extended for higher stack

6.      A plastic vacuum filter mounted on the column to keep the air clean.

7.      A vacuum regulator mounted on the vacuum blower which protect the blower in case overheat, the preset vacuum pressure is -45kpa

8.      8M vacuum feeding pipe of Diameter 52mm for vacuum connection

9.      A electric control box mounted on the ground( column installation available for option)

The lifter was designed for transportation or handling the materials at: 90kg for dense materials, 80kg for semi-porous materials
