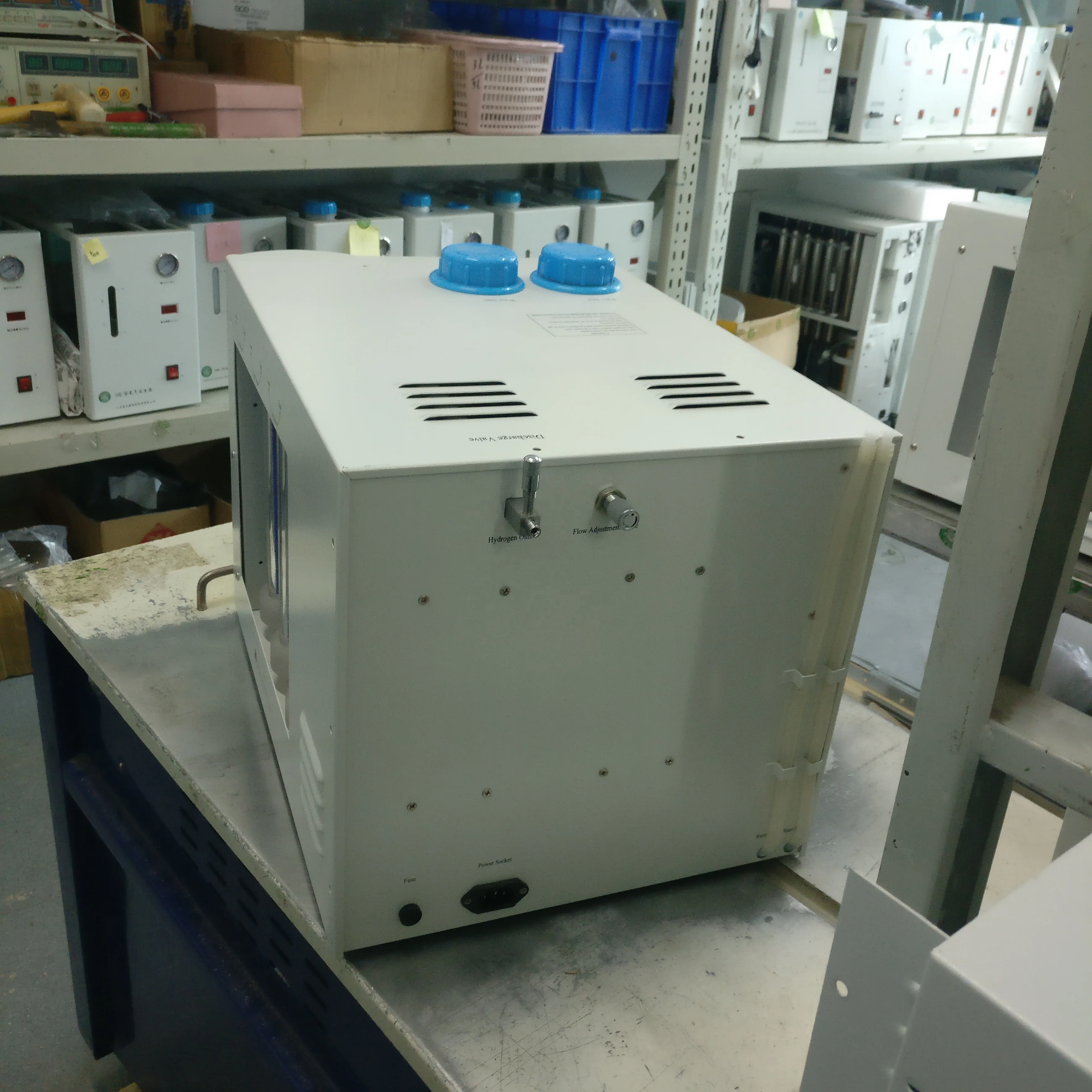

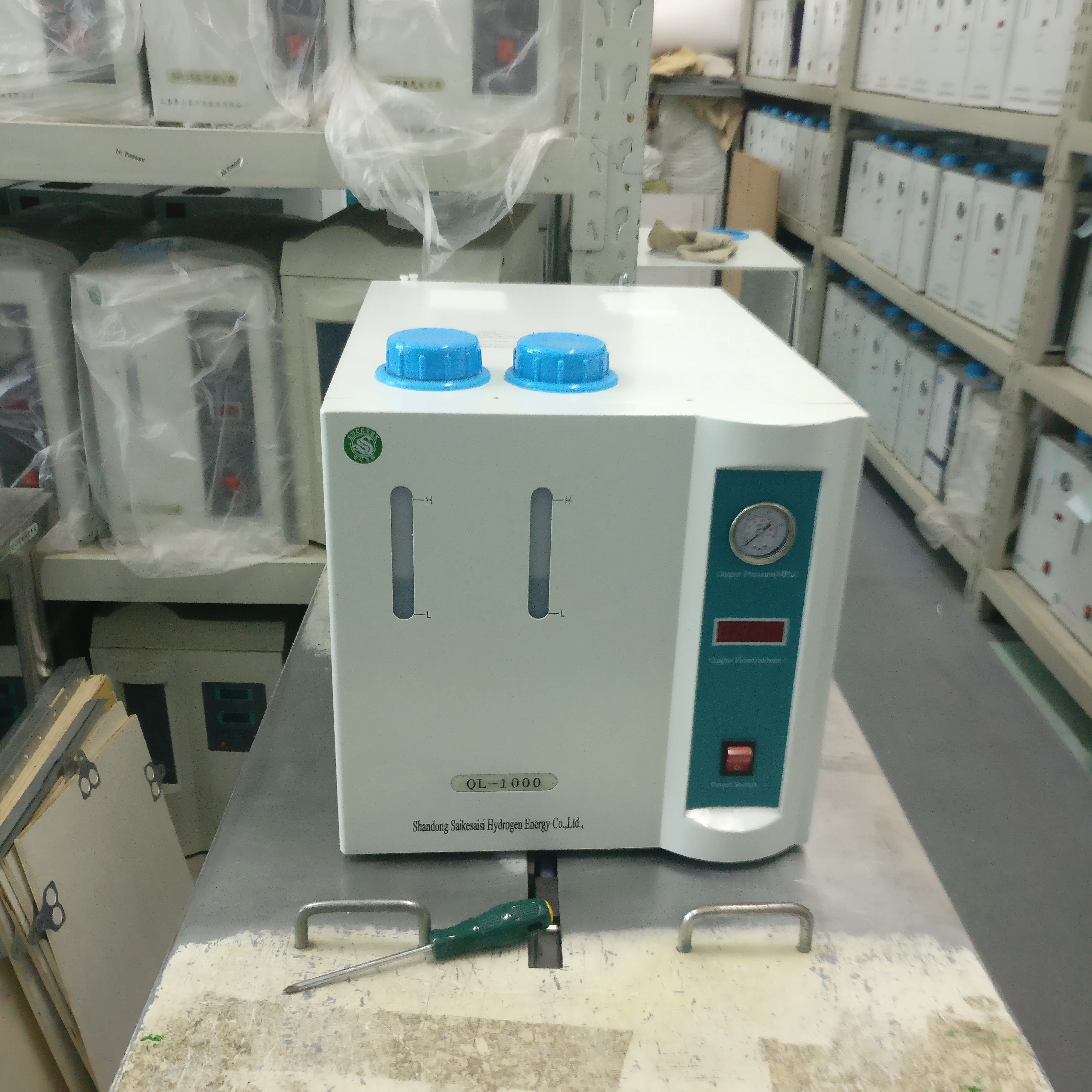

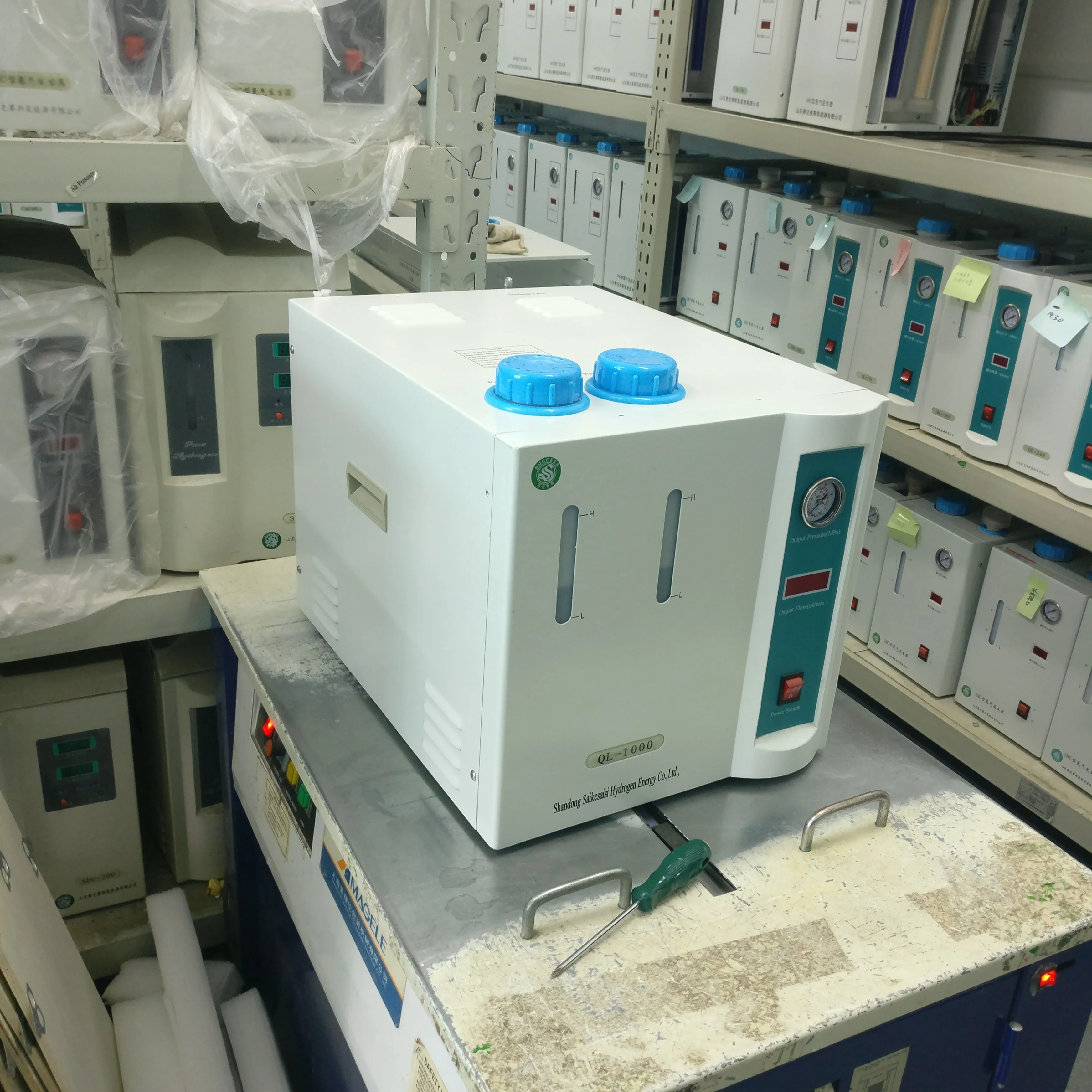

QL 1000B high pressure lab scale hydrogen generator

Product Overview

Description

QL series Hydrogen generator device produce up to 99.9995% purity Hydrogen gas by utilizing SPE/PEM technology to electrolyze pure water (no adding alkali).




Specifications:

1. 0~1L/min flow hydrogen generator

2. H2 purity :99.999%

3. PEM technology .

4. CE certification. Own patent right.

Technical Parameter:

Type	QL-1000
Output Volume (L/min)	0~1
Output Pressure (MPa)	0.02~0.4 /0.02~0.7
Pluctuation Rate of Output Pressure(%)	<0.2
H2 purity (%)	>99.9995
Second Protective Pressure (MPa)	0.76
Power Voltage (V)	220±15%   110±15%    50~60Hz
Input power (W)	<500
Dimension (LxWxH) mm	485x230x380
Gross Weight (KG)	< 25



Structural characteristics of the Products:

• Distance between anode and cathode is close to zero, and highly active SPE catalytic electrodes are used.


• Plural-electrode and multiunit electrolysis cell structure with excellent chemical technological process properties of the mass and heat transfer.


• Best choice of materials for multi-electrode and pluralist electrolysis cell with excellent properties of electrochemistry, anti-corrosion and bearing deactivation.

Functions and Characteristics of the Products:

• Electrolysis of pure water ( no adding alkali) to produce hydrogen with no corrosion and pollution, and the purity of hydrogen is extremely high.


• Voltage of unit cell is low, and electric resistance in the electrolysis cell is little, giving out no heat, and cycle of changing desiccants is long, producing highly pure hydrogen.


• With stable pressure and output, Hydrogen is controlled according to the requirements, and automatic control technology is perfect and reliable.


• Power consumption is less, and the electrolysis is efficient.

Applied Area:

• The small-sized products (QL-150/300/500/1000) are ideal equipment for gas chromatographs and optical fiber sintering. The products can absolutely take the place of steel cylinders of hydrogen, and can be used safely and conveniently.


• Used for fuel cell.


• Supply hydrogen for metal hydride.


• Others application: reduction protection ,purification of materials , Metal welding and smelting, fire fiber optic, surface protection , Used for cars or truck.


• storing power for wind power, solar power generator ,Etc
