Flexible RGB LED Matrix 16X16 APA102C APA102

Product Overview

Description

Flexible RGB LED Matrix 16X16 APA102C/APA102

Specification for the APA102/APA102C LED matrix

1

2

Pixel pitch 10mm=the spacing between each LED

Length:160mm

Width:160mm

Cable length:100mm

4pin JST SM female and male connector with 20# cable:black(gnd)/green(clock)/yellow(yellow)/red(+5v)

Extra red and black cables for powering,also 100mm length

All the panels with our brand (SOYA LED)on the back PCB

16x16 and 8x32 APA102/APA102C LED matrix also can be done

3

There is no MOQ,if you want just one piece,that's okay,but not economy because of the shipping cost,we suggest you buy from our distributor in United States( //www.adafruit.com/products/2736)

If you really want to buy from us,no problem,as long as you accept the price(incl.shipping cost to your place).

We accept T/T,western union for larger amount,if for small amount,we have AliExpress on-line store,you can pay there(there will be an extra 5% handing charge).

We don't accept PayPal.

Shipping:we usually use DHL or Fedex door to door express,MOSTLY 4-6 days can reach to you if it is not a holiday.

Description for the APA102/APA102C LED matrix

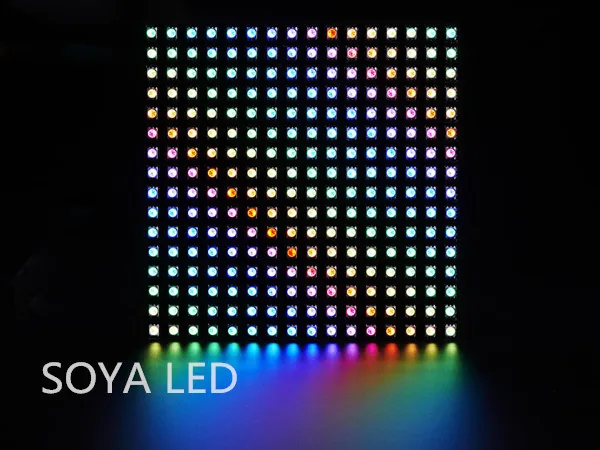

For advanced APA102C LED fans, we now have a bendable, Flexible 16x16 APA102C LED RGB Matrix! Control all 256 ultra-bright LEDs using only two microcontroller pins, set each LED as you wish to scroll messages or draw little images. This matrix has a thick flexible PCB backing that can be gently bent and curved around surfaces.

These are the same integrated LEDs that are used in our new fancy APA102C LED strips. This tiny 5050 (5mm x 5mm) SMD LED is the most compact way possible to integrate multiple bright LEDs to a design. Rather than WS2812B, this matrix uses APA102C LEDs, which use a 2-wire protocol that is less timing-specific and has high-frequency PWM for smoother color blending.

Don't forget, with 256 LEDs, you could use over 15A of current if you turn on all the LEDs on to white (which we really do not recommend because we don't think the flex PCB can handle that much current). Try to keep the current draw at under 5A, you can use our 5V 4A or 5V 10A power supply. For portable use, if you are drawing less than 3A, try out this 5V@3A UBEC.

Like WS2812B, APA102C LEDs are 5050-sized LEDs with an embedded microcontroller inside the LED. You can set the color/brightness of each LED to 24-bit color (8 bits each red green and blue). Each LED acts like a shift register, reading incoming color data on the input pins, and then shifting the previous color data out on the output pin. By sending a long string of data, you can control an infinite number of LEDs. The PWM is built into each LED-chip so once you set the color you can stop talking to the disk and it will continue to PWM all the LEDs for you.

Please note: Flexible PCBs are not designed for repeated flexing! While we think this product may work in wearables or other situations where the matrix is bent around, we do not offer any guarantees or refunds if you end up cracking the LEDs or traces! This is for advanced users only, who already know how to use APA102C and are comfortable with the high current requirements and protecting the matrix from damage. There are no returns, refunds or replacements for damaged product.

Drawing
