Long Operating Life Widely Used Rubber Conveyor Belt Price with Full Service

Product Overview

Description

Long Operating Life Widely Used Rubber Conveyor Belt Price with Full Service

1.Use

Used in coal, mining, port, electric power, metallurgy, chemical industry, food, building material industry, etc, on the strength of a long load type transport line.

2.Specification:

EP630/4-1200-6+2 AS M
EP: Basic strength material is EP fabric
630/4: Tensile strength in warp is 630N/mm,with 4 plies EP fabric
1200: belt width is 1200mm
6+2: Thickness of top and bottom cover rubber 6mm,2mm
AS M: Cover rubber grade(According to AS-M)



3.Types:

Belt Type	Fabric Type	Single Fabric Strength (N/mm)	Single Fabric Thickness (mm)	Cover Thickness(mm)		Ply	Width Range (mm)	Length(m)/Roll
				Top Rubber	Bottom Rubber
CC Belt	CC--56	56	1.1	3-16	0-10	3-12	300-7400	20-1000
NN Belt	NN100	100	0.7	3-16	0-10	2-10	300-7400	20-1000
	NN150	150	0.75
	NN200	200	0.9
	NN250	250	1.15
	NN300	300	1.25
	NN400	400	1.5
EP Belt	EP100	100	0.75	3-16	0-10	2-8	300-7400	20-1000
	EP150	150	0.85
	EP200	200	1
	EP250	250	1.2
	EP300	300	1.35
	EP350	350	1.5
	EP400	400	1.65

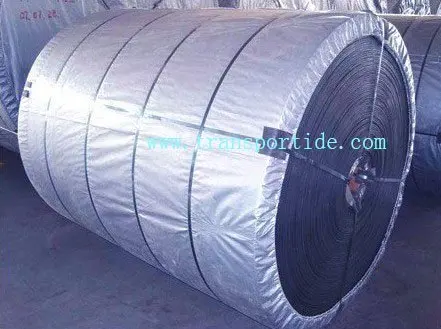

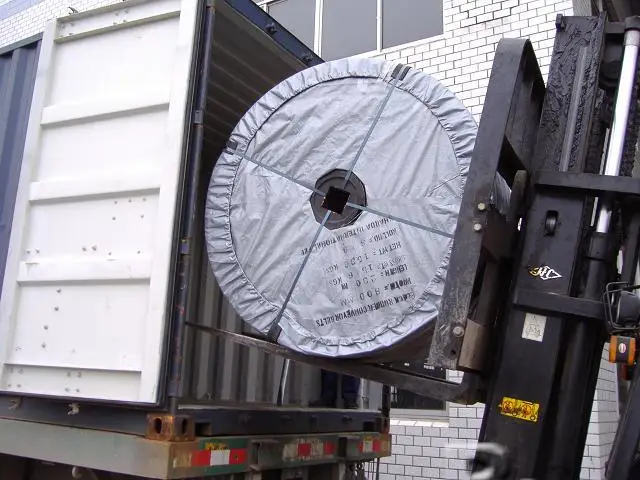

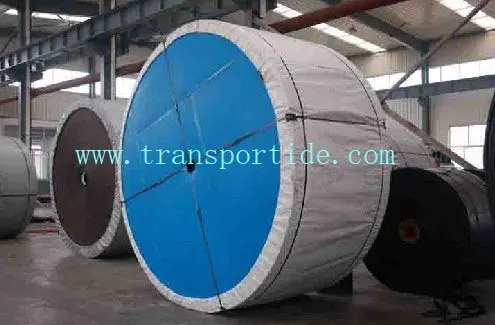

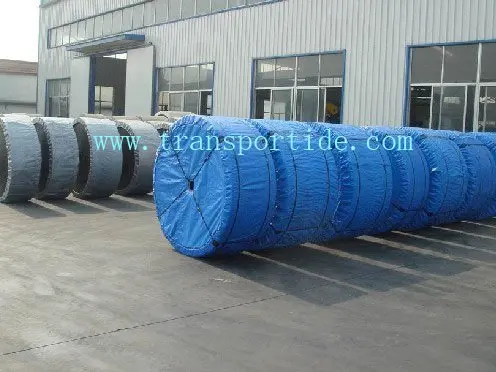

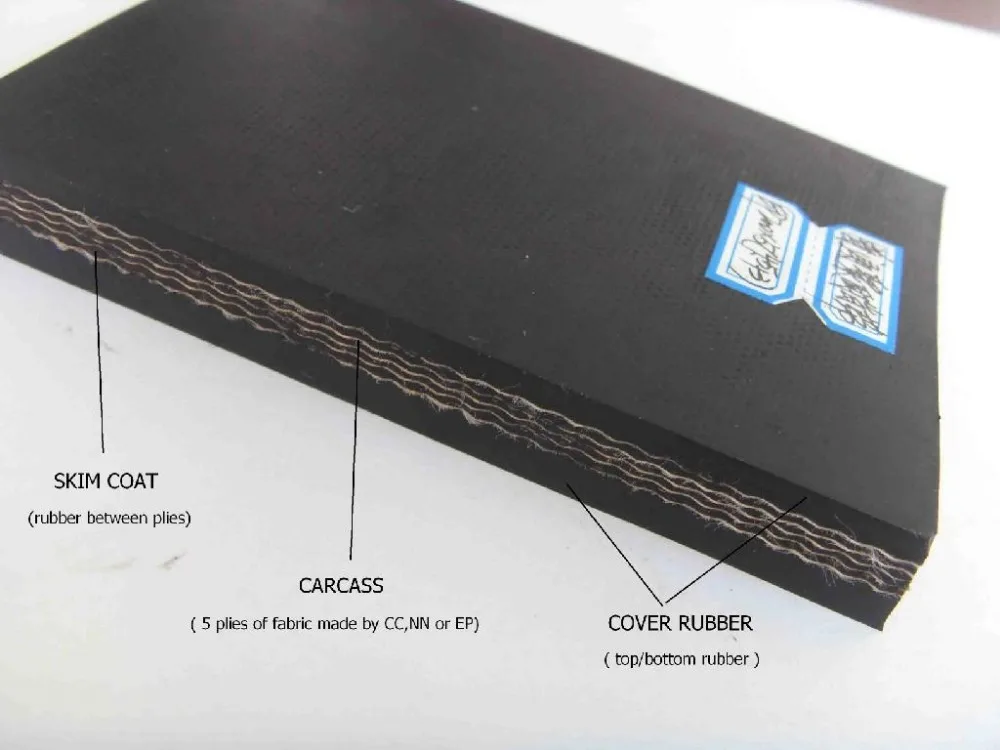

4.Product photo:
