OLED type 128x32 Graphic red transparent oled display LCD module SPI /I2C SSD1311
- Category: >>>
- Supplier: Shenzhen Saef Technology Ltd.
Share on (60382916334):
Product Overview
Description

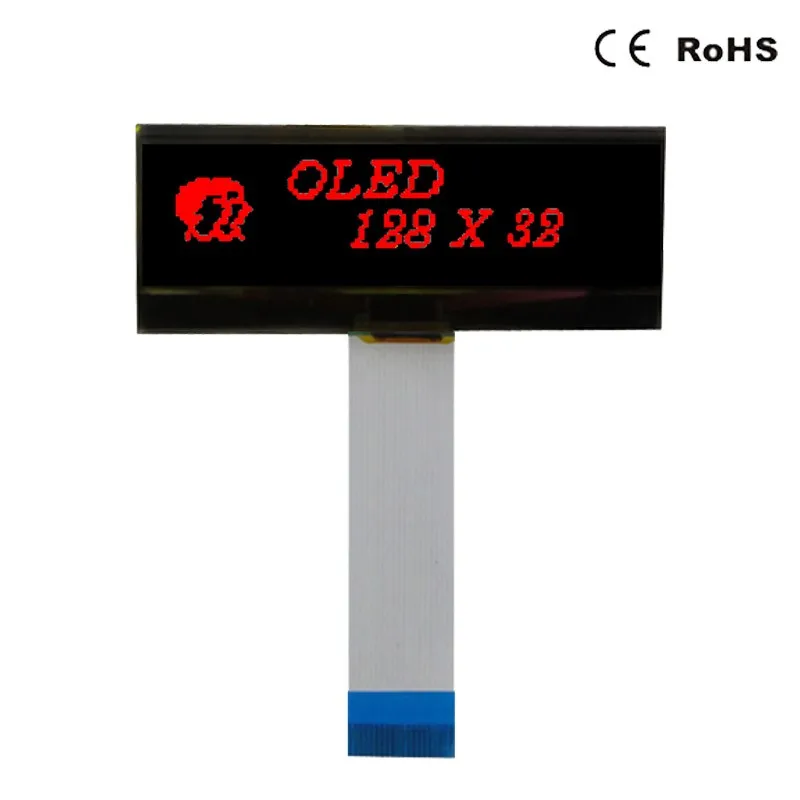

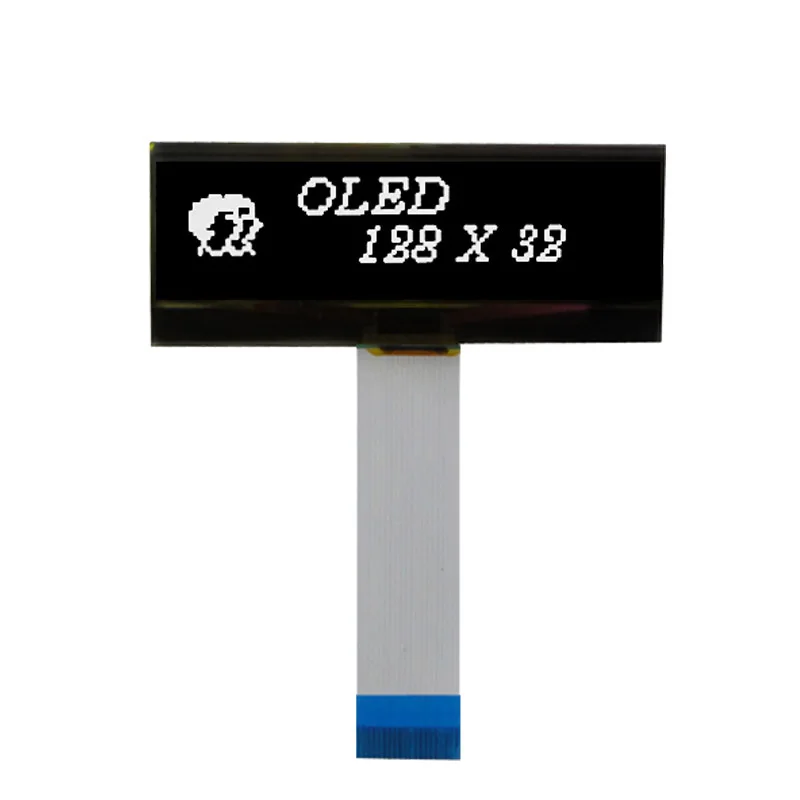

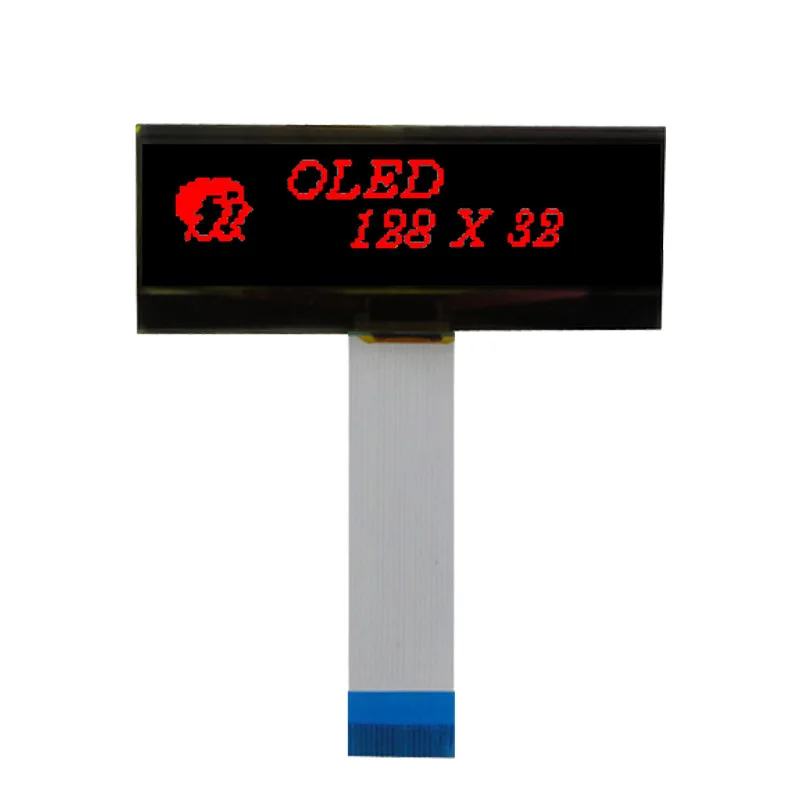

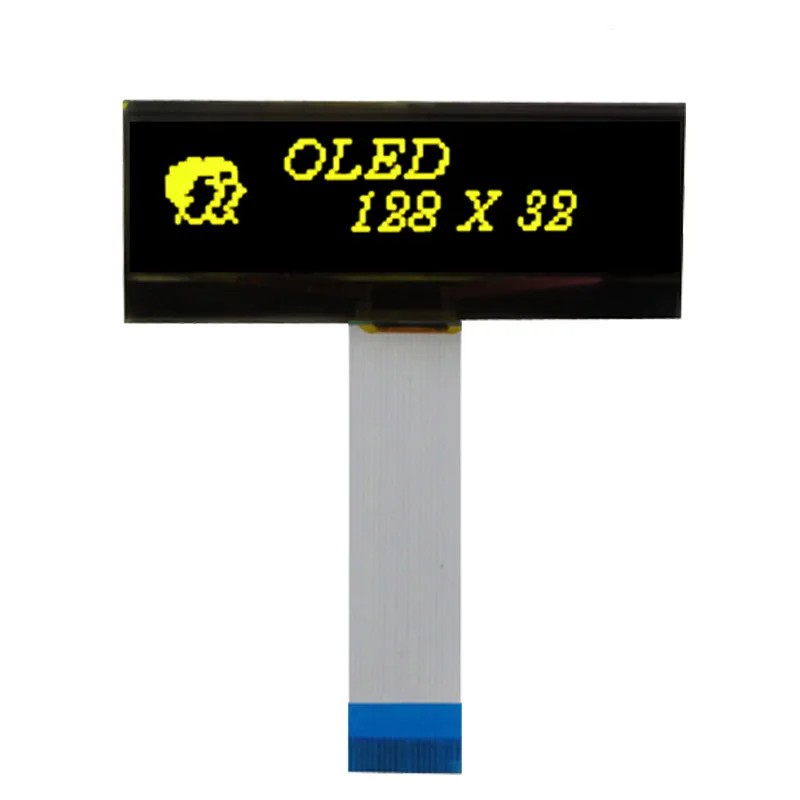

OLED type 128x32 Graphic red transparent oled display LCD module SPI /I2C SSD1311
1. Display Type: | 128*32 graphic oled LCD |
2. Interface Type : | 6800/8080 /SPI /I2C |
3. Outline Dimension : | 55.6(W)×21.8(H)×6max(D) |
4 Display Format : | 128(W)×32(H) Dots |
5.Viewing Area : | 52.54(W)mm×14.62(H)mm |
6.Dot size : | 0.373(W)mm×0.373(H)mm |
7. Dot Pitch : | 0.395(W)mm×0.395(H)mm |
8. Duty Ratio : | 1/32 Duty |
9. Operating voltage: | +2.7V~3.5V |
10. Viewing Angle: | Free |
11. Operating Temp: | -40°C~+85°C |
12. Storage Temp: | -40°C~+85°C |
1. ISO9001 certificated, Factory Direct Supplied
2.RoHS Compliant, Lead Free, Reach Compliant
3.Competitive Price and Short Lead-time
4.Professional Team with Rich Experiences in Design/Mfg/Quality Control
5.Small MOQ Support & Fast Response to Customers
6.Long Product Life Time
Shenzhen SAEF Technology Ltd. is a manufacturer of LCD display modules and touch panel devices with well-equipped testing facilities and strong technical force.
With an experienced and professional team, we have exported our products to many countries and regions all over the world. Our products enjoy a good reputation among our customers.
We welcome customers, business associations and friends from all parts of the world to contact us and seek cooperation for mutual benefits.
