Product Overview

Description

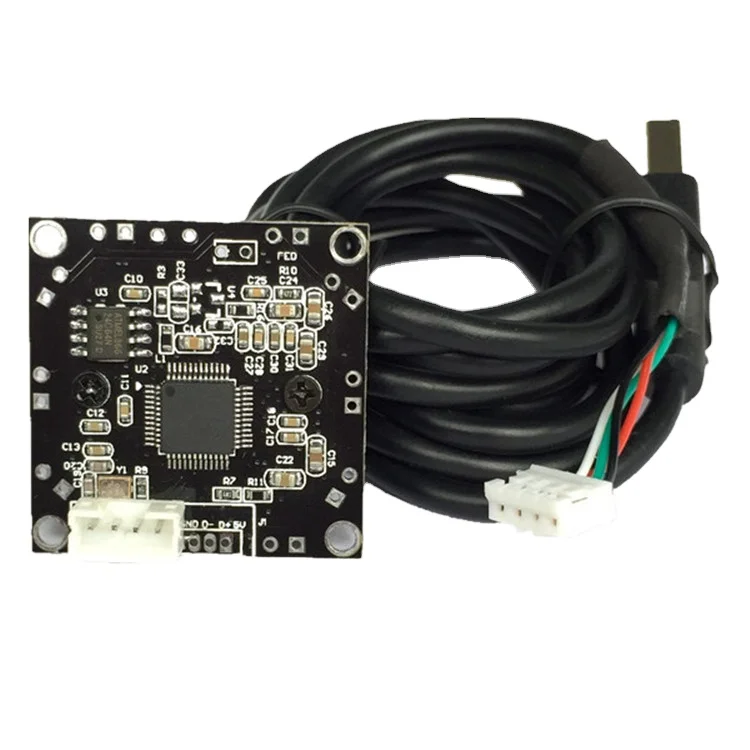

2 Megapixel HD USB Camera Board 1/2.7'' OV2710 USB Web Camera Module 1920x1080 3.6mm Lens Embedded Security Surveillance Systems



This USB camera design for Intelligent machines,special Kiosk , VTM, CRS, ATM or other Intelligent machine, mini shell,  easy for install in all of models ATM, USB cable length optional, Provide driver for shooting and recording under MS Windows XP system, USB connector can be connected with PC directly, megapixel Sony CMOS chipset, metal casing, support long time non-stop working, available with wide angle board lens or lens (more than 130 degrees) to get wide angle view.



Order Symbol:



• HDV-USB200MP32-L2.8     1080P USB Camera with 2.8mm Wide Angle Lens


• HDV-USB200MP32-L3.6     1080P USB Camera with 3.6mm Lens


• HDV-USB200MP32-P3.7     1080P USB Camera with 3.7mm Lens


• HDV-USB200MP32-L2.1     1080P USB Camera with 2.1mm Wide Angle Lens


• HDV-USB200MP32-L2.5     1080P USB Camera with 2.5mm Wide Angle Lens


• HDV-USB200MP32-L4.2     1080P USB Camera with 4.2mm Lens


• HDV-USB200MP32-L6        1080P USB Camera with 6mm Lens


• HDV-USB200MP32-L8        1080P USB Camera with 8mm Lens


• HDV-USB200MP32-L12      1080P USB Camera with 12mm Lens


• HDV-USB200MP32-L16      1080P USB Camera with 16mm Lens




Features:

• Image sensor 1/2.7" OV2710 CMOS,  0.01Lux, Full HD1080P image


• Audio Optional


• Free Driver USB 2.0 (UVC)


• USB2.0 HIGH SPEED, compression USB1.1


• Default setting (30fps@1920*1080)


• Manual focus


• View angle: 15-170 degree optional


• Compression YUY2 & MJPEG


• Support  Windows 2000; Windows XP; Windows VISTA; Windows 7 and later;


• Linux(In 2.6.18 above the kernel version);Mac ps3; Android system

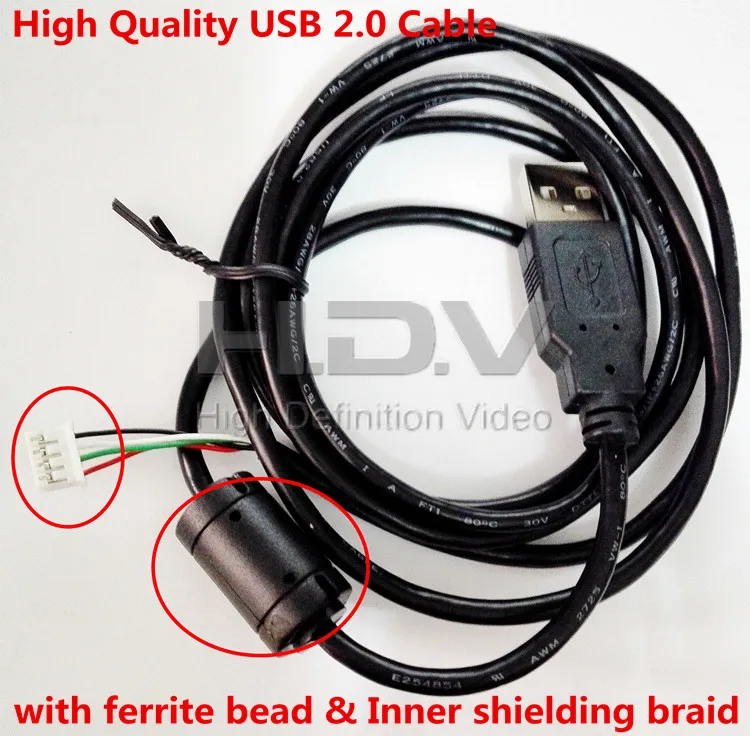

• Standard 1.8m cable, Can be connected through 10 meters USB cable


• Dimension:32*32mm


• USB Power: 5V±10%DC,50mA


• Used:intelligent machine,especially Banks'ATM


• Can be customized by your requirements

USB Series	Model	HDV-USB200MP32-L2.8   1080P USB Camera with 2.8mm Wide Angle Lens HDV-USB200MP32-P3.7   1080P USB Camera with 3.7mm Lens HDV-USB200MP32-L2.1   1080P USB Camera with 2.1mm Wide Angle Lens HDV-USB200MP32-L2.5   1080P USB Camera with 2.5mm Wide Angle Lens HDV-USB200MP32-L4.2     1080P USB Camera with 4.2mm Lens HDV-USB200MP32-L6        1080P USB Camera with 6mm Lens HDV-USB200MP32-L8        1080P USB Camera with 8mm Lens HDV-USB200MP32-L12      1080P USB Camera with 12mm Lens HDV-USB200MP32-L16      1080P USB Camera with 16mm Lens
	Name	USB Mini Camera
Camera	Image sensor	1/2.7" OV2710 CMOS Sensor
	Resolution	1080P (1920*1080 pixels) , 30fps no smear
	Min.Illumination	0.01Lux
	Lens Standard	3.7mm lens F1.2
	Effective Pixels	1920*1080(1080P)1280*720  pixels(720P); 1024×768  pixels(XGA);  800×600pixels(SVGA); 640×480  pixels(VGA); 320×240  pixels(QVGA);
	Syetem	Windows 2000; Windows XP; Windows VISTA; Windows 7 and later;Linux(In 2.6.18 above the kernel version);Mac ps3; Android System
	S/N ratio	More then 48 dB (AGC Off)
	Exposure	Auto / Manual(Shutter Speed & AGC Control)
	White Balance	Auto / Fixed / Indoor / Initial / Outdoor
	Gamma Characteristic	Auto r>=0.45
	Manual Function	White Balance, Brightness,Contrast,Hue,Saturation,Gain
	Miscellaneous	Mirror / Flip / Back Light / Flickerless
	Cable Length:	1.8m; 2-10m for optional purchase-USD0.5/m
Industrial Standard	Power source	DC 5V (3.6-5V) / 80mA (USB Power)
	Operating current	85mA
	Operating Temperature	-20 °C - 60 °C (14 °F-140 °F),Humidity 90% or less (non-condensing)
	Interface Type	USB format(Complies with USB 2.0)
	Measurement (mm)	32*32mm
	Weight (Approx.g)	110g
Accessories	Free	Brackets *1,Screw *2,Cable *1,Manul book *1

Packing List:

1pc cctv camera

1set screws

1pc manual

1pc color box



Single Size: 95*65*55mm(LXWXH)

Shipping information:

1. We ship most packages within 48 hours by DHL, UPS ,TNT or EMS(3-7 Day). This allows them to be tracked and insured for loss or damage. If you would like us to ship by a faster method, you can select this option when you finish your order. DHL, UPS ,TNT or EMS don't ship or deliver on weekends or holidays.

2.Transportation by sea be the mode ( of transportation ) we usually adopt for our export. And COSCO, SITC, PIL, SINOKOR and other major shipping companies established a good and close relations of cooperation.
