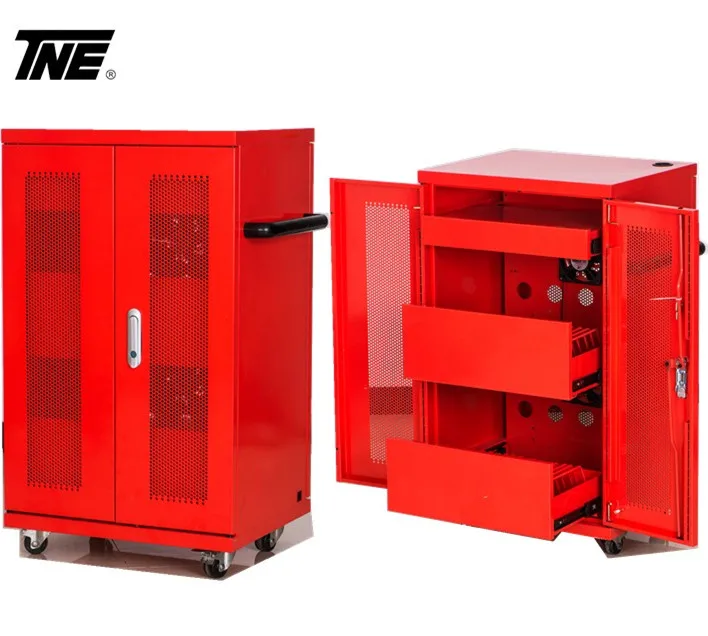

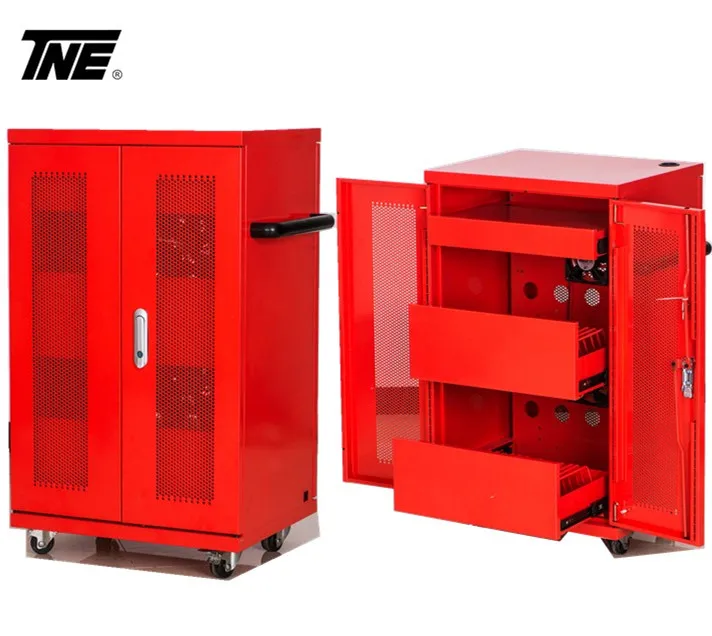

Professional 19inch 40 port charging trolley Iaptop charging cabinet SPCC charging cart

Product Overview

Description

Professional 19inch 40 port charging trolley Iaptop charging cabinet SPCC charging cart



 Comply with ANSI/EIA RS-310-D,IEC297-2,DIN41491;PART1, DIN41494;PART7,GB/T3047.2-92

 and ETSI standard



Features:



This Ipad charging cabinet is customized design to secure, protect and charge the

40×10.1" and 1×15.6" Laptop.

(we design for customized requirements)

Main feature

19" installation rail create capacity for you :

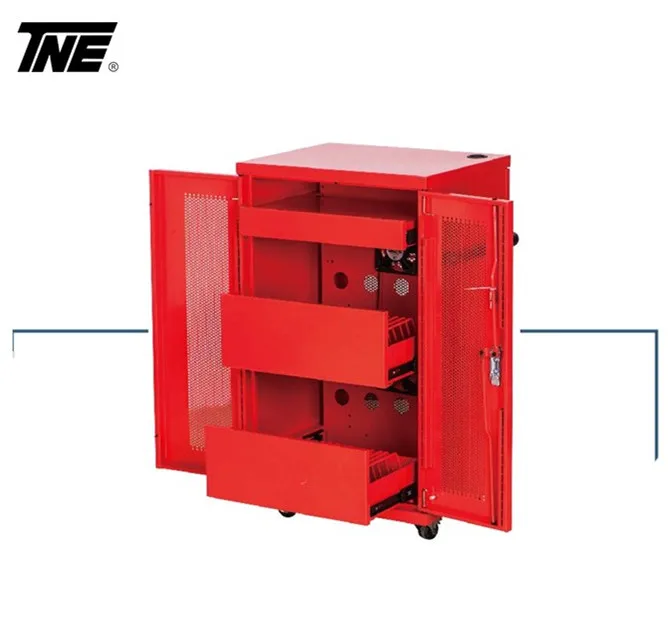

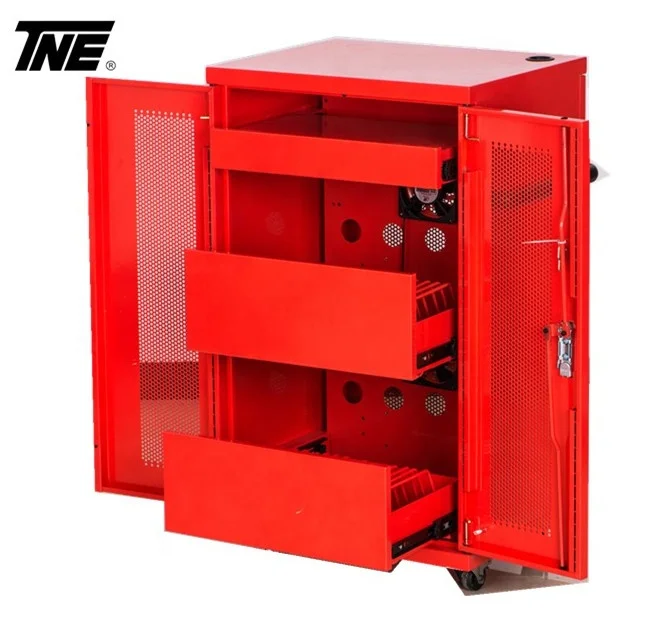

• 20-unit capacity with 25 mm wide slots and sliding drawer for operation—ideal

  for tablets, Chromebooks and Ultrabooks, total 2 levels

• with 40pcs USB Ports

• 1xPDU 6ways, EU/USA/UK/IEC type.,etc are all available

• 1×sliding shelf for laptop

Detail size will be adjusted when drawing confirming.

• 80mm gap between every level for airflow and cooling—great for charging

Detail size will be adjusted when drawing confirming.

• 19" installation shelf allow you to adjust the shelf location accordingly to mix

  and match devices: removable if not need.

• Cable entrance punched in back wall panel,allow for power supply and good for cable management.

Efficiency

2" swiveling wheels included for moving

Rear wall mounting panel for storage

Security

Tough, secure storage. Rugged steel construction withstands classroom abuse

Durable SPCC steel doors include handle with unique key lock.

Cabinet is made up to 1.2 mm,with 1.5mm mounting rails.

Safety

Well-designed ventilation and continuous operating fans keep devices cool

For user and equipment safety, the entire cabinet is to be tested and certified to CE,RoHS,ETSI standard

Environment

Cooling/Ventilation: 2 AC continuous operation fans keep equipment cool

Country-specific power cord = 1.5m long

Power System: input/output = 220-250V~, 10A, 50/60 Hz

Temperature Range: operating 0° to 30°C (32° to 86°F); storage -40°C to 60°C (-40° to 140°F)

IP degree : IP-20

Parameter

Warranty: Ten (10) years mechanical/workmanship; two (2) years electrical components; one (1) year cables



Metal thickness	0.8 to 1.5mm
Type of Metal	SPCC Cold Rolled Steel
Paint type and thickness	Thermosetting plastic powder, 0.17 to 0.3mm
Castor diameter	3 inches Castor total height 105mm, wheel diameter 105mm. Mounting holes distance: 73 * 44.5mm Material: steel and rubber The material strength of steel and rubber is 235MPa. The castor heavy duty is 600-800KG
Total dimension of the cabinet (Without castors) Total dimension of the cabinet (With castors)	700(W)X600(D)X1021(H) 700(W)X600(D)X1126(H)
Shelf dimension	603(W)X350(D)X26.5(H)
5 ways PDU	1.5U 5ways South African type PDU, with 1P circuit breaker, power cord 3G1.5mm2 520mm, IEC C20 plug.(L×W×H=429.6×62×45mm)
15 ways PDU	1.5U 15ways South African type PDU, with 1P circuit breaker, power cord 3G1.5mm2 470mm, IEC C20 plug.(L×W×H=981.1×62×45mm)
External power supply	1×C20 module
Internal power supply	3×C19 module
Specification of mounting rails and vertical cable manager	NO Mounting Rails
Specification of vertical cable manager	94(W)X760(H)X66(D)
Specification of handle lock	142*32*42
Specification of small round lock	Φ22*20
Specification of side bars	Dia. 25mmMounting hole center distance 440mm















Packing:





Certificates

















Applications of Our Cabinets





Rack cabinets for Information Technology and telecommunication appliances use:



• Small, Medium and Large Servers

• DVR, Security Equipment and Routers

• Patch Panels and Switches

• Telephone Systems and PABX

• Network and Communications Equipment

• UPS Equipment

• Other Rack Mount Equipment
