Single station epoxy resin APG clamping injection molding machine for transformer | insulator
Product Description
1.Application
1. Pole mounted distribution transformer pressure gelation molding machine is applicable for electric resin epoxy products such as transformer, 12KV-1250A, contact box, 40.5KV bushing, bending plate, upper and lower shell of SF6 insulating cover,etc.
2. Pole mounted distribution transformer pressure gelation molding machine is large and medium-sized equipment, mould plate is 800*600mm, length of upper and lower core-pulling stroke can be determined according to the product.
2.Main technical specification
| Technical specifications | ||||
| Model | APG-1210 | APG-898 | APG-888 | APG-865 |
| Clamping plate | 1000*1200mm | 1000*1000mm | 800*800mm | 800*600mm |
| Upper and lower core-pulling stroke | 900mm,800mm | 800mm,500mm | 800mm,500mm | 500mm,350mm |
| Mould clamping force | 220KN | 220KN | 200KN | 200KN |
| Power | 8KW | 8KW | 8KW | 8KW |
| Weight of complete machine | 7100KG | 6200KG | 4200KG | 3800KG |
| Outline dimension | 4780*1300*3800mm | 4700*1300*3800mm | 3900*1300*3140mm | 3900*1300*3140mm |
| Color(Customizable) | Blue | Blue | Blue | Blue |
transformatorer, APG maskin till salu, APG maskin lever antör / tillverkare / fabri china APG mesin cetak untuk e
Production Flow

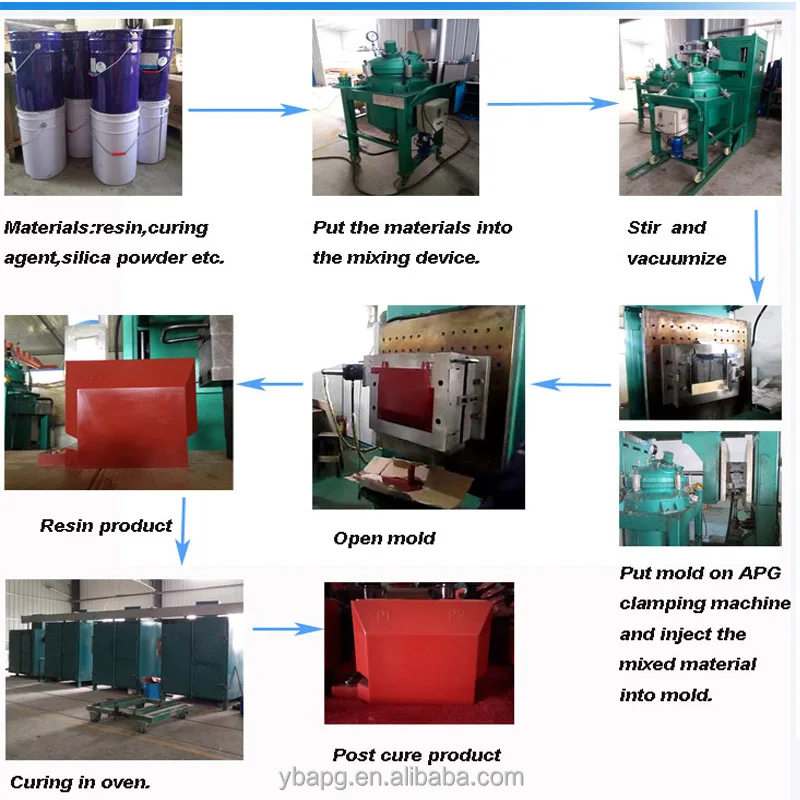

4.The process of APG production
epoxy resin isolator / bushing / transformator, mesin APG untuk dijual, APG mesin pemasok / produsen / pabrik

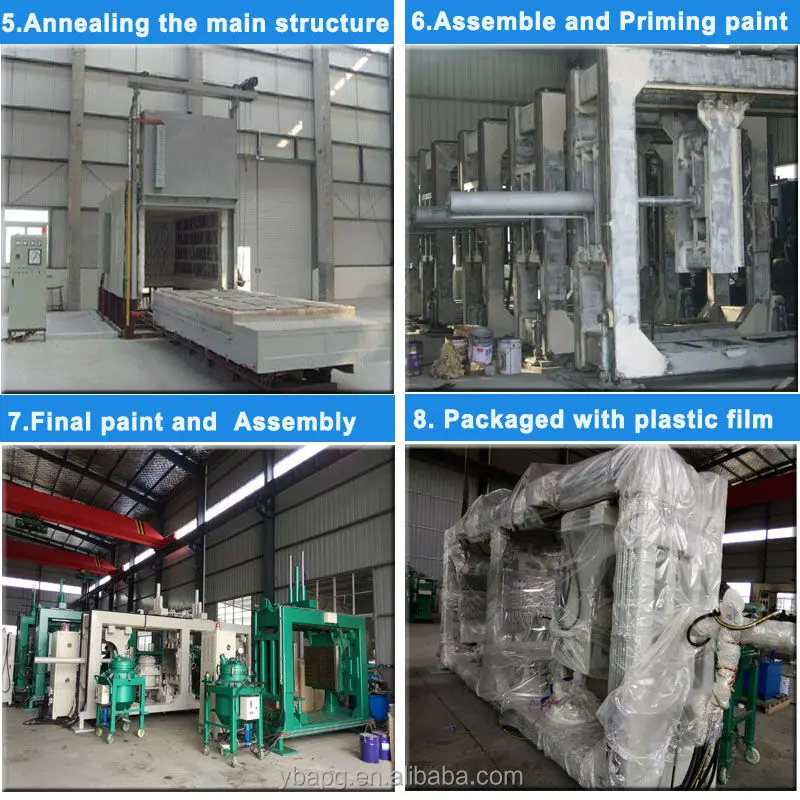

Operation steps of producing
Main products
Company profile
Certifications
Packaging Shipping
Outline Demension: 3700x1200x3030mm for APG machine
Packaging Detail: packed by bubble film then into the exported standard wooden case
Shipping Detail: shenzhen or shanghai, or you designate if neseccary
FAQ
Q: What does “FOB”“CFR”and “CIF”Mean?
A: FOB=free on board with China loading port
CFR=CNF=cost and freight charge with destination port
CIF=CFR+Insurance with destination port
Q: What's consists of equipment for your APG whole production line?
A: APG Machine-APG Mold-Curing Oven-Air compressor-Mixing Material-Release Mould Agent-
Xylene germicides.
Q:What information do we need before quote?
A: Your product's diameter and photo or drawing.
Q: How about your installation & debugging and after-sale service?
A: Our engineer go to the oversea for the installation and debugging availably,and we
provide one-stop sevice and machines lifelong maintenance.On site test and inspection
available.
Q: How about your experience in this field?
A: We have 24 years experience in this field.Until now,we have 19 items patents.
Q: Is it one-stop service company in electric power equipment industry?
A: Yes,Oyr products cover APG Clamping Machine,APG Molds & Injection Toroidal Winding
Machine (CT & PT),Transformer Foil Winding Mach Molds,Marking Machine.
Q: What is your delivery time?
A: It takes around 50 working days.
Q:How's the packing way?
A:The machine with plastic film and others parts use wooden case for safety.
Q: What's the shipping port?
A: Shanghai,Shenzhen,Ningbo,Qingdao etc.
Q: What's the payment terms?
A: Telegraphic transfer(TT),Letter of credit.
Q: What is your factory location?
A: Our factory locates in Pingxiang City,Jiangxi province.Nearest air port:Changsha
airport.High speed railway station:West Zhuzhou station.All above take 1.5 hours
driving.
