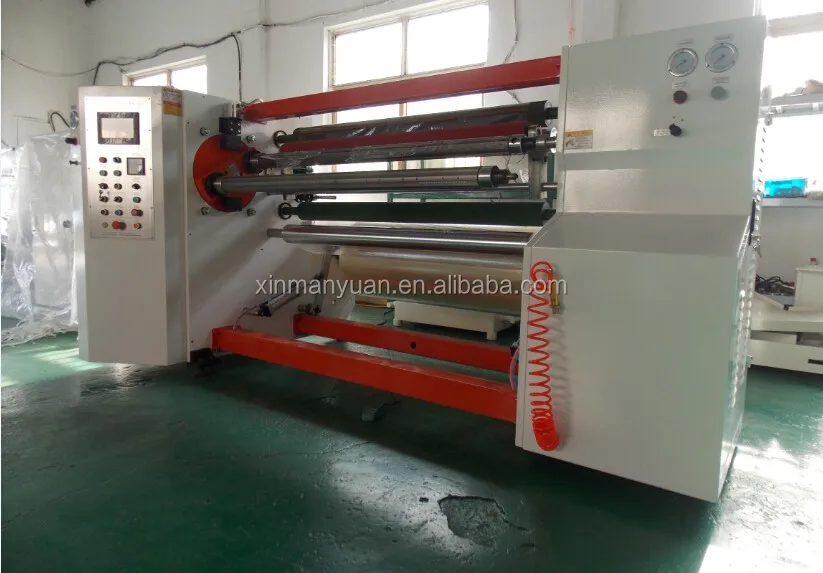

Hot sale Double shaft turret adhesive tape slitter and rewinder machine

Product Overview

Description

Hot  sale Double shaft turret  adhesive tape slitter and rewinder machine





This kind rewinding machine is also Suitable for bopp, masking, electrical tape,foam tape, cloth tape,double sided. duct tape,PE,PET, PVC,kraft paper tape,non woven, papers etc jumbo rolls rewind.

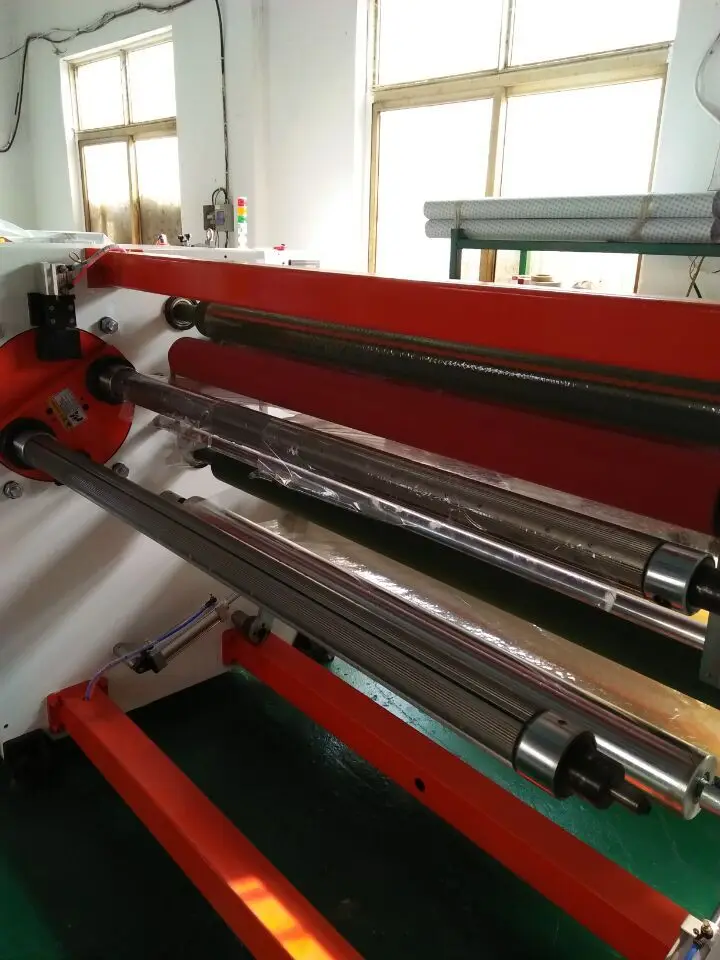

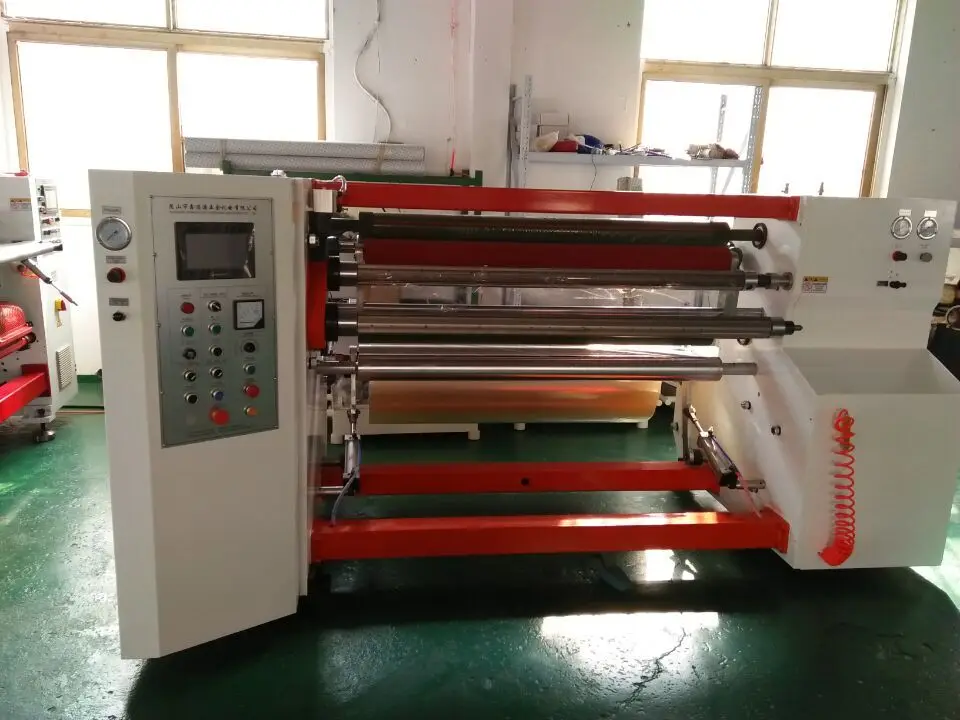

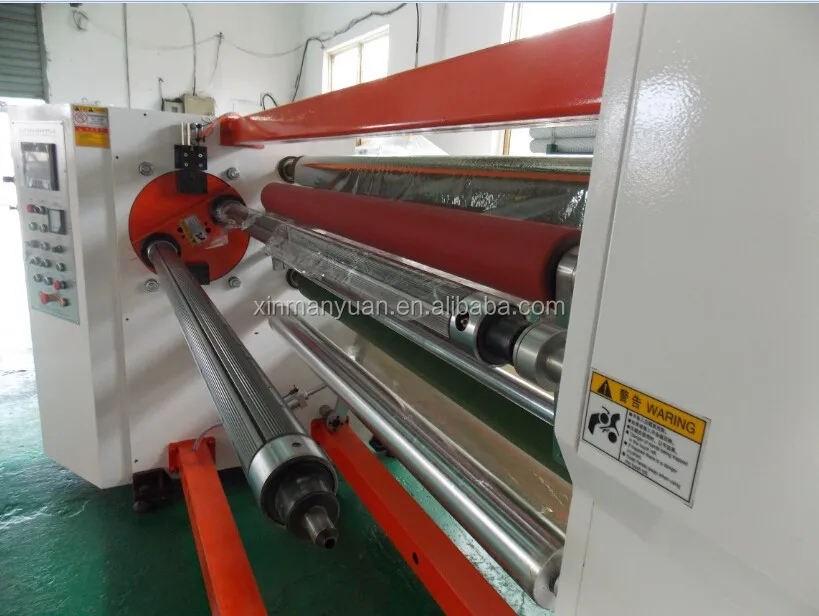

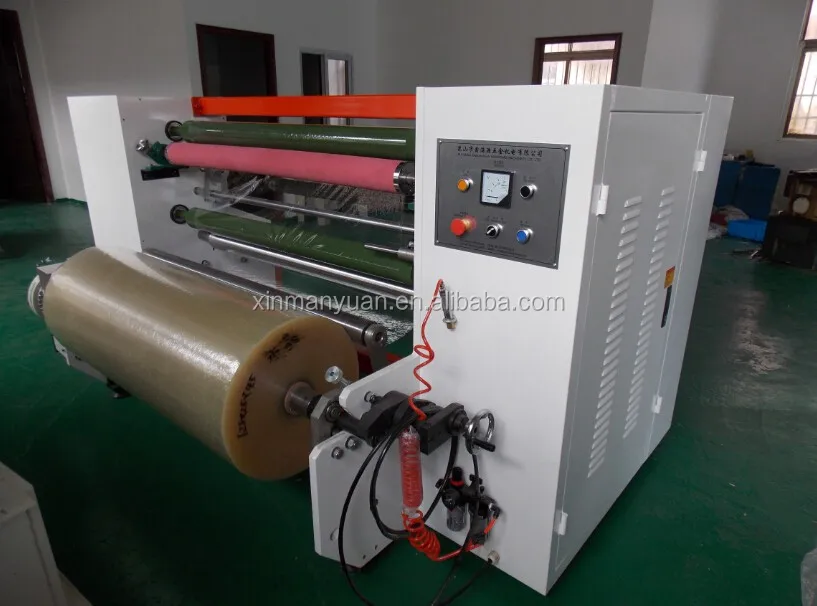

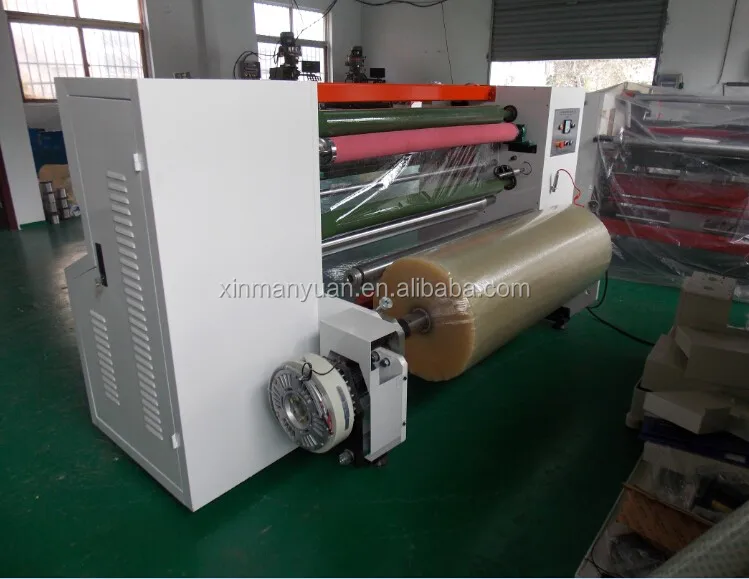

More Photos of  adhesive tape slitter and rewinder







 Superiority of  adhesive tape slitter and rewinder



1.From taiwan newest technology reasearch and design.



2.Our company export-overworld,with an everage annual export volume reach more than 50 sets.



3.All the parts are processed by CNC lathe,which will be with high precision.



4.With accurate rewinding length control and automatic tension control during the process.



5.Double shaft exchange rewind ensure the high efficiency non-stop production.





Feature of  adhesive tape slitter and rewinder



1. Automatic length setting: the two-step length counter provides accurate rewinding length control. Once the set length is reached, servo motor is adopted so that the shaft will instantly and automatically changes, ensuring easy operation and efficient performance.

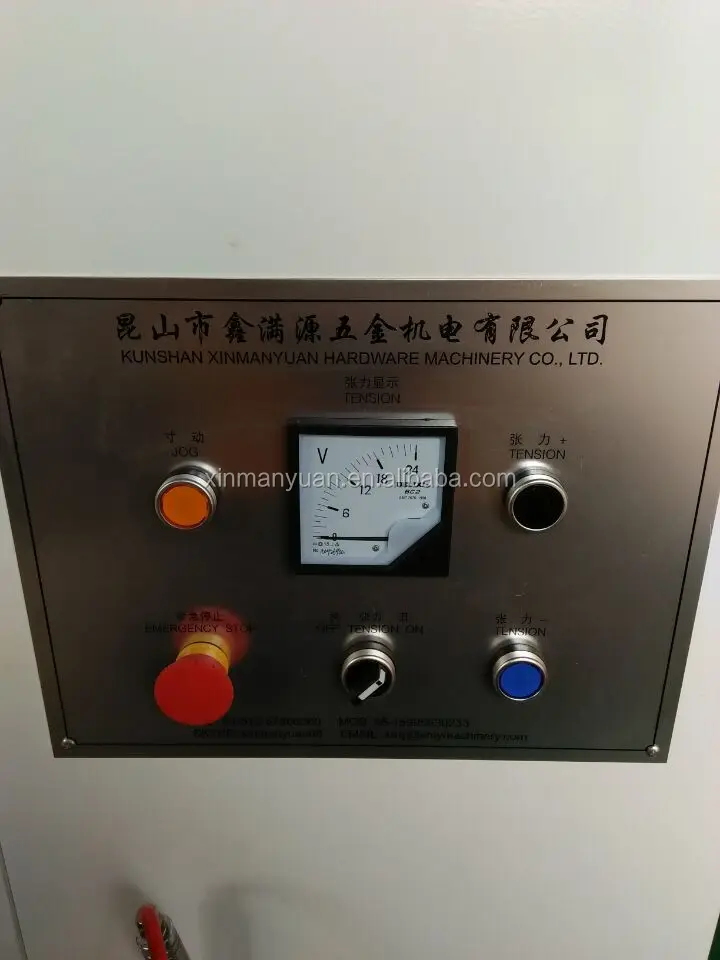

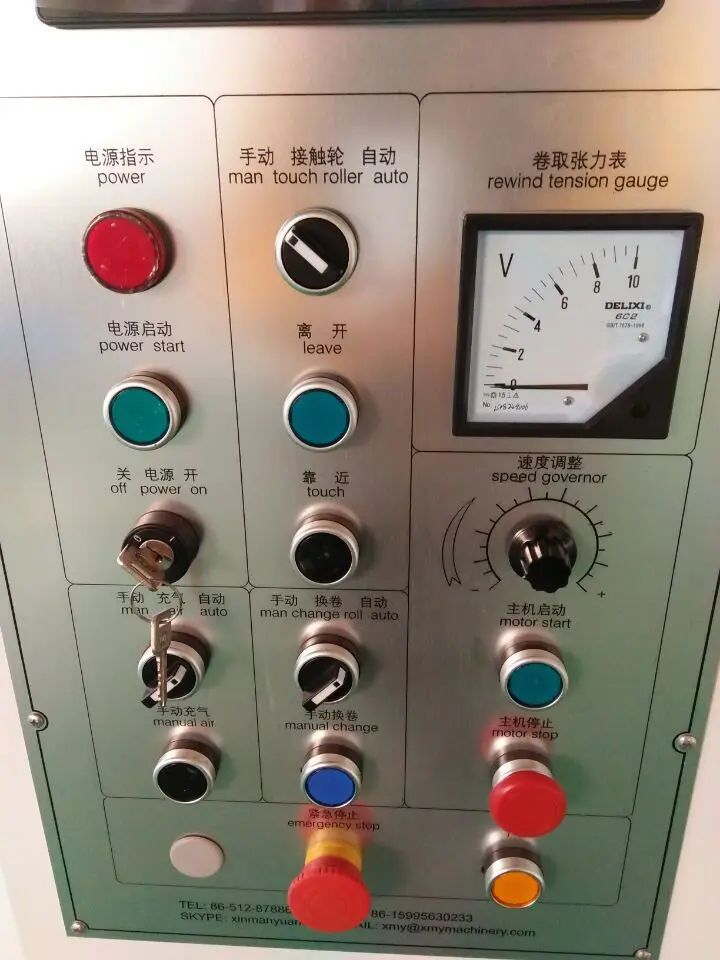

2. Programmable controller: the high performance programmable controller offers convenient control of the entire rewinding operation. Both length and tension are accurately displayed by LED readout.



3. The paper core is held firmly on the pneumatic shaft. With easy, fast loading and unloading, it greatly improves efficiency.



4. Hydraulic auto uplifting device (optional): this device offers easy material loading for operational convenience and better efficiency.



5. The pressing roller is controlled by the cylinder and the pressure is adjustable. The semi-finished products are properly pressed to ensure smooth, stable running during rewinding.



6.Automatic smoothing device (optional): this wipe down device fully eliminates the problem of wrinkling and air bubbles in the product after rewindng. This device further ensures the smoothness of product.



 Main Technical Parameters of  adhesive tape slitter and rewinder



machine width	1.3M 1.6M
max. unwind diameter	1000mm
max. rewind diameter	350mm
max. rewind speed	180M/min
I.D. of paper core	76.2mm
main motor	5 HP×2
air pressure	6 Bar

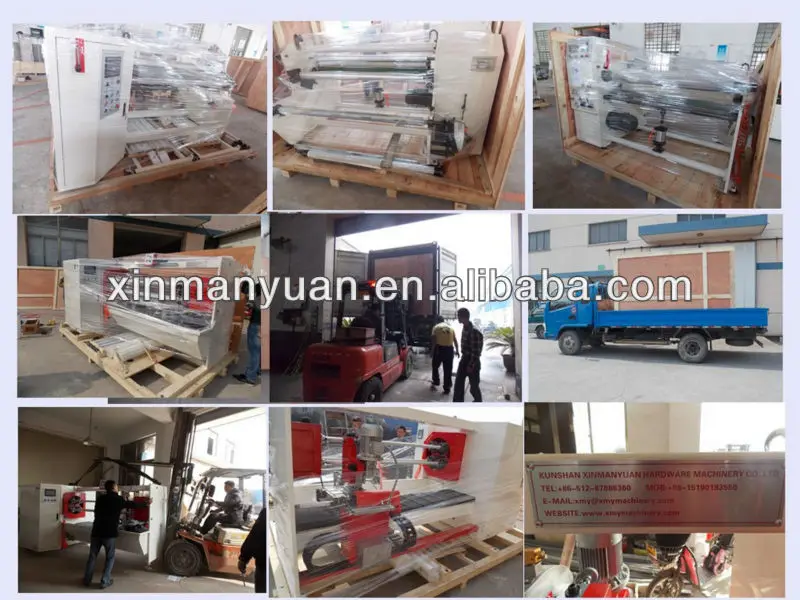

Packaging and Delivery of  adhesive tape slitter and rewinder





After-service of  adhesive tape slitter and rewinder
