Product Overview

Description

CCC CE UL approval IP40 V-164-1C25 kw3a R lever type safety spdt 16A 250V microswitch mini micro switch

Feature:

♣Characteristic:small contact clearance.quick action,high sensitivity and small operating travel.

♣Long life,high reliability.

♣A variety of models with low operating force to high operating force are available.

♣A variety of levers.



1.UL,CE, CCC approved..ISO9001:2008;

2.16A 1/2HP 125/250VAC  ;

3.0.6A 125VDC 0.3A 250VDC ;

4.Material:Base plastic---Nylon 66;

                   Button plastic---PC or Nylon 66;
                   Copper parts such as terminal----Copper H62;
                   Terminal surface treatment----- tin plating;
                   Contact----silver on copper ;
                   Spring----Tungsten steel;
                   With water protect cap(if required) .

5.Material:Silver Contact,PC,PA66;

6.Used for home appliances and electronic equipments.Such as :Micro ovean.etc. Can with handle ;

CCC CE UL approval IP40 V-164-1C25 kw3a R lever type safety spdt 16A 250V microswitch mini micro switch

Characteristics :

Item Data Operation speed 0.1mm-1m/sec Operation frequency Mechanical 600 times/min Electrical 60 times/min Insulation resistance 100MΩ min.(at DC500V) Contact resistance 15MΩ max. (Initial value) Withstand voltage Between terminals of the same polarity 1000VAC,50/60Hz for one minute Between each terminal and ground 1500VAC,50/60Hz for one minute Vibration Misoperation 10-55Hz (Amplitude)1.5mm Hitting Machine 400m/sec Misoperation 100m/sec Life Electical 500,000 (At the rated OT) Mechanical 20,000,000  (At the rated OT) Protection degree IP40/IP65 Ambient operating temperature -25-85°c Humidity General purpose type:85% RH max.,Sealed type:95% RH max

Ue (V)	Ie (A)	Ith (A)
AC-250	7.5	10
AC-125	15	20
DC-250	0.3	0.45
DC-125	0.6	0.75

Operating characteristic:

OFF	1.23N(125gf)
RF	0.14N(14gf)
PT	4.0mm
OT	1.6mm
MD	1.5mm
OP	18.7±1.2mm

CCC CE UL approval IP40 V-164-1C25 kw3a R lever type safety spdt 16A 250V microswitch mini micro switch

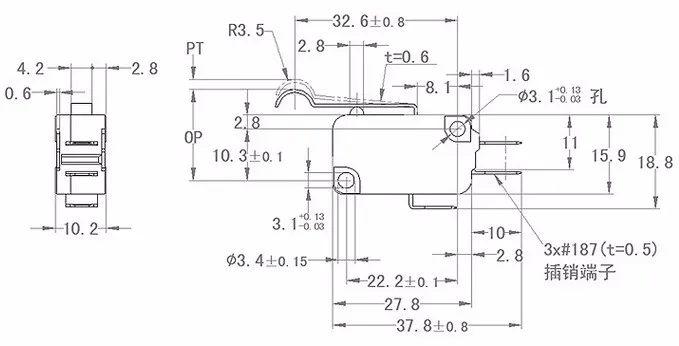

Dimension:

CC CE UL approval V-162-1C25 kw3a 250VAC 16A hinge lever type on off microswitch mini micro switch

Mounting hole dimensions &structure:

   CCC CE UL approval IP40 V-164-1C25 kw3a R lever type safety spdt 16A 250V microswitch mini micro switch

Contact Form:

  CCC CE UL approval IP40 V-164-1C25 kw3a R lever type safety spdt 16A 250V microswitch mini micro switch

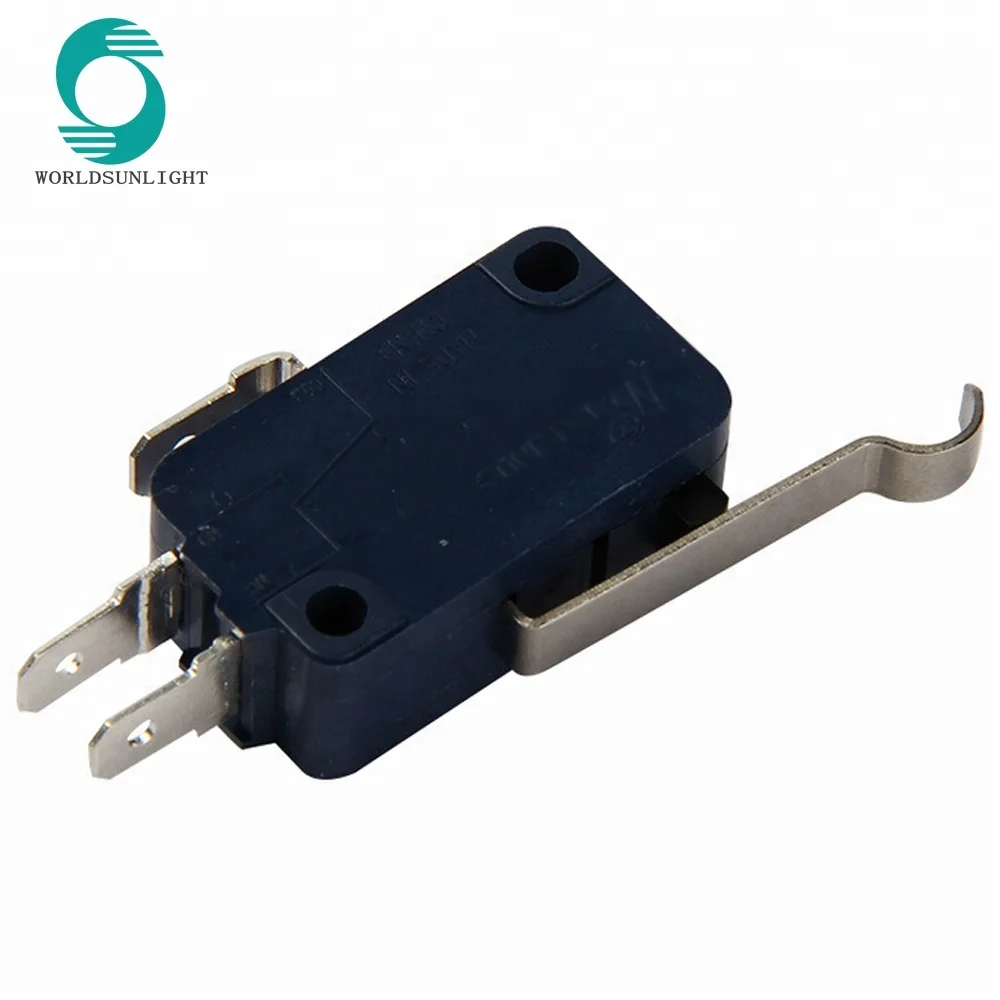

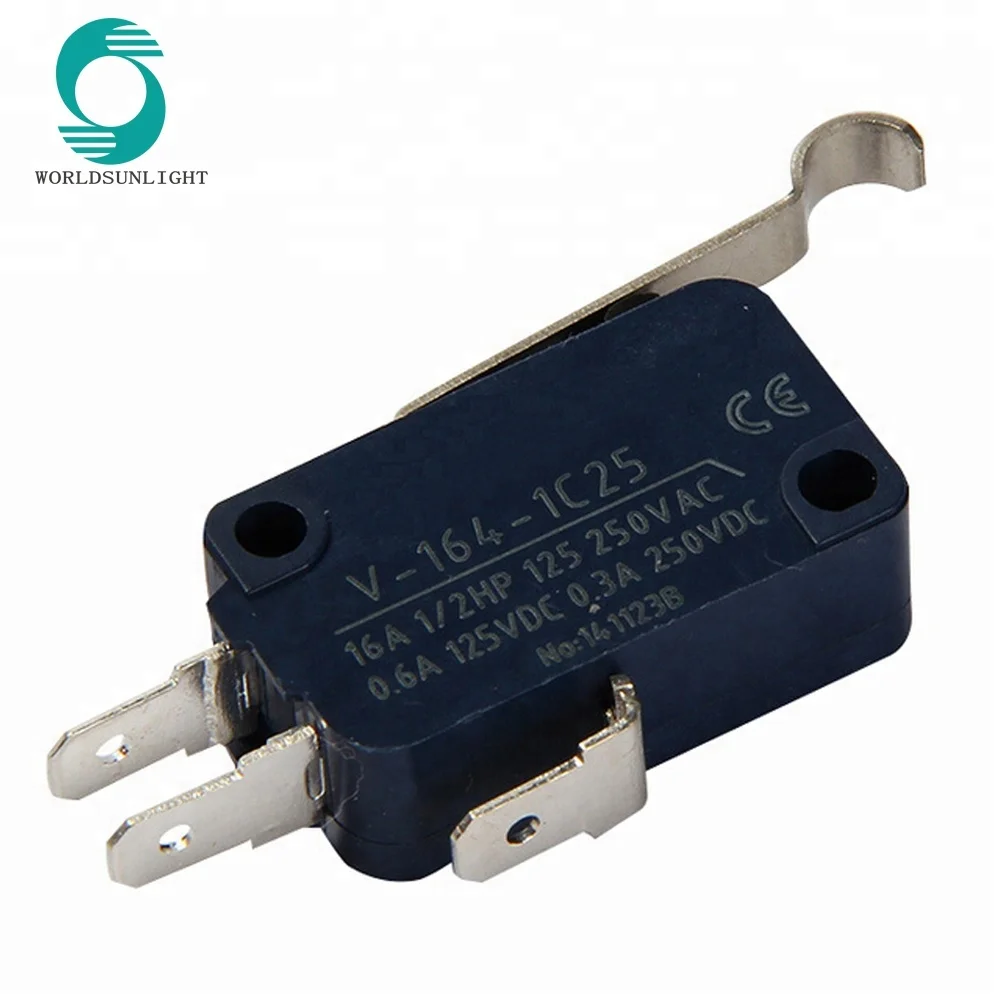

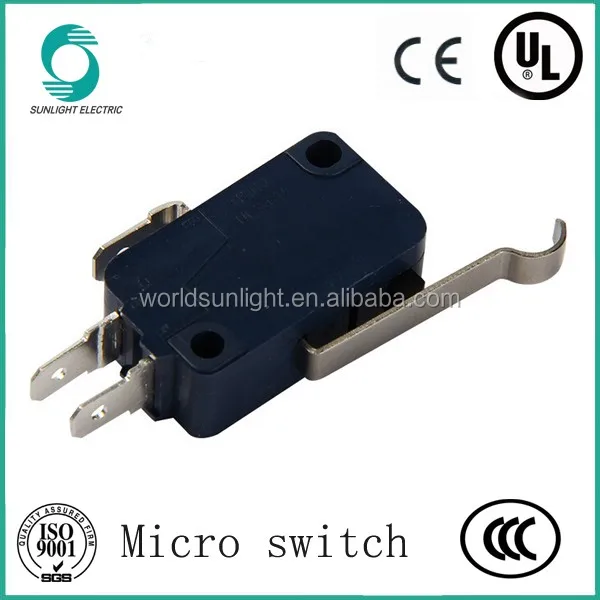

Picture:

   CCC CE UL approval IP40 V-164-1C25 kw3a R lever type safety spdt 16A 250V microswitch mini micro switch
