Generator Engine ECU Speed Controller Control Unit ECU SS30

Product Overview

Description

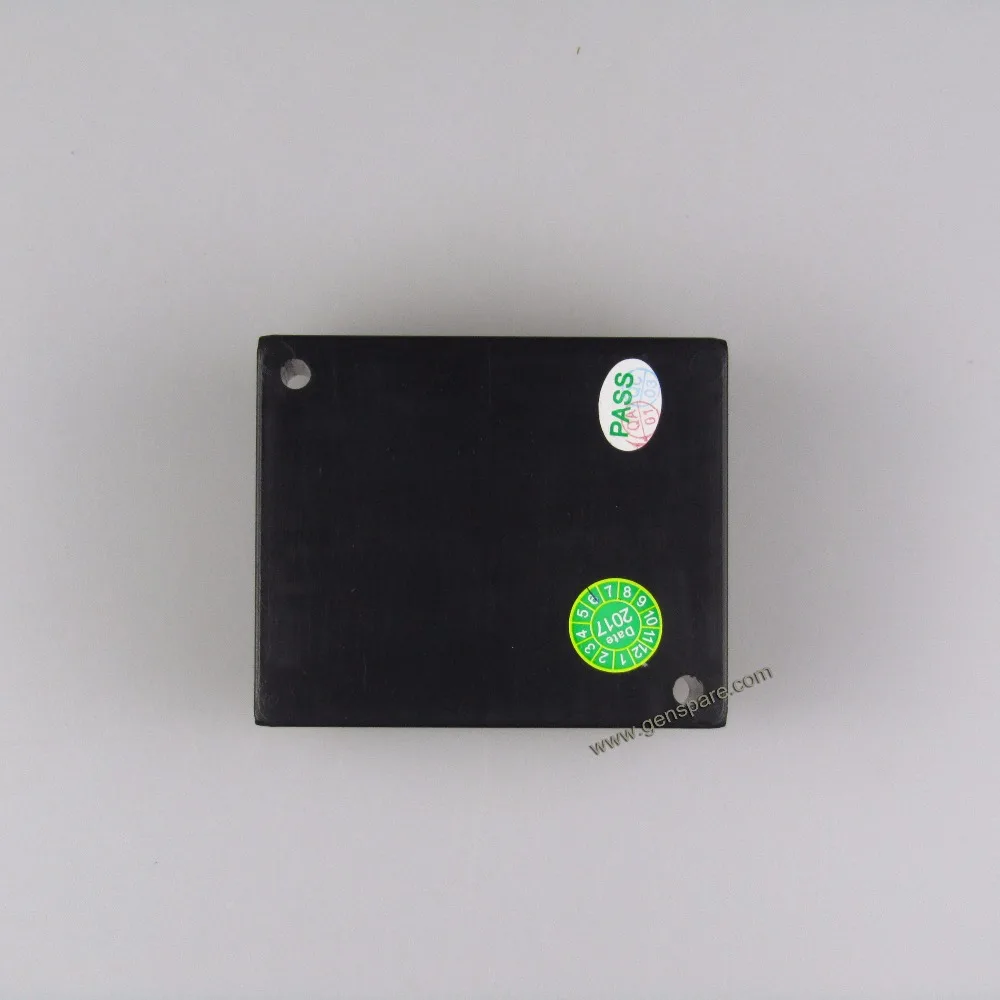

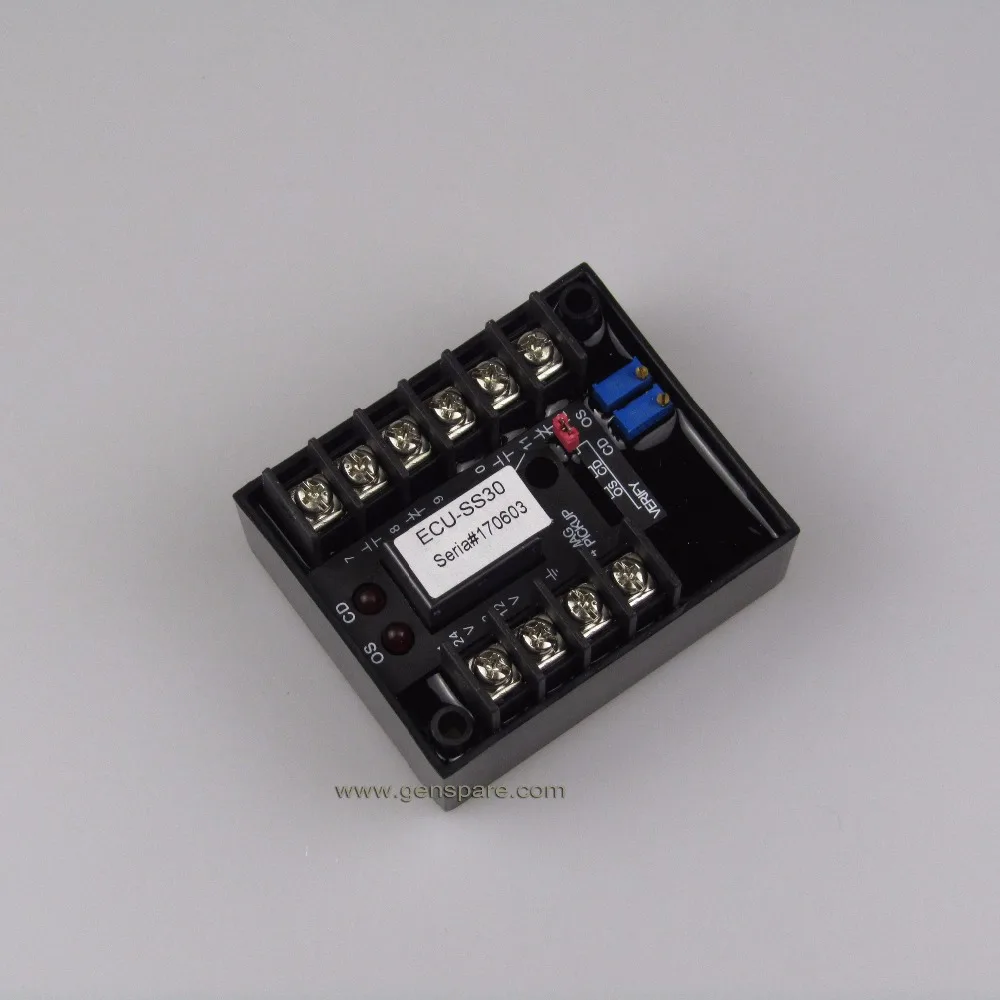

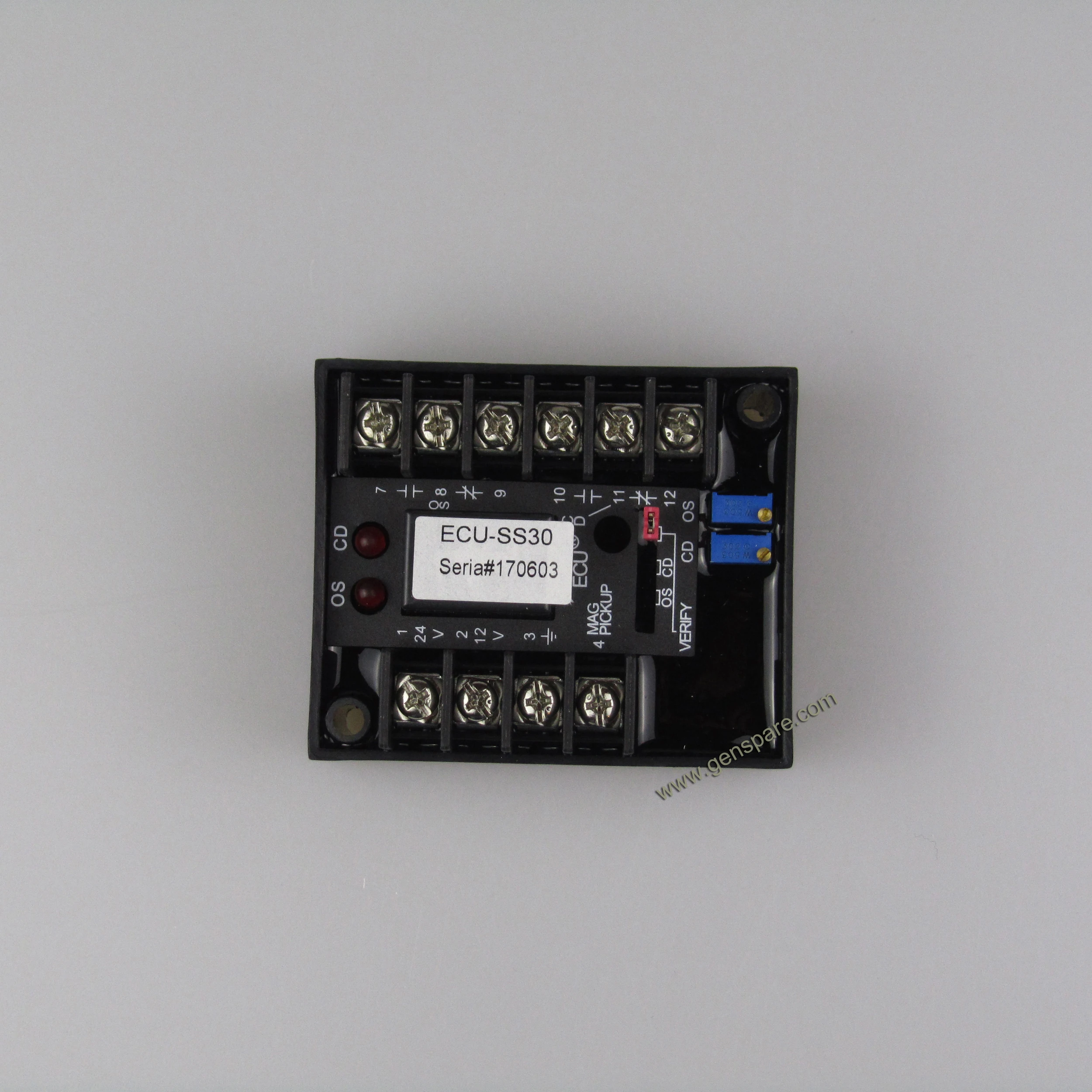

Generator Engine ECU Speed Controller Control Unit ECU-SS30



The Brands/ Part Numbers mentioned here are for reference purpose only, our parts can exactly replace the original ones.



The ECU-SS30 is a state of the art electronic speed switch. It is designed for rugged system use and easy interface. The SS30 is a small and compact speed switch but is packed full of useful features.



The ECU-SS30 speed switch follows the ECU design philosophy to produce a quality product in a small, self-contained module without penalizing the user with a loss of features. One interesting feature is the Verify Mode. When this mode is selected, it will lower the Overspeed and Crank Disconnect trip points by approximately 13%. This feature is useful because it reduces the engine stress normally associated with the setting of high Overspeed trip points.



FEATURES:

· Two Element speed switch

· Verify mode

· Wide speed sensing range from 500 to 9500 Hertz

· High current output for solenoid control

· Epoxy encapsulated module for

.excellent field reliability

· Wide temperature range -40C to +85C

· LEDS for Crank Disconnect and Overspeed
