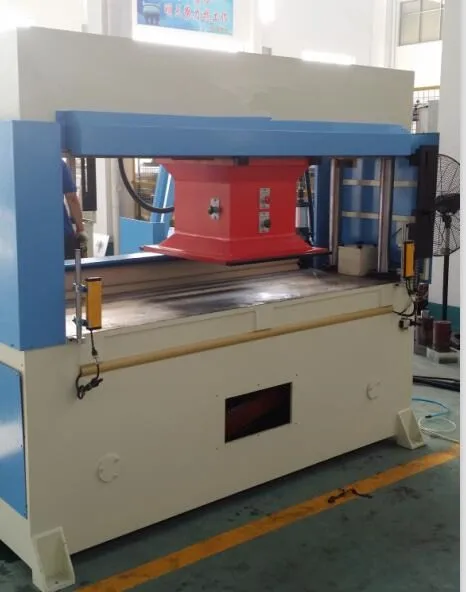

good quality hydraulic traveling head mold cutting press

Product Overview

Description



Good quality hydraulic  traveling head mold cutting press



USE AND CHARACTER:



1. This machine is mainly suitable for cutting varieties of leather, rubber, plastic, fabric, etc with a blade of fixed shape.



2. Gantry frame structure is adopted, with high intensity and without deformation.



3. The punch head can automatically move horizontally, with excellent operating visual field and safe and reliable operation.



4.The lifting position of pressing board can be freely set to reduce idle travel and enhance work efficiency.



5.The movement of punch head is controlled by automatic speed variation to realize flexible movement with accurate positioning and without impact.



6. Differential oil way is adopted to allow rapid and convenient cutting.



Main technical parameters:



Remark:We can make the machine according to your specifical requirements,for example the color,the motor information ,the size of  working table etc.



Technology specification :



Maximum cutting force	50T
Travel adjustment range	0—120mm
Range between the working tables	30—150mm
Size of traveling head	600×600mm
Size of lower worktable	1600×750mm
Motor power	5.5kW
Overall dimension	2380×1350×1950mm
Net weight	3400kgs
Gross weight	3500kgs
adjusting stroke	manual
Electronic supply	50HZ 60HZ 220V ,380V ,440 V  three phase  or as optional
Hydraulic oil	46# or 68#
Automatic grade	Manual
Machine color	Red and blue  or as your optional
Machine logo	SHUOYING  or Customized
OEM&ODM	Welcome



More views of this model of machine :

Related cutting machine :





Advantages:

The machine use the travelling head frame, that is very firm and easy operation.

The cutting point setting is simple and efficient.

The machine have two hands operation function, that is very safe.

The motion cutting use cross switches and stroke switches to control, that ensures safety.

The motion cutting can move automatically, that raise work efficiency.

The machine may add concerning unit, that saves labour.

Using differential oil way, cut is rapid and easy.

The lifting position of pressing board can be freely set to reduce idle travel and enhance work efficiency.

The movement of cutting head is controlled by automatic speed variation to realize flexible movement with high speed and accurate positioning and without impact.

The hydraulic system specially designed is featured by low noise and low oil consumption.

 Products of special specifications can be customized. is available  for selection.

Feature:

1.Fast, quiet and easy to operate

2.All standard die constructions can be used – strip steel, wood forme or forged steel

3.Powered head traverse for effortless operation

4.Simple, accurate die setting and daylight adjustment

5.Quiet, vibration free operation

6. Uses a hydraulic-down and hydraulic-up system to provide an even cutting depth

7. High speed

8. Die height and material height can be set quickly

9. Cut materials in single or multiple layers

10. Complete with high grade polypropylene cutting board and operating manual .

RFQ :



1, Are you a factory or a trade company ?



we are a factory , welcome you to visit our factory and discuss our business face to face .



2, Where is your factory located ? How can I visit your factory ?



Our factory is located in No 9 Chengxiang Road Daguang Town Yancheng city Jangsu Province China .



You can take plane from Guangzhou/Beijing/shanghai city to Yancheng city (our city ) . It is very convenient .



3, Do you attend any Fair ?



Yes , we attend some professional fairs every year :



All china leather exhibition & china international footwear fair   ( in Shanghai china  )



International exhibition on shoes& leather industry   (In Guangzhou china )



4, Can we use our company logo on your machine ?



Yes , you can use your logo if necessary .



5, How does your factory control the machine quality ?



We have some QC staffs to inspect and test the machine . every machine must be tested for 24 hours before leaving factory .



6, How long is your guarantee period ?



One year
