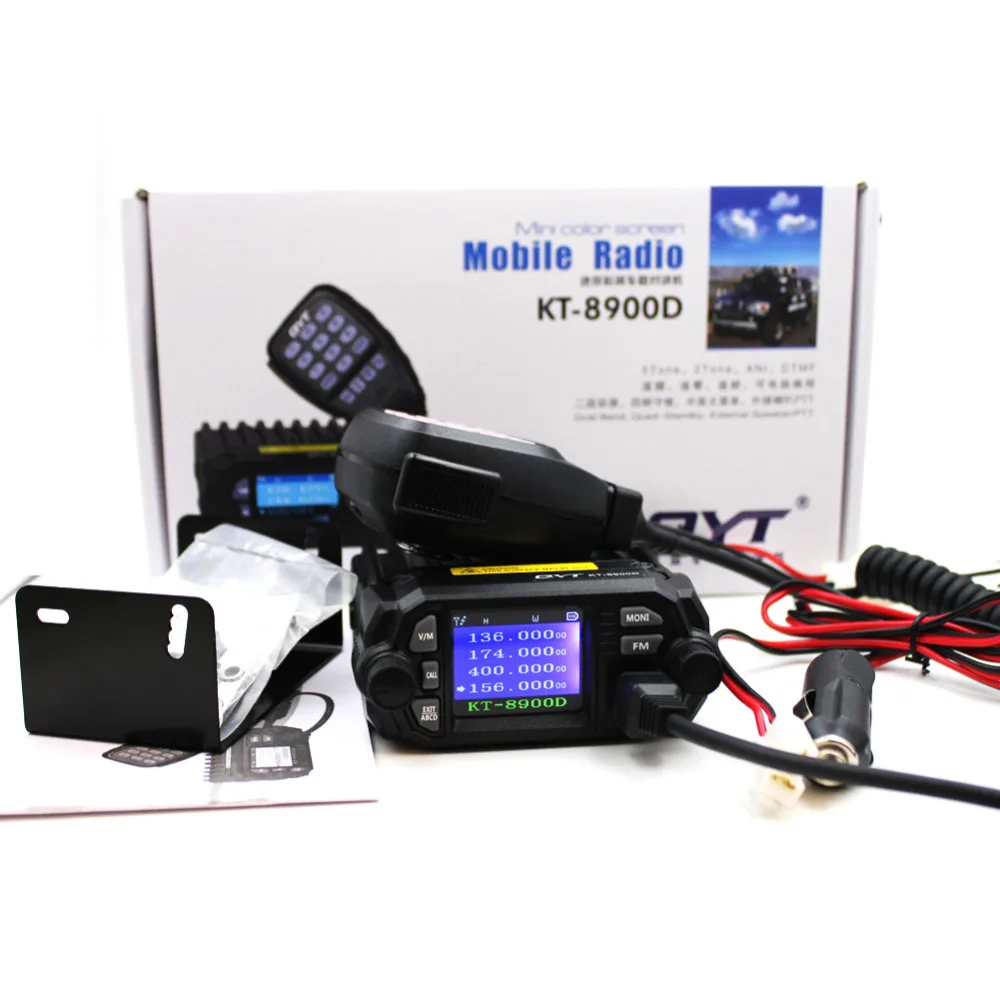

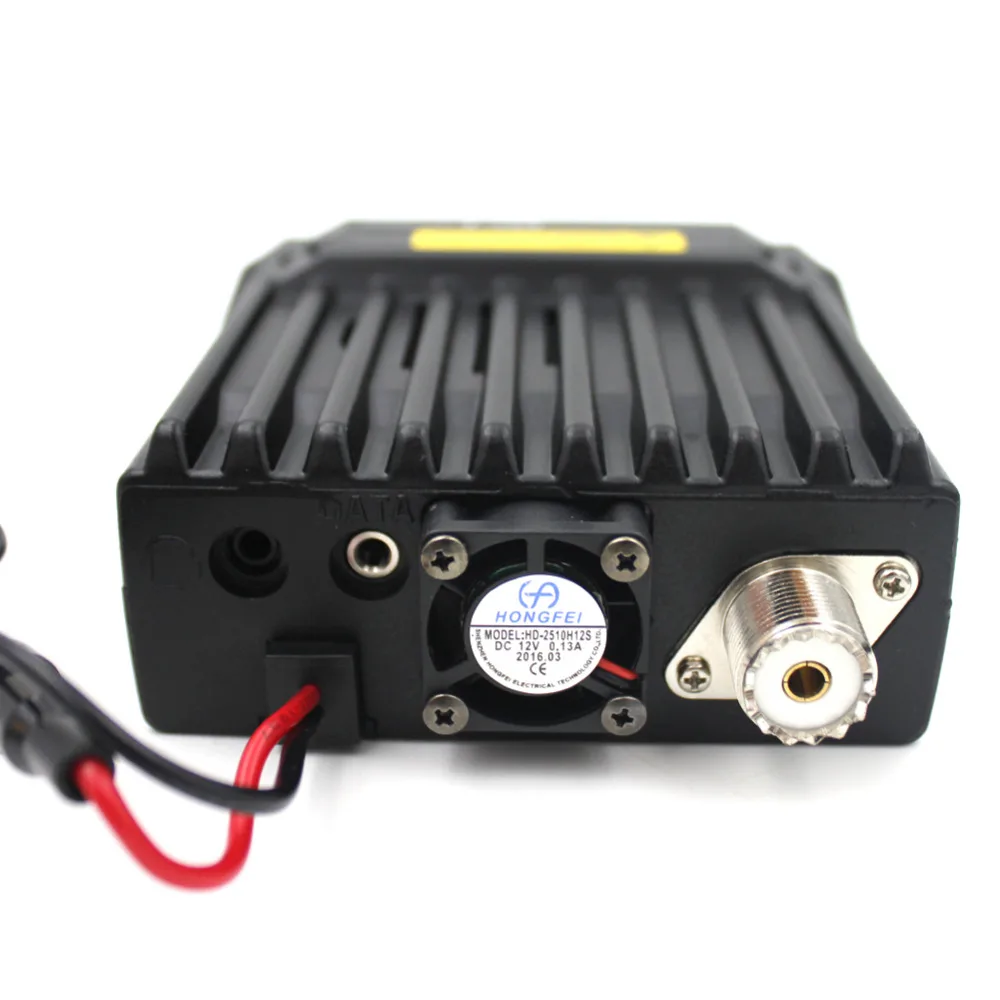

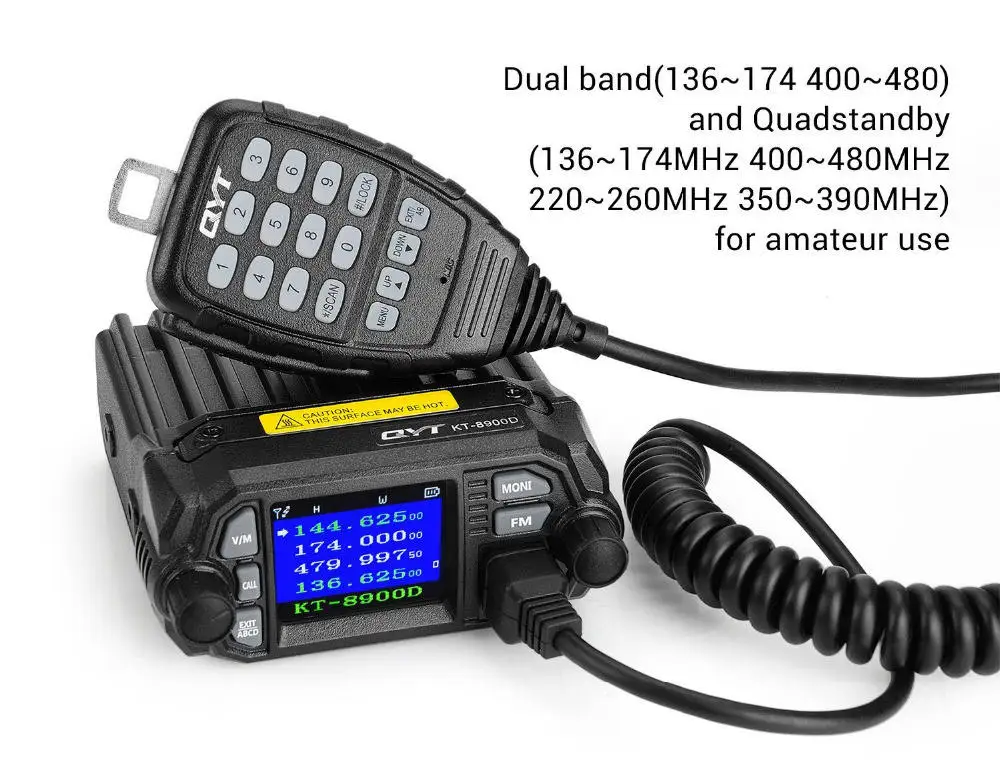

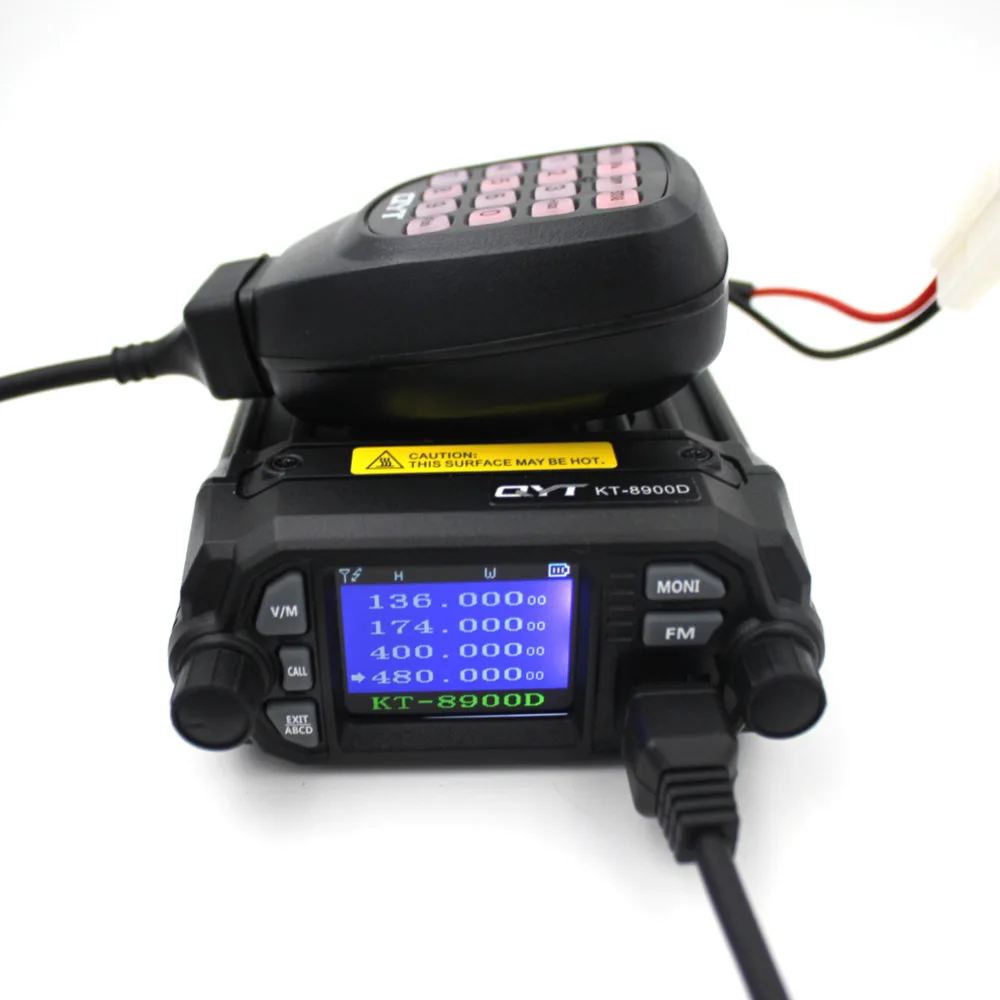

Original QYT KT 8900D 137 164Mhz and 400 480MHz dual brand Mobile Transceiver for communication
- Category: >>>
- Supplier: Shenzhen Anysecu Technology Co. Ltd.
Share on (60383904813):
Product Overview
Description
Product Description
General specification | |
Frequency Range | VHF:136-174MHz UHF: 400-480MHz |
Number of channels | 200 |
Channel spacing | 25KHz, 20K,12.5 |
Phase lock step step | 2.5KHz,5KHz,6.25 KHz,10 KHz,12.5 KHz,15 KHz,25 KHz |
Working voltage | 13.8V DC±15% |
Squelch way | CTCSS,DCS,5Tone,2Tone,DTMF |
Frequency stability | ±2.6ppm |
Operat temperature | -20+60℃ |
Dimension | 98(W)*43(H)*126(D)mm |
Weight | 448g |
Receive(ETSI EN 300 086 Standarddized.Test) | ||||
Broadband | Narrow Band | |||
Sensitivity | ≤0.25μν | ≤0.35μν | ||
Channel Cholce | ≥70db | ≥60db | ||
Intermodulation | ≥65db | ≥60db | ||
Spurious Rejection | ≥70db | ≥70db | ||
Audio Response | +1~~3db(0.3~3KHz) | +1~~3db(0.3~2.55KHz) | ||
Signal to noise radio | ≥45db | ≥40db | ||
Audio Distortion | ≤5% | |||
Audio output power | ≥2W@10% | |||
Transmit(ETSI EN 300 086 Standarddized.Test) | ||||
Broadband | Narrow Band | |||
Output Power | 25W/20W(VHF/UHF) | |||
Modulation Mode | 16KΦF3E | 11KΦF3E | ||
Channel Power | ≥70db | ≥60db | ||
Signal to noise radio | ≥40db | ≥36db | ||
Parasitic Harmonic | ≥60db | ≥60db | ||
Audio Response | +1~~3db(0.3~3KHz) | +1~~3db(0.3~2.55KHz) | ||
Audio Distortion | ≤5% | |||
