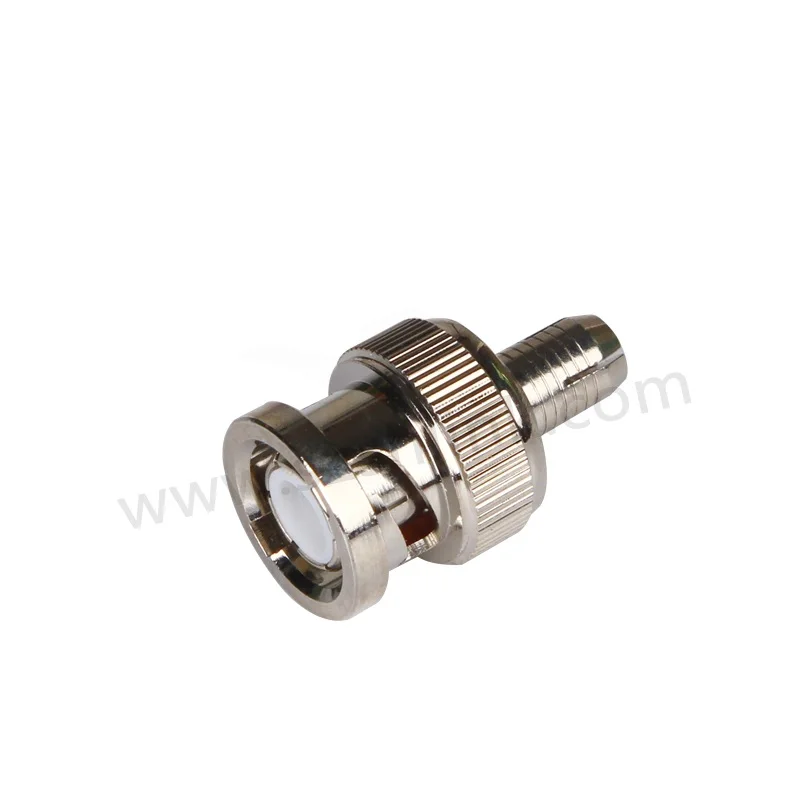

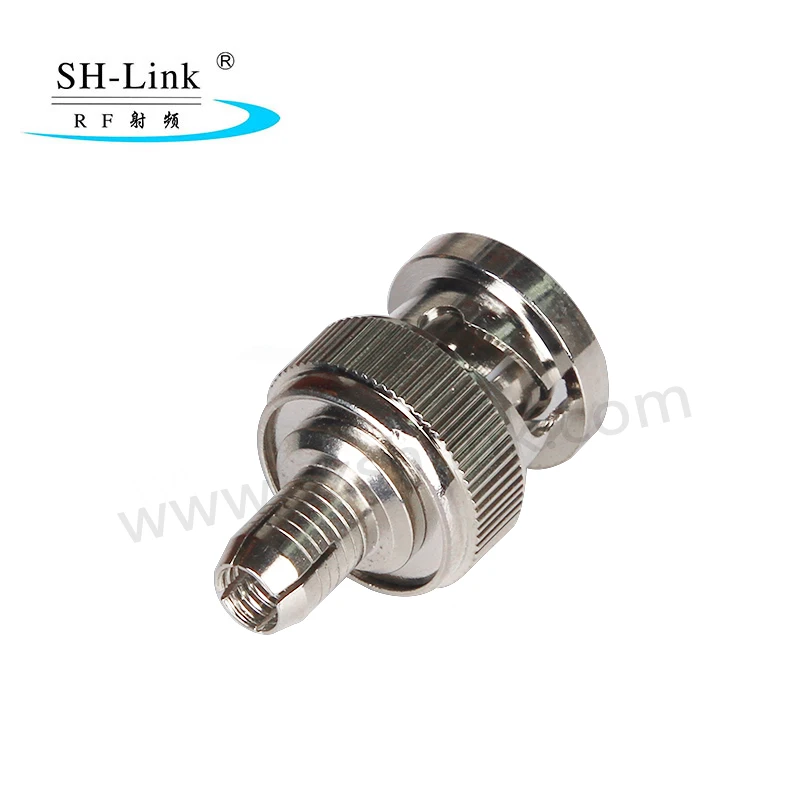

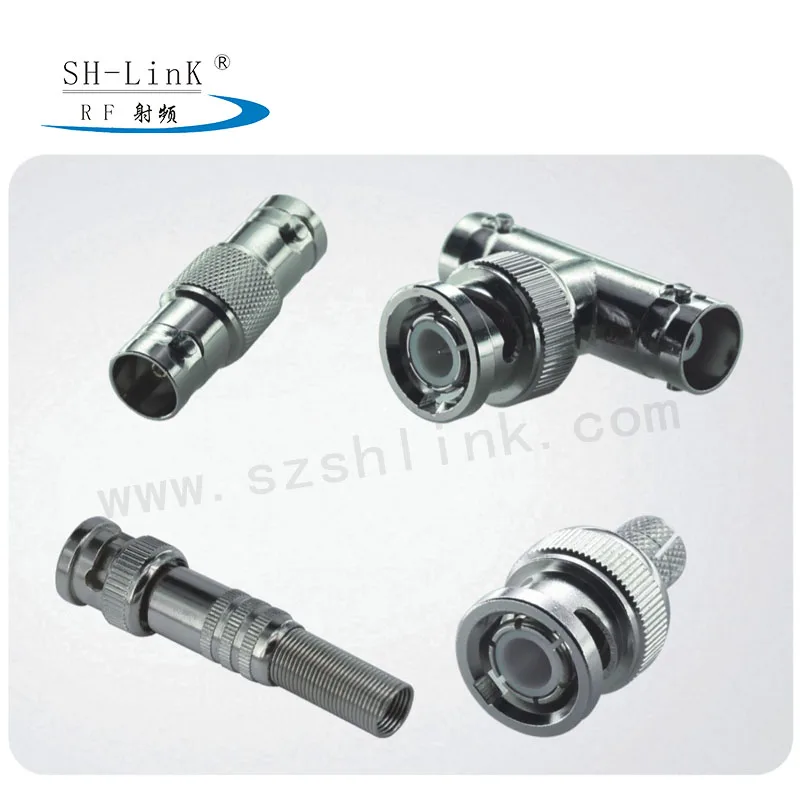

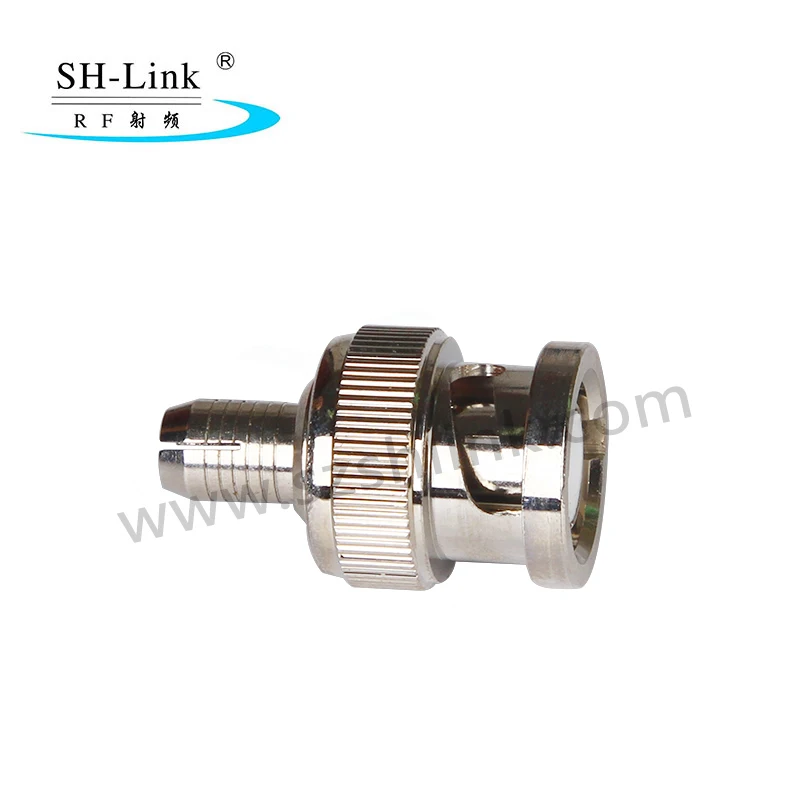

micro BNC connector for cctv rg59 cable

Product Overview

Description



MAJOR TECHNICAL CHARACTERISTICS
Temperature range	-55—+155℃(PE Cable -40—+85℃)
Impedance	50Ω,75Ω
Frequency range	DC-4GHz
Working voltage	500V r.m.s at sea level
Withstanding voltage	1500V r.m.s at sea level
Contact resistance
Center contact	≤1.5mΩ
Outer contact	≤1 mΩ
Insulation resistance	≥5000MΩ
Center conductor retention force	≥0.57N
Insertion loss	≤0.30dB/3GHz
Voltage Standing Wave Ratio
Straight	≤1.22/3GHz
Right angle	≤1.30/3GHz
Durability(mating)	≥500(Cycles)

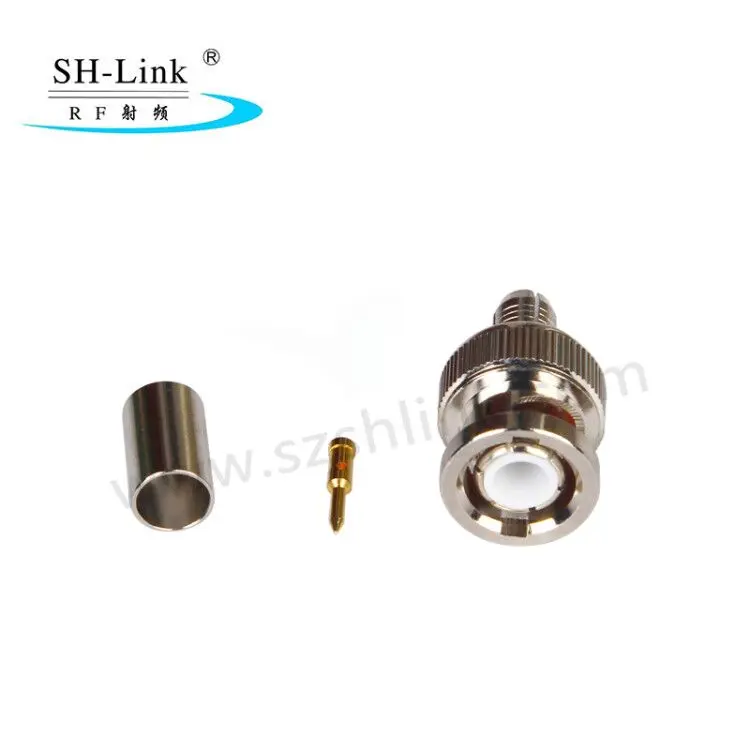

Material & Plating
body	brass	nickel plated
pin contact	brass	gold or silver plated
socket contact	beryllium-copper	gold or silver plated
resilient contact	Tin bronze	gold or silver plated
insulator	PTFE
crimp ferrule	copper alloy	nickel plated
O-ring sealing	6146 silicone rubber
Applicable standard	MIL-C-39012
	CECC 22120
	IEC-60169-8
