China Supplier 2000VA Relay Control Ac Automatic Voltage Stabilizer/ regulator for air conditionder gas boiler
China Supplier 2000VA Relay Control Ac Automatic Voltage Stabilizer/ regulator for air conditionder gas boiler
China Supplier 2000VA Relay Control Ac Automatic Voltage Stabilizer/ regulator for air conditionder gas boiler
China Supplier 2000VA Relay Control Ac Automatic Voltage Stabilizer/ regulator for air conditionder gas boiler
China Supplier 2000VA Relay Control Ac Automatic Voltage Stabilizer/ regulator for air conditionder gas boiler
China Supplier 2000VA Relay Control Ac Automatic Voltage Stabilizer/ regulator for air conditionder gas boiler

China Supplier 2000VA Relay Control Ac Automatic Voltage Stabilizer/ regulator for air conditionder gas boiler

Share on:


Price:
Price in USD:Details

Quantity:


Product Overview

Description


Specifications




Relay Control Input voltage:80-270V
High/low voltage protection,over load/heat protection
LED display Russia/English Words

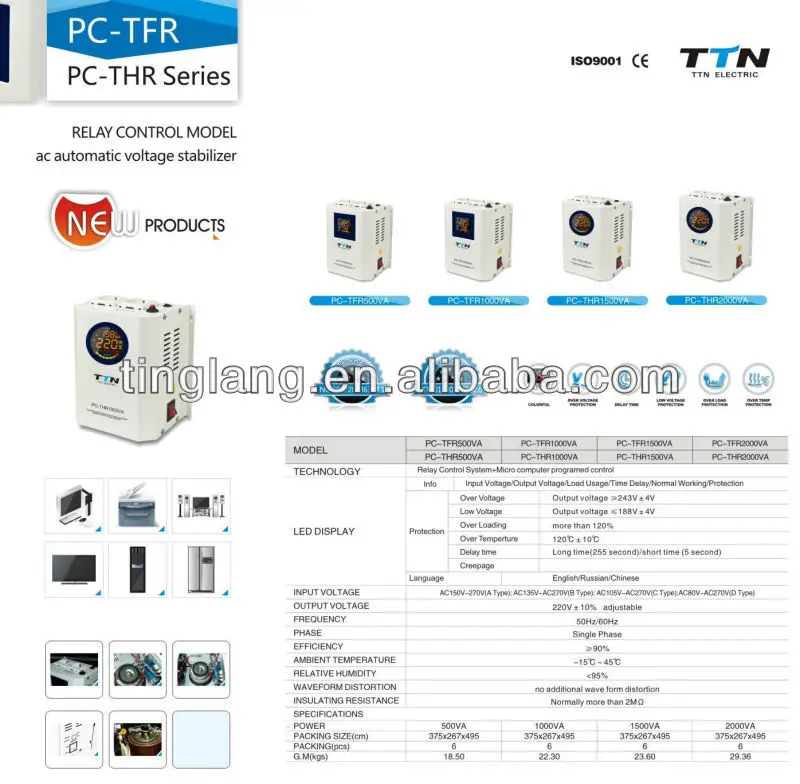

MODEL



PC-TFR500VA



PC- TFR 800VA



PC- TFR 1000VA



PC- TFR 1500VA



PC- TFR2000VA



TECHNOLOGY



RELAY CONTROL SYSTERM+MICRO COMPUTER PROGRAMED CONTROL















LED DISPLAY



INFORMATION



INPUT VOLTAGE/OUTPUT VOLTAGE/LOAD USAGE/TIME DELAY/NORMAL WORKING/PROTECTION












PROTECTION



Over Voltage



Output Voltage≥243±4v



Low Voltage



Output Voltage≤188v±4v



Over Loading



More Than 120%



Over Temperture



120°C±10°C



Delay Time



Long time(255 seconds)/Short time(5 seconds)



Creepage




Language



English/Russia/Chinese



Input Voltage



AC150-270V(A TYPE);AC135-AC270V(B TYPE);AC105-AC270(C TYPE);AC80V-AC270V(DTYPE)



Output Voltage



220+/-10% adjustable



Frequency



50Hz/60Hz



Phase



Single phase



Efficency



≥90%



Ambient Temperature



-15°C-45°C



Relative humidity



<95%



Waveform distortion



No additional wave from distortion



Insulation resistance



Normally more than 2MΩ



Power



500VA



800VA



1000VA



1500VA



2000VA



Packing size(cm)



60.3*27.2*34.9



60.3*27.2*34.9



60.3*27.2*34.9



60.3*27.2*34.9



60.3*27.2*34.9



Packing (pcs)



6



6



6



6



6



G.M(KGS)



17.00



18.66



20.56



21.85



27.35









Our Services




Sales service:





1. Warranty: Within one year from the sale date in case of damage.


2. Within one year from the sale date, if there are any accessory problems, you just provide the photos of damaged accessory, then we will provide free accessory.


3. According to the number of products, we will provide easily damaged accessories for free.


4. We can provide technical support, when you need maintained that can do convenience for you.











Company Information


Founded in 1994 year, ZHEJIANG TTN ELECTRIC CO., LTD is situated beautiful in Lucheng light industrial Zone, Wenzhou city and with 30,000 square meter building. It is a member unit of the china electrical equipment industry association. And it also is a high new science and technology enterprise. The company grasps "humanist" as the management philosophy and concept. The company has got ISO9001:2000 international quality systems authentication.





The company mainly produces the voltage stabilizer/regulator /AVR, UPS, Power Supply Switch, Power Inverter, Solar System and so on. All together there are more than 10 kinds of "TTN""TINGLANG" and "tecshell" series products. All products passed the quality inspection by the People's Insurance Company and some products have passed “the Product quality authentication of CQC". And the partial product has passed "the European Economic Community CE safe authentication". In recent years The TTN is continuously evaluated as “the Chinese well-know brand”, “the Chinese quality stands up to the most rigorous test the service to feel relived the prestige brand"





While the Company strictly controls the quality of the products, it also insists on enhancing the quality of the services which has obtained the remarkable results. For theis, the company has successively received the honor of Zhejiang Province for "the advanced technical product" "the superior technical product"





"By my sincerity, will receive in exchange for your heart" is the promise to the users from all staff of the company .the company is continuously devoting to improve the customers living quality and is unceasingly to display the unique specialized technical superiority. The company is also devoted to make the more valuable high technical products which will truly provide the customers with the perfect brand space.





ZHEJIANG TTN ELECTRIC CO., LTD






 OUR WORKSHOP AND LAB



OUR SAMPLE ROOM

  image (1).jpg








FAQ


Q1. What’s the payment term?


A. We accept TT, 30% deposit and 70% balance against copy of BL.





Q2. How’s the delivery time?


A. About 10-25 days for production.





Q3. Tell me the standard of package?


A. For the small capacity, color box as inner package and carton as delivery package. For big capacity, use strong wooden case for protection.





Q4. What kind of material of transformer?


A. Two types: 100% copper, copper with aluminum. Copper is better and also higher price.





Q5. How about the logo? OEM will be ok?


A. Our logo is TTN. If you place big order, we can accept your logo. So OEM is ok. But you use our logo TTN will be high appreciated.





If you have any questions, welcome to contact us.
